产品名称:

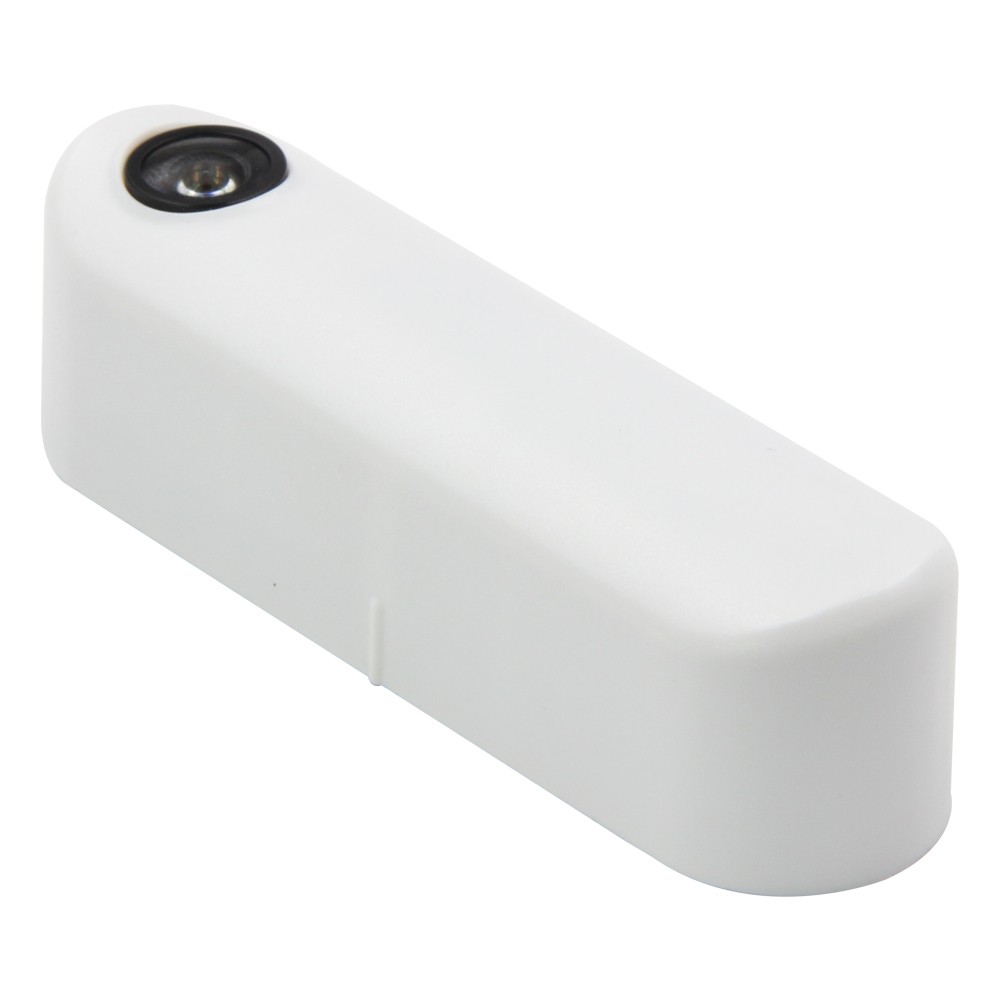

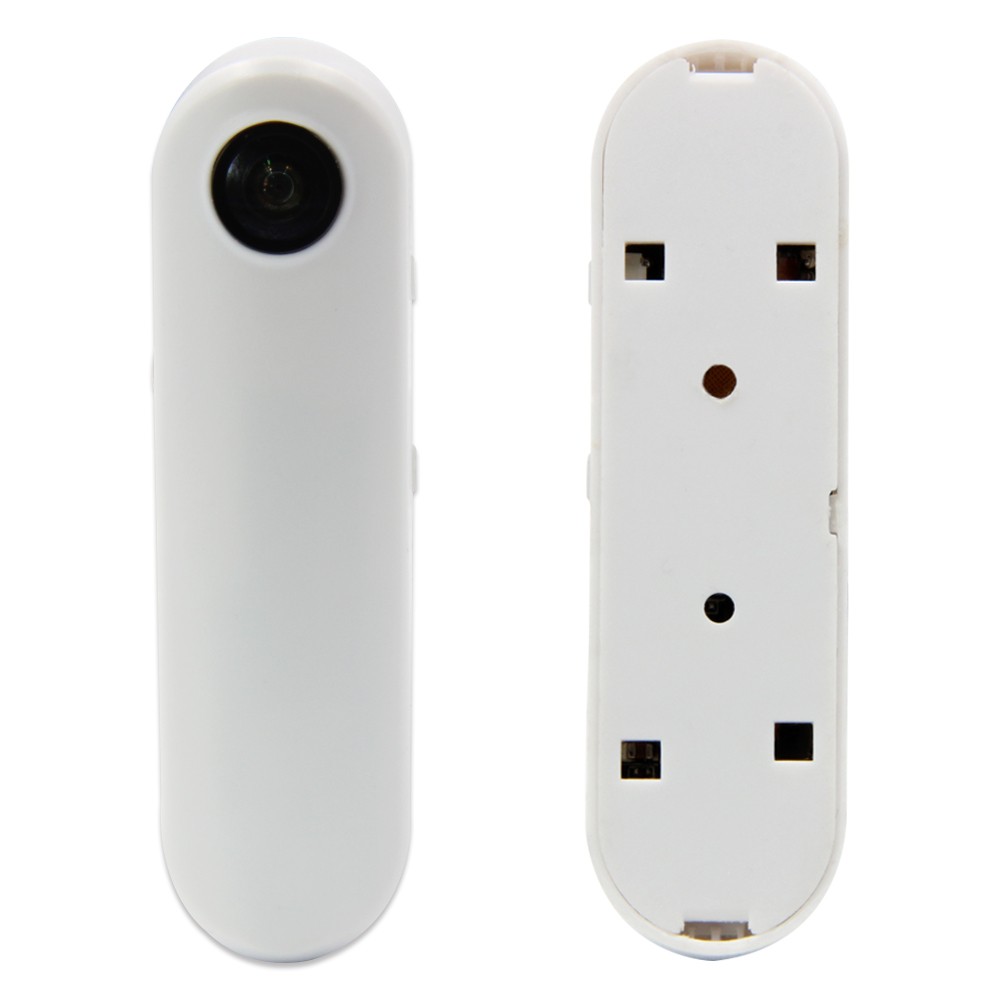

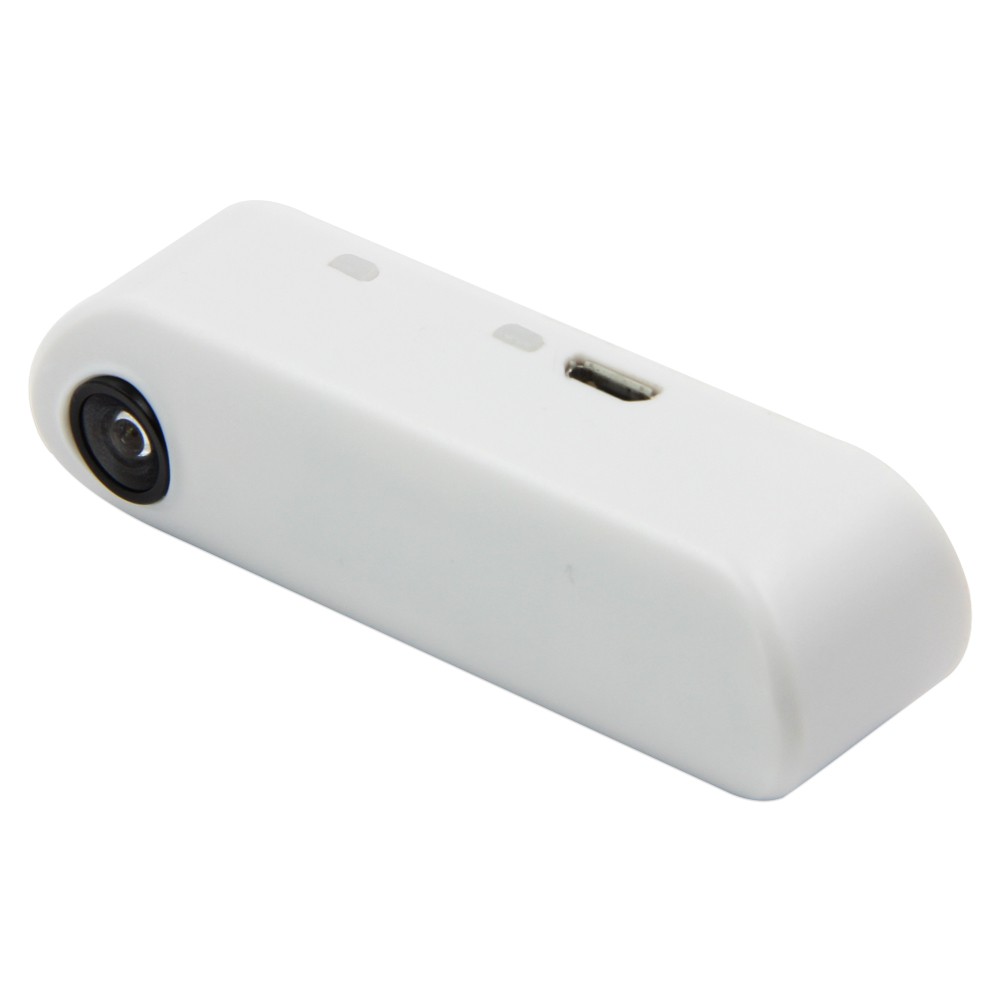

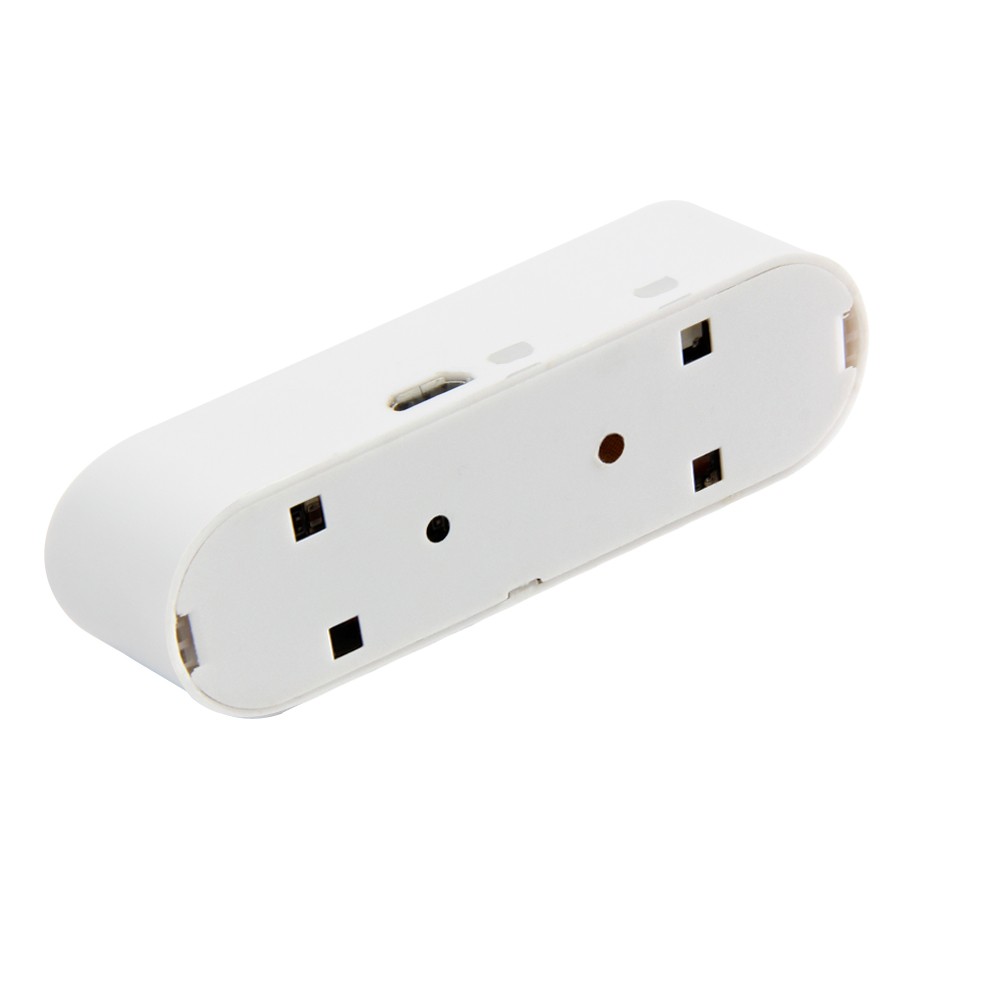

LILYGO® T-Camera Mini Camera Module ESP32 Chip 4MB flash 8MB PSRAM Micro USB Touch Adjustable Fish-Eye Lens Direction

上市日期: 2019-11-04
建议销售价: 0

LILYGO® T-Camera Mini Camera Module ESP32 Chip 4MB flash 8MB PSRAM Micro USB Touch Adjustable Fish-Eye Lens Direction

LILYGO® T-Camera Mini Camera Module ESP32 Chip 4MB flash 8MB PSRAM Type-C Interface Touch Adjustable Fish-Eye Lens Direction

Product Description

Hardware Specifications
ChipsetESP32 Dual-Core
FLASHQSPI flash 4MB / PSRAM  8MB
SRAM 520 kB SRAM
Button
USB to TTLCP2104
Modular interfaceUART、SPI、SDIO、I2C、LED PWM、TV PWM、I2S、IRGPIO、capacitor touch sensor、ADC、DACLNA  pre-amplifier
On-board clock40MHz crystal oscillator
Working voltage2.7V-3.6V
Working currentAbout 160mA
Sleep current
Working temperature range -40℃ ~ +85℃
Size&Weight72mm*21mm*21mm



Power Supply Specifications


Power management ChipAXP192
Power Supply InputUSB 5V/1A
Charging current400mA
Battery Input 3.7-4.2V
Battery3.7V lithium battery
Charge IC
JST Connector

USB




Wi-Fi
StandardFCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (ESP32 chip)
Protocol802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
Frequency range2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power22dBm
Communication distance300m



Bluetooth


ProtocolMeet bluetooth v4.2BR/EDR and BLE standard
Radio frequencyWith -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequencyCVSD&SBC audio frequency



Software specification


Wi-Fi ModeStation/SoftAP/SoftAP+Station/P2P
Security mechanismWPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
Firmware upgradeUART download/OTA(Through network/host to download and write firmware)
Software DevelopmentSupport cloud server development /SDK for user firmware development
Networking protocolIPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User ConfigurationAT + Instruction set, cloud server, android/iOSapp
OSFreeRTOS



More Information

https://github.com/Xinyuan-LilyGO/LilyGo-Camera-Series/blob/master/docs/T_CameraMini.md





Size Chart

LILYGO® T-Camera Mini Camera Module ESP32 Chip 4MB flash 8MB PSRAM Type-C Interface Touch Adjustable Fish-Eye Lens Direction



Product Detail

LILYGO® T-Camera Mini Camera Module ESP32 Chip 4MB flash 8MB PSRAM Micro USB Touch Adjustable Fish-Eye Lens Direction

LILYGO® T-Camera Mini Camera Module ESP32 Chip 4MB flash 8MB PSRAM Type-C Interface Touch Adjustable Fish-Eye Lens DirectionLILYGO® T-Camera Mini Camera Module ESP32 Chip 4MB flash 8MB PSRAM Type-C Interface Touch Adjustable Fish-Eye Lens DirectionLILYGO® T-Camera Mini Camera Module ESP32 Chip 4MB flash 8MB PSRAM Type-C Interface Touch Adjustable Fish-Eye Lens Direction

Product Display



LILYGO® T-Camera Mini Camera Module ESP32 Chip 4MB flash 8MB PSRAM Type-C Interface Touch Adjustable Fish-Eye Lens Direction



Shipping List

1 X T-Camera Mini

LILYGO® T-Camera Mini Camera Module ESP32 Chip 4MB flash 8MB PSRAM Type-C Interface Touch Adjustable Fish-Eye Lens Direction

LILYGO® T-Camera Mini Camera Module ESP32 Chip 4MB flash 8MB PSRAM Type-C Interface Touch Adjustable Fish-Eye Lens DirectionLILYGO® T-Camera Mini Camera Module ESP32 Chip 4MB flash 8MB PSRAM Type-C Interface Touch Adjustable Fish-Eye Lens Direction
