产品名称：
LILYGO® 433MHZ Built-in FPC Small Size Patch Antenna Adhesive Digital Module Antenna IPEX

上市日期： 2019-08-20

建议销售价: 0

433MHZ Built-in FPC Small Size Patch Antenna Adhesive Digital Module Antenna IPEX

Specifications

Product Name: 433MHZ built-in FPC antenna
Frequency range: 400-433-470MHZ
Standing wave ratio: <1.5

Antenna gain: 3DB

Impedance: 50Ω

Antenna size: 30 * 6 * 0.3mm

Wire length (height): 110MM (total length 14cm, length 11CM, circuit board length 3CM)

Interface Type: IPEX Head

Operating temperature: - 40 ° C ~ + 65 ° C

Storage temperature: - 40 ° C ~ + 80 ° C

Wire size: 1.13 lines

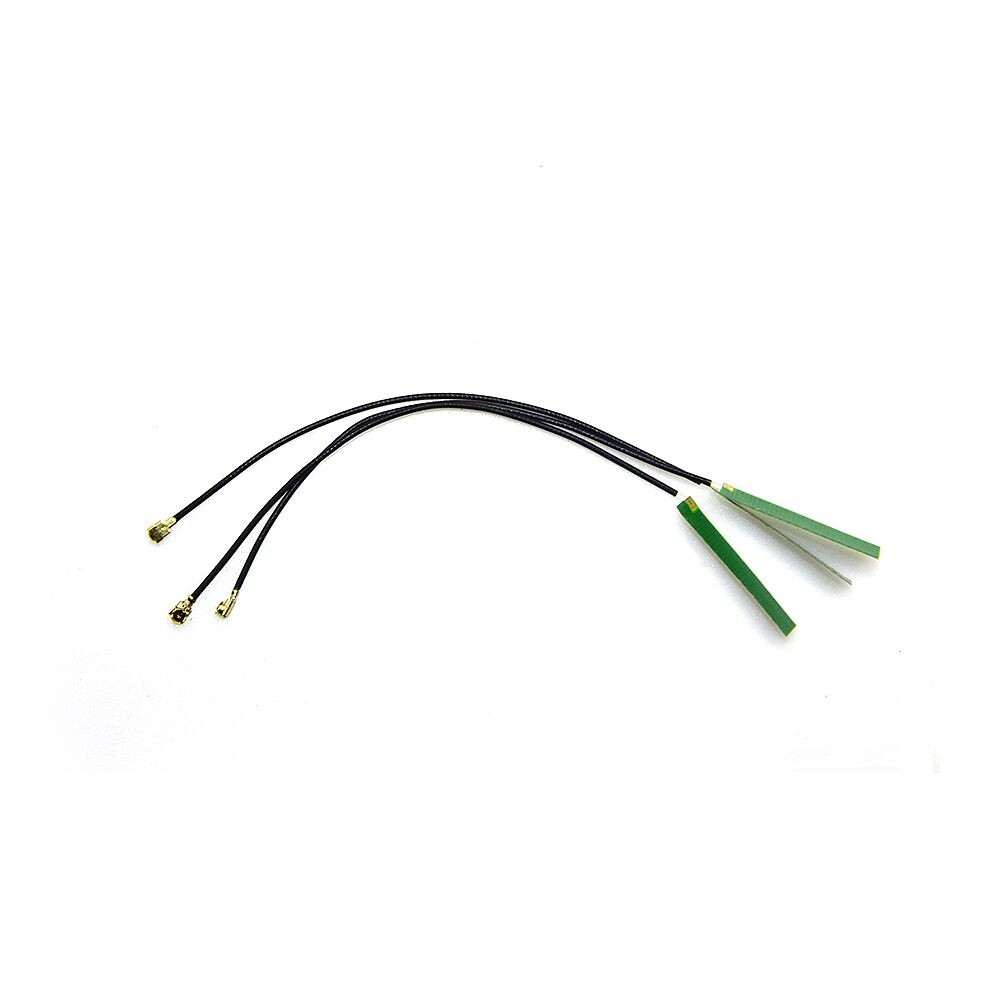

LILYGO® 433MHZ Built-in FPC Small Size Patch Antenna Adhesive Digital Module Antenna IPEX

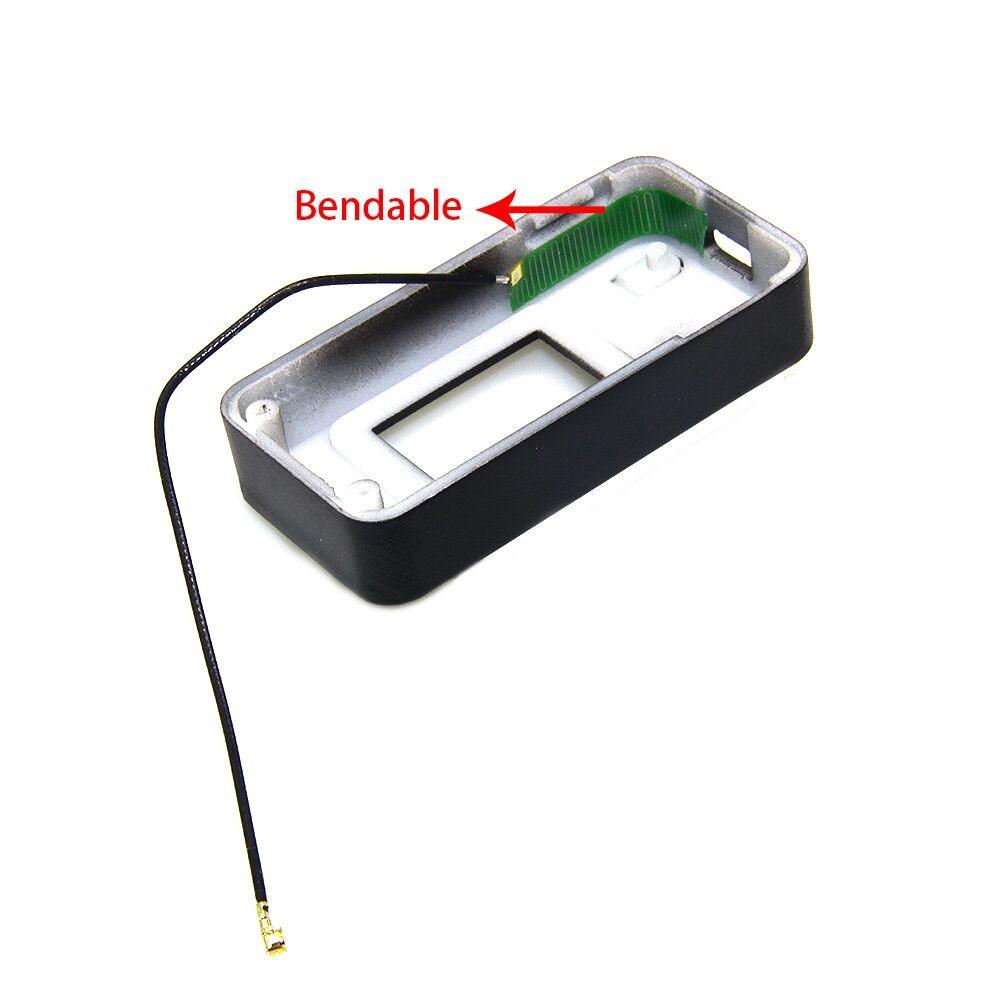

Use Examples

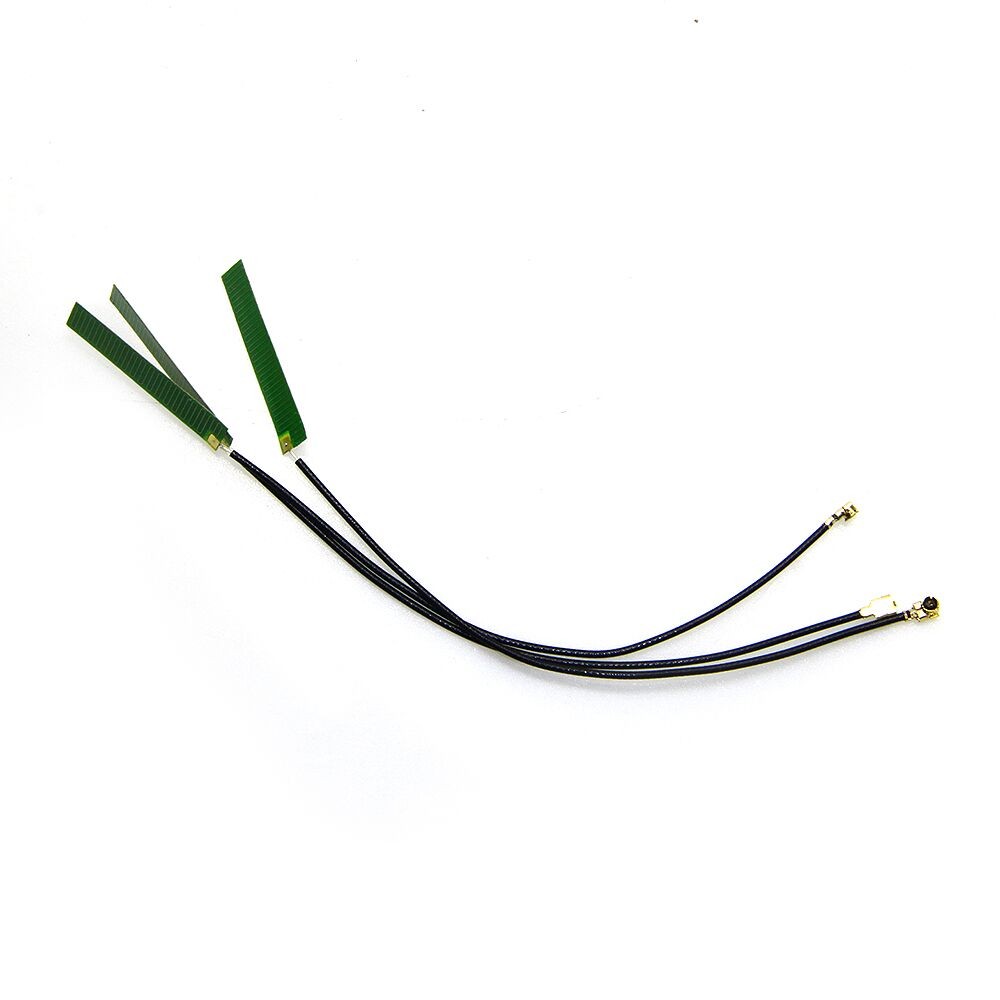

LILYGO® 433MHZ Built-in FPC Small Size Patch Antenna Adhesive Digital Module Antenna IPEX

Shipping List：

433mhz IPEX Antenna*1

LILYGO® 433MHZ Built-in FPC Small Size Patch Antenna Adhesive Digital Module Antenna IPEX
