产品名称:

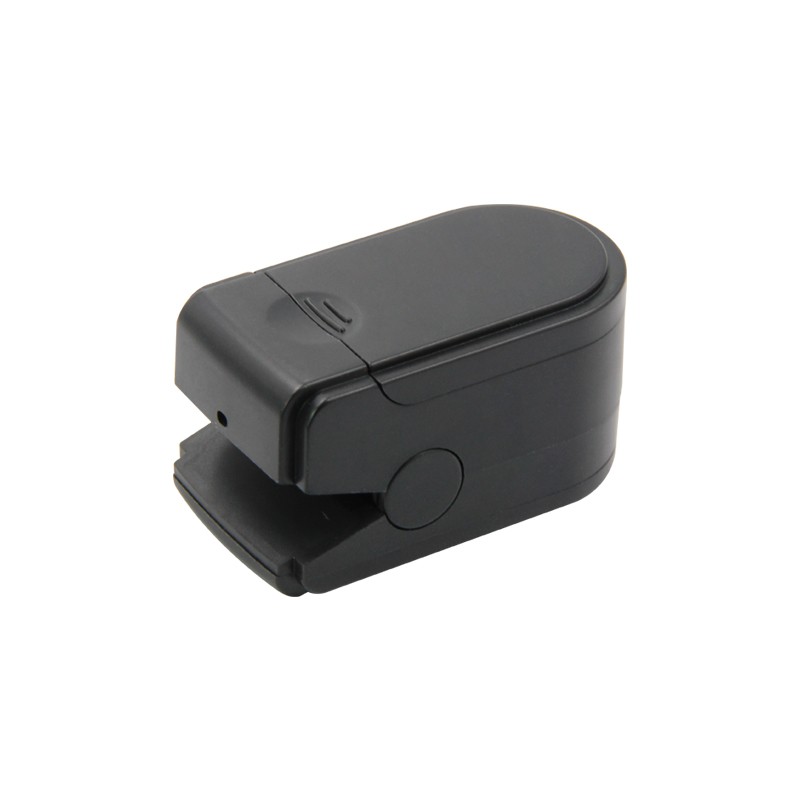

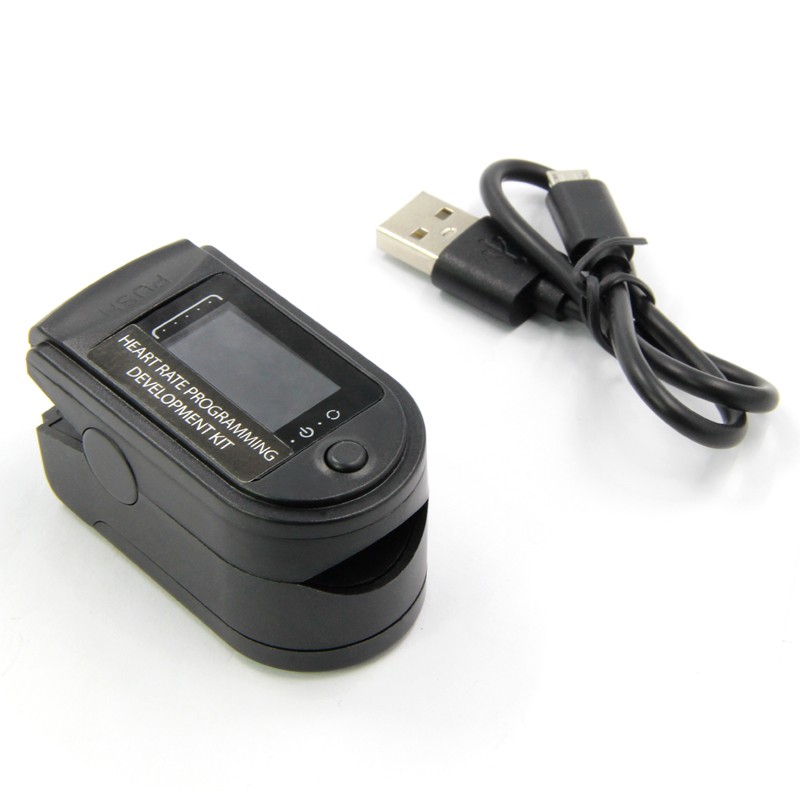

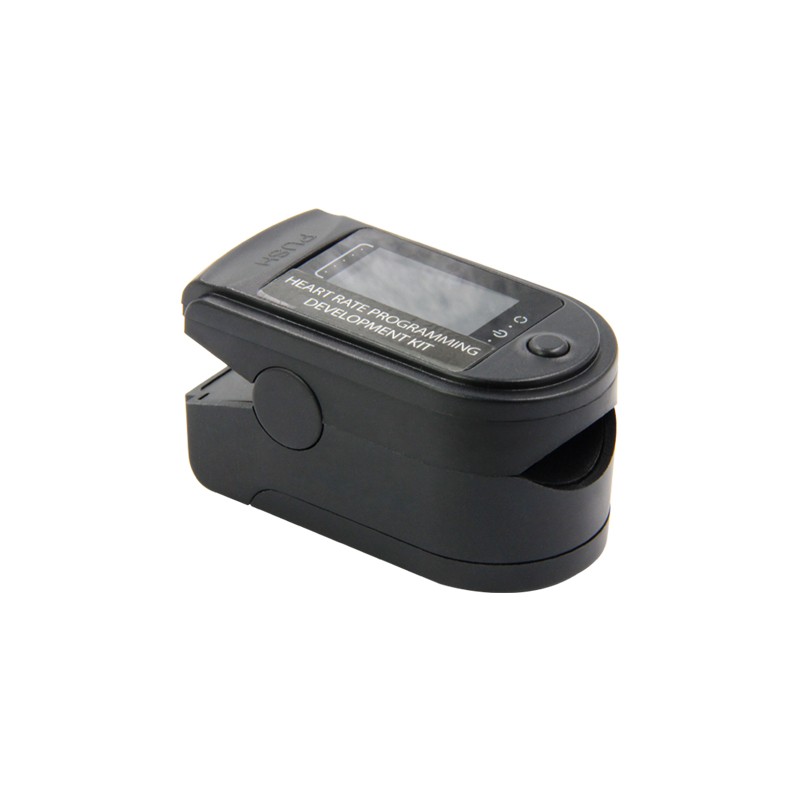

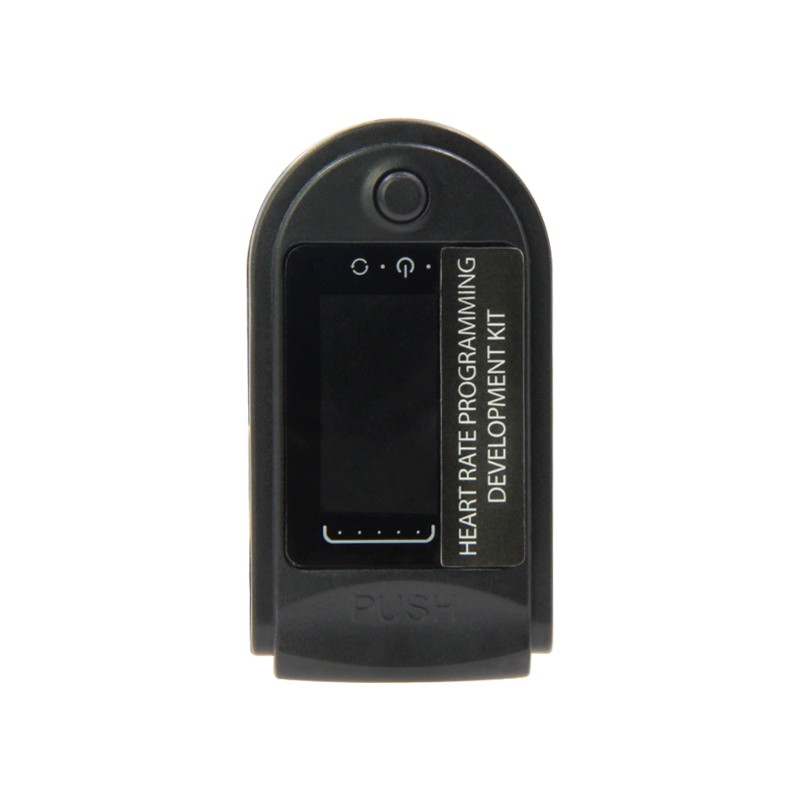

LILYGO®TTGO Heart rate programming development kit ESP32 WIFI Bluetooth IPS 0.96 LCD

上市日期: 2020-08-29
建议销售价: 19.32

Hardware Specifications


Chipset:ESP32 WIFI/Bluetooth



USB TO TTL:CP2104



LCD:0.96 IPS LCD



Heart rate blood oxygen sensor:MAX30102



Six-axis attitude sensor chip:MPU6050



RTC:PCF8563



Customizable buttons:Button



Battery:200mah



Charging voltage and current:5V,500mah



More Information:



https://github.com/Xinyuan-LilyGO/LilyGo-HeartRate-Kit
