LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware



LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)

Product Description

Hardware Specifications
ChipsetESP32-WROVER-B,AXP192 Power Management Chip
FLASH4MB
PSRAM 8MB
SRAM 520 kB SRAM
ButtonPWR Power Switch,Reset
USB to TTLCP2104
On-board clock40MHz crystal oscillator
PeripheralsSIM Nano Card Slot,Mini PCIE Card Slot
AntennaOnboard antenna(Default)
Working voltage2.7V-3.6V
Working current
Sleep currentAbout 700uA
Working temperature range -40℃ ~ +85℃
Size75*33*10.5mm
Weight14.5g



Power Supply Specifications


Power Supply InputUSB 5V/1A
Charging current500mA
Battery Input 3.7-4.2V
Charge ICAXP192
JST Connector2Pin 2.0mm
USBType-C



Wi-Fi


StandardFCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (ESP32 Chip)
Protocol802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
Frequency range2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power22dBm
Communication distance300m



Bluetooth


ProtocolMeet bluetooth v4.2BR/EDR and BLE standard
Radio frequencyWith -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequencyCVSD&SBC audio frequency
Software specification
Wi-Fi ModeStation/SoftAP/SoftAP+Station/P2P
Security mechanismWPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
Firmware upgradeUART download/OTA(Through network/host to download and write firmware)
Software DevelopmentSupport cloud server development /SDK for user firmware development
Networking protocolIPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User ConfigurationAT + Instruction set, cloud server, android/iOSapp
OSFreeRTOS



More Information

https://github.com/Xinyuan-LilyGO/LilyGo-T-PCIE

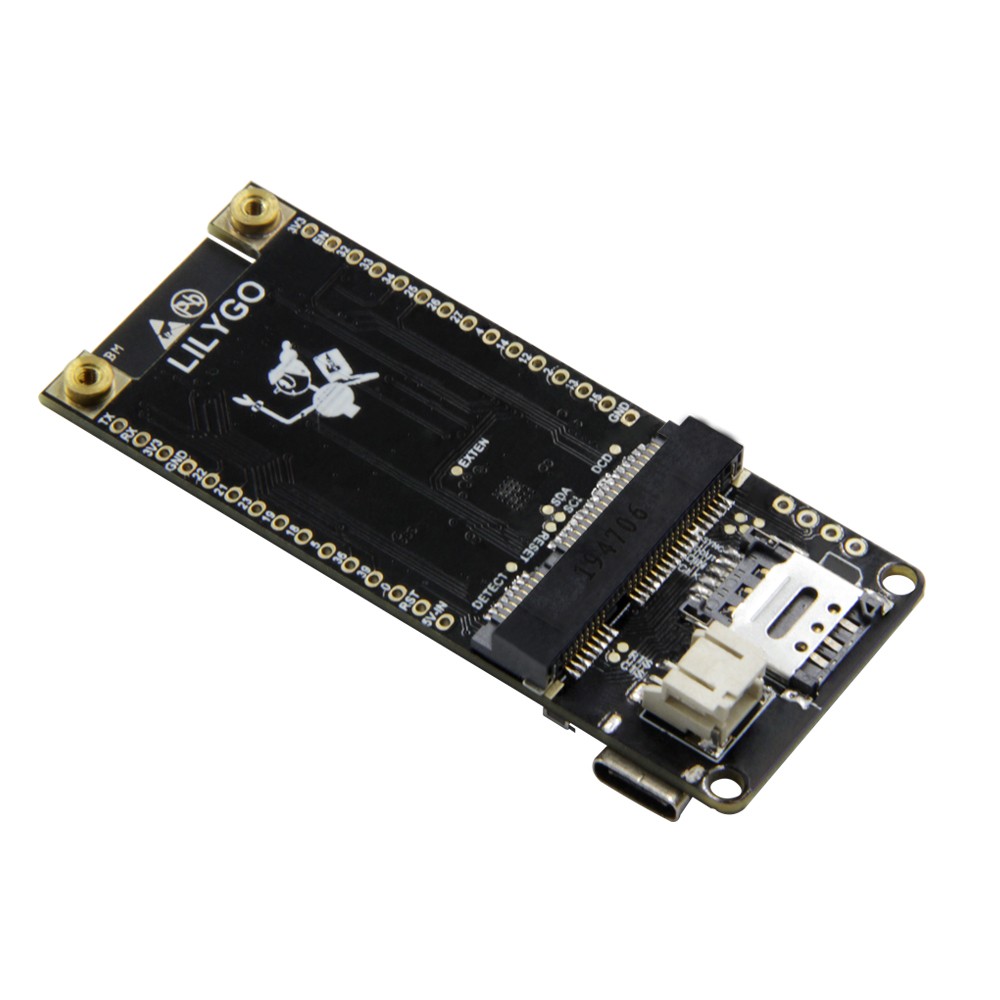

Product Pin

LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)



Product Size

LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)

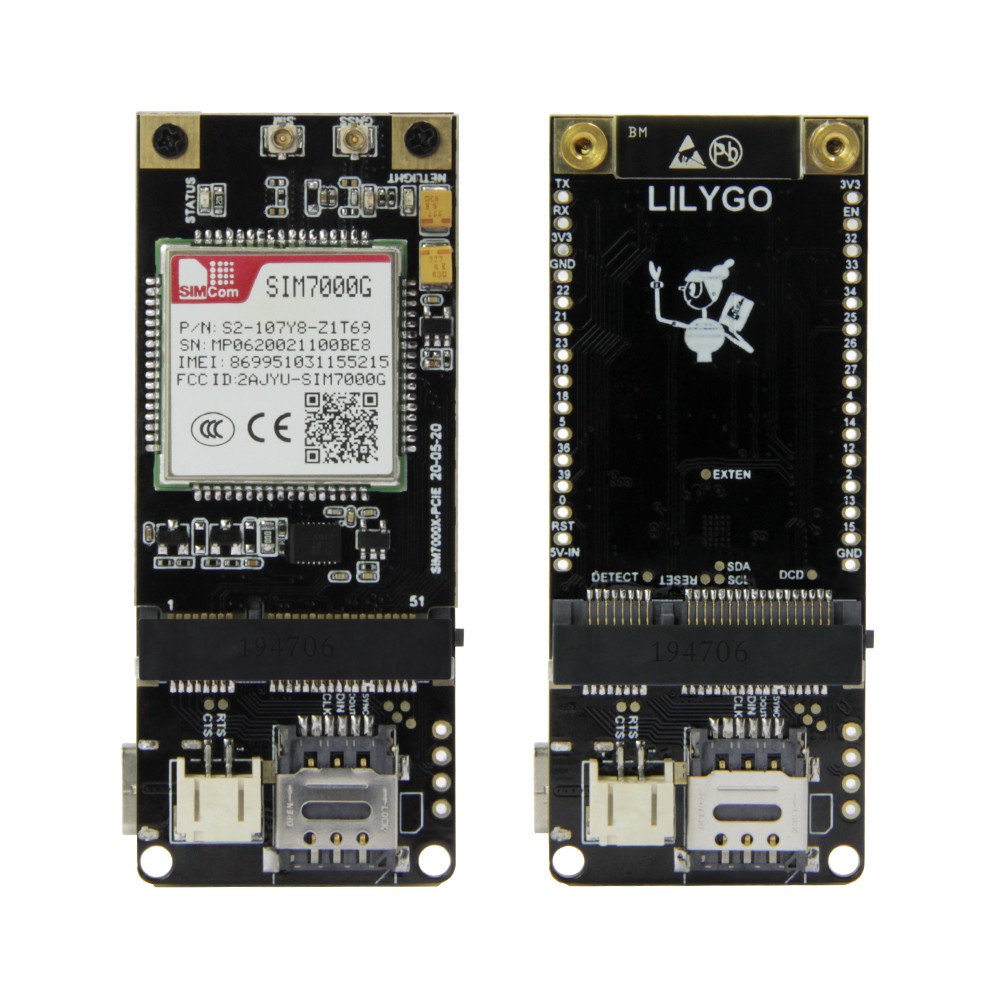

Product Detail

LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)

LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)

LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)



LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)



LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)

LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)

Shipping List

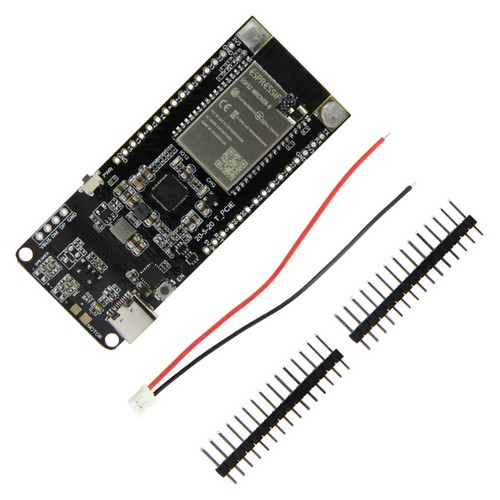

T-PCIE Option

1 X T-PCIE
1 X Charging Cable
2 X Pin



LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)

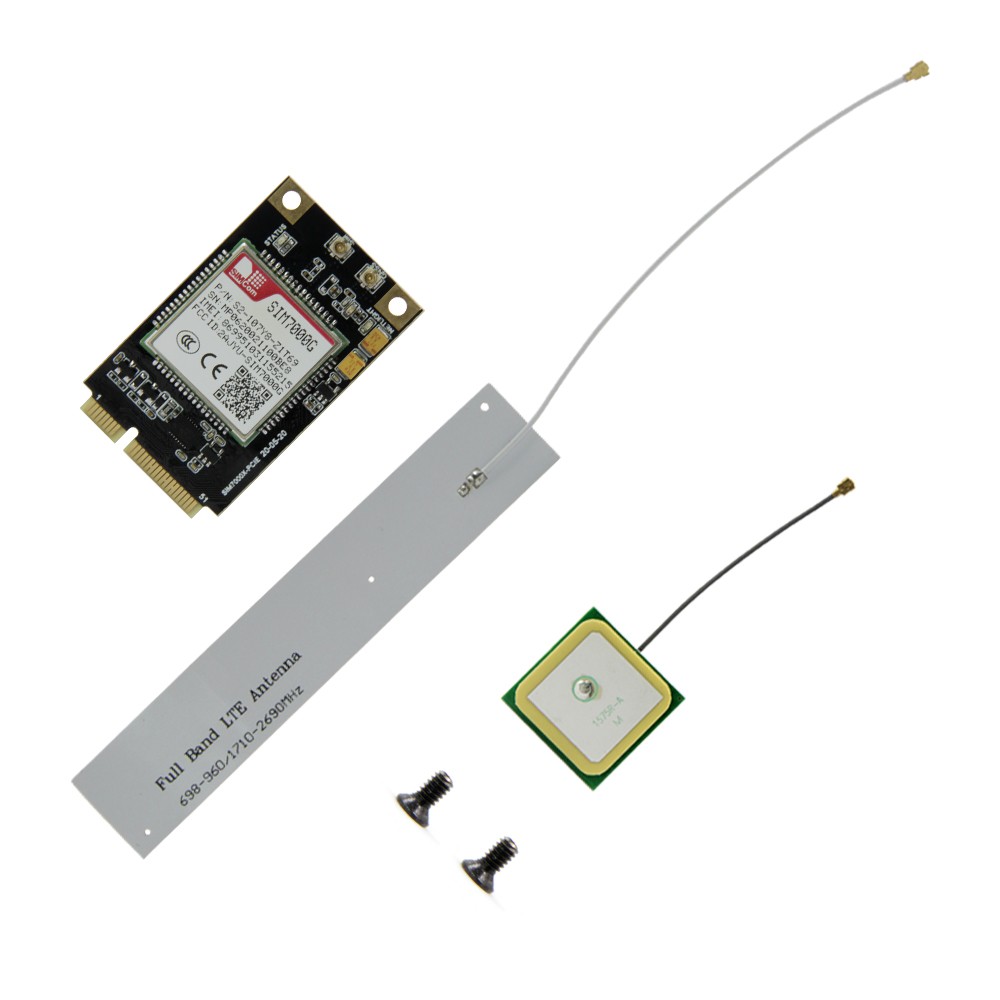

PCIE-SIM7000G Module Option

1 X PCIE-SIM7000G Module
1 X LTE antenna
1 X GPS antenna
2 X Screw



LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)

PCIE-SIM7600SA Module Option

1 X PCIE-SIM7600SA Module
1 X LTE antenna
1 X GPS antenna
2 X Screw
LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)

PCIE-SIM7600E Module Option

1 X PCIE-SIM7600E Module
1 X LTE antenna
1 X GPS antenna
2 X Screw
LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)

PCIE-SIM7600A Module Option

1 X PCIE-SIM7600A Module
1 X LTE antenna
1 X GPS antenna
2 X Screw
LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)

PCIE-SIM7600JC Module Option

1 X PCIE-SIM7600JC Module
1 X LTE antenna
1 X GPS antenna
2 X Screw
LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)


PCIE-SIM7070G Module Option

1 X PCIE-SIM7070G Module
1 X LTE antenna
1 X GPS antenna
2 X Screw
LILYGO® TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Bluetooth Nano Card SIM Series Composable Development Board Hardware(1)(1)
