产品名称:

LILYGO® TTGO T8 ESP32-S2 V1.1 WIFI Wireless Module Type-c Connector TF Card Slot Development Board

上市日期: 2020-05-26
建议销售价: 0

LILYGO® TTGO T8 ESP32-S2 V1.1 WIFI Wireless Module Type-C Connector TF Card Slot Development Board

LILYGO® TTGO T8 ESP32-S2 V1.1 WIFI Wireless Module Type-c Connector TF Card Slot Development Board

Product Description

Hardware Specifications
ChipsetESPRESSIF-ESP32-S2
FLASH 4MB
PSRAM   8MB
SRAM 320 kB SRAM
ButtonPower Switch,Rest,Boot,Customize,DPI Switch
External DeviceTF Card
USB to TTLCH340C
Modular interface SD card、UART、SPI、I2C、PWM、I2S、ADC
On-board clock32.768KHz crystal oscillator
Working voltage2.7V-3.6V
Working temperature range -40℃ ~ +85℃
Weight7g
Size65.21*25.95*5mm



Power Supply Specifications


Power Supply InputUSB 5V/1A
Charging current500mA
Battery Input 3.7-4.2V
JST Connector2Pin 1.25mm
USBType-C USB
Wi-Fi
StandardFCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip)
Protocol802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
Frequency range2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power22dBm
Communication distance300m


More Information

https://github.com/Xinyuan-LilyGO/LilyGoesp32s2-base



Product Pin

LILYGO® TTGO T8 ESP32-S2 V1.1 WIFI Wireless Module Type-c Connector TF Card Slot Development Board



Product Size

LILYGO® TTGO T8 ESP32-S2 V1.1 WIFI Wireless Module Type-c Connector TF Card Slot Development Board

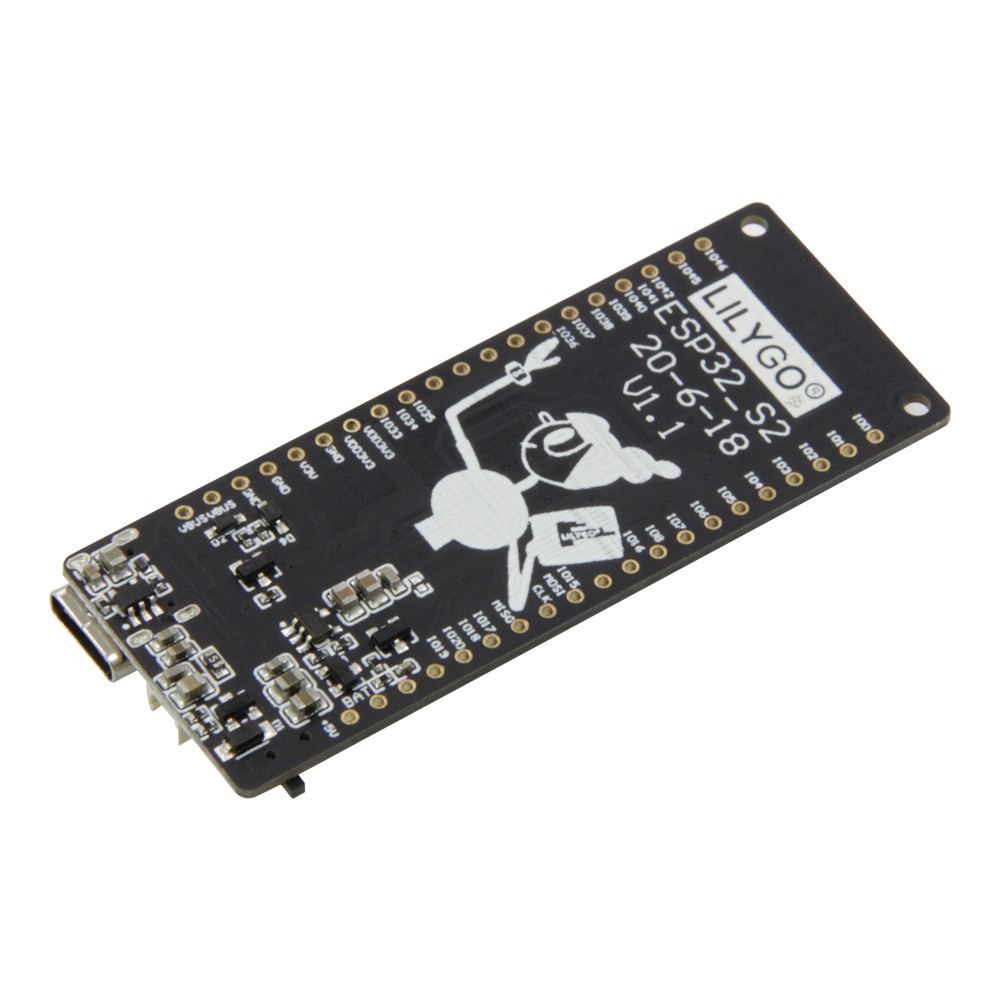

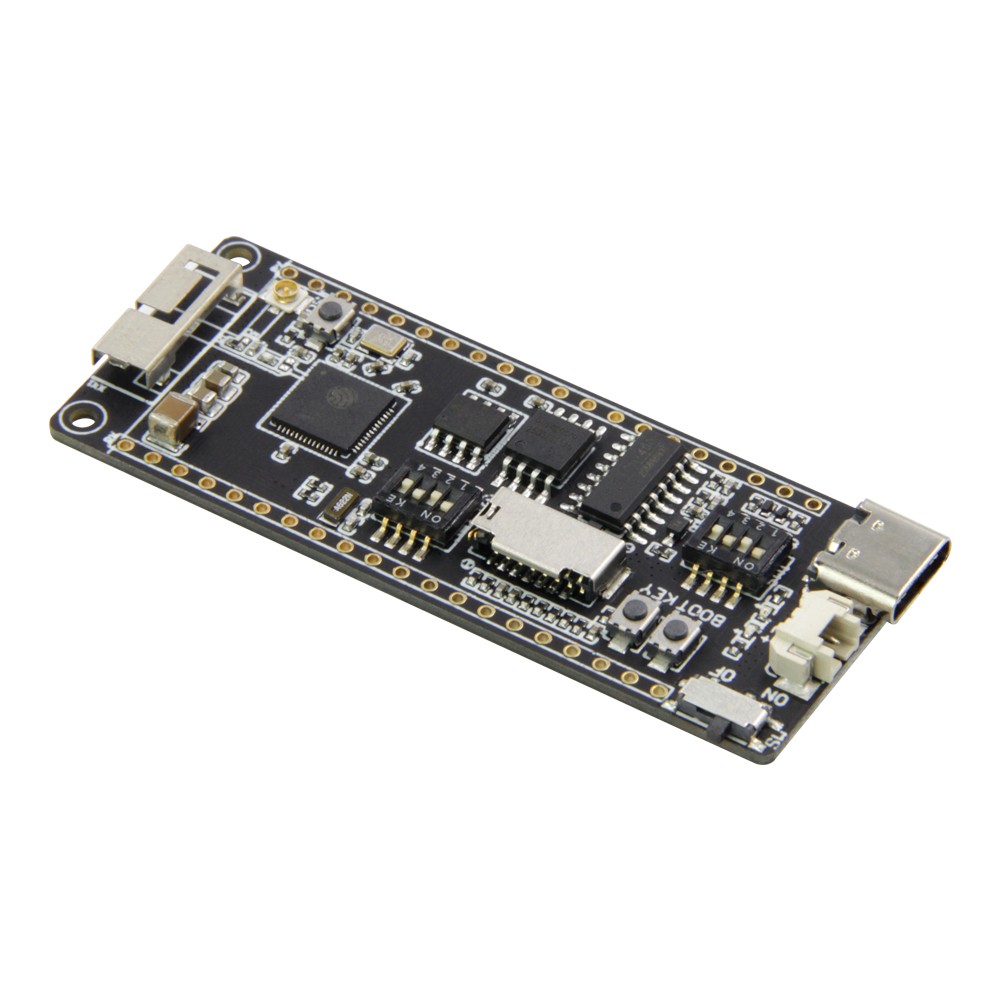

Product Detail

Note:The product does not solder pin headers by default, the pictures are only for reference

LILYGO® TTGO T8 ESP32-S2 V1.1 WIFI Wireless Module Type-c Connector TF Card Slot Development Board



LILYGO® TTGO T8 ESP32-S2 V1.1 WIFI Wireless Module Type-c Connector TF Card Slot Development Board

LILYGO® TTGO T8 ESP32-S2 V1.1 WIFI Wireless Module Type-c Connector TF Card Slot Development Board

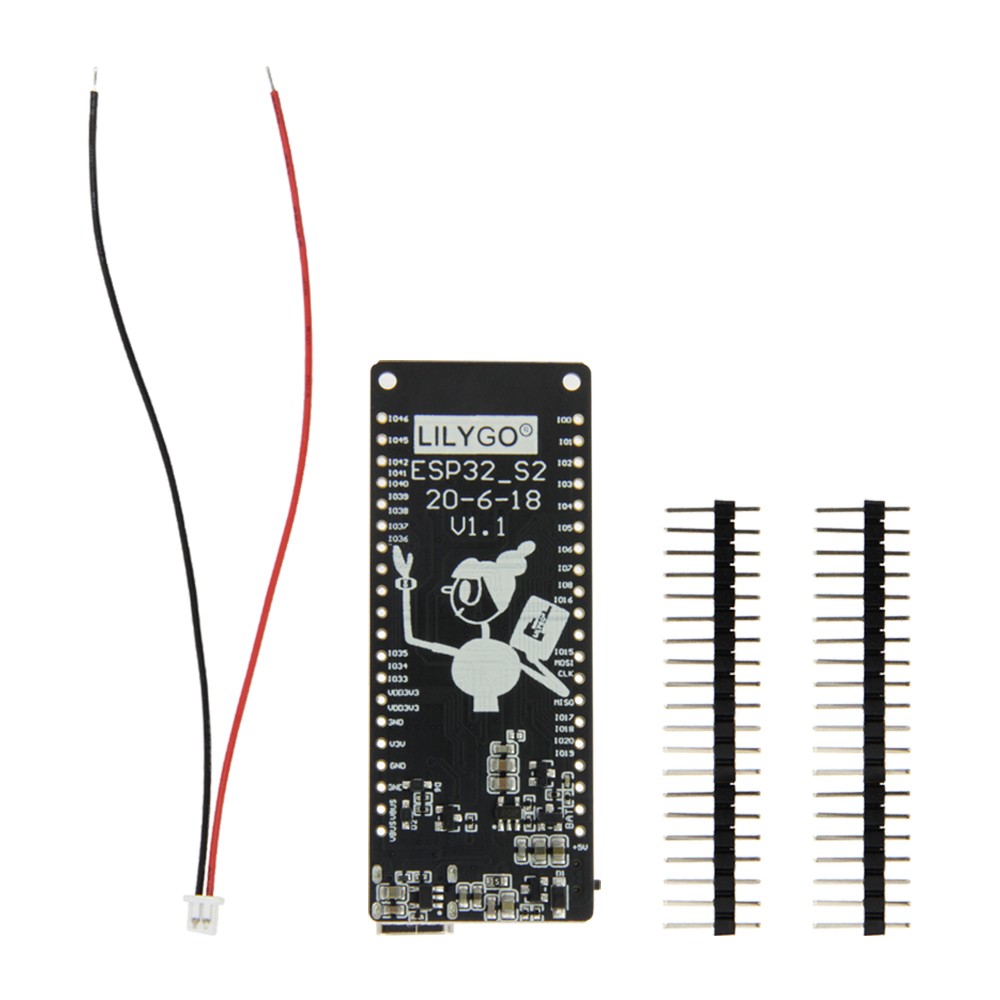

Shipping List

1 X T8 ESP32-S2 V1.1 Board

1 X Charing Cable

2 X Pin

LILYGO® TTGO T8 ESP32-S2 V1.1 WIFI Wireless Module Type-c Connector TF Card Slot Development Board

LILYGO® TTGO T8 ESP32-S2 V1.1 WIFI Wireless Module Type-c Connector TF Card Slot Development Board

LILYGO® TTGO T8 ESP32-S2 V1.1 WIFI Wireless Module Type-c Connector TF Card Slot Development Board
LILYGO® TTGO T8 ESP32-S2 V1.1 WIFI Wireless Module Type-c Connector TF Card Slot Development Board
