产品名称:

LILYGO® TTGO T-OI ESP8266 Chip Rechargeable 16340 Battery Holder Compatible With MINI D1 Development Board

上市日期: 2019-12-02
建议销售价: 0

LILYGO® TTGO T-OI ESP8266 Chip Rechargeable 16340 Battery Holder Compatible With MINI D1 Development Board

LILYGO® TTGO T-OI ESP8266 Chip Rechargeable 16340 Battery Holder Compatible With MINI D1 Development Board

Product Description

T-OI As the name suggests, T is still our T series. TOI is from the right to the left, meaning IOT products. This product uses IOT chip ESP8266.

Features
1. Added 16340 electrical socket to the ordinary development board, which can use the corresponding rechargeable 16340 battery to power the system, which is convenient, beautiful and practical.
2. The product is compact and the size design extends the size design of this battery holder.
3. All IO ports are reserved from both sides, compatible with the distance between MINI D1 extended version and breadboard. Grove interface is reserved at the same time, compatible with Grove interface module, and T-Watch sensor module (T-Watch special connection cable needs to be connected).
4. We will design more convenient expansion modules to match the motherboard to facilitate the realization of various ideas for learners.



Hardware Specifications
ChipsetESP8266EX
FLASH4MB
Size43.96X25.63X20.80MM
Weight7.87g
Power Supply
Battery16340 3.7V rechargeable lithium battery
battery switchYes
USBmicro USB
Wi-Fi
External antenna mountWith IPX antenna mount
WIFI antennaCeramic antenna

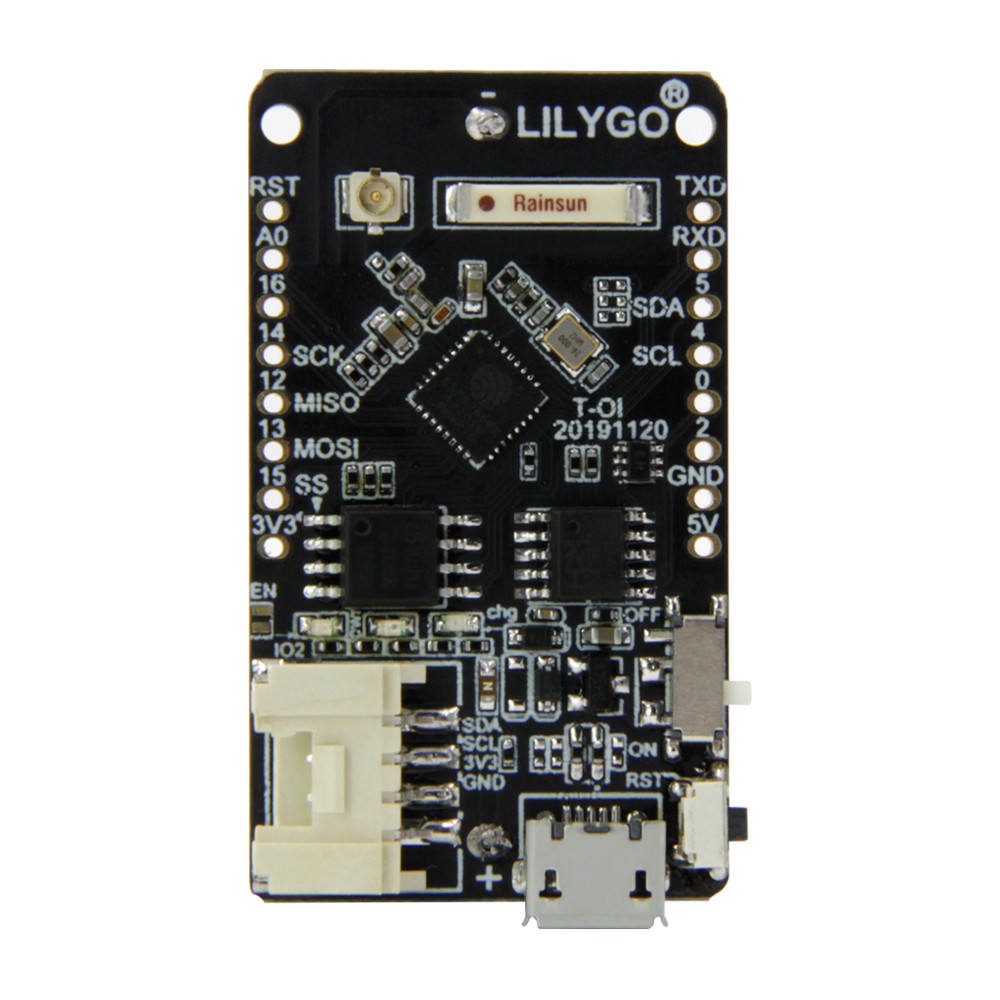

Product Pin Diagram:

LILYGO® TTGO T-OI ESP8266 Chip Rechargeable 16340 Battery Holder Compatible With MINI D1 Development Board





Product Size

LILYGO® TTGO T-OI ESP8266 Chip Rechargeable 16340 Battery Holder Compatible With MINI D1 Development Board

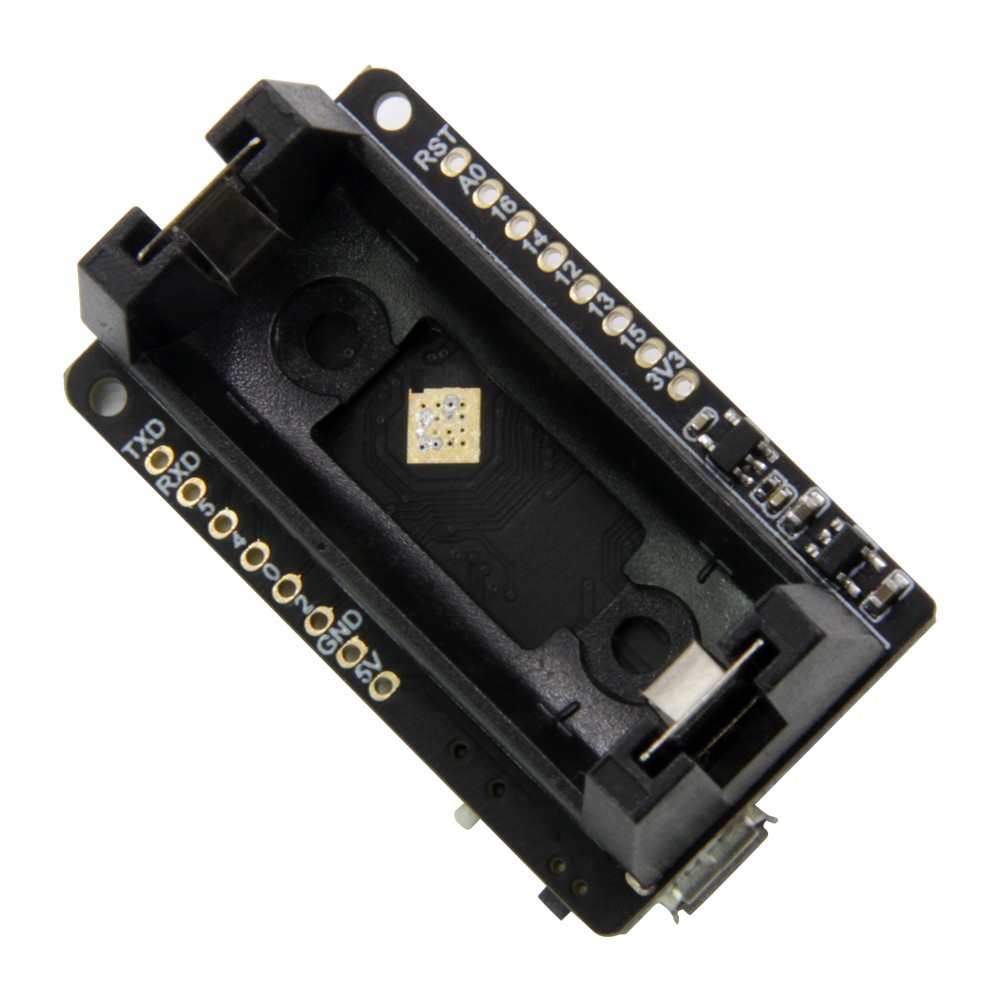

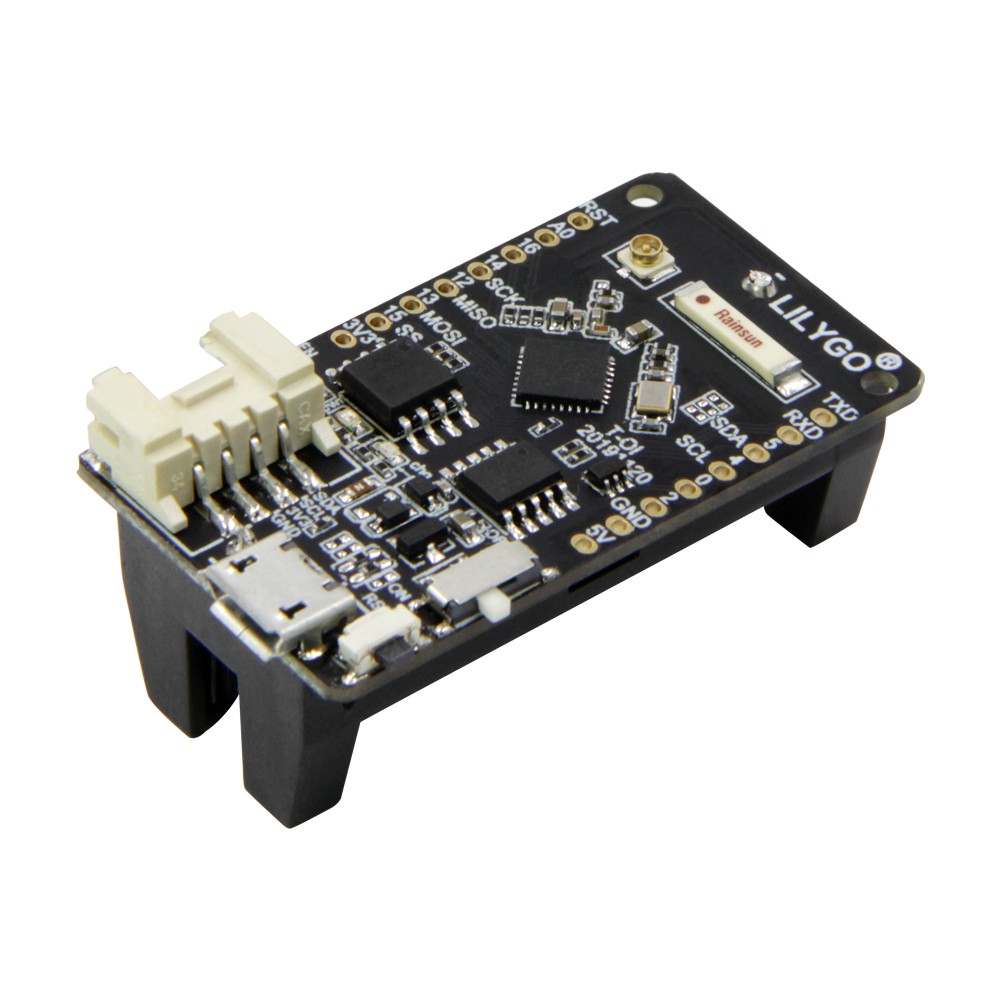

Product Detail

LILYGO® TTGO T-OI ESP8266 Chip Rechargeable 16340 Battery Holder Compatible With MINI D1 Development BoardLILYGO® TTGO T-OI ESP8266 Chip Rechargeable 16340 Battery Holder Compatible With MINI D1 Development BoardLILYGO® TTGO T-OI ESP8266 Chip Rechargeable 16340 Battery Holder Compatible With MINI D1 Development BoardLILYGO® TTGO T-OI ESP8266 Chip Rechargeable 16340 Battery Holder Compatible With MINI D1 Development Board

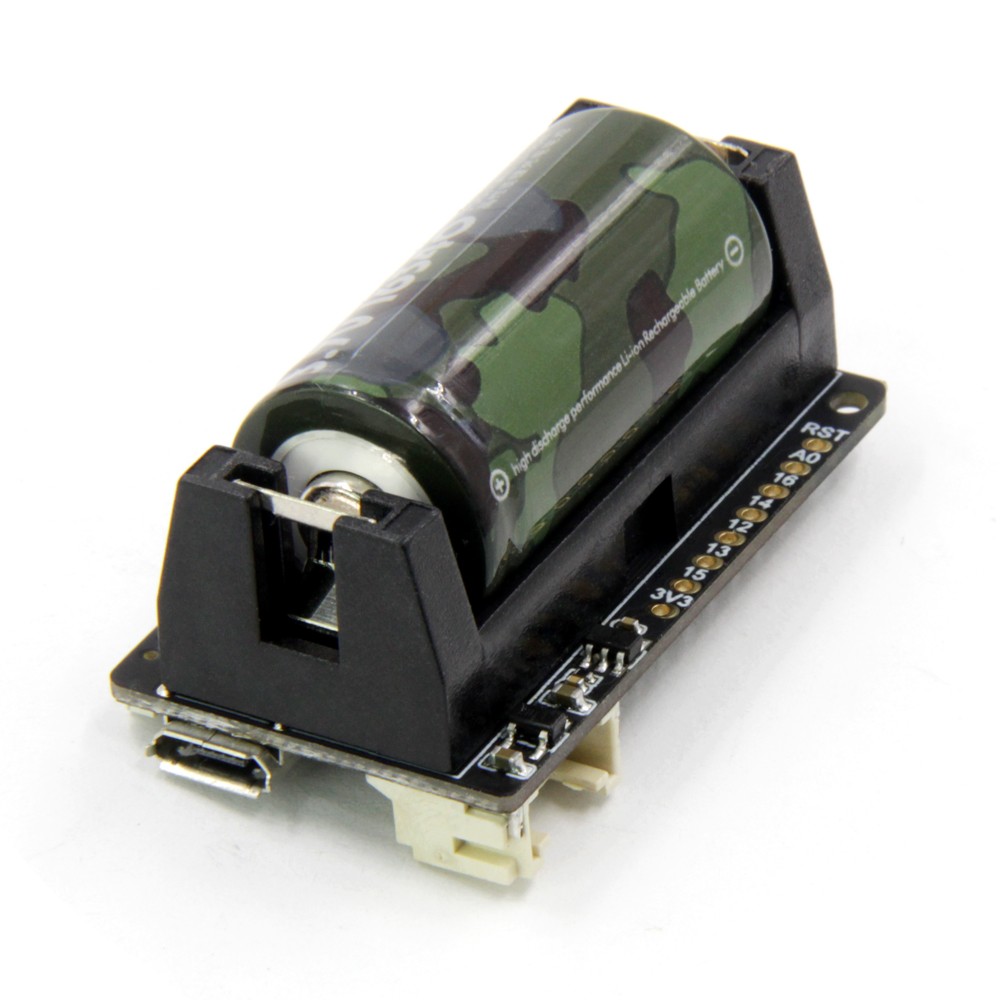

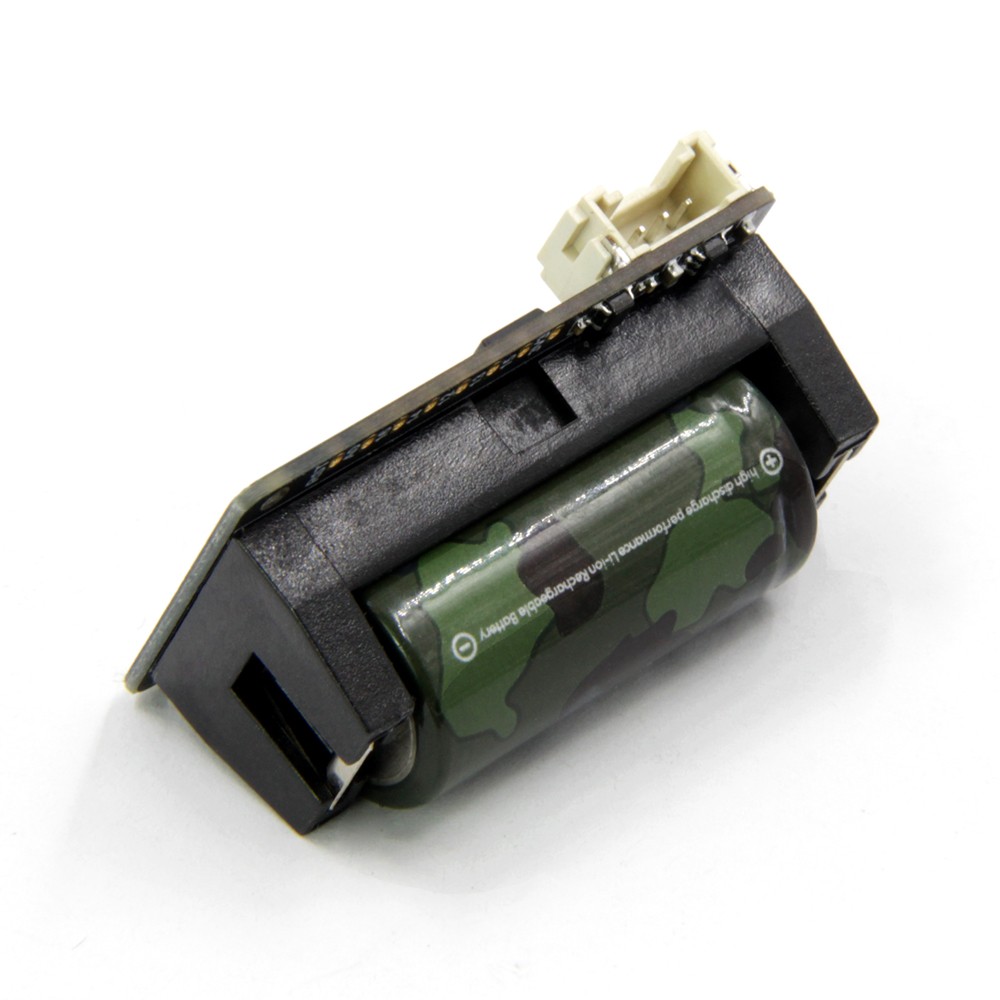

Product With Battery Display

Note:This product does not include 16320 batteries, pictures are for display only.

LILYGO® TTGO T-OI ESP8266 Chip Rechargeable 16340 Battery Holder Compatible With MINI D1 Development Board

LILYGO® TTGO T-OI ESP8266 Chip Rechargeable 16340 Battery Holder Compatible With MINI D1 Development Board

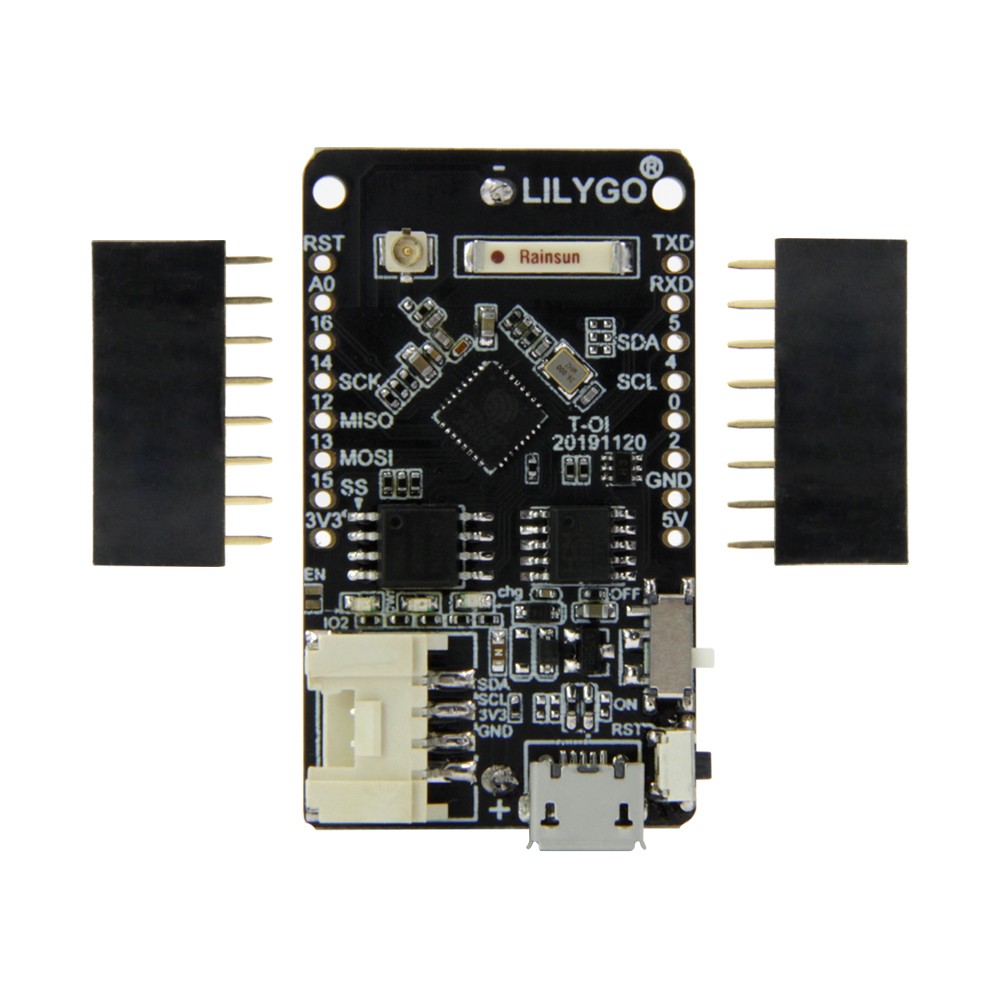

Shipping List

1 X T-OI

2 X Pin

LILYGO® TTGO T-OI ESP8266 Chip Rechargeable 16340 Battery Holder Compatible With MINI D1 Development Board



LILYGO® TTGO T-OI ESP8266 Chip Rechargeable 16340 Battery Holder Compatible With MINI D1 Development Board
