产品名称：
LILYGO® ESP32 Module+Heart-Rate Sensor Bluetooth+Wifi 0.91 OLED

上市日期： 2019-08-20

建议销售价: 0

ESP32 Module+Heart-Rate Sensor Bluetooth+Wifi 0.91 OLED

Product Use

LILYGO® ESP32 Module+Heart-Rate Sensor Bluetooth+Wifi 0.91 OLED

More product information, please enter https://github.com/LilyGO/ESP32-Pulsesensor-Heart-Rate-Sensor

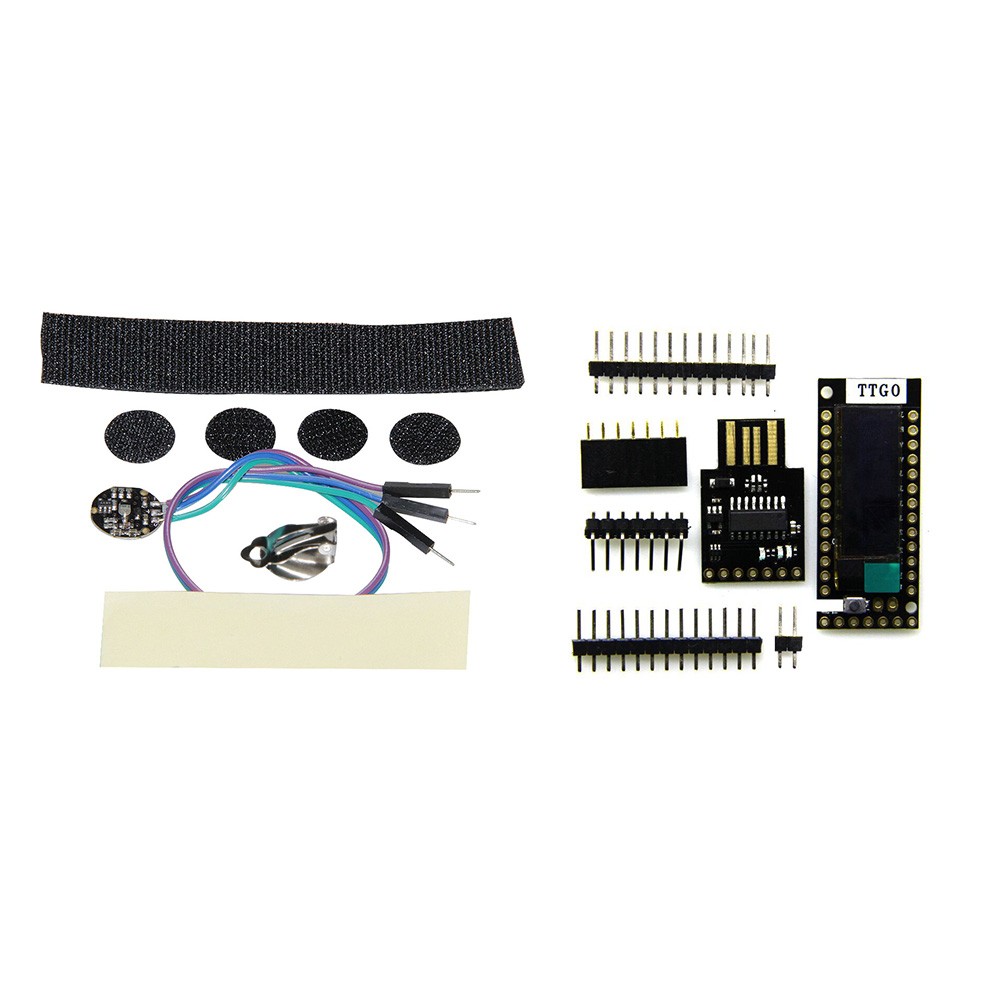

Shipping List(Shipping list not include battery)

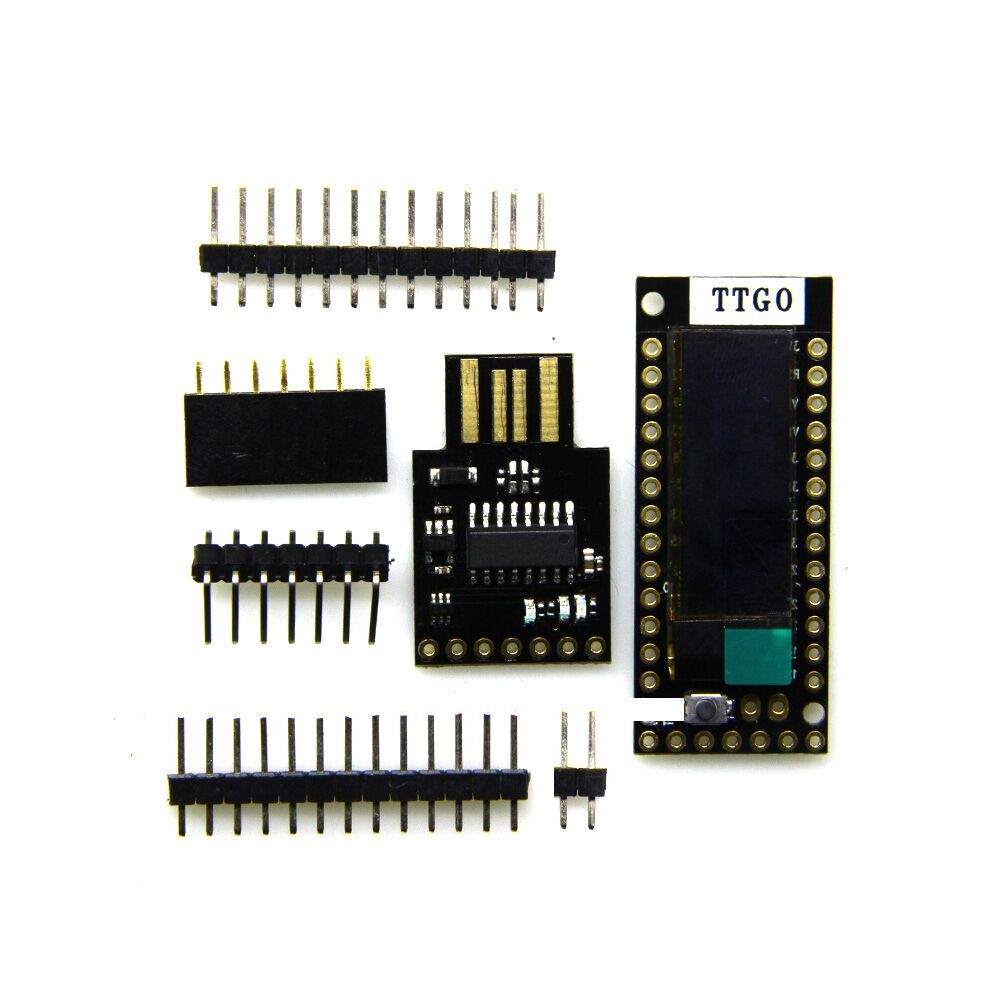

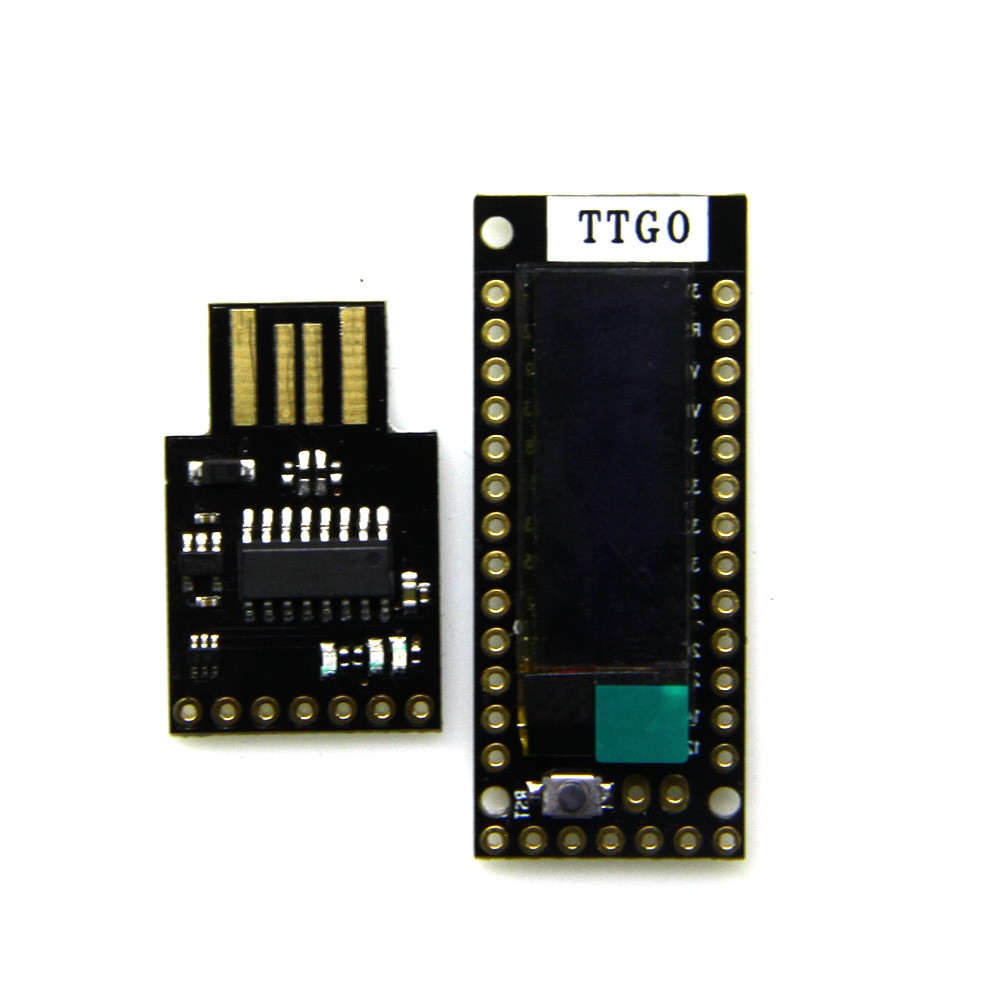

TTGO TQ ESP32 0.91 OLED WIFI&bluetooth Module*1

USB to TTL converter UART module CH340C *1

1X13 pin *2
1X7 row female *1
1X7 bent pin *1

1X2 Pin*1

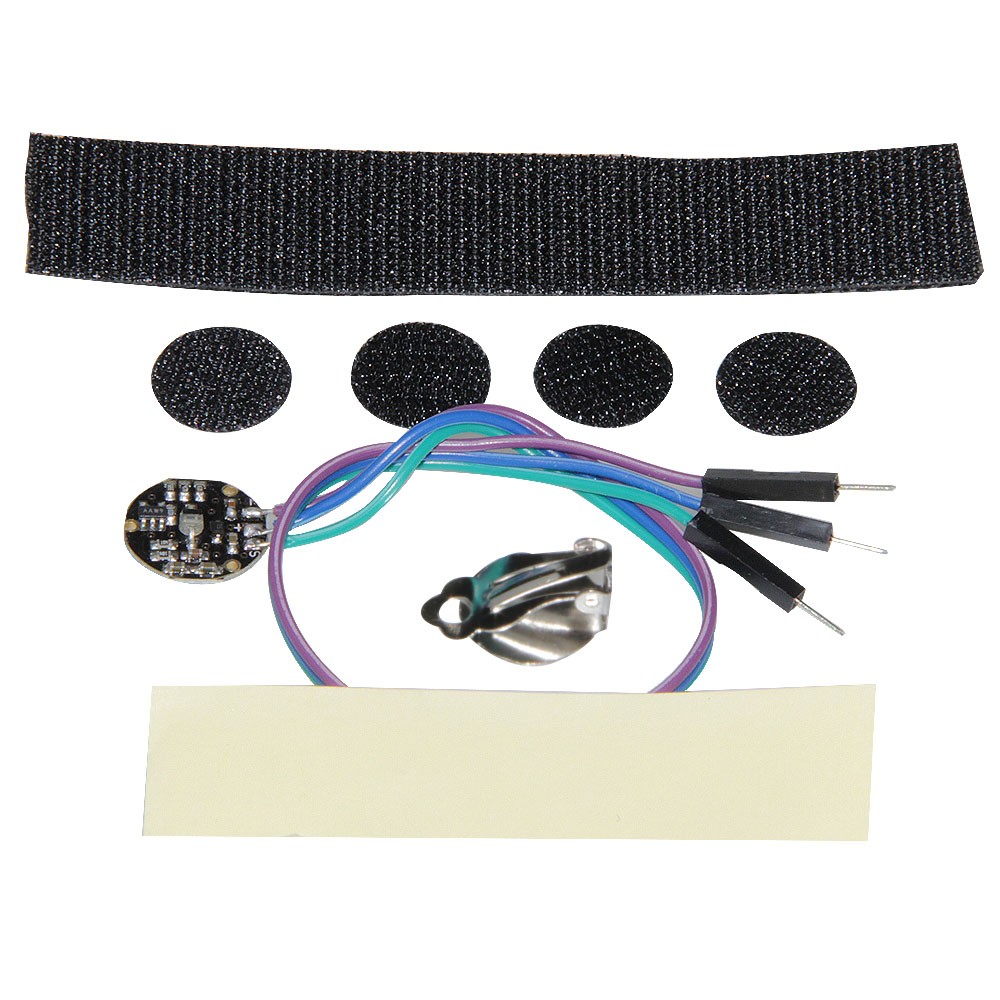

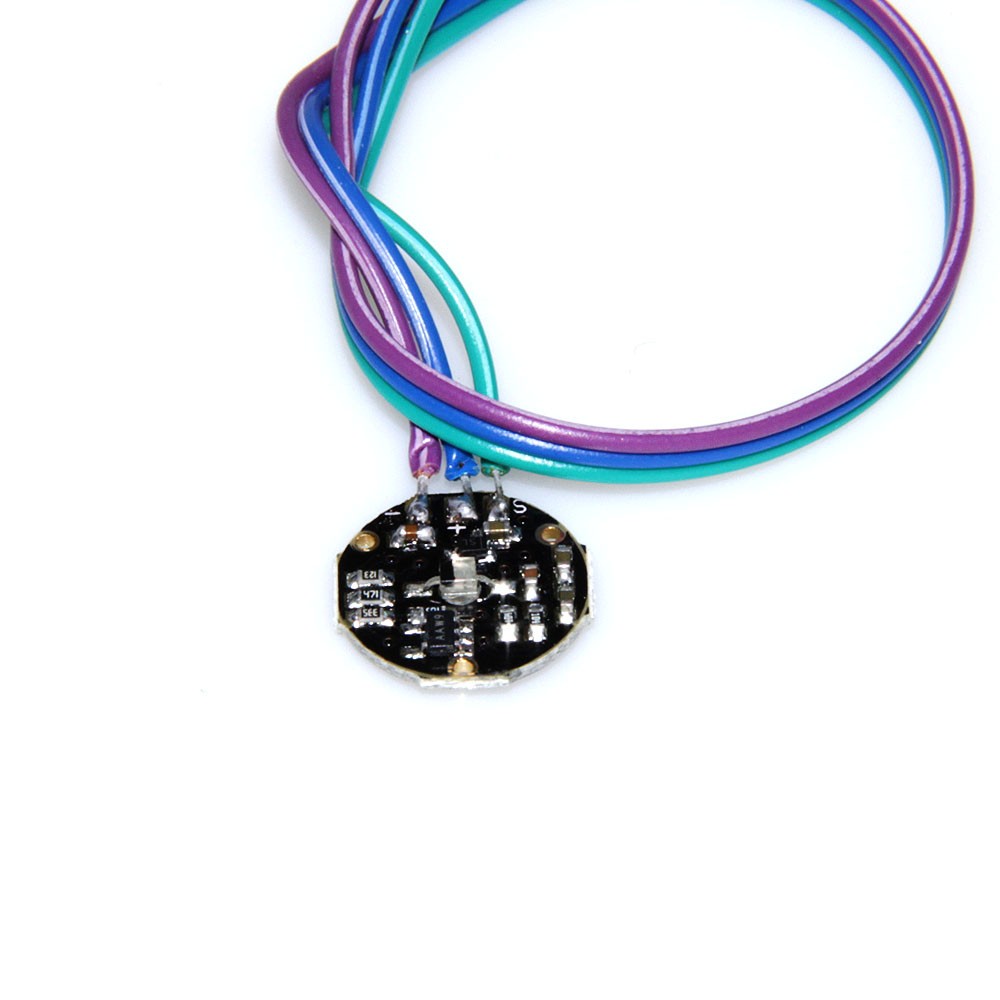

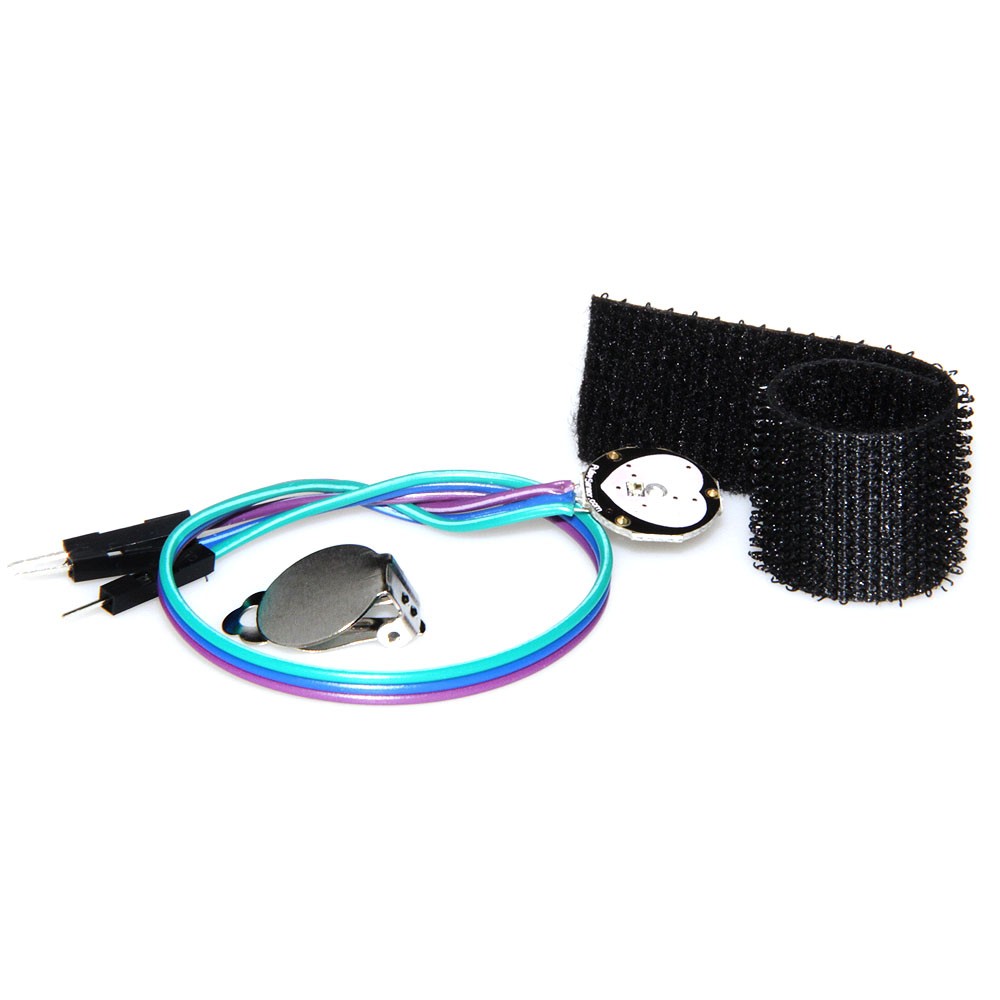

Sensor 1 (with three DuPont line, 20cm, random color lines)

Black Ve lcro 4
Metal ear clip 1 (16mm)
Bandage 1

Transparent film 4

LILYGO® ESP32 Module+Heart-Rate Sensor Bluetooth+Wifi 0.91 OLED
