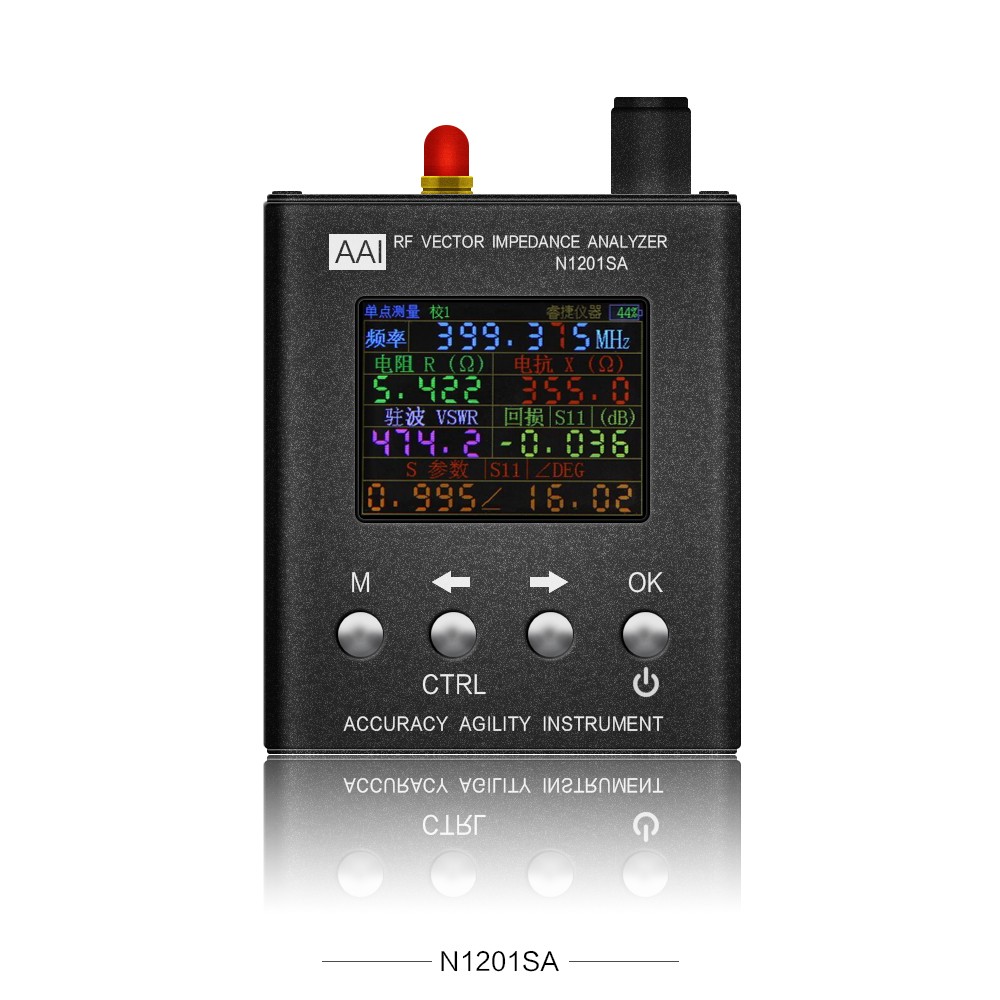

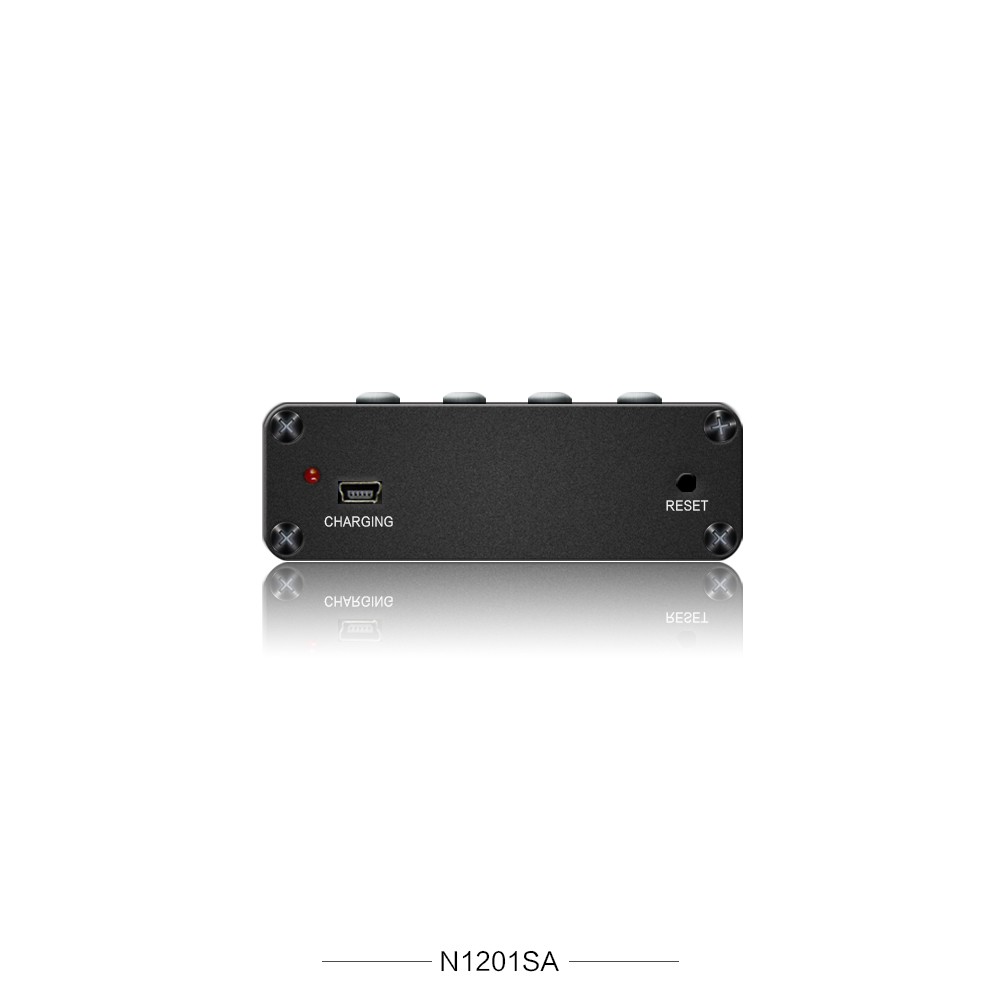

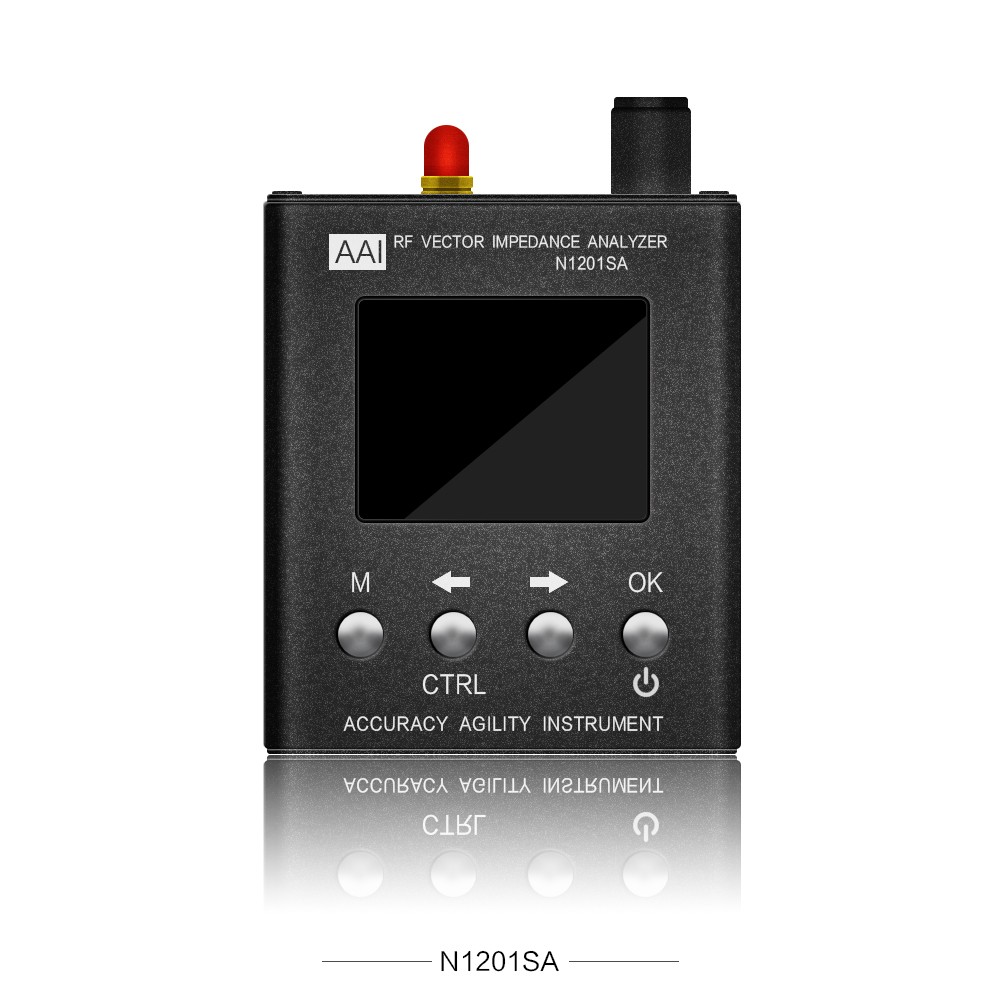

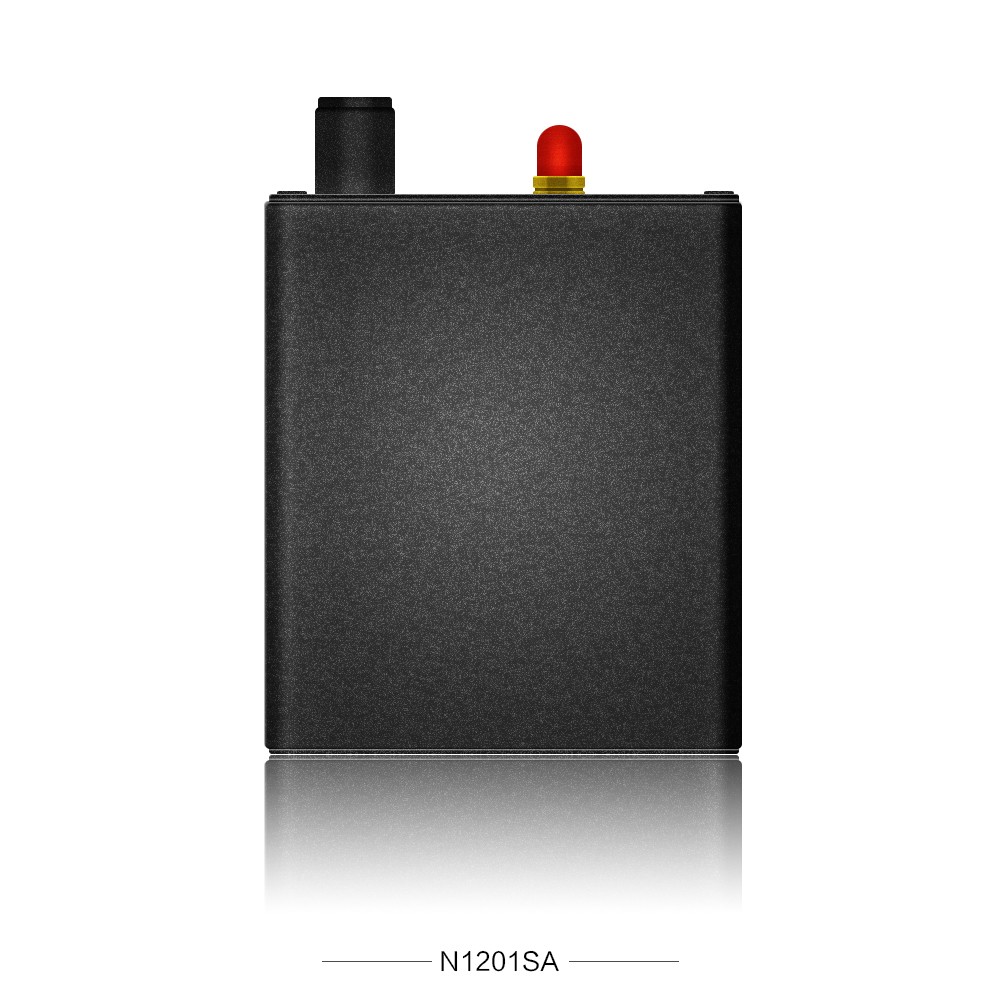

LILYGO® RFID Antenna Analyzer Meter Tester 35MHZ-2.7GHZ N1201SA plus N1201SA+ UV RF Vector Impedance ANT SWR

上市日期： 2019-08-30

建议销售价: 0

N1201SA GSM Antenna analyzer Specifications

LILYGO® RFID Antenna Analyzer Meter Tester 35MHZ-2.7GHZ N1201SA plus N1201SA+ UV RF Vector Impedance ANT SWR

Frequency 35MHz~2700MHz
Spacing 1kHz
Display 2.4inch TFT Pixel 320×240(QVGA)
Battery 2000mAH(7.4Wh)
Power dissipation <1.5W
Charging current 400mA
Charging port USB(For charging only)
Auto Power Off Adjustable(Always on，5mins～60min)
Measure facts resistance/reactance/SWR/s11
Resolution ratio 4bits effective digits
Frequency accuracy ±5ppm
Connector SMA-K

Measuring range impedance 0.1Ω~1000Ω(Absolute value of impedance)

SWR 1.000~65

s11(dB) 0dB~-60dB

Error impedance

(single point measurement) SWR

s11 （dB/°） 0.1 dB /5° (0dB~-10dB)

1 dB /10° (-10dB~-20dB)

5dB/20° (-20dB~-40dB)

Directivity <35dB(140MHz~2GHz After calibration)

<30dB(2GHz~2.7GHz)

Scan Points 280
Output level -18dBm
Working temperature 0~40
Atmospheric pressure 860hPa~1060hPa
Dimension 116mm*85mm*33mm

Product Details

LILYGO® RFID Antenna Analyzer Meter Tester 35MHZ-2.7GHZ N1201SA plus N1201SA+ UV RF Vector Impedance ANT SWR

Shipping Package

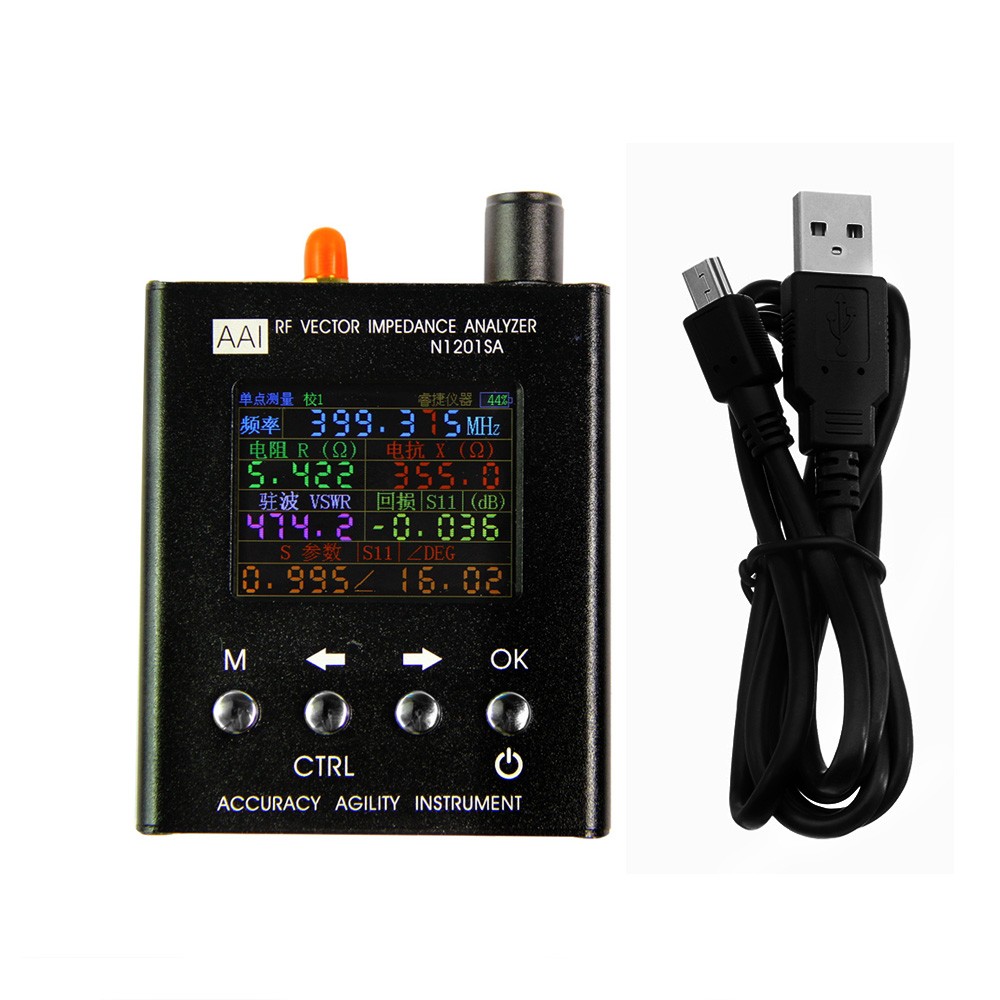

1 X N1201SA GSM Antenna analyzer

1 X Power Cable

LILYGO® RFID Antenna Analyzer Meter Tester 35MHZ-2.7GHZ N1201SA plus N1201SA+ UV RF Vector Impedance ANT SWR
