产品名称:

LILYGO® TTGO T-Koala ESP32 WiFi & Bluetooth Module 4MB Development Board Based ESP32-WROVER-B ESP32-WROOM-32

上市日期: 2019-07-01
建议销售价: 0

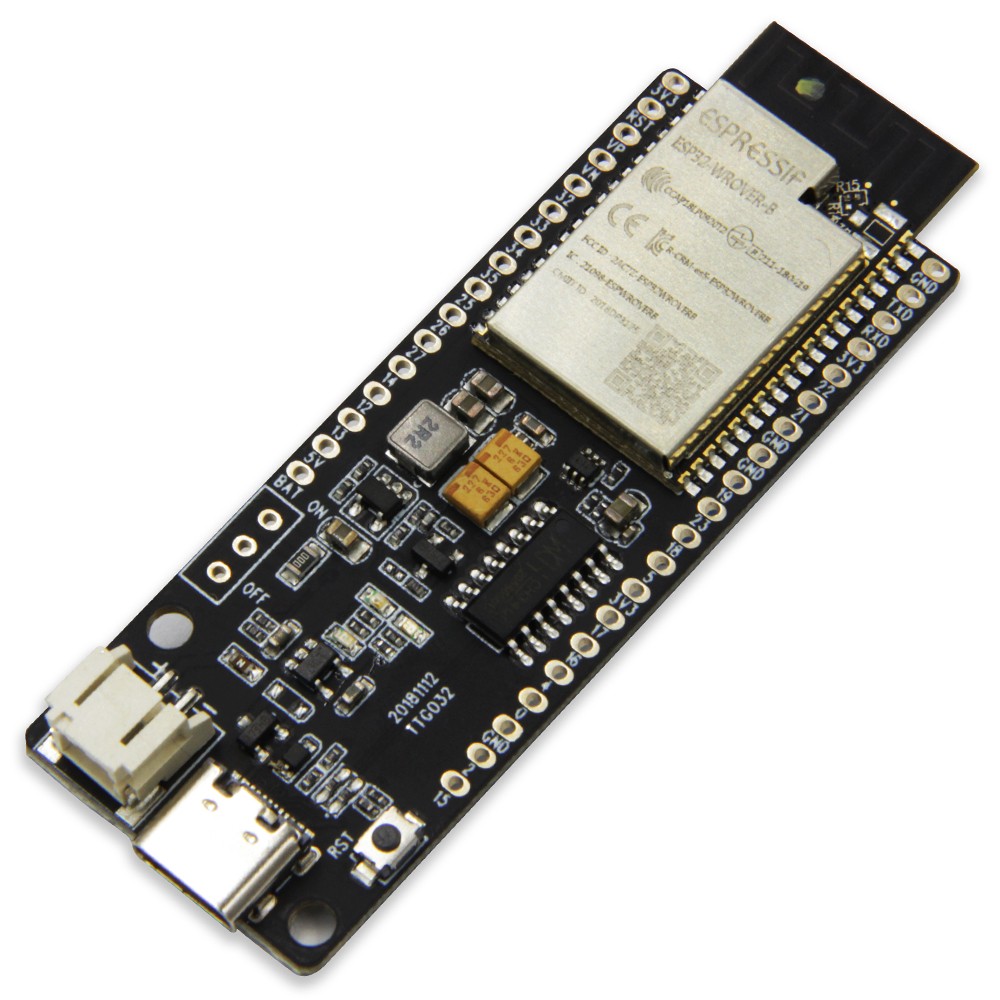

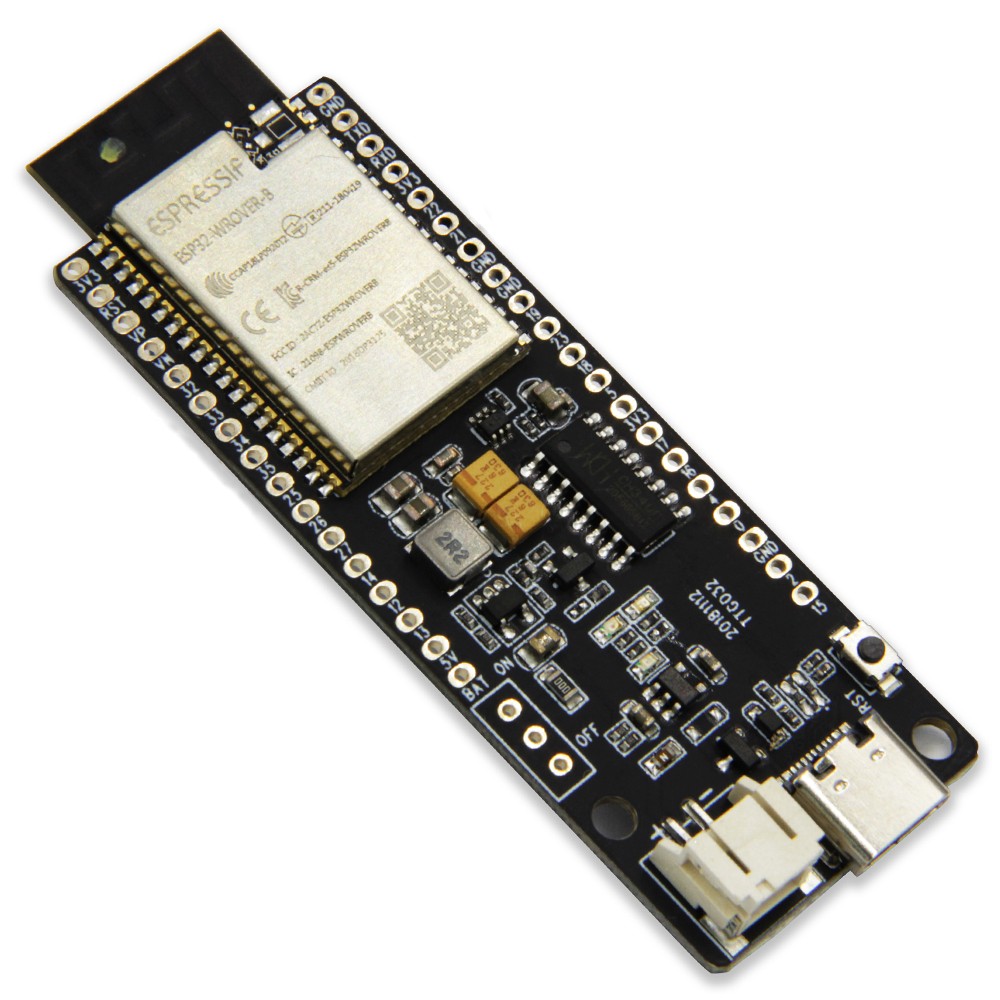

TTGO T-Koala ESP32 WiFi & Bluetooth Module 4MB Development Board Based ESP32-WROVER-B ESP32-WROOM-32

H289_01

-_01

Features

  • Espressif official ESP32-WROOM-32 module

  • Lastest ESP32 Version: REV1

  • 4MB FLASH

  • Lithium battery interface, 500mA Max charging current

  • Compatible with Arduino, MicroPython

  • Default firmware: lastest MicroPython




More Information

https://github.com/LilyGO/T-Koala

02 (1)

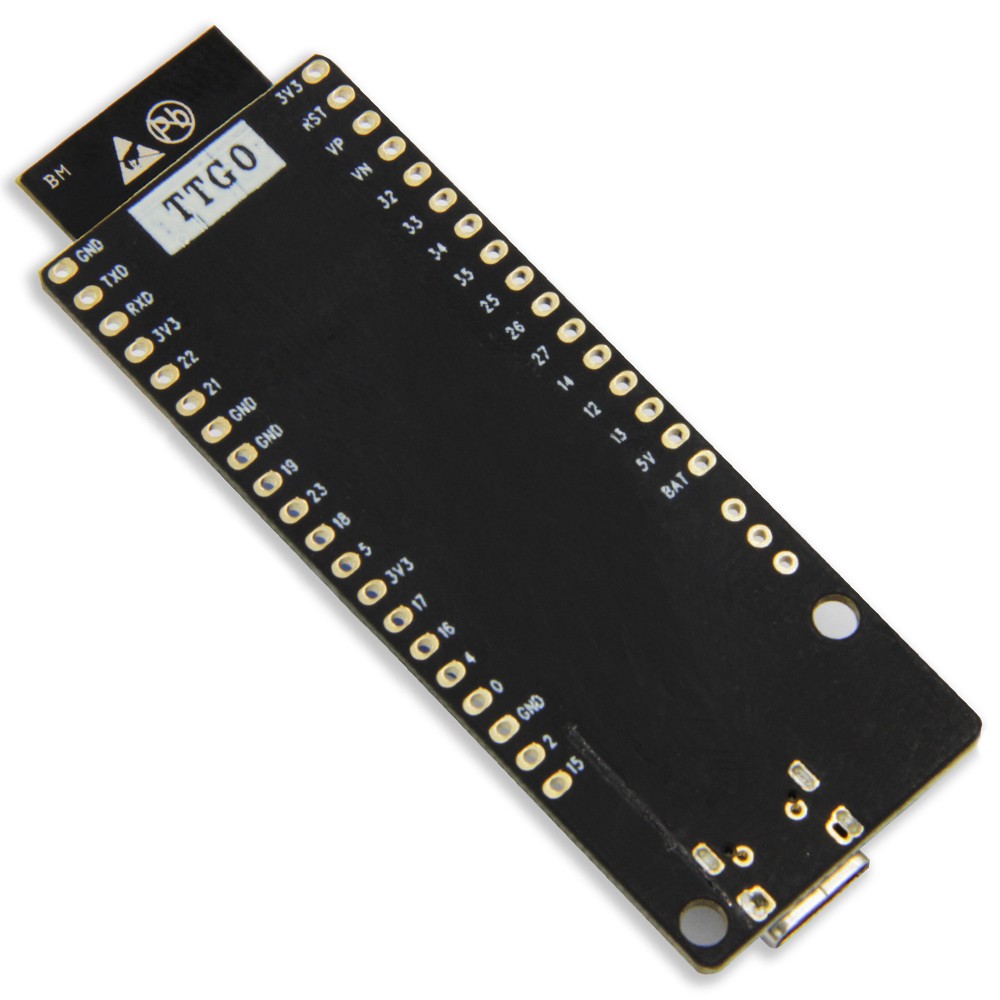

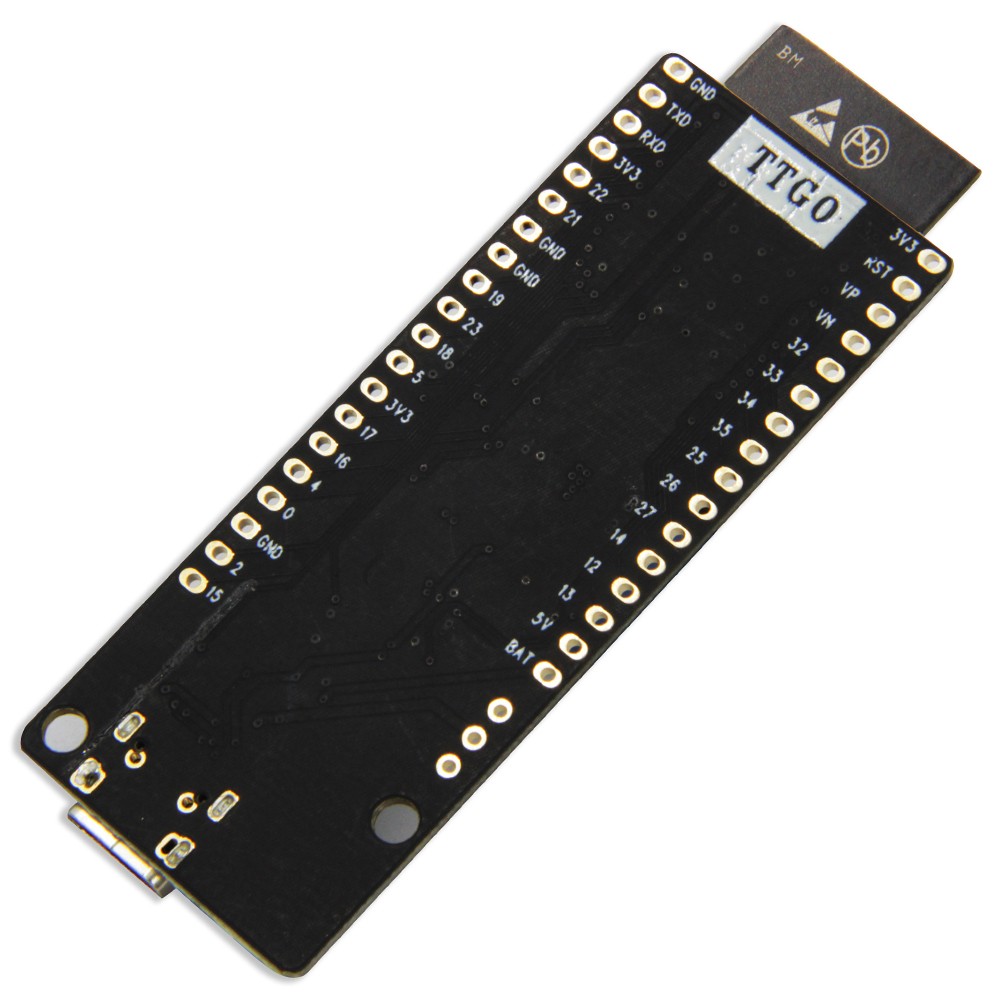

Product pin diagram

QQ20190104183434

01 (1)

QQ20181224095038


Technical specs

  • Microcontroller ESP-32

  • Board Power Supply (USB) 5V

  • Supported Batteries Lipo Battery     3.7V

  • Operating Voltage 3.3V

  • Flash                                                     4  M bytes

  • Length                                                  78 mm

  • Width                                                    27 mm

  • Weight                                                  7.8g

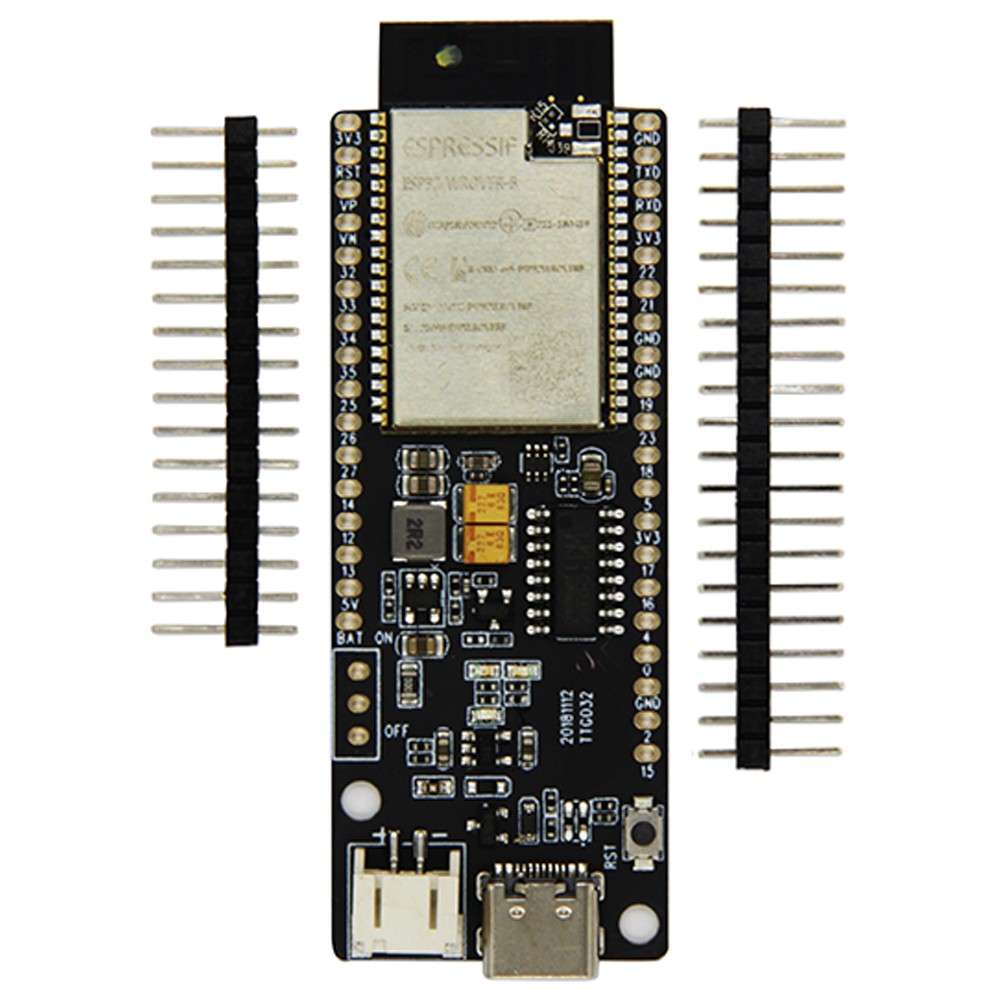

Shipping List

1X ESP32 WiFi&Bluetooth Broad

2 X Pin

H289_05
