LILYGO TTV transparent screen OLED infrared remote control programmable mini TV ESP32 for Arduino micropython programming

上市日期: 2020-10-31
建议销售价: 26.54

LILYGO TTV transparent screen OLED infrared remote control programmable mini TV ESP32 for Arduino micropython programming

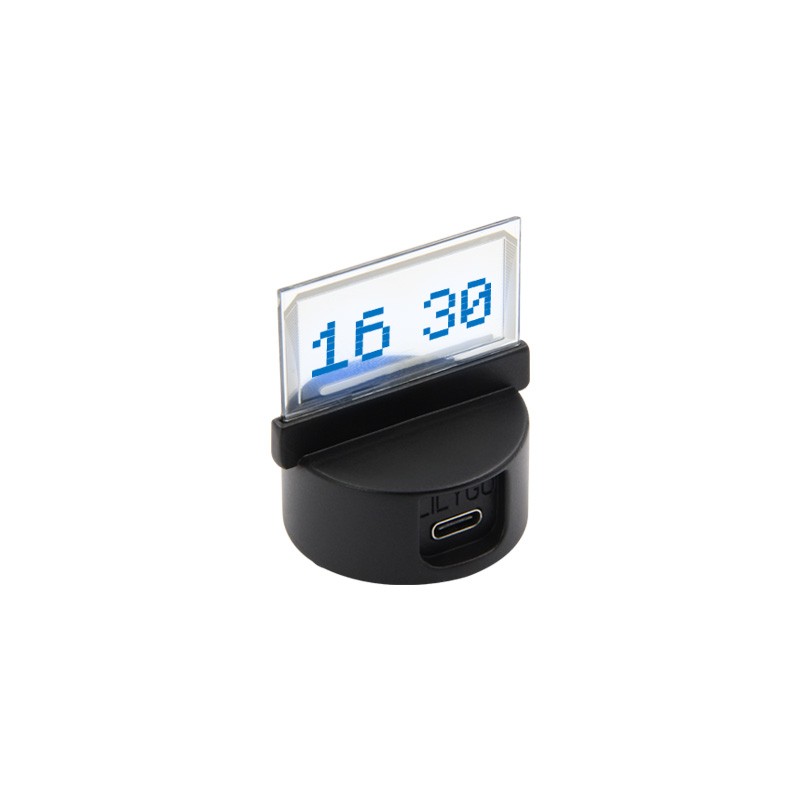

LILYGO TTV continues the concept of programmable products. Based on the transparent OLED design, we made a programmable desktop transparent small TV. Factory firmware routines are built-in, UI interface functions controlled by remote control, including desktop clock, airplane games, chess, animation play, and host sleep. Through this routine, you can modify the function application you want.

TTV hardware functions include a matching infrared remote control. The main control module TTGO T-MICRO32 WIFI/Bluetooth, RTC, infrared receiving sensor, touch button, built-in battery, at the same time reserved I2C/UART interface, adapted to T-WATCH sensor expansion, and T-FH sensor expansion.


Main control chip: ESP32 WIFI/Bluetooth
OLED: 1.54 inch blue transparent OLED
RTC: PCF8563
Touch button: TTP223
Infrared receiver: HS0038
Battery: 105ma

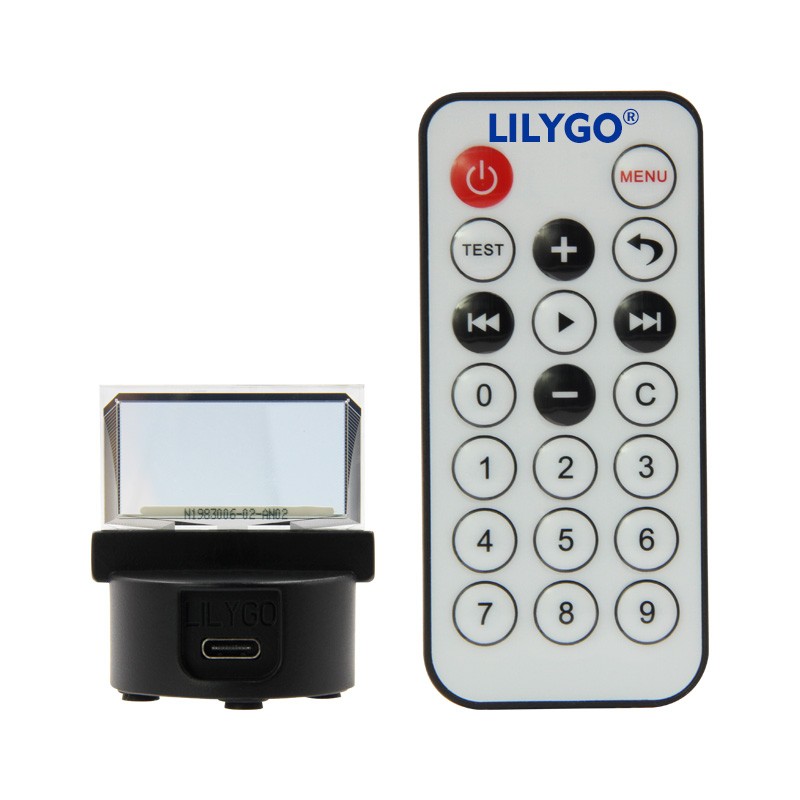

Remote control: infrared transmitter remote control

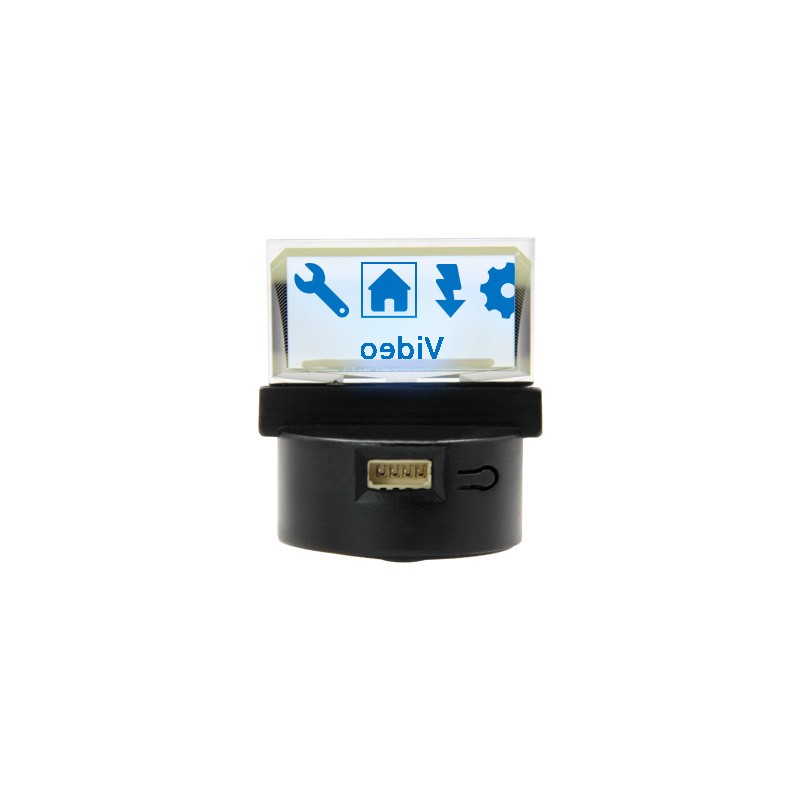

Expansion interface: 2.0 4PIN I2C/UART

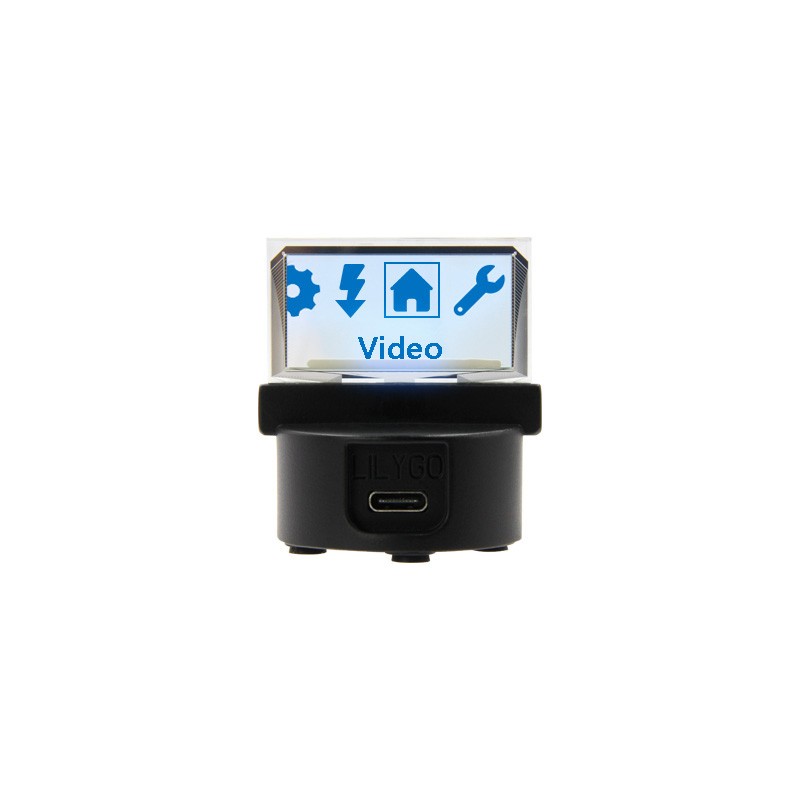

USB: T-type-C
Shell: PC+ABS
USB input voltage: 5V
Expansion interface: 3.3V output


Github Link:

https://github.com/Xinyuan-LilyGO/LilyGo-Tv-lite

LILYGO TTV transparent screen OLED infrared remote control programmable mini TV ESP32 for Arduino micropython programming


LILYGO TTV transparent screen OLED infrared remote control programmable mini TV ESP32 for Arduino micropython programming

LILYGO TTV transparent screen OLED infrared remote control programmable mini TV ESP32 for Arduino micropython programming

LILYGO TTV transparent screen OLED infrared remote control programmable mini TV ESP32 for Arduino micropython programming

LILYGO TTV transparent screen OLED infrared remote control programmable mini TV ESP32 for Arduino micropython programming

LILYGO TTV transparent screen OLED infrared remote control programmable mini TV ESP32 for Arduino micropython programming

LILYGO TTV transparent screen OLED infrared remote control programmable mini TV ESP32 for Arduino micropython programming

LILYGO TTV transparent screen OLED infrared remote control programmable mini TV ESP32 for Arduino micropython programming

LILYGO TTV transparent screen OLED infrared remote control programmable mini TV ESP32 for Arduino micropython programming


Shipping List:


TTV  X 1

Remote control  X  1

Type usb cable 30CM  X 1

LILYGO TTV transparent screen OLED infrared remote control programmable mini TV ESP32 for Arduino micropython programming
