LILYGO® TTGO TS V1.0 V1.4 ESP32 1.44 1.8 TFT MicroSD Card Slot Speakers MPU9250 Bluetooth Wifi Module

上市日期: 2019-08-20
建议销售价: 0

TTGO TS V1.0 V1.4 ESP32 1.44 1.8 TFT MicroSD Card Slot Speakers MPU9250  Bluetooth Wifi Module



LILYGO® TTGO TS V1.0 V1.4 ESP32 1.44 1.8 TFT MicroSD Card Slot Speakers MPU9250 Bluetooth Wifi Module



Product Details

Hardware Specifications



ChipsetESPRESSIF-ESP32-PCIO-D4 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASHQSPI flash/SRAM, up to 4 x 16 MB
SRAM 520 kB SRAM
KEYreset,IO34,IO35,IO39
dispaly1.44 /1.8 inch ST7735 LCD TFT display
Power indicator lampred
USB to TTLCP2104
modular  interfaceSD card、UART、SPI、SDIO、I2C、LED PWM、TV PWM、I2S、IRGPIO、capacitor touch sensor、ADC、DACLNA  pre-amplifier
working voltage2.3V-3.6V
working currentabout 60mA
sleep current1mA
working temperature range-40℃ ~ +85℃
size1.44 : 50.72mm*32.73mm*11.67mm/1.8 :
Power Supply Specifications
Power SupplyUSB 5V/1A
charging current500mA
battery3.7V lithium battery
Wi-FiDescription
StandardFCC/CE/TELEC/KCC/SRRC/NCC(esp32 chip)
protocol802.11 b/g/n/e/i (802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
frequency range2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power22dBm
communication distance300m
BluetoothDescription
protocolmeet bluetooth v4.2BR/EDR and BLE standard
radio frequencywith -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
audio frequencyCVSD&SBC audio frequency
Software specificationDescription
wifi ModeStation/SoftAP/SoftAP+Station/P2P
security mechanismWPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
firmware upgradeUART download/OTA(Through network/host to download and write firmware)
Software DevelopmentSupport cloud server development /SDK for user firmware development
networking protocolIPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User ConfigurationAT + Instruction set, cloud server, android/iOSapp
OSFreeRTOS
SST7735Description
Size1.44/1.8' diagonal LCD TFT display
Resolution128x128/160x80 resolution,  16-bit/18-bit (262,144) color
VoltageOnboard 3.3V @ 150mA LDO regulator
Bus5 wire SPI digital interface:CS:16, A0:17, SDA:23, SCK:5, RST:9
DissipationCurrent draw is based on LED backlight usage: with full backlight draw is ~25mA

For more product information, please click: https://github.com/LilyGO/TTGO-TS-V1.0
https://github.com/LilyGO/TTGO-TS-V1.2
https://github.com/Xinyuan-LilyGO/TTGO-T4-T10-TestCode

LILYGO® TTGO TS V1.0 V1.4 ESP32 1.44 1.8 TFT MicroSD Card Slot Speakers MPU9250 Bluetooth Wifi ModuleLILYGO® TTGO TS V1.0 V1.4 ESP32 1.44 1.8 TFT MicroSD Card Slot Speakers MPU9250 Bluetooth Wifi ModuleLILYGO® TTGO TS V1.0 V1.4 ESP32 1.44 1.8 TFT MicroSD Card Slot Speakers MPU9250 Bluetooth Wifi Module

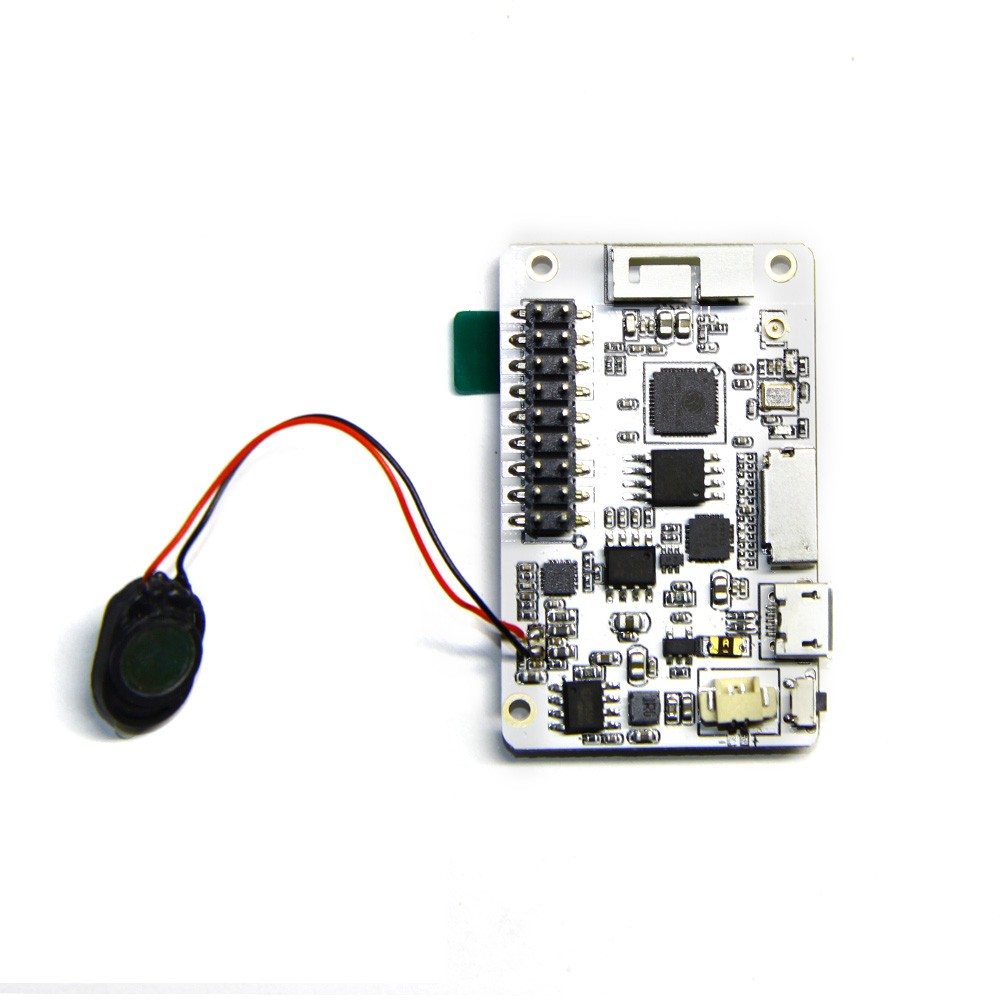

Pin Diagram

TS V1.0

LILYGO® TTGO TS V1.0 V1.4 ESP32 1.44 1.8 TFT MicroSD Card Slot Speakers MPU9250 Bluetooth Wifi Module



LILYGO® TTGO TS V1.0 V1.4 ESP32 1.44 1.8 TFT MicroSD Card Slot Speakers MPU9250 Bluetooth Wifi Module

LILYGO® TTGO TS V1.0 V1.4 ESP32 1.44 1.8 TFT MicroSD Card Slot Speakers MPU9250 Bluetooth Wifi Module

Product Use



LILYGO® TTGO TS V1.0 V1.4 ESP32 1.44 1.8 TFT MicroSD Card Slot Speakers MPU9250 Bluetooth Wifi Module

Shipping List(Notice: The Shipping not include the battery)

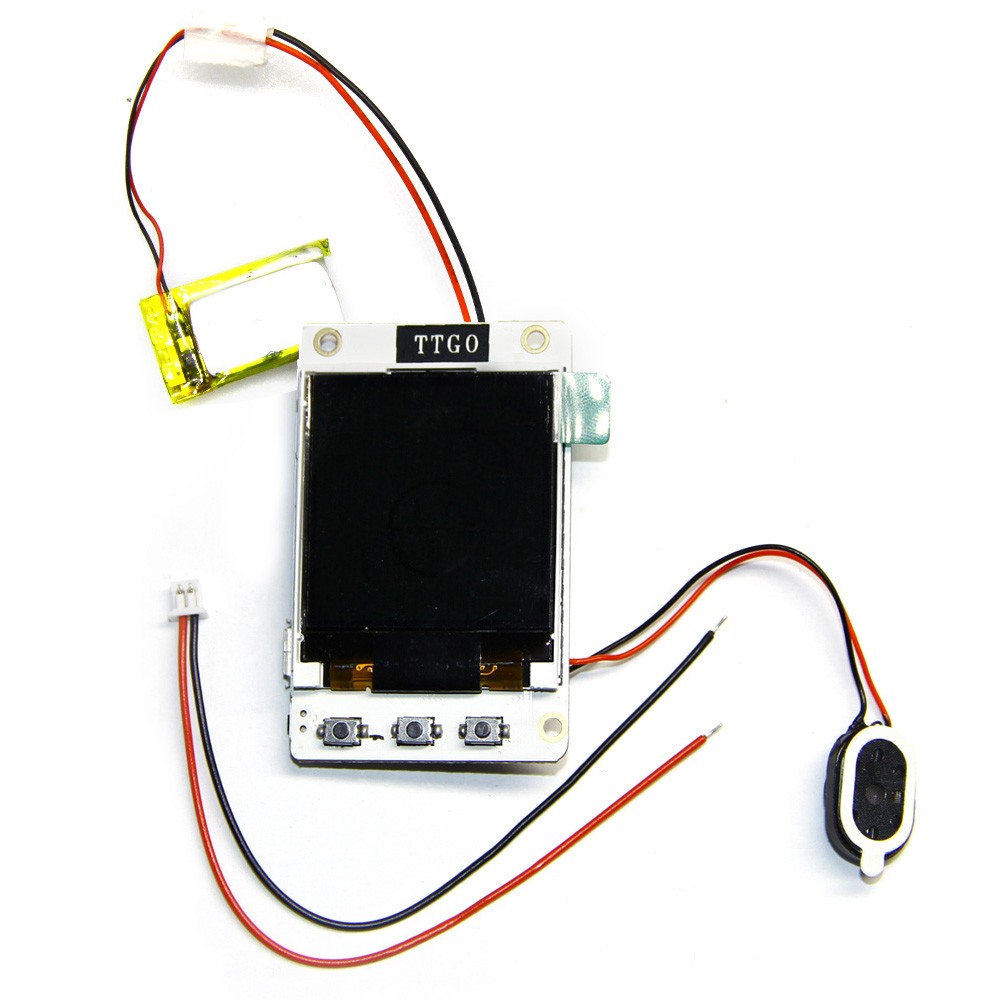

Normal Version

1 X TTGO TS v1.0 ESP32 1.44 TFT MicroSD card module(include speaker and 1.44 TFT display)

1 X Power Cable

1 X Free Box

-----------------------------------------------

Have MPU9250

1 X TTGO TS v1.2 ESP32 MPU9250 1.44 TFT MicroSD card module(include speaker and 1.44 TFT display)

1 X Power Cable

1 X Free Box

---------------------------------------------

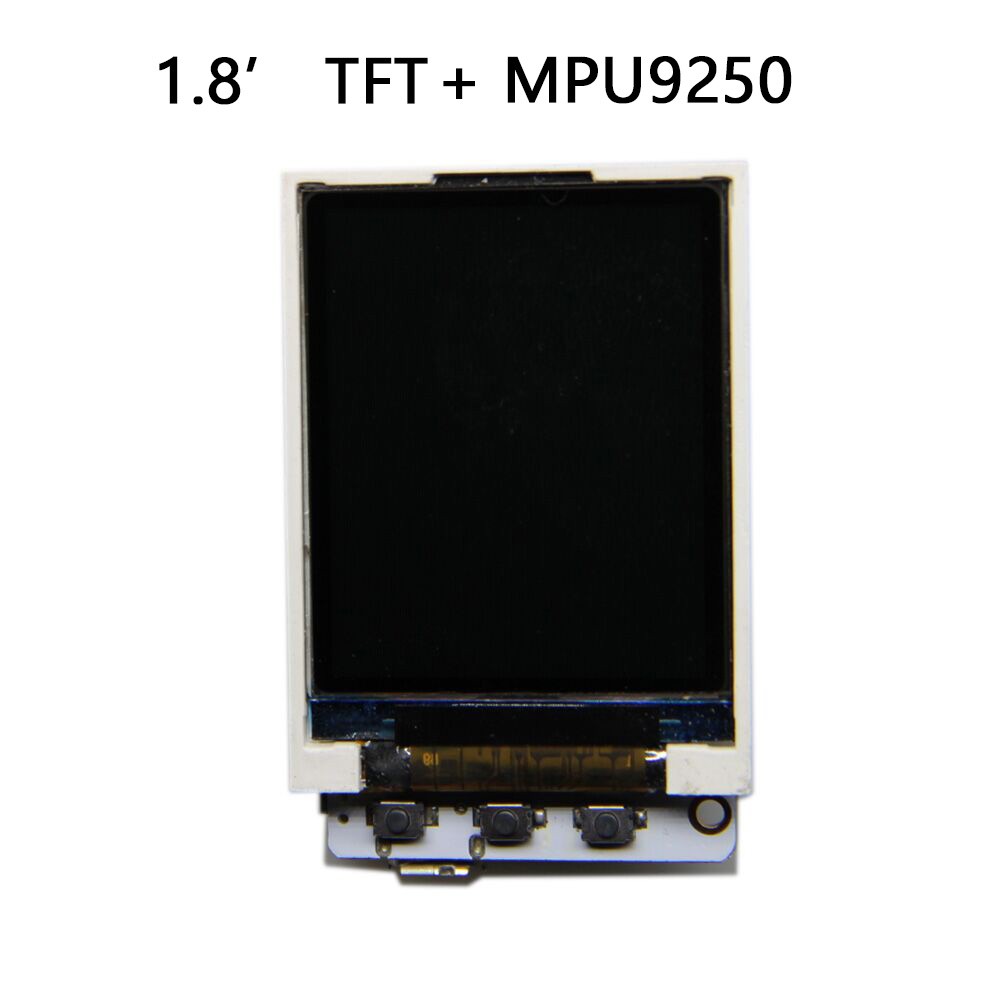

1.8 inch MPU9250

1 X TTGO TS v1.2 ESP32 MPU9250 1.8 TFT MicroSD card module(include speaker and 1.8 TFT display)

1 X Power Cable

1 X Free Box







LILYGO® TTGO TS V1.0 V1.4 ESP32 1.44 1.8 TFT MicroSD Card Slot Speakers MPU9250 Bluetooth Wifi Module
