TTGO TO ESP8266 OLED SH1106 1.3Inch Weather Station Wifi Meteo Module
![LILYGO® TTGO TO ESP8266 OLED SH1106 1.3Inch Weather Station Wifi Meteo Module]( "LILYGO® TTGO TO ESP8266 OLED SH1106 1.3Inch Weather Station Wifi Meteo Module")
![LILYGO® TTGO TO ESP8266 OLED SH1106 1.3Inch Weather Station Wifi Meteo Module]( "LILYGO® TTGO TO ESP8266 OLED SH1106 1.3Inch Weather Station Wifi Meteo Module")
Technical specs

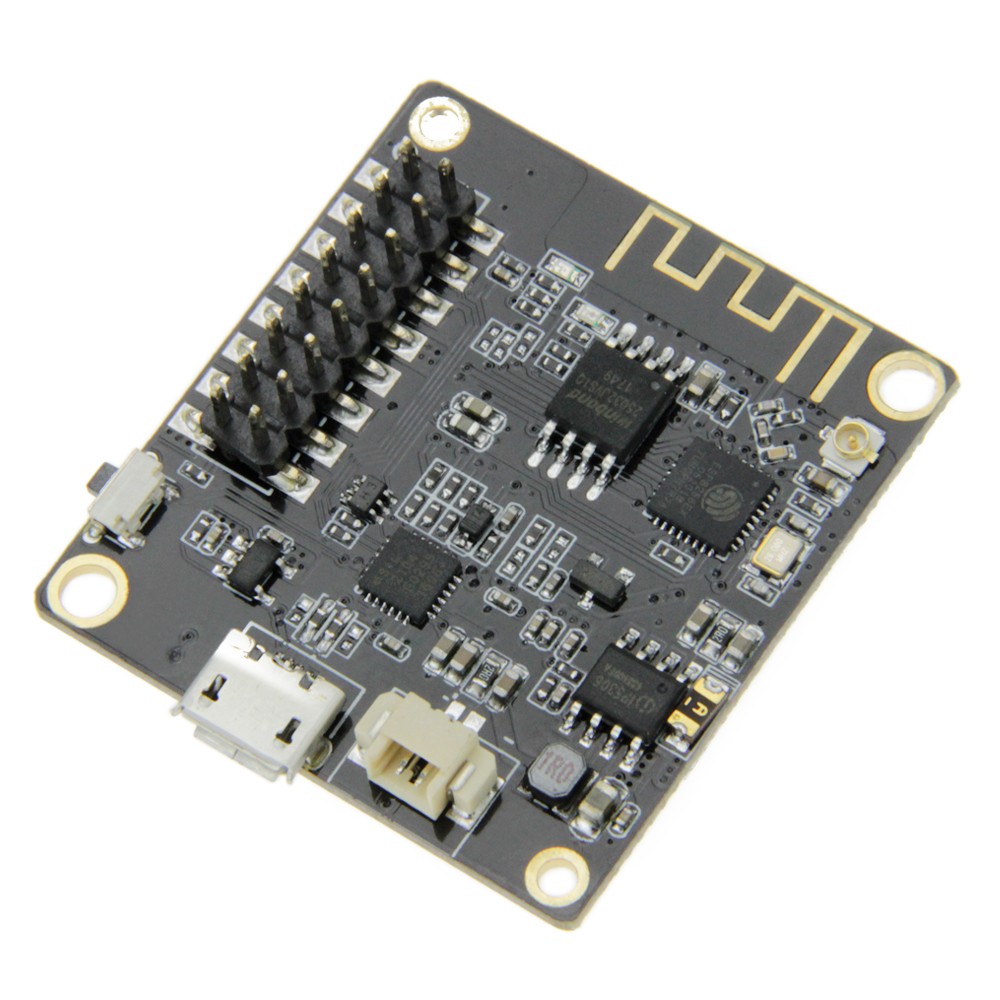

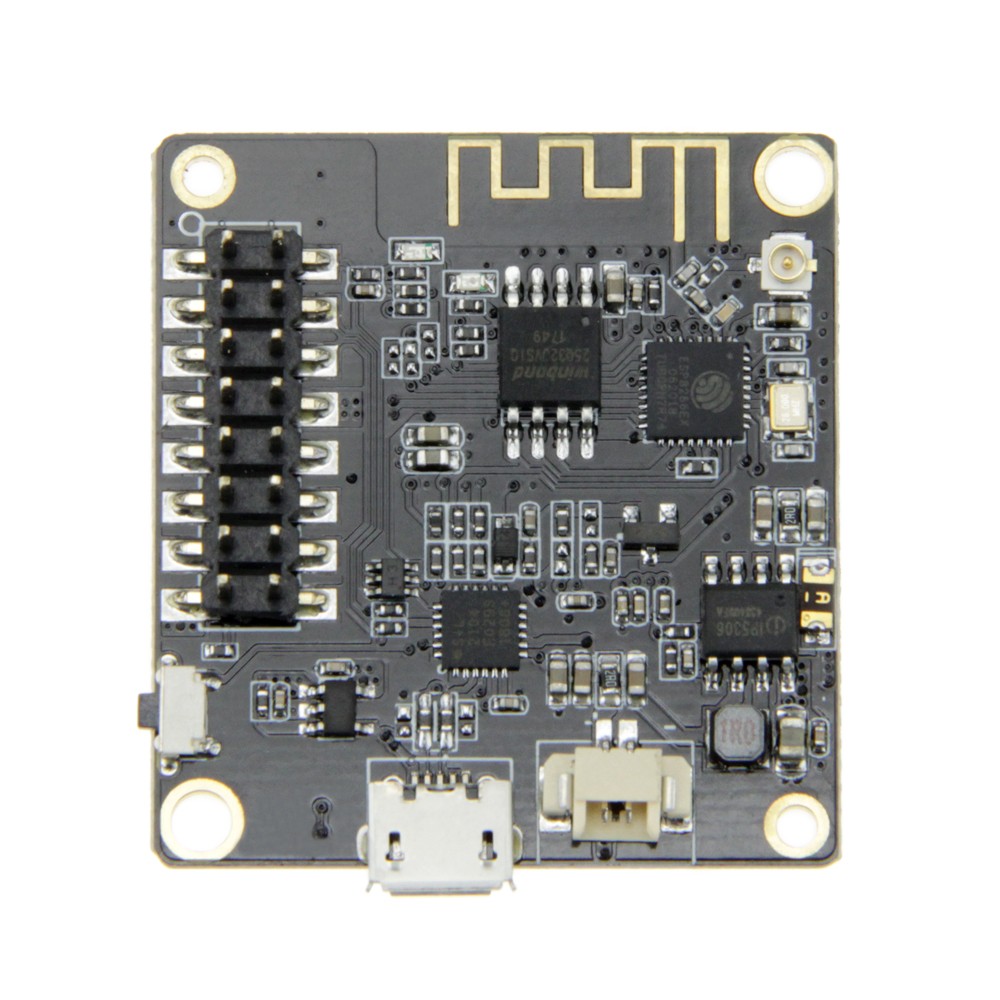

A TTGO wifi board with 2MB flash based on ESP-8266EX.
SH1106 1.3inch OLED （SDA-D1,SCL-D2）
Battery power switch
Lithium battery interface, 500mA Max charging current
Antenna pedestal
Button（D6,D8,D7）
Microcontroller ： ESP-8266EX
Operating Voltage ： 3.3V
Digital I/O Pins ： 8
Analog Input Pins ： 1(Max input: 3.2V)
Clock Speed： 80MHz/160MHz
Flash： 2M bytes
Working current ： 70~80 mA
Pin reference description
![LILYGO® TTGO TO ESP8266 OLED SH1106 1.3Inch Weather Station Wifi Meteo Module]( "LILYGO® TTGO TO ESP8266 OLED SH1106 1.3Inch Weather Station Wifi Meteo Module")
Get more details about the product,link to：https://github.com/LilyGO/ESP8266_OLED_SH1106
Use Demonstration
![LILYGO® TTGO TO ESP8266 OLED SH1106 1.3Inch Weather Station Wifi Meteo Module]( "LILYGO® TTGO TO ESP8266 OLED SH1106 1.3Inch Weather Station Wifi Meteo Module")
Shipping List (Not include battery)
Normal Version
1 X TTGO TO ESP8266 OLED SH1106 1.3Inch wifi weather station Module
1 X Power Cable
![LILYGO® TTGO TO ESP8266 OLED SH1106 1.3Inch Weather Station Wifi Meteo Module]( "LILYGO® TTGO TO ESP8266 OLED SH1106 1.3Inch Weather Station Wifi Meteo Module")

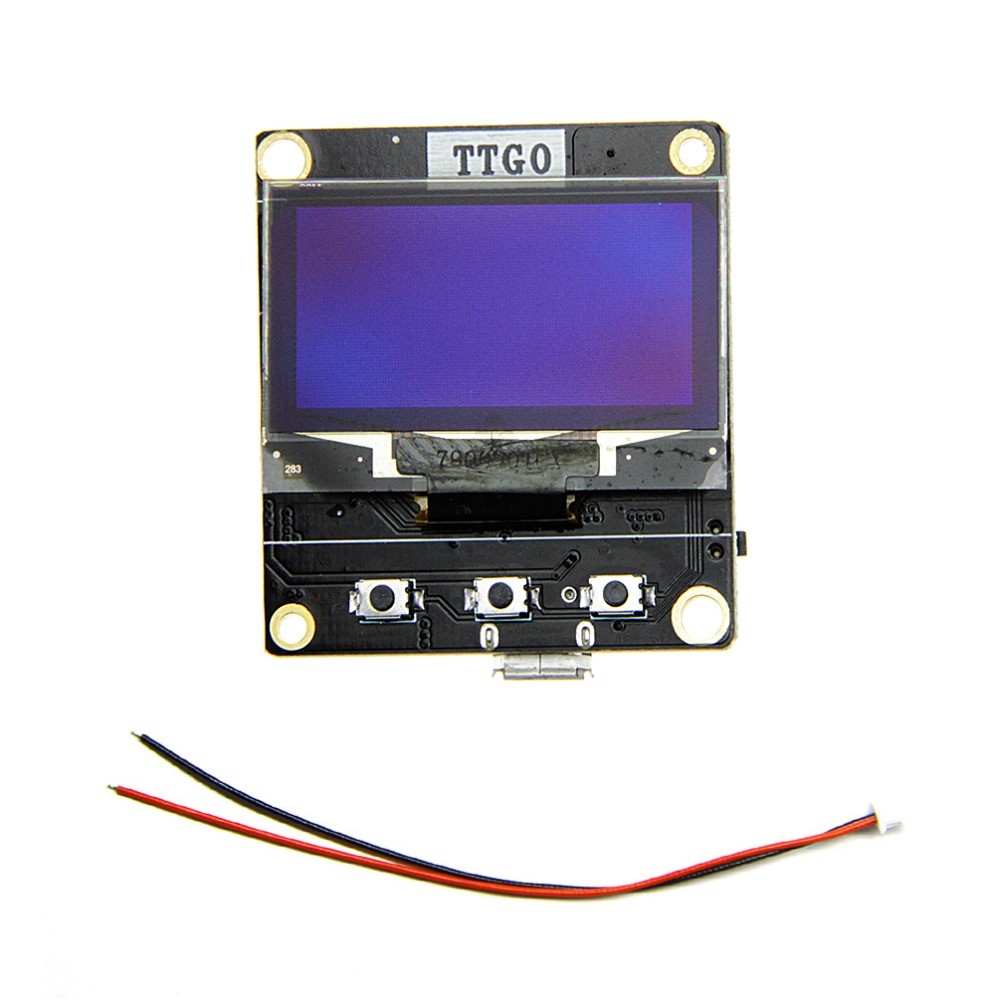

With Antenna
1 X TTGO TO ESP8266 OLED SH1106 1.3Inch wifi weather station Module
1 X Power Cable
1 X Anrenna
