产品名称:

LILYGO® 4M Byte (32M bit )Pro ESP32 OLED V2.0 TTGO & For Arduino ESP32 OLED WiFi Modules+Bluetooth Double ESP-32 ESP8266 Et OLED

上市日期: 2019-09-07
建议销售价: 0

4M Byte (32M bit )Pro ESP32 OLED V2.0 TTGO & For Arduino ESP32 OLED WiFi Modules+Bluetooth Double ESP-32 ESP8266 Et OLED



Description:



1.The main control chip using  ESP32  of Espressif , Tensilica  dual core processor, clocked at 240MHz,  computing capacity of up to 600DMIPS, 520 SRAM, 802.11 KB chip b/g/n HT40 Wi-Fi transceiver, baseband, and LWIP protocol stack,Bluetooth (Bluetooth dual-mode integrated traditional and BLE low-power Bluetooth).
2.Onboard 4M Byte (32M bit ) , Flash, and Wi-Fi antennas.
3.0.96 inch White OLED display.
4.Lithium battery charging circuit and interface.
5.CP2102 USB to serial chip, perfect support for Arduino development environment.
LILYGO® 4M Byte (32M bit )Pro ESP32 OLED V2.0 TTGO & For Arduino ESP32 OLED WiFi Modules+Bluetooth Double ESP-32 ESP8266 Et OLED


Note: This product does not include the battery.

LILYGO® 4M Byte (32M bit )Pro ESP32 OLED V2.0 TTGO & For Arduino ESP32 OLED WiFi Modules+Bluetooth Double ESP-32 ESP8266 Et OLED

For more product information,click https://drive.google.com/file/d/1L8ll-DeAC2SATBZn0-KbSaZsrinbnXkF/view

https://github.com/LilyGO/LORA-ESP32-OLED



ESP32 QFN package is a highly integrated chip, because of high frequency, small volume and not easy to heat dissipation, so appeared high heat is normal when you work with the product , we complete the circuit had done to the stability of the evaluation, please Rest assured use.

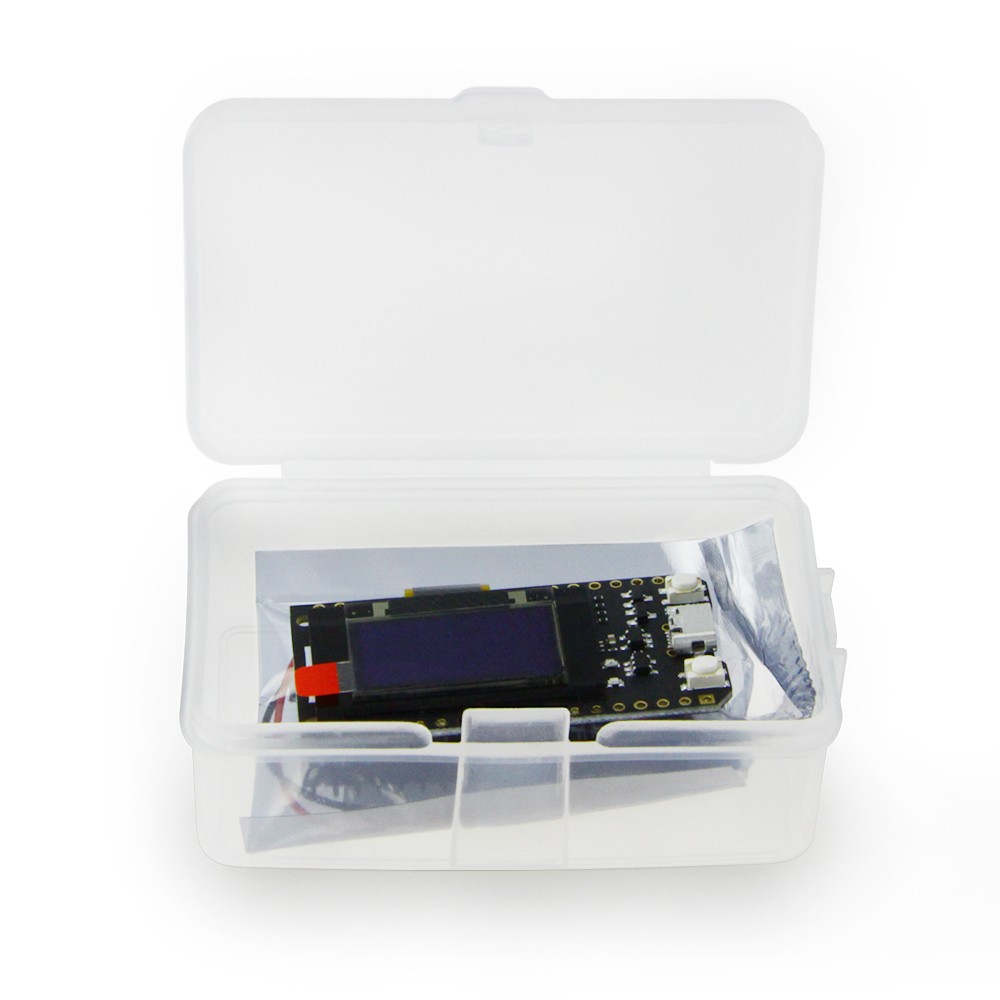

Shipping List:
ESP32 OLED V2.0*1
Line *1
Pin*2


LILYGO® 4M Byte (32M bit )Pro ESP32 OLED V2.0 TTGO & For Arduino ESP32 OLED WiFi Modules+Bluetooth Double ESP-32 ESP8266 Et OLEDLILYGO® 4M Byte (32M bit )Pro ESP32 OLED V2.0 TTGO & For Arduino ESP32 OLED WiFi Modules+Bluetooth Double ESP-32 ESP8266 Et OLED



LILYGO® 4M Byte (32M bit )Pro ESP32 OLED V2.0 TTGO & For Arduino ESP32 OLED WiFi Modules+Bluetooth Double ESP-32 ESP8266 Et OLED
