产品名称：

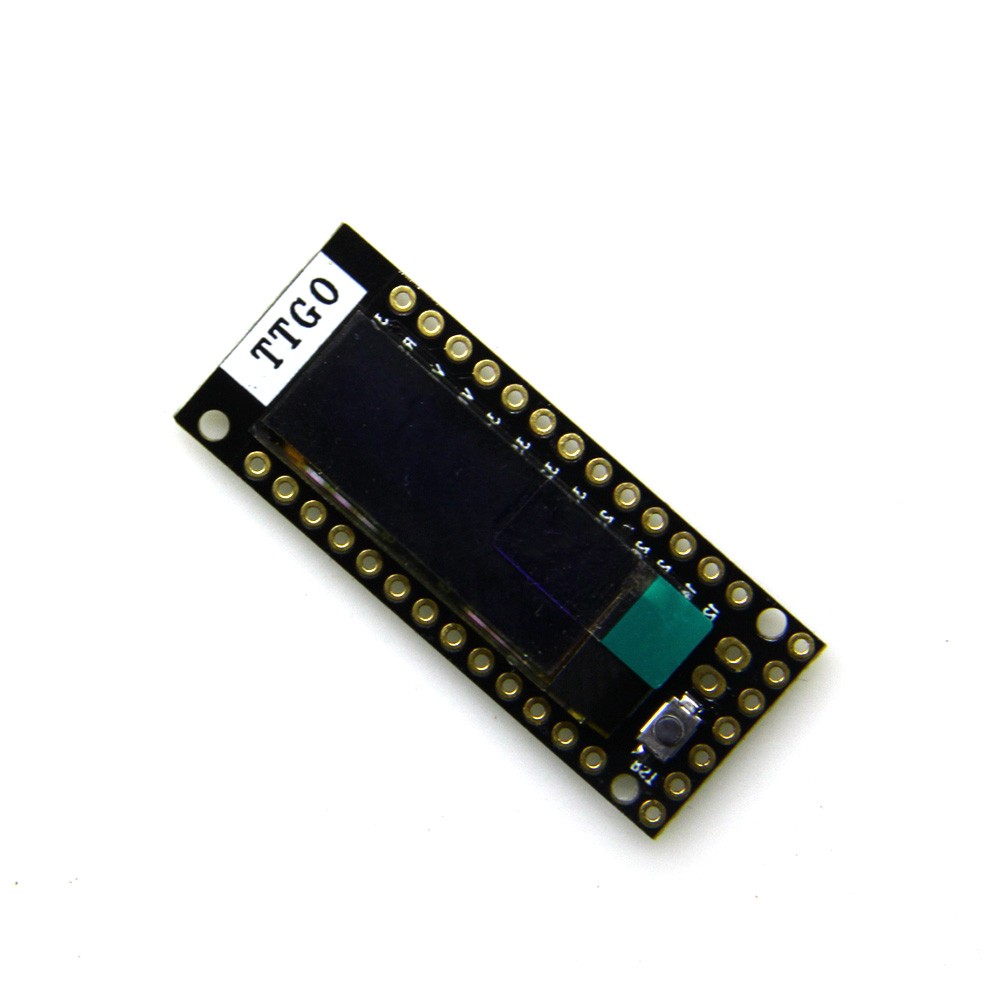

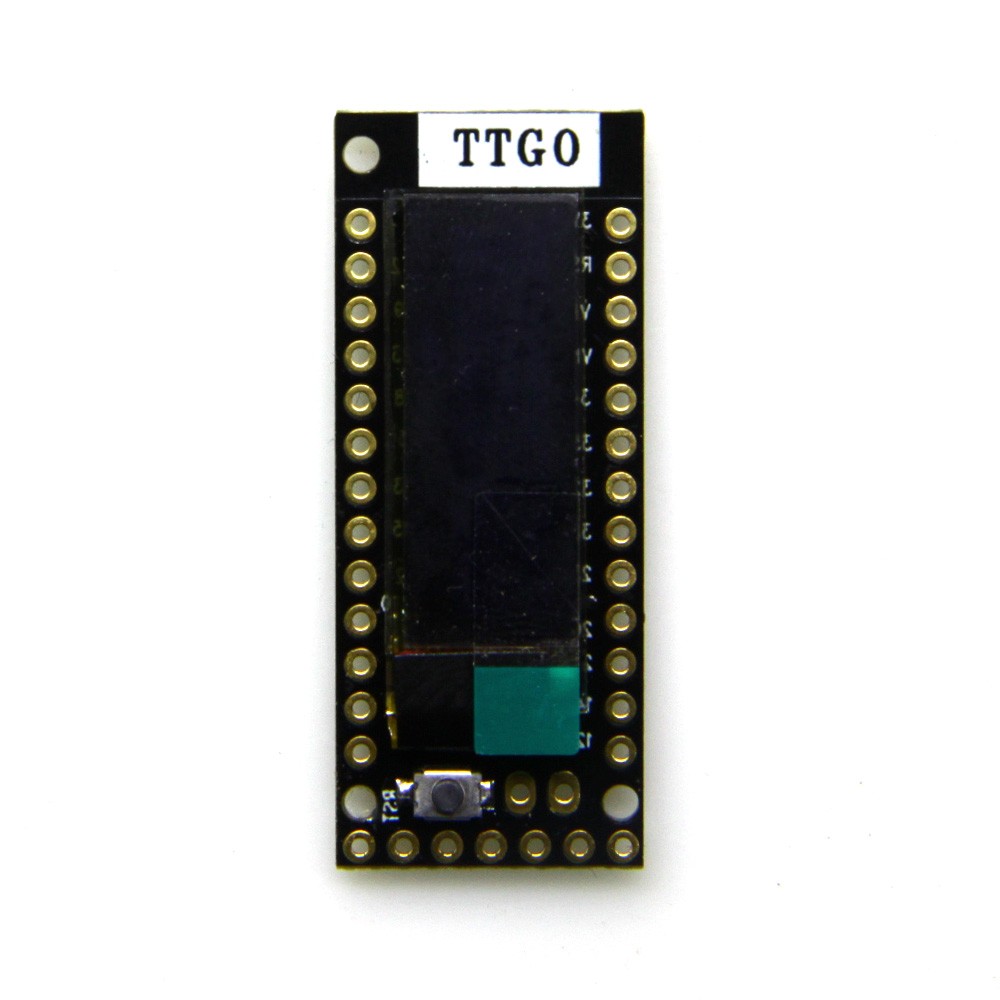

LILYGO® TTGO TQ ESP32 0.91 OLED WIFI&bluetooth IoT Prototype Board for Arduino(1)

上市日期： 2017-12-27

建议销售价: 0

TTGO TQ ESP32 0.91 OLED WIFI&bluetooth IoT Prototype Board for Arduino

Details

QQ20171227164145

Product Use Demonstration

QQ20171227165434

Shipping List(Shipping list not include battery)

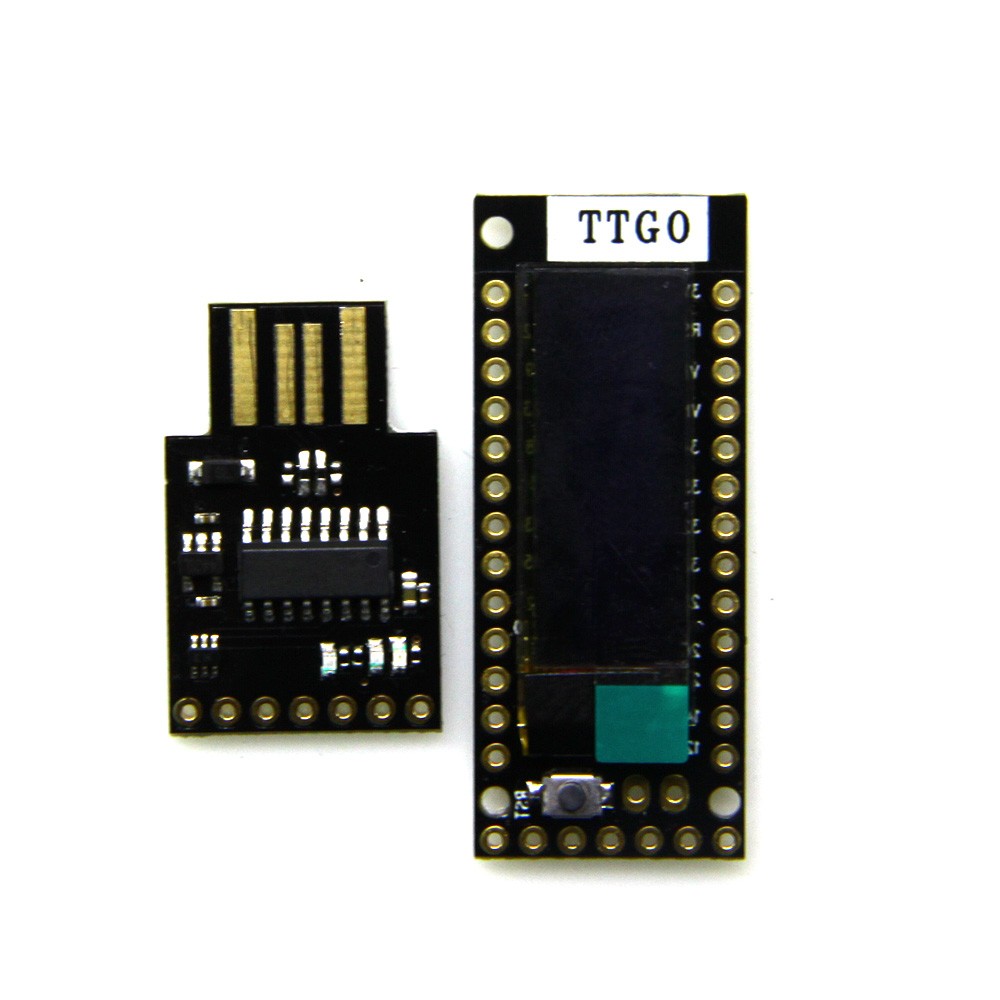

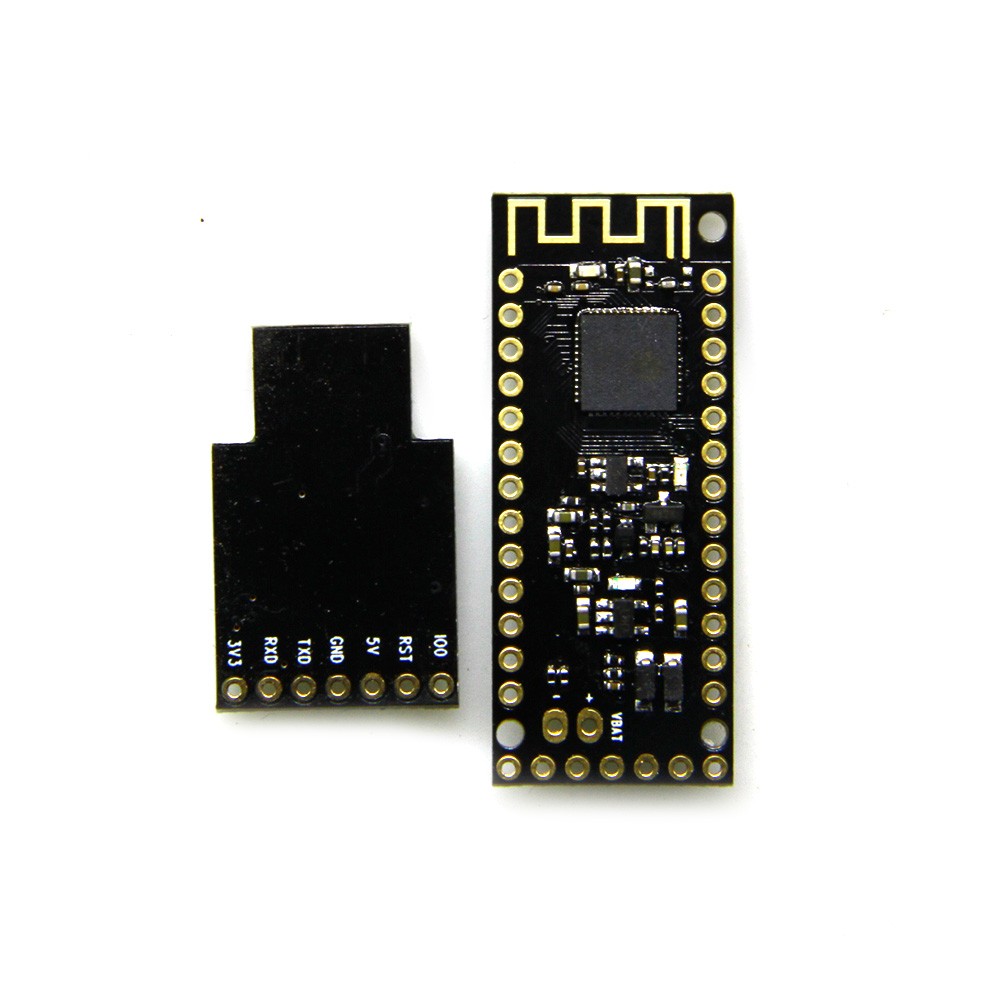

TTGO TQ ESP32 0.91 OLED WIFI&bluetooth Module*1

USB to TTL converter UART module CH340C *1

1X13 pin *2
1X7 row female *1
1X7 bent pin *1

1X2 Pin*1

Program download:

https://github.com/LilyGO/TTGO-TQ-0.91
