LILYGO® TTGO T5S V2.4 Wifi Bluetooth Wireless Module Base ESP32 Red Display EPaper Speaker Electric Development Board(1)

上市日期: 2019-08-20
建议销售价: 0

LILYGO® TTGO T5S V2.4 Wifi Bluetooth Wireless Module Base ESP32 Red Display EPaper Speaker Electric Development Board


  • LILYGO® TTGO T5S V2.4 Wifi Bluetooth Wireless Module Base ESP32 Red Display EPaper Speaker Electric Development Board

  • Overview

  • This is an E-paper display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

  • Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

  • Features

  • · No backlight, keeps displaying last content for a long time even when power down

  • · Ultra low power consumption, basically power is only required for refreshing

  • · Comes with development resources and manual (examples for Arduin-esp32)


  • Specifications

  • · Operating voltage: 3.3V

  • · Interface: 3-wire SPI, 4-wire SPI

  • · Display color: red, black, white

  • · Grey level: 2

  • · Refresh power: 26.4mW(typ.)

  • · Standby power:<0.017mW

  • · Viewing angle: >170°


  • Screen specifications

  • Part Number

    Colors

    Grey Level

    Resolution

    Display size (mm)

    Outline Dimension (mm)

    Full Refresh Time (s)

    Partial Refresh Time (s)

    Interface

    1.54inch e-Paper

    red, black, white

    2

    152x152

    27.60 × 27.60

    31.8 × 37.3

    8

    N/A

    SPI

    2.13inch e-Paper

    red, black, white

    2

    212x104

    48.55 × 23.71

    59.2 × 29.2

    15

    N/A

    SPI

    2.7inch e-Paper

    red, black, white

    2

    264x176

    57.29 × 38.19

    70.4 × 45.8

    15

    N/A

    SPI

    2.9inch e-Paper

    red, black, white

    2

    296x128

    66.89 × 29.05

    79.0 × 36.7

    15

    N/A

    SPI

  • SYMBOL



    VCC

    3.3V

    GND

    Ground

    DIN

    SPI MOSI pin

    CLK

    SPI SCK pin

    CS

    SPI chip selection, low active

    DC

    Data/Command selection (high for data, low for command)

    RST

    External reset, low active

    BUSY

    Busy status output, low active

  • Product Diagram

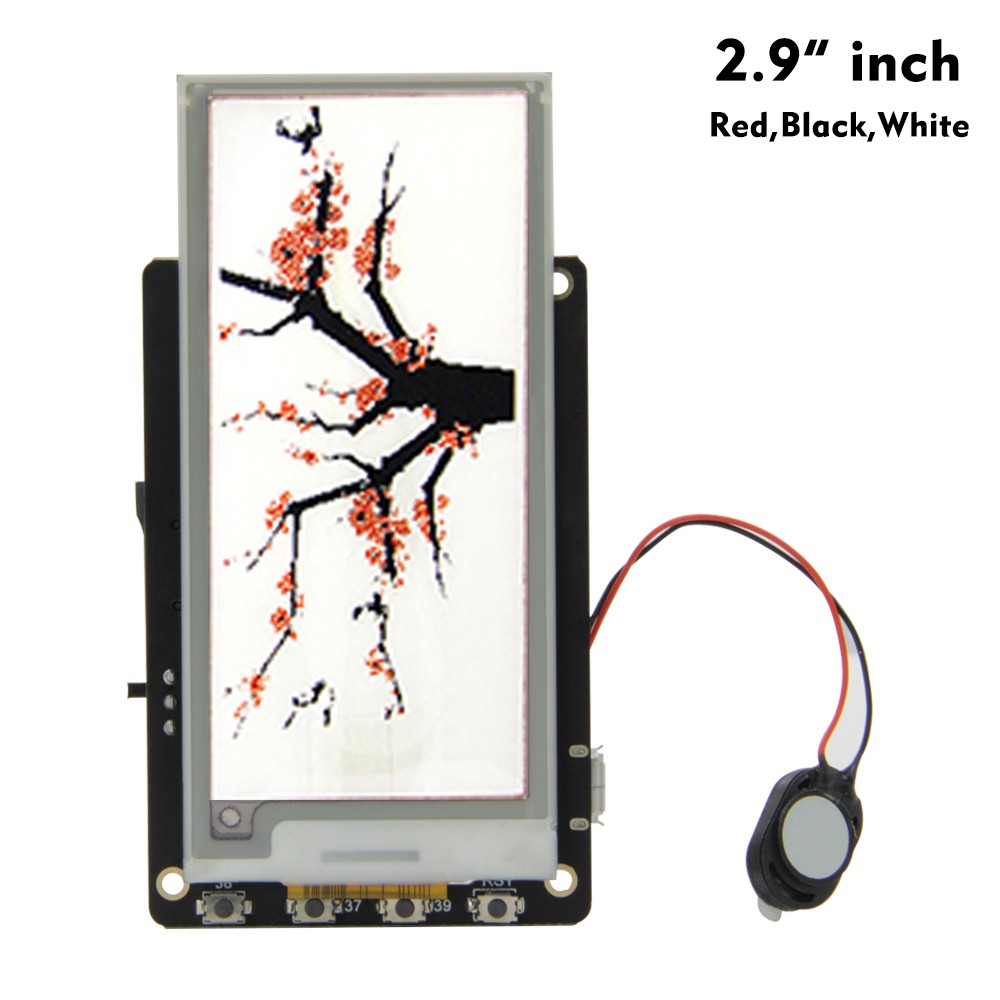

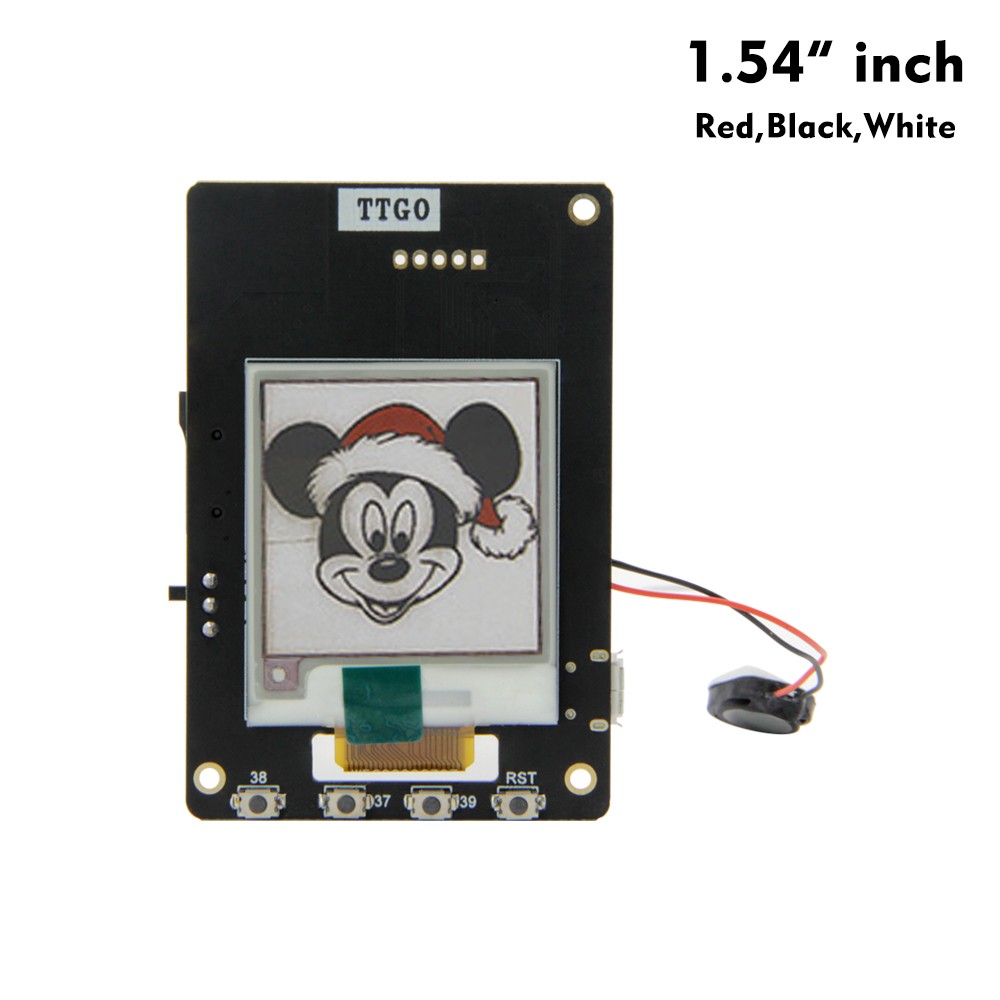

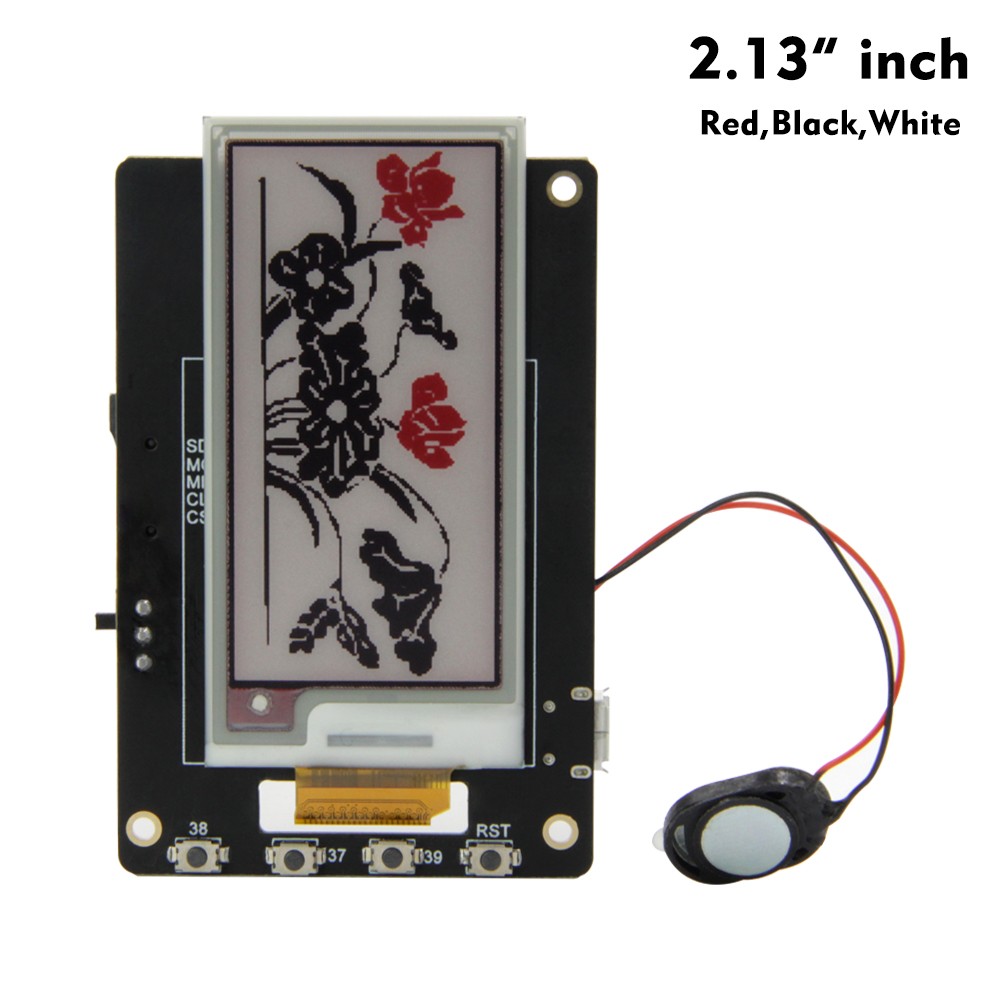

  • LILYGO® TTGO T5S V2.4 Wifi Bluetooth Wireless Module Base ESP32 Red Display EPaper Speaker Electric Development Board

  • LILYGO® TTGO T5S V2.4 Wifi Bluetooth Wireless Module Base ESP32 Red Display EPaper Speaker Electric Development Board

  • More Display

  • LILYGO® TTGO T5S V2.4 Wifi Bluetooth Wireless Module Base ESP32 Red Display EPaper Speaker Electric Development Board
  • For more product information, please enter:
    https://github.com/LilyGO/TTGO-T5-ePaper1.54
    https://github.com/Xinyuan-LilyGO/LilyGo-T5-ink-series

  • Test the firmware:https://github.com/Xinyuan-LilyGO/LilyGO_T5_V24/tree/master/firmware

  • Product Details

  • LILYGO® TTGO T5S V2.4 Wifi Bluetooth Wireless Module Base ESP32 Red Display EPaper Speaker Electric Development Board

  • LILYGO® TTGO T5S V2.4 Wifi Bluetooth Wireless Module Base ESP32 Red Display EPaper Speaker Electric Development Board

  • LILYGO® TTGO T5S V2.4 Wifi Bluetooth Wireless Module Base ESP32 Red Display EPaper Speaker Electric Development Board



  • Shipping List

  • T5 ESP-32 Module *1(Includes display screen and speakers)

  • Power Cable *1

  • Free Box  *1



  • LILYGO® TTGO T5S V2.4 Wifi Bluetooth Wireless Module Base ESP32 Red Display EPaper Speaker Electric Development Board

  • LILYGO® TTGO T5S V2.4 Wifi Bluetooth Wireless Module Base ESP32 Red Display EPaper Speaker Electric Development Board

  • LILYGO® TTGO T5S V2.4 Wifi Bluetooth Wireless Module Base ESP32 Red Display EPaper Speaker Electric Development Board

  • LILYGO® TTGO T5S V2.4 Wifi Bluetooth Wireless Module Base ESP32 Red Display EPaper Speaker Electric Development Board
