产品名称:

LILYGO® TTGO T5s V2.8 ESP32 2.7" EPaper Plus Module For Alexa I2S DAC MAX98357A MEMS Microphone ICS43434(1)

上市日期: 2019-08-19
建议销售价: 0

LILYGO® TTGO T5s V2.8 ESP32 2.7' EPaper Plus Module For Alexa I2S DAC MAX98357A  MEMS Microphone ICS43434

LILYGO® TTGO T5s V2.8 ESP32 2.7

Product Description

Lastest ESP32 Version: REV1

2.7″ePaper board consisting of ESP32-D0WDQ6, I2S DAC MAX98357A, and one pcs I2S MEMS microphone ICS43434

Single channel, Class-D amplifier embedded DAC, MAX98357 is connected to ESP32 through I2S bus.

MEMS microphone Invensense ICS-43434 is connected to ESP32 through I2S bus.

On-board USB-UART interface (CP2102) with several glue logic for direct binary uploading.

WIFI

Bluetooth

4 MB Flash

3D ANTENNA

500mA Battery Management

LED indicator: There are 4 LEDs show the battery status in real time.

Power button: Click one time will start. Fast click 2 times will shut down.

2.7″ ePaper module 264*176 pixels,

TFCARD

Protection: Short protection. Over charging protection. Overflowing

button changed (IO37, IO38, IO39)



Pin Out Schematic

LILYGO® TTGO T5s V2.8 ESP32 2.7LILYGO® TTGO T5s V2.8 ESP32 2.7





Dimensions

LILYGO® TTGO T5s V2.8 ESP32 2.7

More product information,link to:

https://github.com/LilyGO/TTGO-T5S-Epaper

https://github.com/Xinyuan-LilyGO/LilyGo-T5-ink-series



Product Details

LILYGO® TTGO T5s V2.8 ESP32 2.7

LILYGO® TTGO T5s V2.8 ESP32 2.7



Screen Specifications



Part Number

Colors

Grey Level

Resolution

Display size (mm)

Outline Dimension (mm)

Full Refresh Time (s)

Partial Refresh Time (s)

Interface

2.7inch e-Paper

black, white

2

264x176

57.29 × 38.19

70.4 × 45.8

6

N/A

SPI

2.7inch e-Paper (B)

red, black, white

2

264x176

57.29 × 38.19

70.4 × 45.8

15

N/A

SPI





Shipped according to the kind of your choice



First kind With ePaper shipping list:

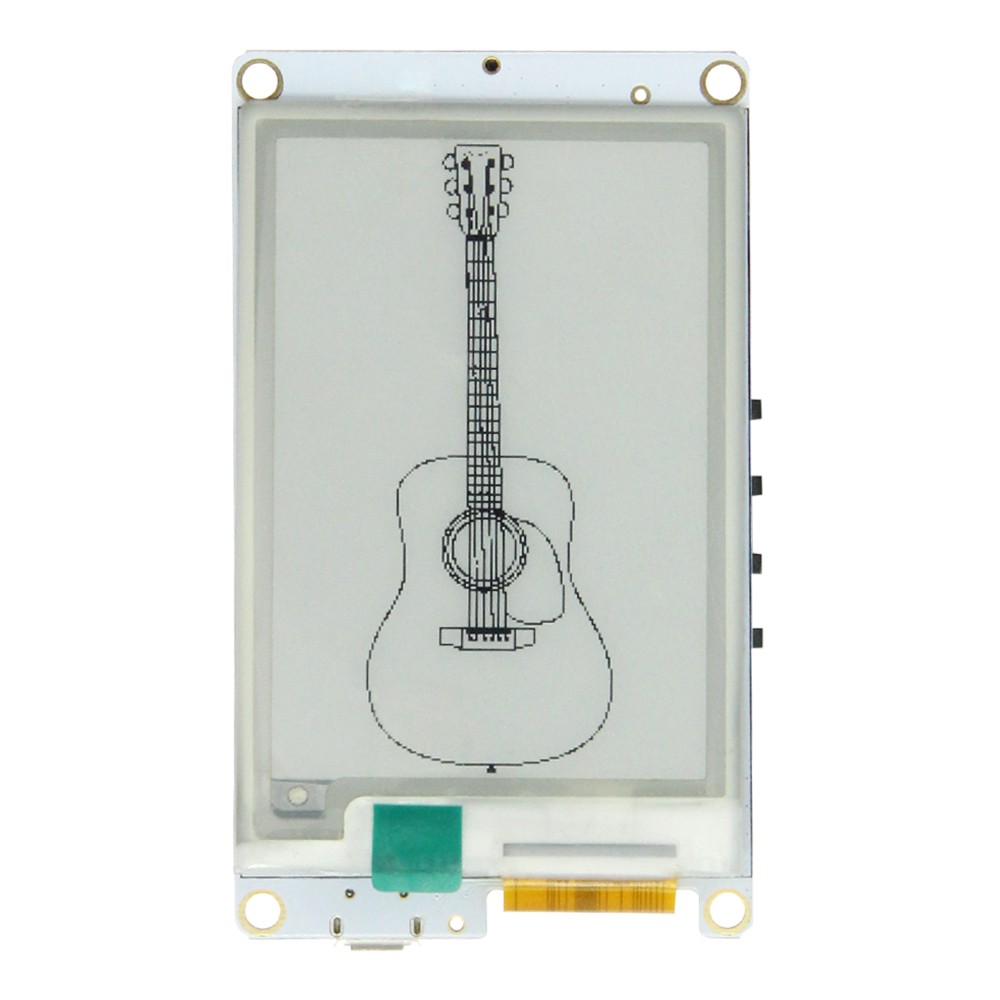

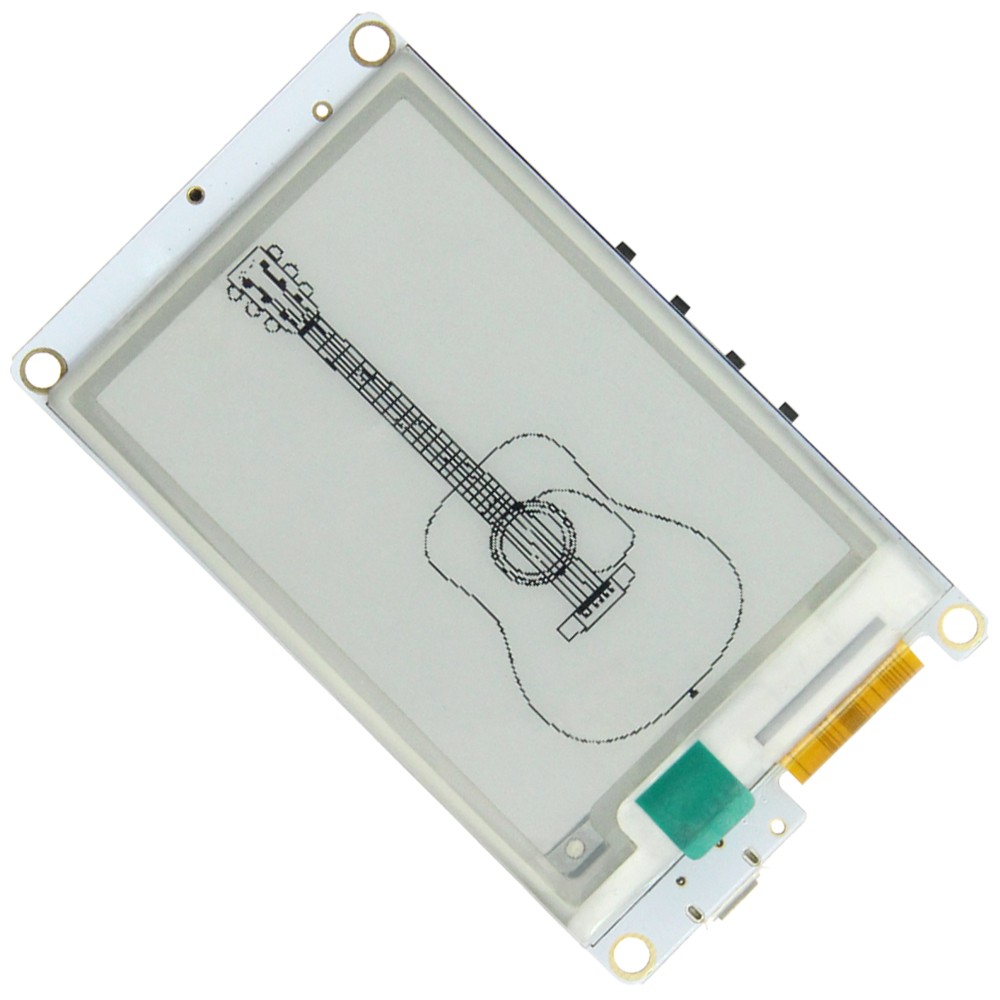

1 X TTGO T5s V2.8 2.7 inch Black White ePaper ESP32 Module

1 X Power Cable

1 X GROVE Line



LILYGO® TTGO T5s V2.8 ESP32 2.7

Second kinds With ePaper shipping list:

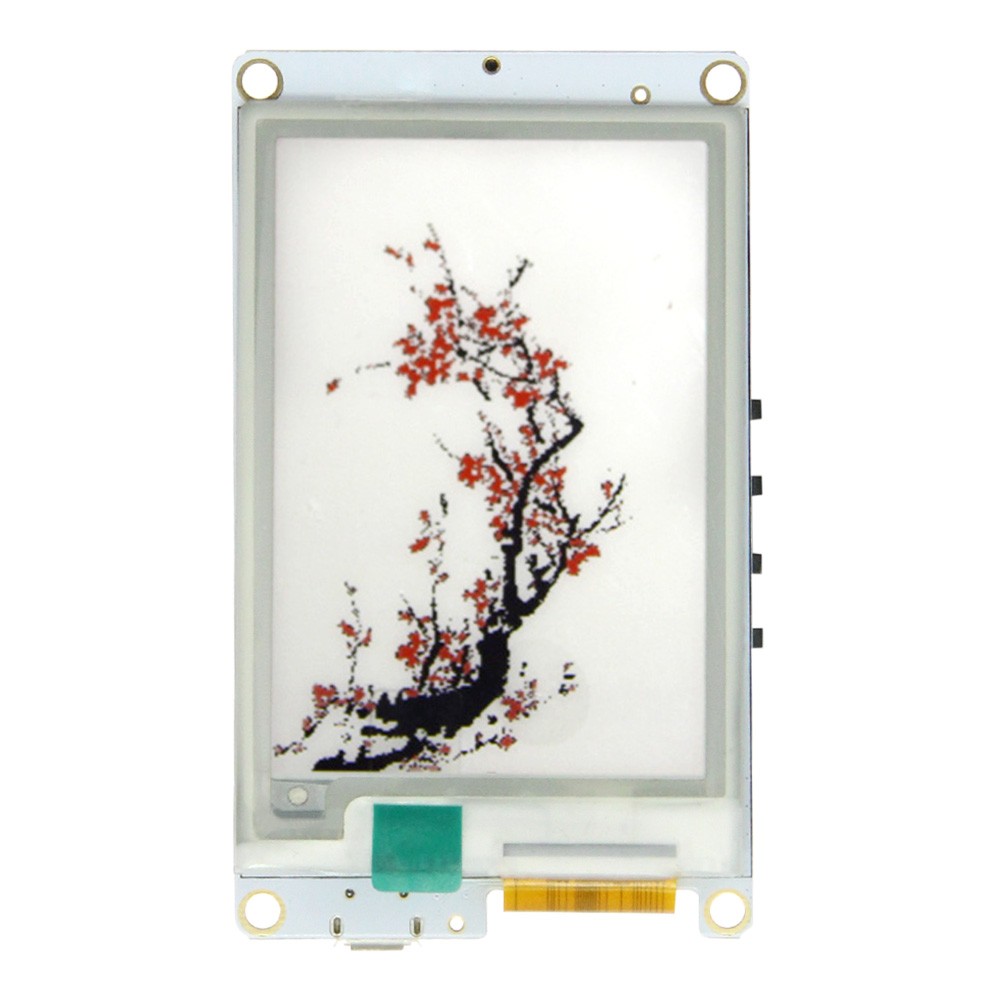

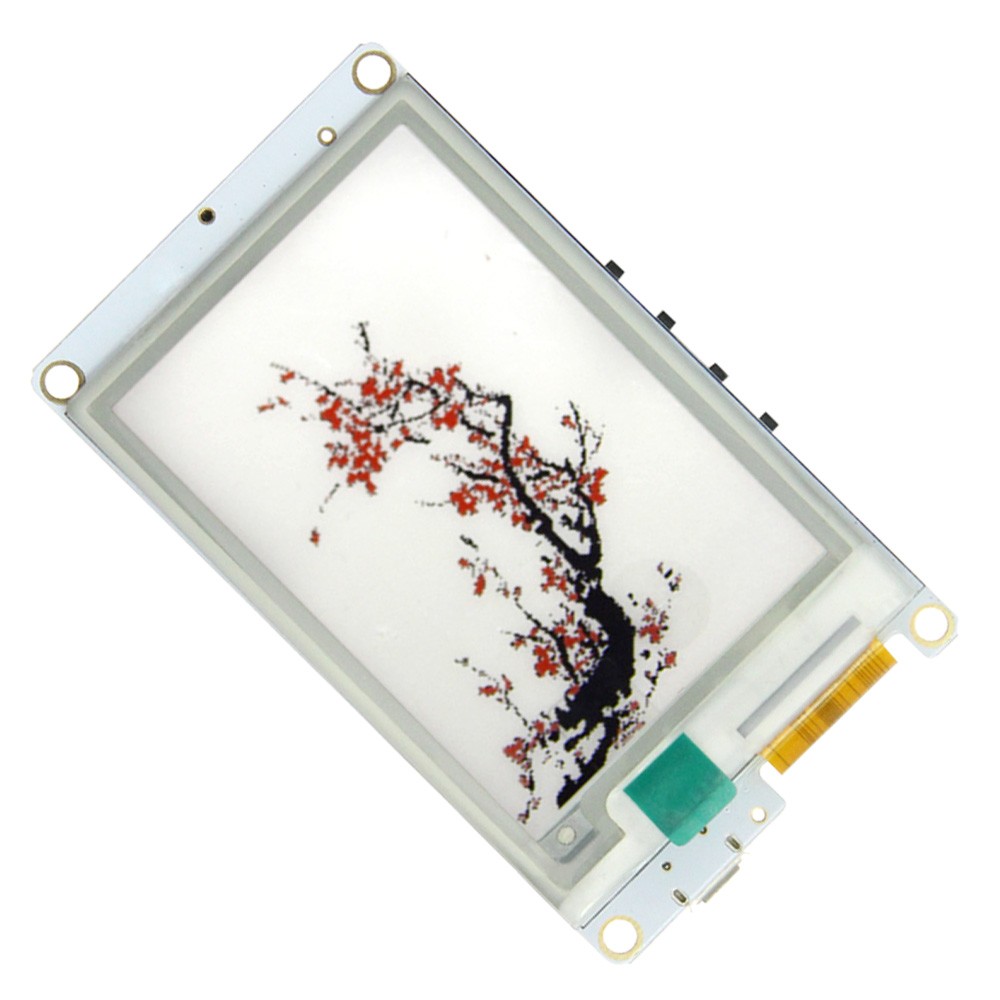

1 X TTGO T5s V2.8 2.7 inch Red Black White ePaper ESP32 Module

1 X Power Cable

1 X GROVE Line

LILYGO® TTGO T5s V2.8 ESP32 2.7

Third kinds Without ePaper shipping list:

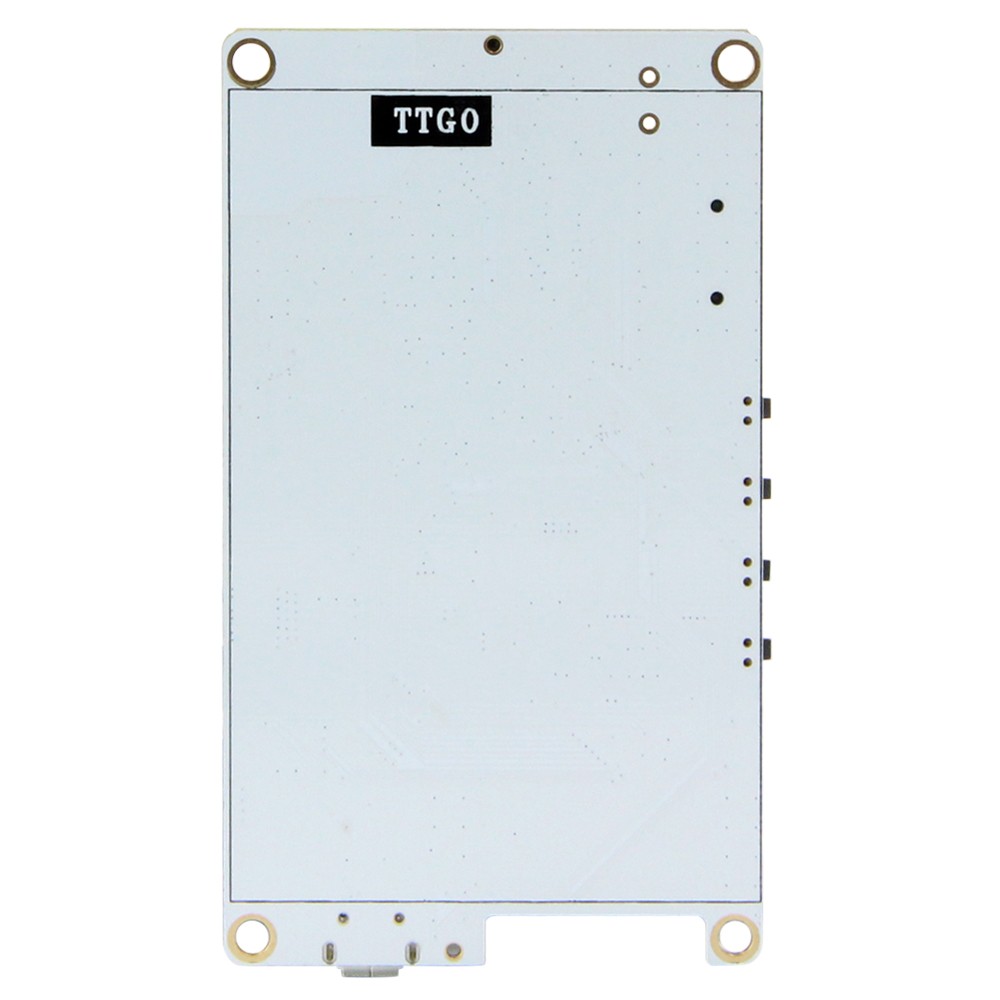

1 X TTGO T5s V2.8 Without ePaper ESP32 Module

1 X Power Cable

1 X GROVE Line

LILYGO® TTGO T5s V2.8 ESP32 2.7







LILYGO® TTGO T5s V2.8 ESP32 2.7

LILYGO® TTGO T5s V2.8 ESP32 2.7

LILYGO® TTGO T5s V2.8 ESP32 2.7
