产品名称:

LILYGO® TTGO T5 V2.2 ESP32 2.9" EPaper Plus Module E-Ink Speakers(1)

上市日期: 2019-08-19
建议销售价: 0

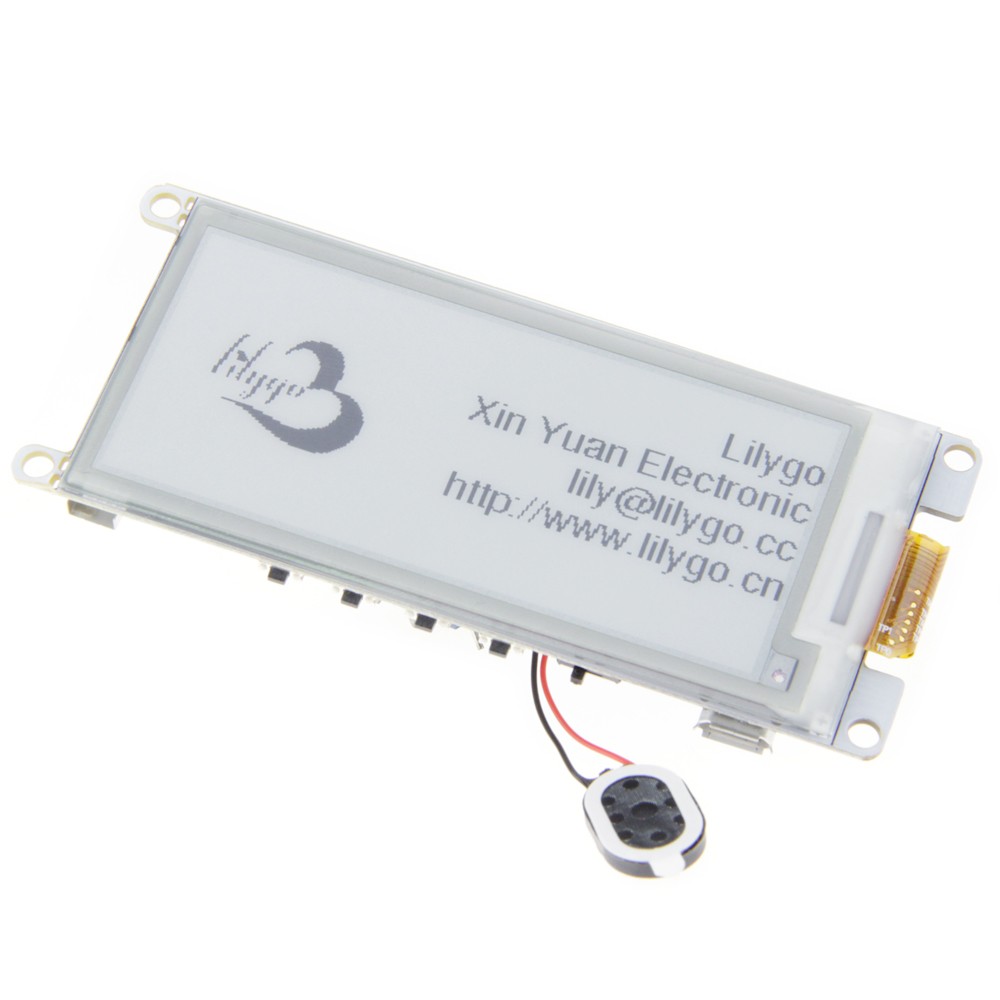

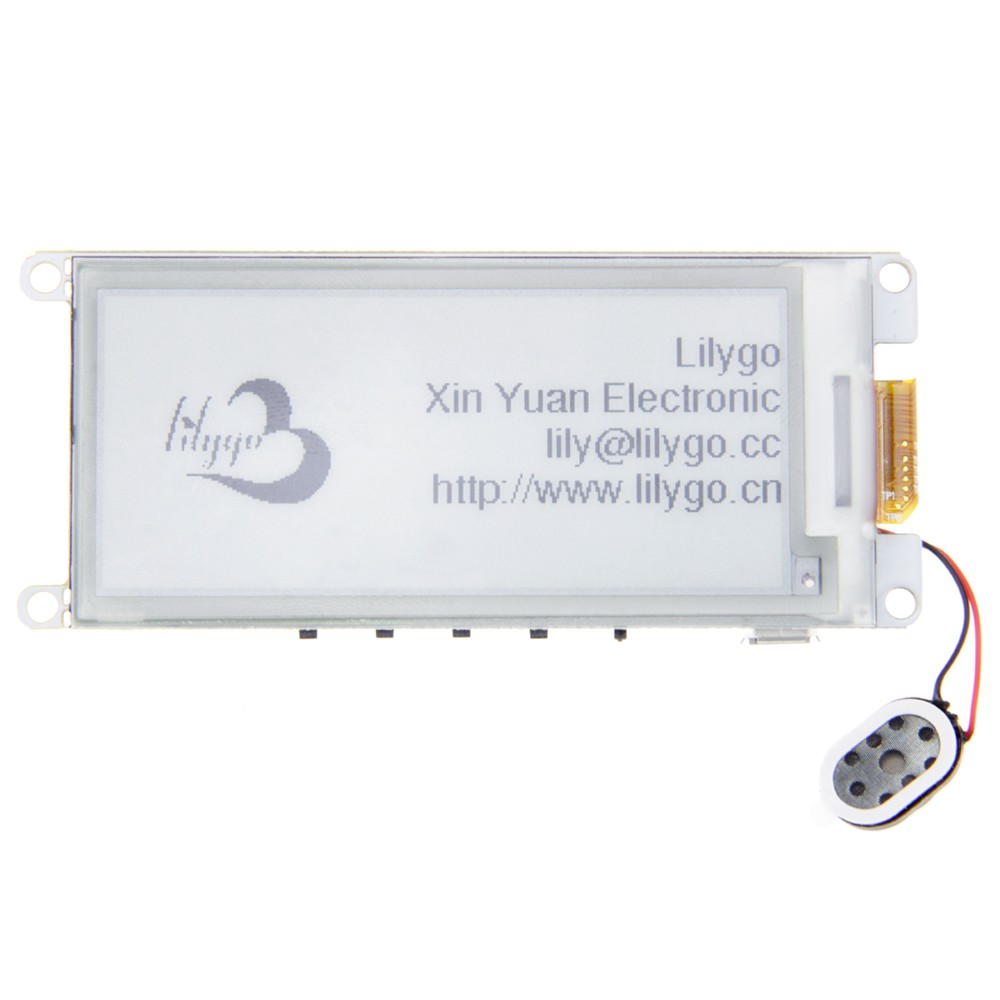

LILYGO® TTGO T5 V2.2 ESP32  2.9' EPaper Plus Module E-Ink Speakers

LILYGO® TTGO T5 V2.2 ESP32 2.9



Product Description

2.9″ ePaper module 296*128 pixels,

MCU: ESP32 can interface with other systems to provide Wi-Fi and Bluetooth functionality through its SPI / SDIO or I2C / UART interfaces.

Speakers: 8Ω1W 15X10X3.6mm

TF CARD

3D ANTENNA

GROVE(I2C)

Lithium battery interface, 500mA Max charging current

Battery Connector: PH-1.25mm

All of the IO pins run at 3.3V.

MCU: ESP32-D0WDQ06 ESP32 can interface with other systems to provide Wi-Fi and Bluetooth functionality through its SPI / SDIO or I2C / UART interfaces.

Clock Speed(Max) :  240Mhz
Flash : 4M bytes



More information

https://github.com/LilyGO/TTGO-Electronic-Badge

https://github.com/Xinyuan-LilyGO/LilyGo-T5-ink-series

LILYGO® TTGO T5 V2.2 ESP32 2.9LILYGO® TTGO T5 V2.2 ESP32 2.9



Pin Reference Description

LILYGO® TTGO T5 V2.2 ESP32 2.9





Product Size

LILYGO® TTGO T5 V2.2 ESP32 2.9





Screen Specifications

Part Number

Colors

Grey Level

Resolution

Display size (mm)

Outline Dimension (mm)

Full Refresh Time (s)

Partial Refresh Time (s)

Interface

2.9inch e-Paper

black, white

2

296x128

66.89 × 29.05

79.0 × 36.7

2

0.3

SPI



Shipping List

1 X TTGO ESP32  2.9' ESPaper Plus Module

1 X GROVE I2C Line

1 X Power Cable

1X Free Box

LILYGO® TTGO T5 V2.2 ESP32 2.9

LILYGO® TTGO T5 V2.2 ESP32 2.9

LILYGO® TTGO T5 V2.2 ESP32 2.9

LILYGO® TTGO T5 V2.2 ESP32 2.9
