产品名称:

LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER(1)

上市日期: 2017-12-06
建议销售价: 0

LILYGO® TTGO T5 V2.4 Wifi And Bluetooth Basis ESP-32 Esp32 1.54/2.13/2.9 EPaper SPEAKER

LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER

LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER

Overview

This is an E-paper display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports black, and white color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.



Features

· No backlight, keeps displaying last content for a long time even when power down

· Ultra low power consumption, basically power is only required for refreshing

· Comes with development resources and manual (examples for Arduin-esp32)



Specifications

· Operating voltage: 3.3V

· Interface: 3-wire SPI, 4-wire SPI

· Display color:  black, white

· Grey level: 2

· Full refresh time: 8s

· Refresh power: 26.4mW(typ.)

· Standby power: <0.017mW

· Viewing angle: >170°

Test the firmware:https://github.com/Xinyuan-LilyGO/LilyGO_T5_V24/tree/master/firmware

https://github.com/Xinyuan-LilyGO/LilyGo-T5-ink-series

Product Diagram

LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER

Product Size

LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER

Use Demonstration

LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER





More Display

LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER
LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER
LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER
LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER
LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER
LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER





For more product information, please enter:

https://github.com/LilyGO/TTGO-T5-ePaper1.54





Product Details



Part Number

Colors

Grey Level

Resolution

Display size (mm)

Outline Dimension (mm)

Full Refresh Time (s)

Partial Refresh Time (s)

Interface

1.54inch e-Paper

black, white

2

200x200

27.60 × 27.60

31.8 × 37.3

2

0.3

SPI

2.13inch e-Paper

black, white

2

250x122

48.55 × 23.71

59.2 × 29.2

2

0.3

SPI

2.7inch e-Paper

black, white

2

264x176

57.29 × 38.19

70.4 × 45.8

6

N/A

SPI

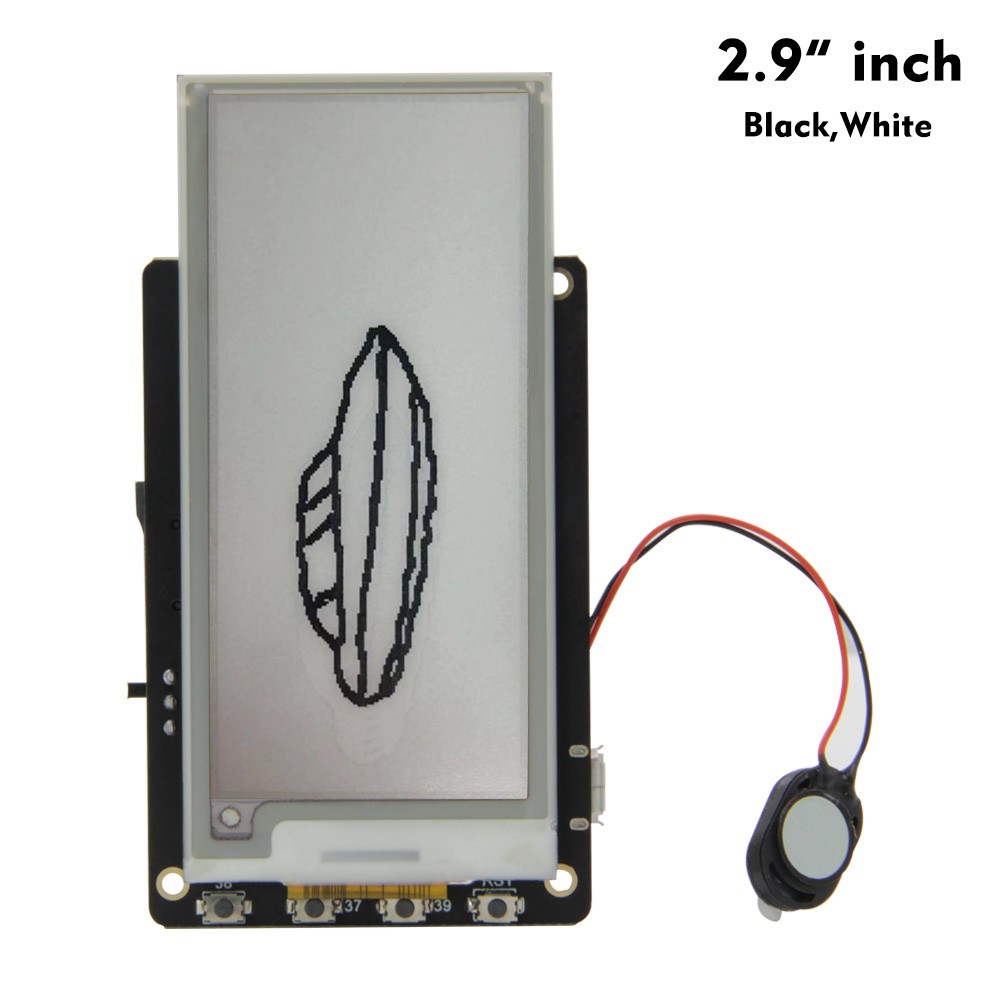

2.9inch e-Paper

black, white

2

296x128

66.89 × 29.05

79.0 × 36.7

2

0.3

SPI





Shipped according to the kind of your choice

First kind With Paper shipping list:

1 X TTGO T5 1.54 inch Black White ePaper ESP32 Module
1 X Power Cable
1 X GROVE Line

LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER

Second kinds With ePaper shipping list

1 X TTGO T5 2.13 inch Black White ePaper ESP32 Module

1 X Power Cable

1 X GROVE Line

LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER



Third kinds With ePaper shipping list:



1 X TTGO T5 2.9 inch Black White ePaper ESP32 Module

1 X Power Cable

1 X GROVE Line

LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER







Fourth kinds With ePaper shipping list:

1 X TTGO T5 2.7 inch Black White ePaper ESP32 Module

1 X Power Cable

1 X GROVE Line

LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER



Fifth kinds With ePaper shipping list:

1 X TTGO T5 Control Board

1 X Power Cable

1 X GROVE Line

LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER

LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER

LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER

LILYGO® TTGO T5 V2.4 Wifi & Bluetooth Basis ESP32 1.54 EPaper SPEAKER
