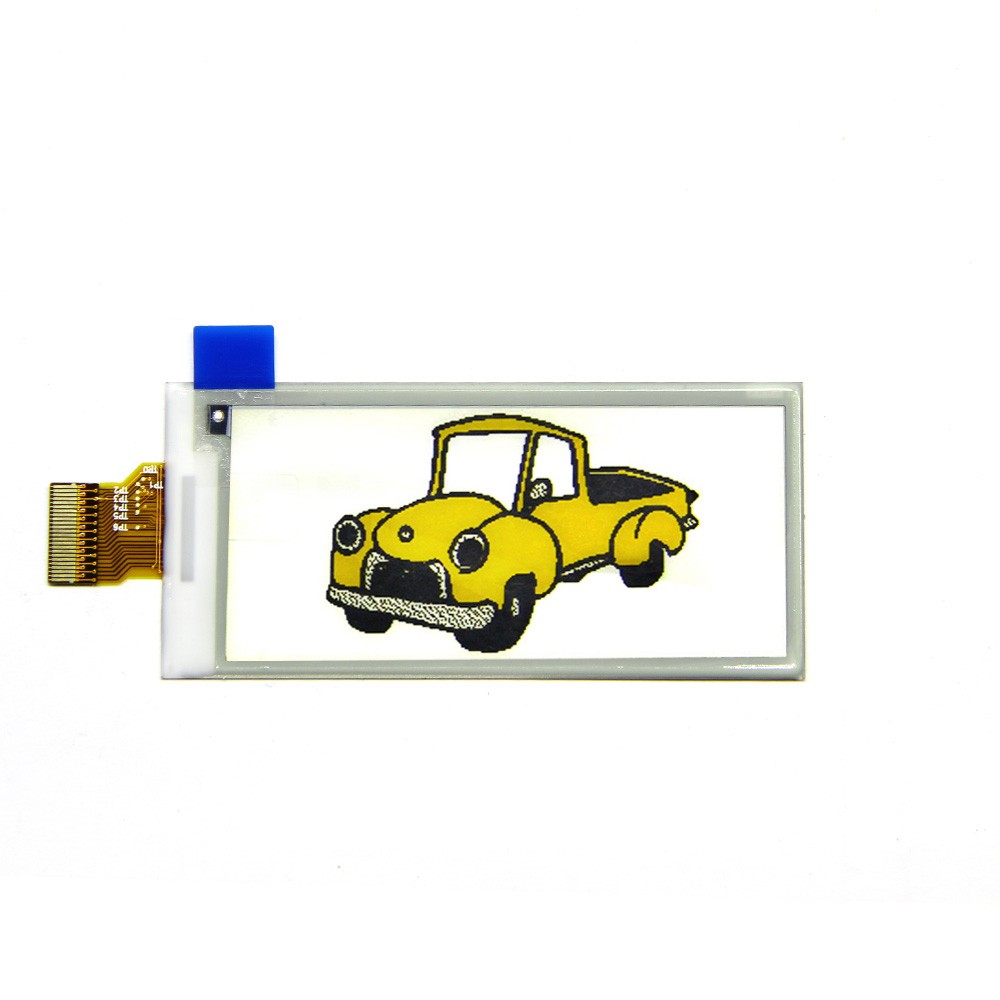

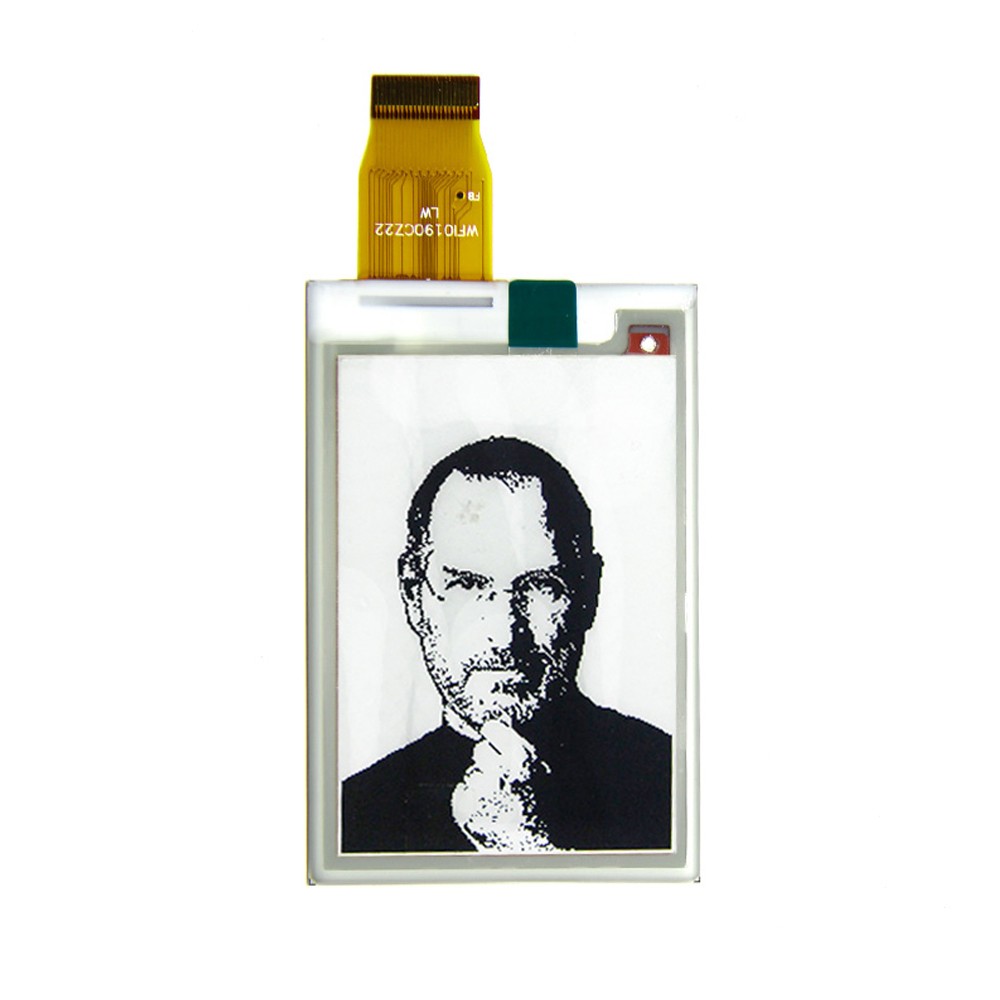

LILYGO® E-Paper Display Module 1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5S

LILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5S





  • Overview

This is an E-paper display module, resolution with embedded controller, communicating via SPI interface, supports  more color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

  • Features

· No backlight, keeps displaying last content for a long time even when power down

· Ultra low power consumption, basically power is only required for refreshing

· Comes with development resources and manual (examples for Arduin-esp32)



  • Specifications

· Operating voltage: 3.3V

· Interface: 3-wire SPI, 4-wire SPI

· Display color: yellow, black, white

· Grey level: 2

· Refresh power: 26.4mW(typ.)

· Standby power:<0.017mW

· Viewing angle: >170°

Screen specifications

Part Number

Colors

Grey Level

Resolution

Display size (mm)

Outline Dimension (mm)

Full Refresh Time (s)

Partial Refresh Time (s)

Interface

1.54inch e-Paper

black, white

2

200x200

27.60 × 27.60

31.8 × 37.3

2

0.3

SPI

1.54inch e-Paper

red, black, white

2

152x152

27.60 × 27.60

31.8 × 37.3

8

N/A

SPI

1.54inch e-Paper

yellow, black, white

2

152x152

27.51 × 27.51

31.8 × 37.3

27

N/A

SPI

2.13inch e-Paper

black, white

2

250x122

48.55 × 23.71

59.2 × 29.2

2

0.3

SPI

2.13inch e-Paper

red, black, white

2

212x104

48.55 × 23.71

59.2 × 29.2

15

N/A

SPI

2.13inch e-Paper

yellow, black, white

2

212x104

48.55 × 23.71

59.2 × 29.2

15

N/A

SPI

2.7inch e-Paper

black, white

2

264x176

57.29 × 38.19

70.4 × 45.8

6

N/A

SPI

2.7inch e-Paper

red, black, white

2

264x176

57.29 × 38.19

70.4 × 45.8

15

N/A

SPI

2.9inch e-Paper

black, white

2

296x128

66.89 × 29.05

79.0 × 36.7

2

0.3

SPI

2.9inch e-Paper

red, black, white

2

296x128

66.89 × 29.05

79.0 × 36.7

15

N/A

SPI

2.9inch e-Paper

yellow, black, white

2

296x128

66.89 × 29.05

79.0 × 36.7

15

N/A

SPI

SYMBOL

DESCRIPTION

VCC

3.3V

GND

Ground

DIN

SPI MOSI pin

CLK

SPI SCK pin

CS

SPI chip selection, low active

DC

Data/Command selection (high for data, low for command)

RST

External reset, low active

BUSY

Busy status output, low active



Use With ESP32

LILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5S



You can purchase the ESP T5 board Match any screen above



LILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5S





LILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5S





Product Details

LILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5SLILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5SLILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5S

LILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5SLILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5SLILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5SLILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5S

LILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5SLILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5SLILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5SLILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5S

Shipping List

1 X e-paper(1.54/2.13/2.7/2.9inch)

LILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5S

The board Shipping List

1 X T5 ESP32 Board(without e-Paper)

LILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5S









LILYGO® E-Paper Display Module1.54/2.13/2.7/2.9 Inch E-Ink Display Module Yellow/Black/White For Raspberry Pi for ESP32 T5 T5S
