LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board
上市日期： 2018-03-30
建议销售价: 0

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

Product Description

      Overview

This is an E-paper display module, resolution with embedded controller, communicating via SPI interface, supports  more color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.



Features

· No backlight, keeps displaying last content for a long time even when power down

· Ultra low power consumption, basically power is only required for refreshing

· Comes with development resources and manual (examples for Arduin-esp32)



Specifications

· Operating voltage: 3.3V

· Interface: 3-wire SPI, 4-wire SPI

· Display color: yellow, black, white

· Grey level: 2

· Refresh power: 26.4mW(typ.)

· Standby power:<0.017mW

· Viewing angle: >170°



Screen specifications

Part Number

Colors

Grey Level

Resolution

Display size (mm)

Outline Dimension (mm)

Full Refresh Time (s)

Partial Refresh Time (s)

Interface

1.54inch e-Paper

black, white

2

200x200

27.60 × 27.60

31.8 × 37.3

2

0.3

SPI

1.54inch e-Paper

red, black, white

2

152x152

27.60 × 27.60

31.8 × 37.3

8

N/A

SPI

1.54inch e-Paper

yellow, black, white

2

152x152

27.51 × 27.51

31.8 × 37.3

27

N/A

SPI

2.13inch e-Paper

black, white

2

250x122

48.55 × 23.71

59.2 × 29.2

2

0.3

SPI

2.13inch e-Paper

red, black, white

2

212x104

48.55 × 23.71

59.2 × 29.2

15

N/A

SPI

2.13inch e-Paper

yellow, black, white

2

212x104

48.55 × 23.71

59.2 × 29.2

15

N/A

SPI

2.7inch e-Paper

black, white

2

264x176

57.29 × 38.19

70.4 × 45.8

6

N/A

SPI

2.7inch e-Paper

red, black, white

2

264x176

57.29 × 38.19

70.4 × 45.8

15

N/A

SPI

2.9inch e-Paper

black, white

2

296x128

66.89 × 29.05

79.0 × 36.7

2

0.3

SPI

2.9inch e-Paper

red, black, white

2

296x128

66.89 × 29.05

79.0 × 36.7

15

N/A

SPI

2.9inch e-Paper

yellow, black, white

2

296x128

66.89 × 29.05

79.0 × 36.7

15

N/A

SPI

SYMBOL


VCC

3.3V

GND

Ground

DIN

SPI MOSI pin

CLK

SPI SCK pin

CS

SPI chip selection, low active

DC

Data/Command selection (high for data, low for command)

RST

External reset, low active

BUSY

Busy status output, low active

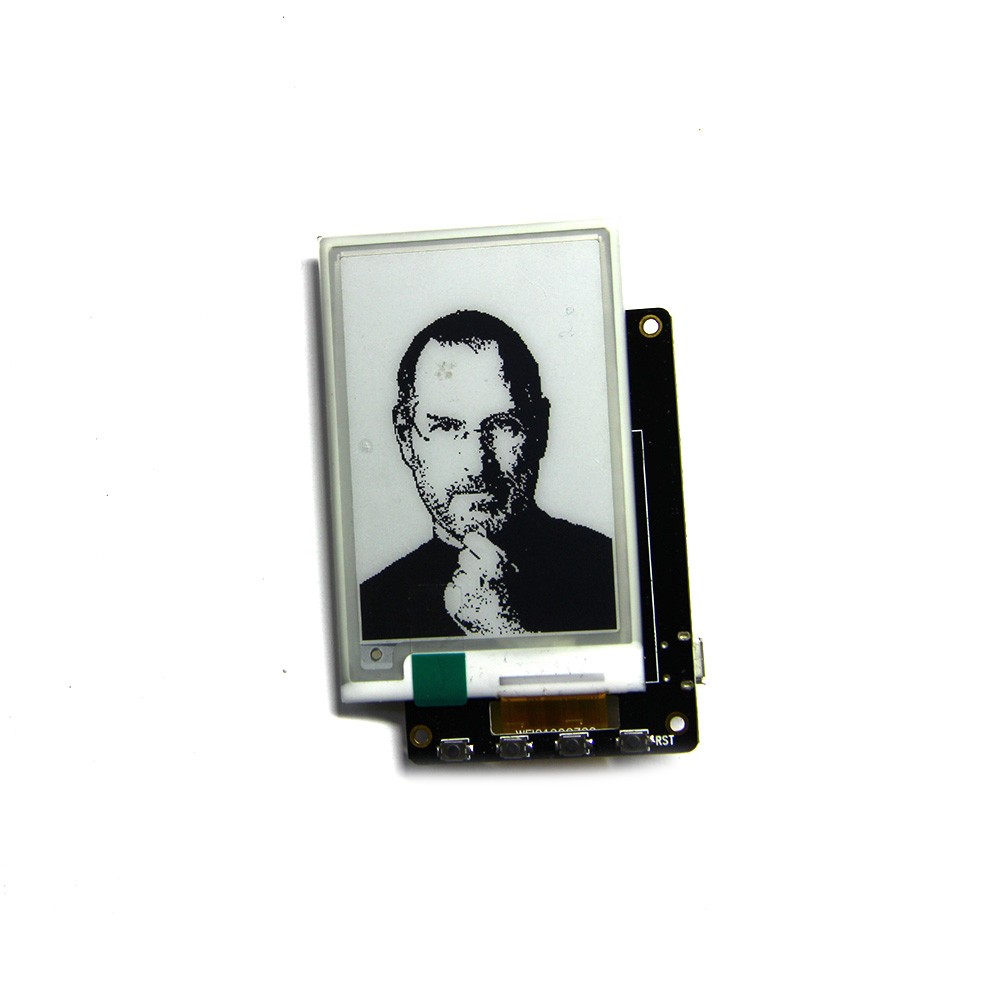

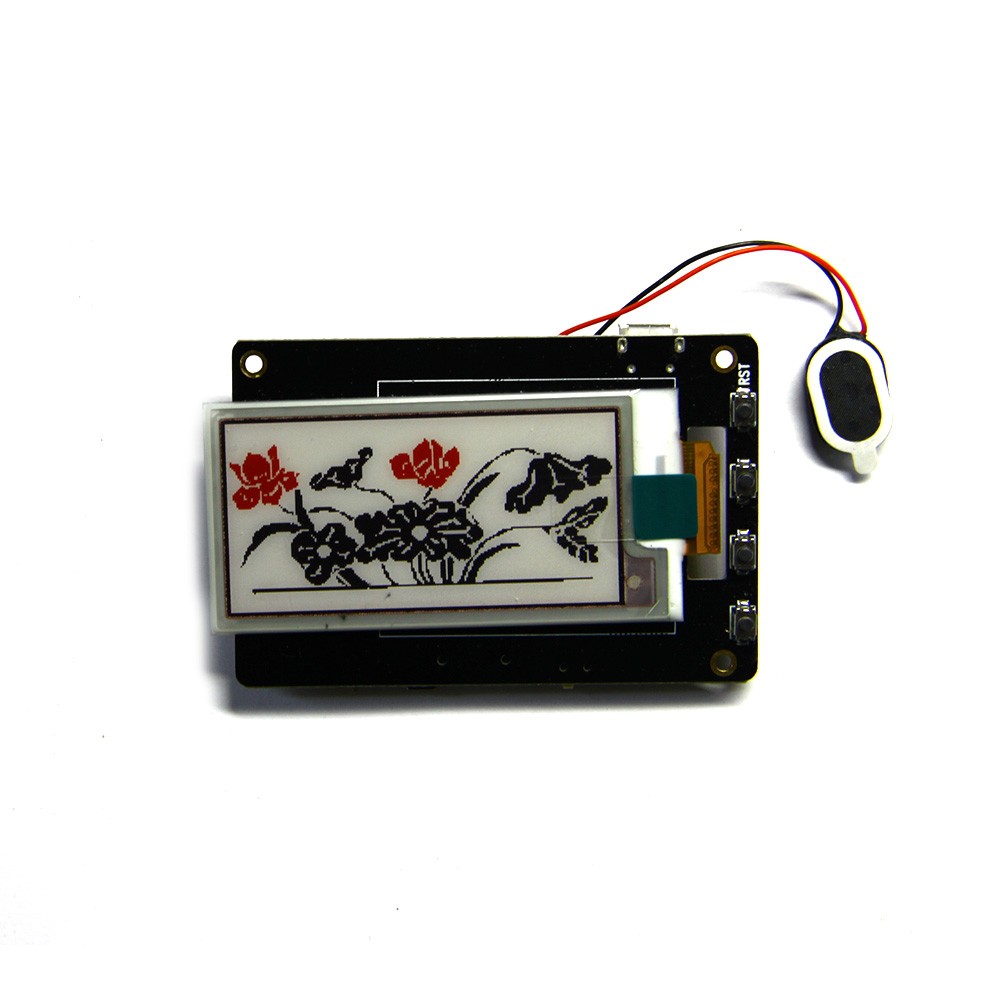

Product Diagram

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

Product Size

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

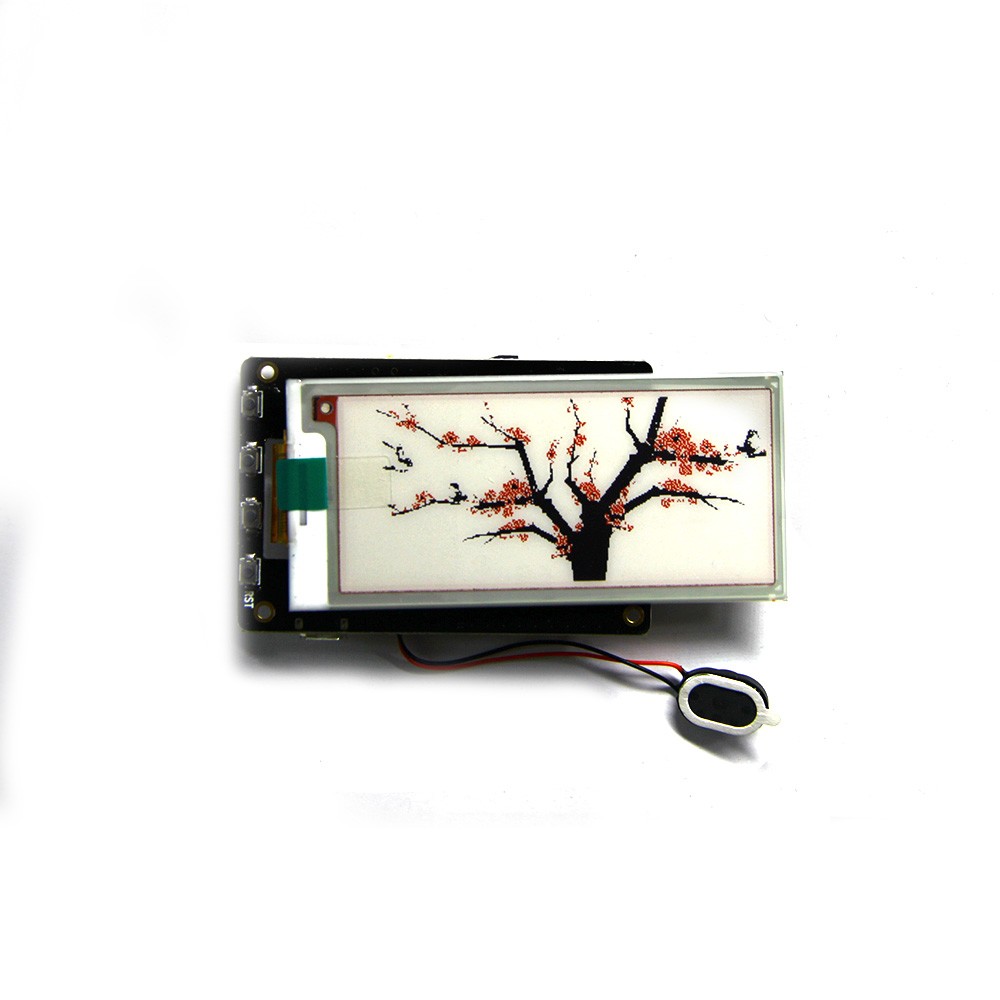

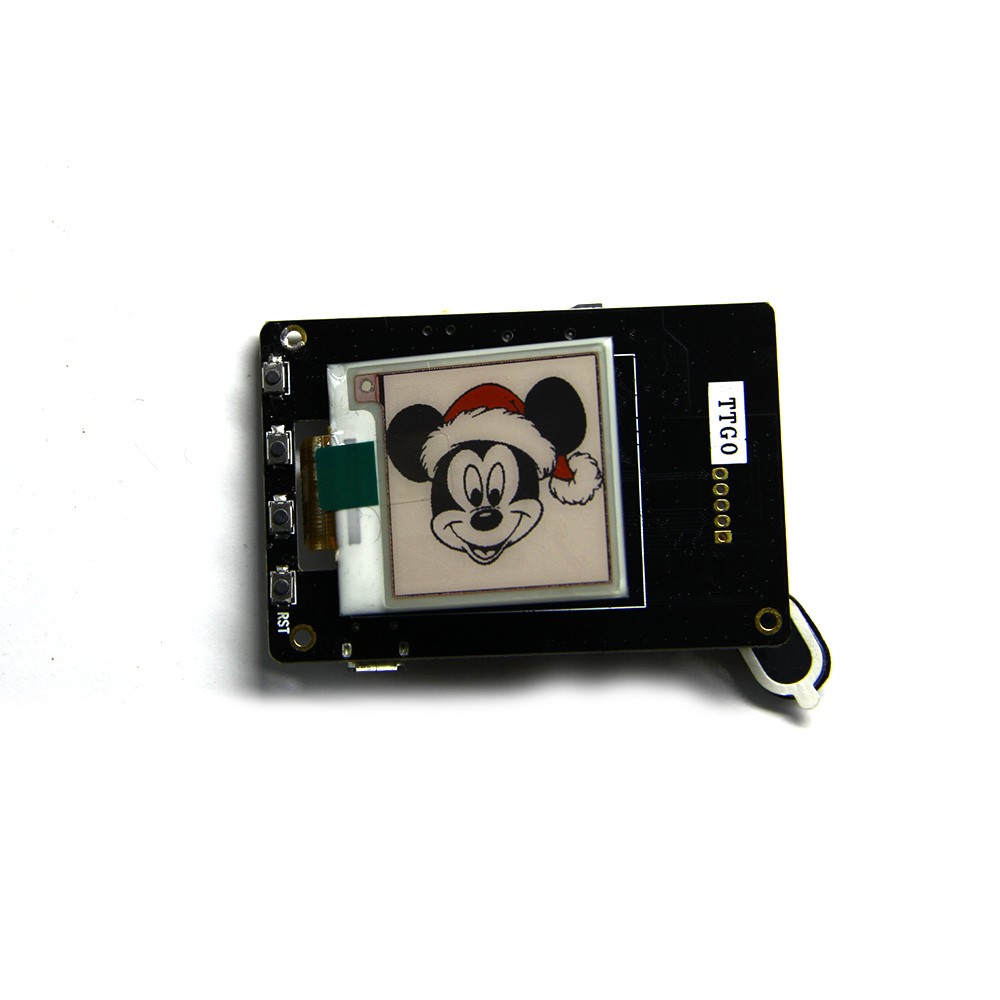

More Display



LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board



For more product information, please enter:

https://github.com/LilyGO/TTGO-T5-ePaper1.54


https://github.com/Xinyuan-LilyGO/LilyGo-T5-ink-series



Product Details









LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board





Shipping List(Shipped according to the kind of your choice)

1 X T5 ESP32 Module (Includes display screen and speakers)

1 X Power Cable

1 X Free Box

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board







LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board

LILYGO® TTGO T5 T5S V2.4 Wifi Bluetooth Wireless Module Base ESP-32 Esp32 Yellow Display EPaper Electric Development Board
