Hardware Specifications
Chipset:SX1302+SX1250(2pcs)
Supply voltage:3.0V-3.6V(Typ：3.3V)
Wireless standard:LoRa/FSK
Frequency range (optional):433/470/868/915MHz
Transmit power:MAX:26dBm
Receiving sensitivity:-143dBm @ SF12
Antenna interface specifications:IPEX
Connection interface type with Raspberry Pi:SPI or TTL
More Information:
https://github.com/Xinyuan-LilyGO/SX1302_HAL_GATEWAY

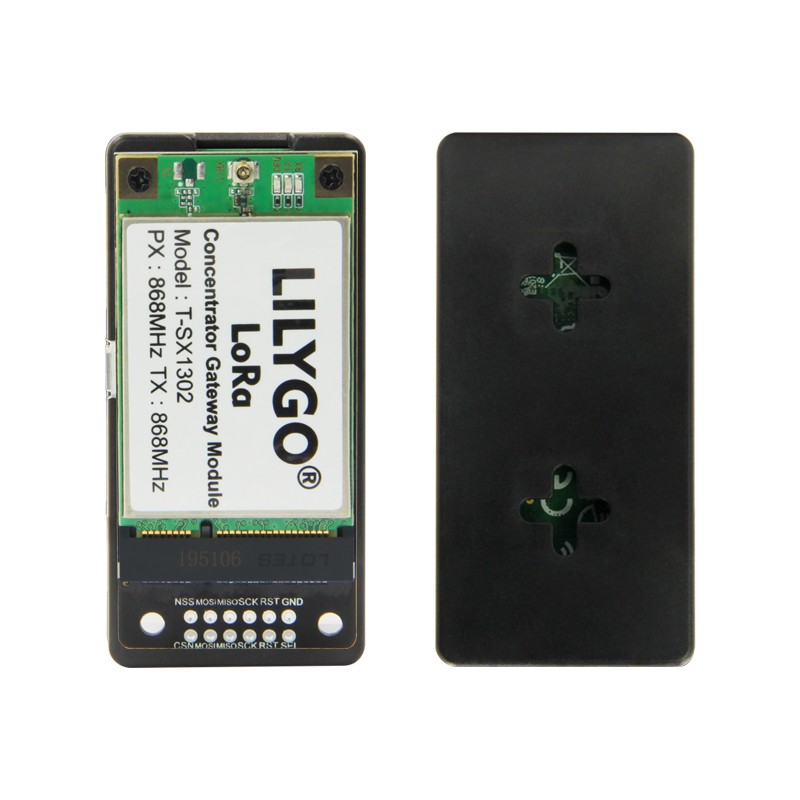

![LILYGO®TTGO T-SX1302 868MHz LORA Concentrator LoRaWAN for TTGO LORA32]( "LILYGO®TTGO T-SX1302 868MHz LORA Concentrator LoRaWAN for TTGO LORA32")

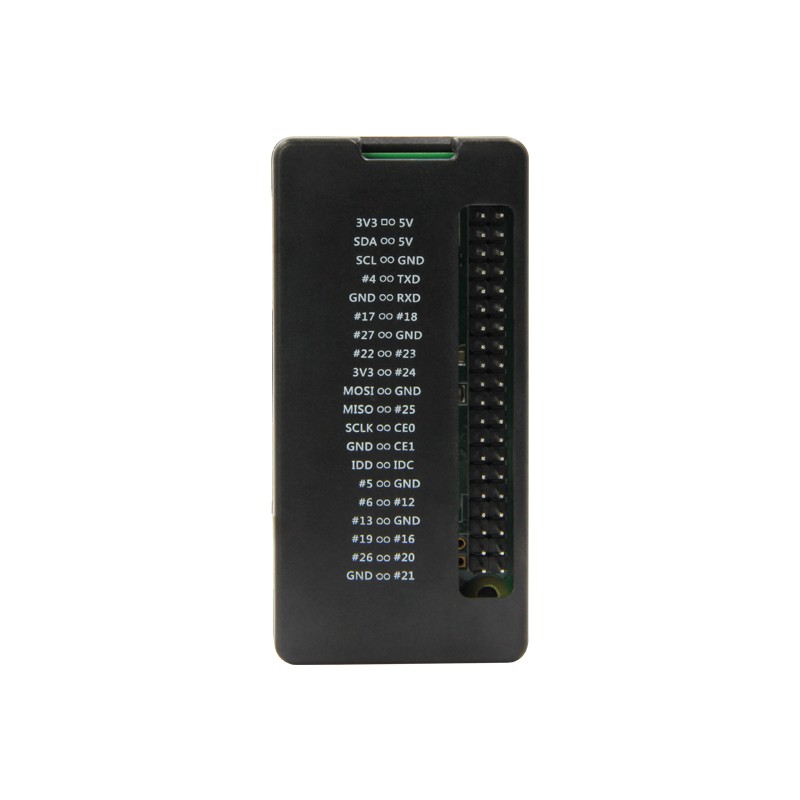

![LILYGO®TTGO T-SX1302 868MHz LORA Concentrator LoRaWAN for TTGO LORA32]( "LILYGO®TTGO T-SX1302 868MHz LORA Concentrator LoRaWAN for TTGO LORA32")

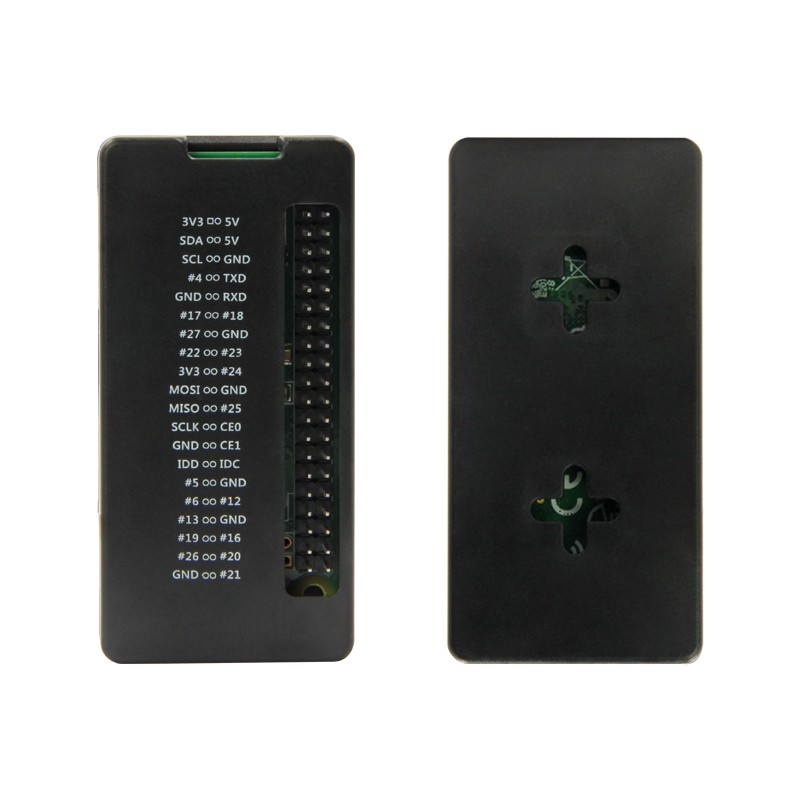

![LILYGO®TTGO T-SX1302 868MHz LORA Concentrator LoRaWAN for TTGO LORA32]( "LILYGO®TTGO T-SX1302 868MHz LORA Concentrator LoRaWAN for TTGO LORA32")

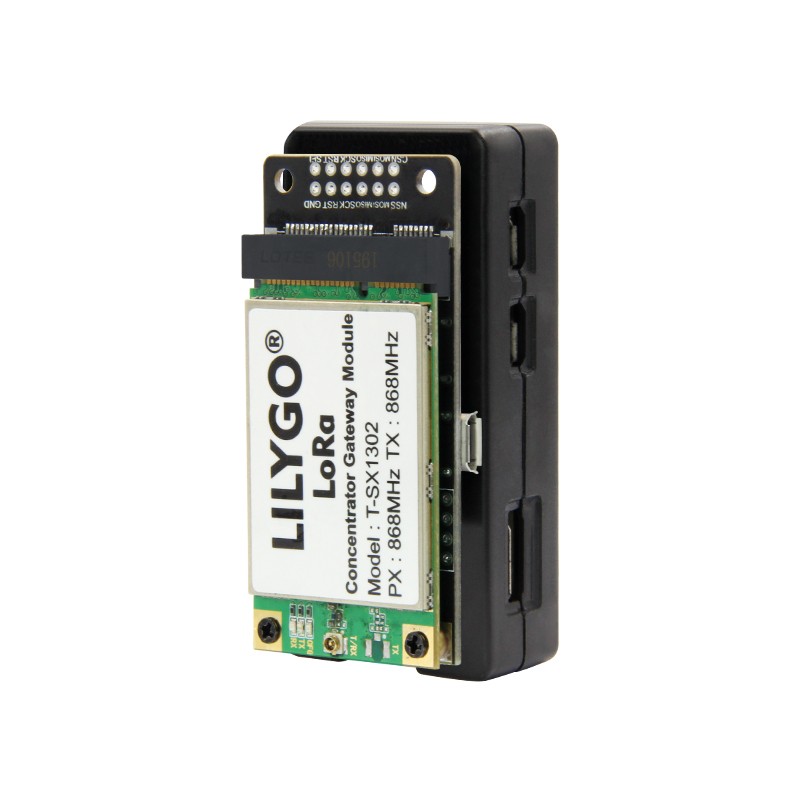

![LILYGO®TTGO T-SX1302 868MHz LORA Concentrator LoRaWAN for TTGO LORA32]( "LILYGO®TTGO T-SX1302 868MHz LORA Concentrator LoRaWAN for TTGO LORA32")
