产品名称:

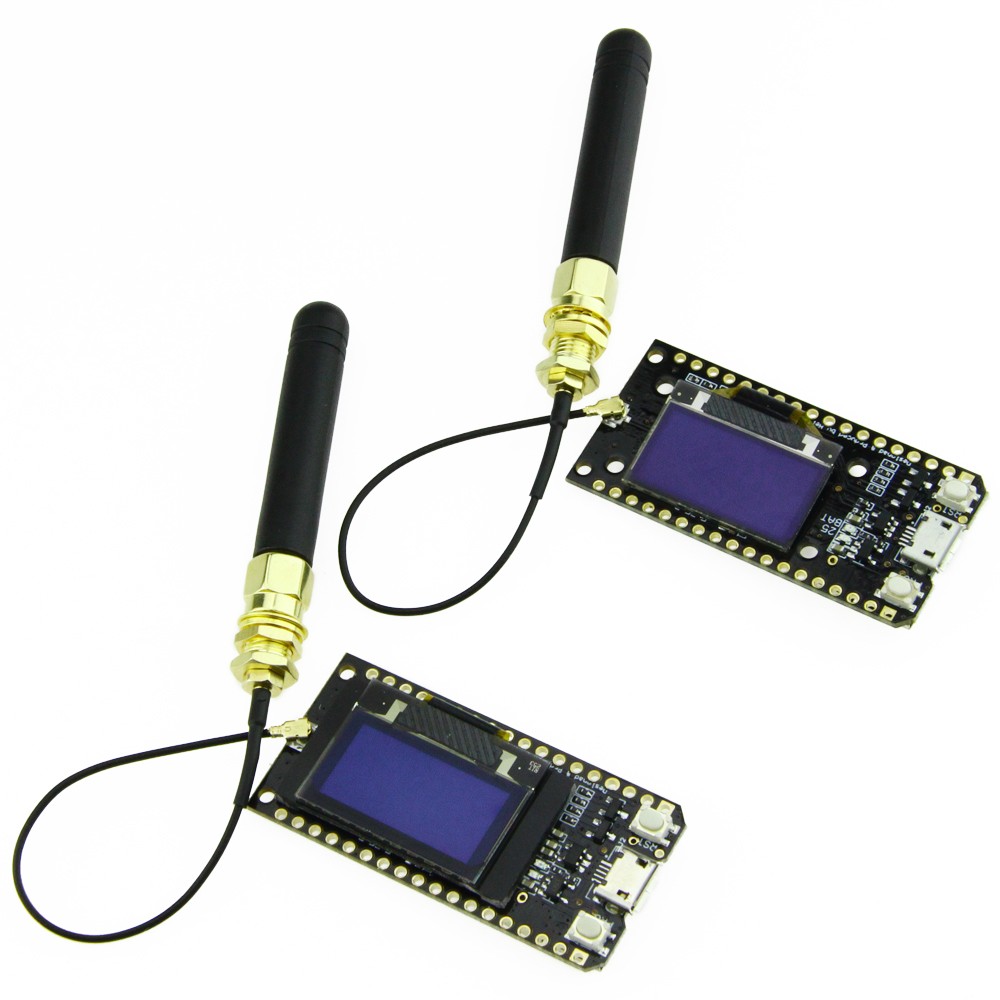

LILYGO® 2pcs TTGO LORA32 Lora 868/915MHz ESP32 LoRa OLED 0.96 Inch Display Bluetooth WIFI ESP-32 Development Board Module

上市日期: 2019-08-19
建议销售价: 0

2pcs TTGO LORA32 Lora 868/915MHz ESP32 LoRa OLED 0.96 Inch Display Bluetooth WIFI ESP-32 Development Board Module With Antenna


Features and specifications:

Key features:
• SX1276 chip based on ESP32 Wi-Fi, 868 – 915 MHz frequency, high sensitivity over -148 dBm, + 20 dBm output power, high reliability, long-transmission distance
• Onboard 32 MB flash Wi-Fi antenna, 0.96-inch OLED display, lithium battery charging circuit, CP2102 interface and USB serial chip, perfect support for Arduino development environment, can be used for program checking, product development is very easy and fast


Specifications:
• Operating voltage: 3.3 – 7 V
• Operating temperature range: -40 to 90°C (-40 to 194°F)
• Support for Sniffer software protocol analysis, Station, SoftAP, and Wi-Fi Direct modes
• Data rates: 150 Mbps @ 11n HT40, 72 Mbps @ 11n HT20, 54 Mbps @ 11g, 11 Mbps @ 11b
• Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
• Receiver sensitivity up to -98 dBm
• UDP sustained throughput: 135 Mbps


Reminders:
1) The 868/915 MHz antenna needs to be connected with the IPEX interface (If the antenna is not connected, the signal may be almost)
2) When the battery is full, the blue LED will stop working.
3) When using, pay attention to “+” and “-” of the battery, otherwise it will be damaged.
4) With the IO port touchscreen touch signal input, you need to add the 100nF pull-down capacitor to this pin.



Showcase
Product

LILYGO® 2pcs TTGO LORA32 Lora 868/915MHz ESP32 LoRa OLED 0.96 Inch Display Bluetooth WIFI ESP-32 Development Board Module

LILYGO® 2pcs TTGO LORA32 Lora 868/915MHz ESP32 LoRa OLED 0.96 Inch Display Bluetooth WIFI ESP-32 Development Board Module



Test details



LILYGO® 2pcs TTGO LORA32 Lora 868/915MHz ESP32 LoRa OLED 0.96 Inch Display Bluetooth WIFI ESP-32 Development Board Module

Test code: https://github.com/LilyGO/TTGO-LORA32-V2.0/tree/LilyGO-868-V1.0

https://github.com/Xinyuan-LilyGO/TTGO-LoRa-Series


Reminder: This product does not include the battery.

LILYGO® 2pcs TTGO LORA32 Lora 868/915MHz ESP32 LoRa OLED 0.96 Inch Display Bluetooth WIFI ESP-32 Development Board Module

Pin reference description

LILYGO® 2pcs TTGO LORA32 Lora 868/915MHz ESP32 LoRa OLED 0.96 Inch Display Bluetooth WIFI ESP-32 Development Board Module

Package includes:
• 2 x lora32 868MHz/915MHz OLED
• 2 x Line
• 4 x Pin
• 2 x 868MHz/915MHz spring antenna

LILYGO® 2pcs TTGO LORA32 Lora 868/915MHz ESP32 LoRa OLED 0.96 Inch Display Bluetooth WIFI ESP-32 Development Board Module
