产品名称:

LILYGO® SX1278 LoRa ESP32 Bluetooth Wi-Fi Lora Internet Antena Development Board

上市日期: 2019-08-19
建议销售价: 0

SX1278 LoRa ESP32  Bluetooth Wi-Fi Lora Internet Antena Development Board



Description:

The main chip using ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).

This product is based on the WIFI 32 added SX1278 chip, that is, LoRa ™ remote modem, 433MHz frequency, about -148dBm high sensitivity, +20 dBm power output, high reliability.

Onboard 32MByte Flash, Wi-Fi antenna,  lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development.

Operating voltage: 3.3V to 7V

Operating temperature range: -40 ° C to + 90 ° C

Supports Sniffer, Station, softAP and Wi-Fi Direct modes

Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b

Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n

Receiver sensitivity up to - 98 dBm

UDP continues to throughput by 135 Mbps

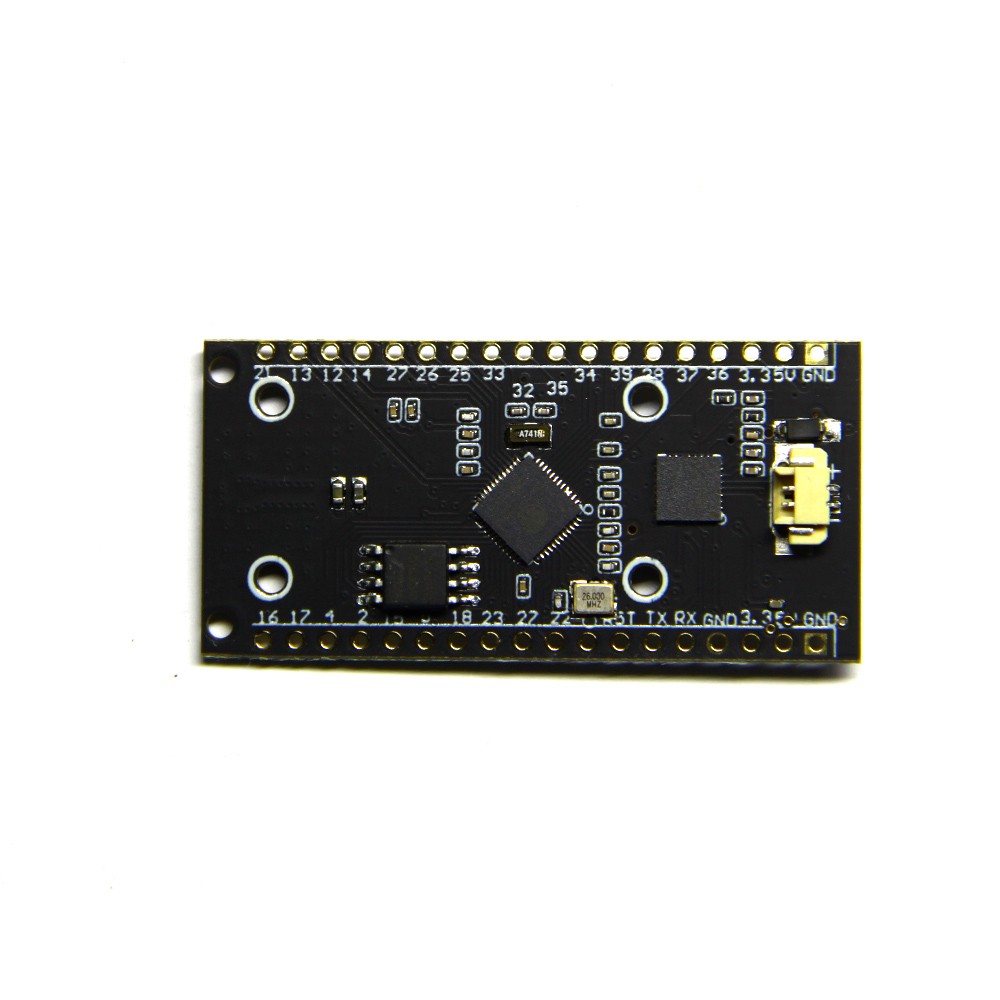

Pin information diagram:

LILYGO® SX1278 LoRa ESP32 Bluetooth Wi-Fi Lora Internet Antena Development Board





Shipping List:

SX1278 LoRa ESP32 *1

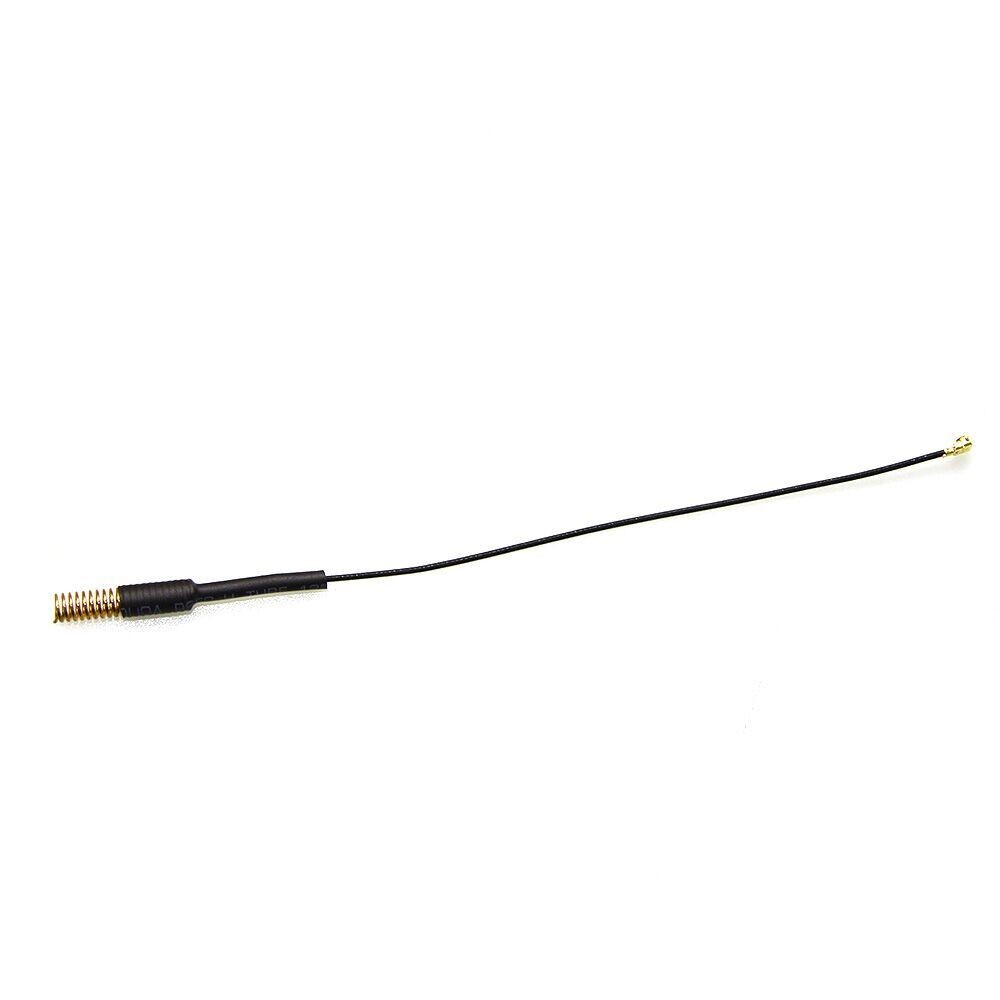

Antenna*1

Line *1
Pin*2
LILYGO® SX1278 LoRa ESP32 Bluetooth Wi-Fi Lora Internet Antena Development Board



LILYGO® SX1278 LoRa ESP32 Bluetooth Wi-Fi Lora Internet Antena Development Board
