产品名称:

LILYGO® TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 For Arduino

上市日期: 2019-08-31
建议销售价: 0

TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 For Arduino



Hardware Specifications


Chipset
Atmega328P
FLASH
QSPI flash/SRAM, up to 4 x 16 MB
KEY
reset
Power indicator lamp
red
lora
TTGO LORA 433M
on-board clock
16MHz crystal oscillator
working voltage
2.3V-3.6V
working current
about 8mA
working temperature range
-40℃ ~ +85℃
size
51.13mm*27.25mm*12.29mm
Power Supply Specifications

Power Supply
USB 5V/1A
charging current
500mA
battery
3.7V lithium battery



Notice:Plug the jumper when using the LORA, and disconnect the jumper when downloading the boot load



Pin reference description

LILYGO® TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 For Arduino

Product Size

LILYGO® TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 For Arduino

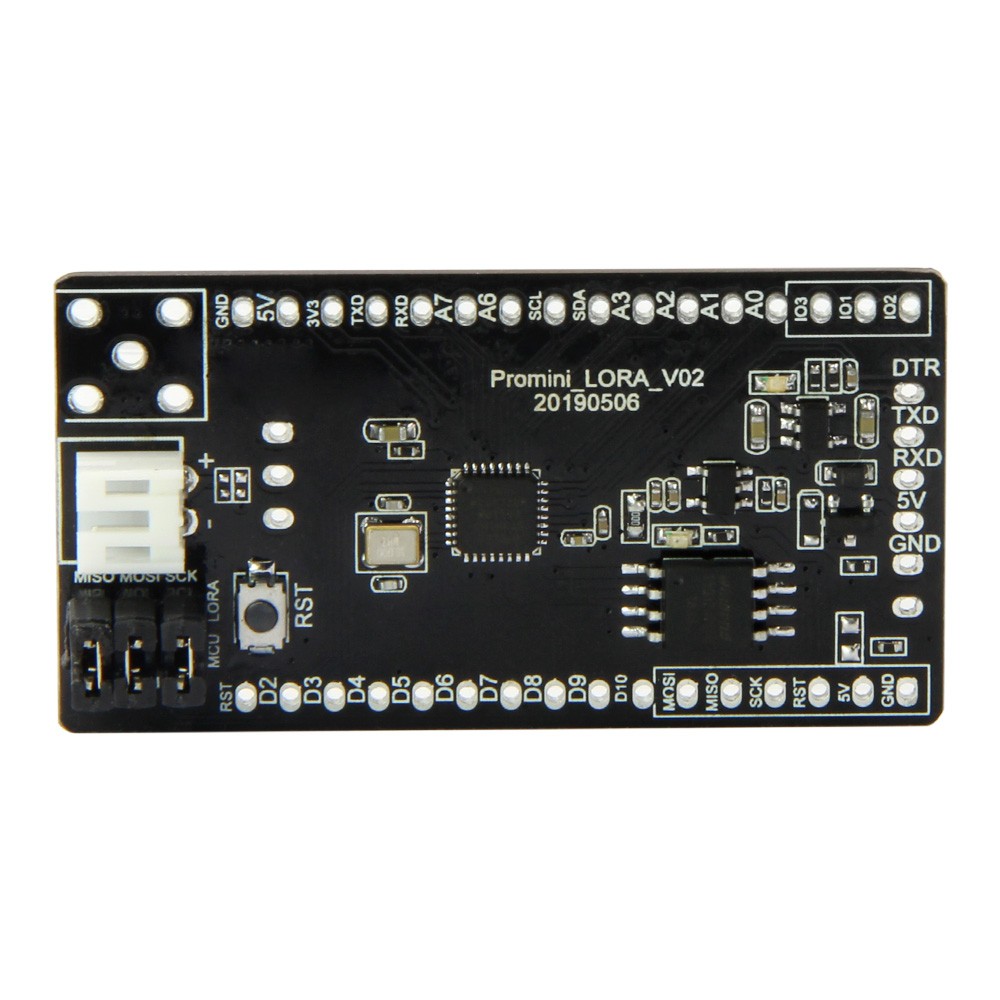

Product Detail

LILYGO® TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 For Arduino

Shipping List

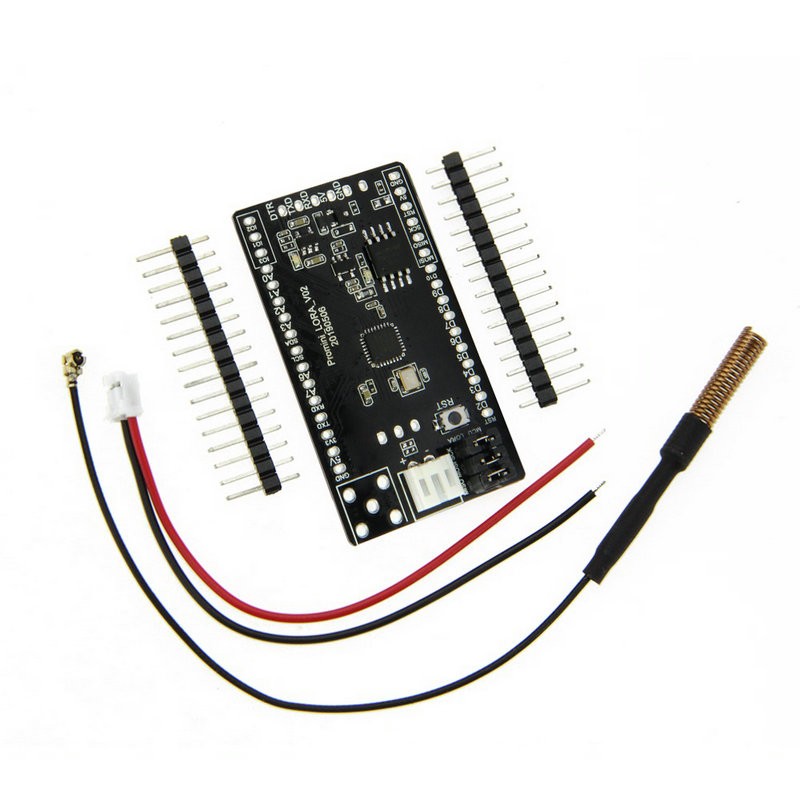

433MHz Shipping LIst

LILYGO® TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 For Arduino

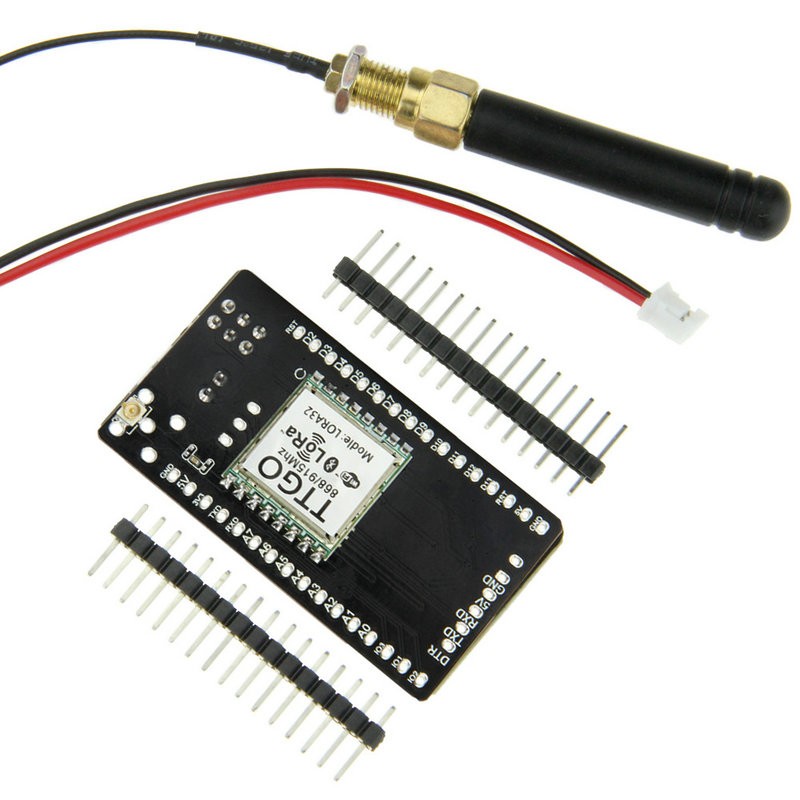

868MHz Shipping LIst

LILYGO® TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 For Arduino



915MHz Shipping LIst



LILYGO® TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 For Arduino









LILYGO® TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 For Arduino
