LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration
![LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration]( "LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration")
![LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration]( "LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration")
Product Description
Main Chip : ESP32-PICO-D4
Flash: 4MB
Processor : Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS
Built-in Chip : 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE Bluetooth low energy)
IMU : 1. LSM9DS1
2.MPU9250
Clock Chip : PCF8563
Touch Button : TTP223
Battery : 350926 / 55mA Rechargeable Lithium Battery (LSM9DS1 And MPU9250）
301025 / 40mA Rechargeable Lithium Battery (LSM9DS1 Vibration And MPU92500 Vibration）

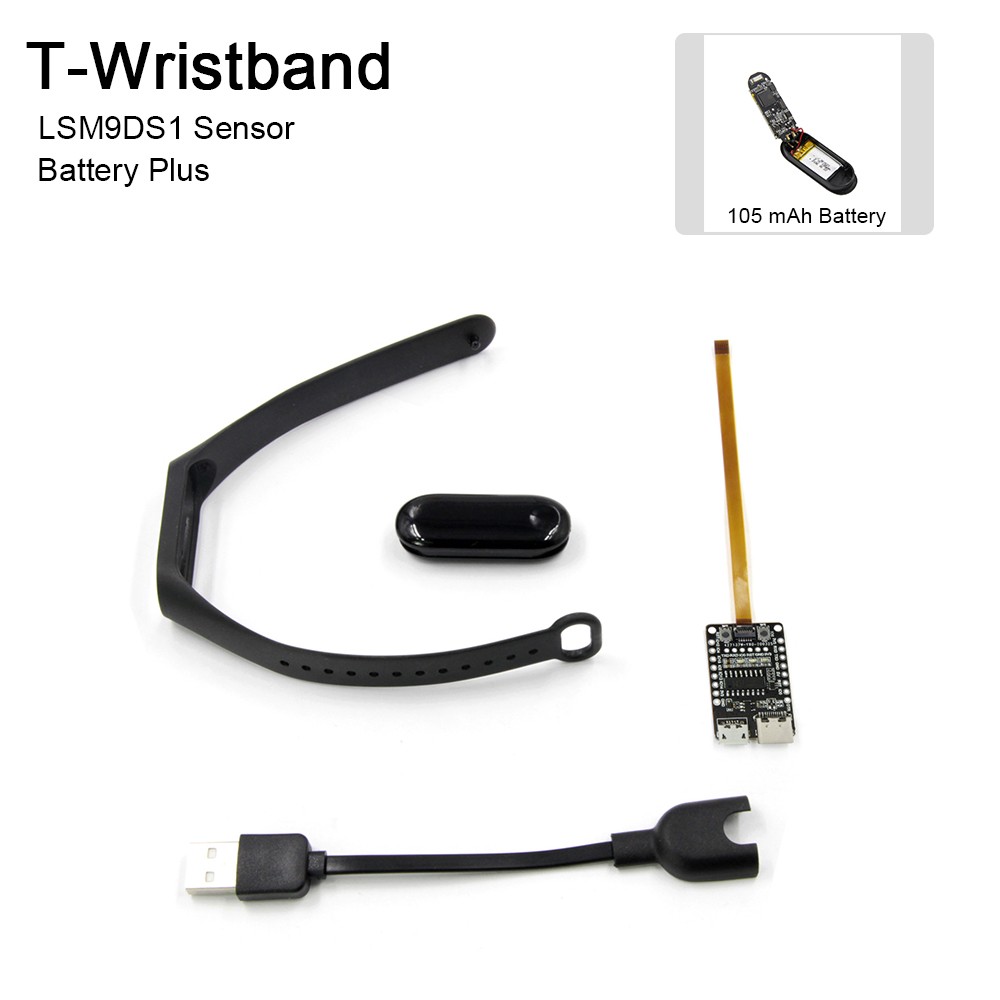

361523 / 105mAh Rechargeable Lithium Battery（LSM9DS1,Battery Plus Versions)
Charging Chip : TP4054
Expansion / Program Download Interface : 0.3 pitch 13pin FPC socket
Bracelet size : About 251.77mm * 19.30mm * 12.15mm
T-Wristband host size ： About 47.07mm * 18.10mm * 12.10mm
Weight : 30g
Antenna : Built-in WiFi / Bluetooth Ceramic Antenna
Sensor :1. LSM9DS1 2. MPU9250
Screen : 0.96-inch IPS
Resolution: 160*80
T-Wristband has a built-in PCF8563 clock chip and a matching 13PIN FPC cable. It can DIY to expand other functions by itself. At the same time, it also has built-in WiFi / Bluetooth ceramic antenna that can enhance the signal and 55mA rechargeable lithium battery（LSM9DS1 And MPU92500）. After adding the vibration motor module, the size of the LSM9DS1 vibration and MPU92500 vibration bracelet battery becomes 40 mA rechargeable lithium battery.
It is also equipped with LSM9DS1 sensor or MPU9250 sensor, Can perform posture detection! 0.96-inch IPS colorful screen, TTP223 touch key chip. Excellent color display and adjustable backlight display.
More Information
https://github.com/Xinyuan-LilyGO/T-Wristband
Product Pin
Product Size
Product Operation Introduction
