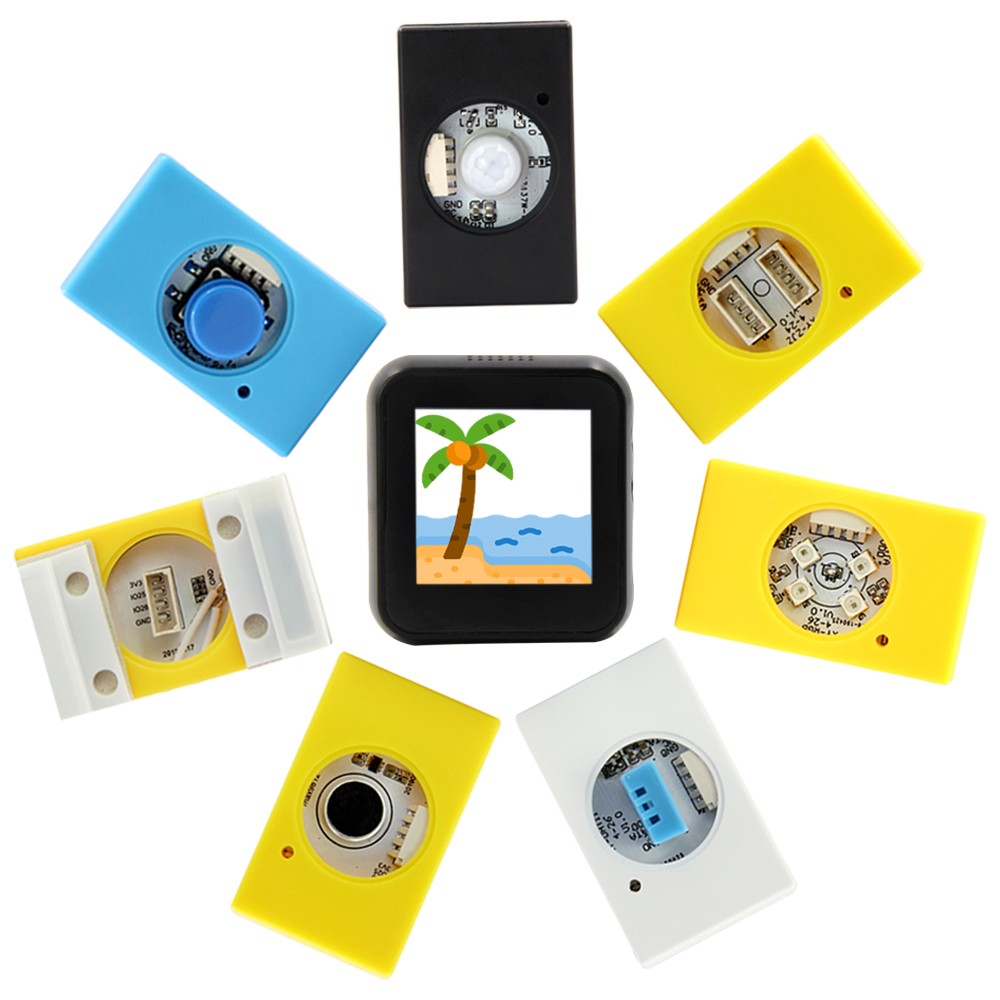

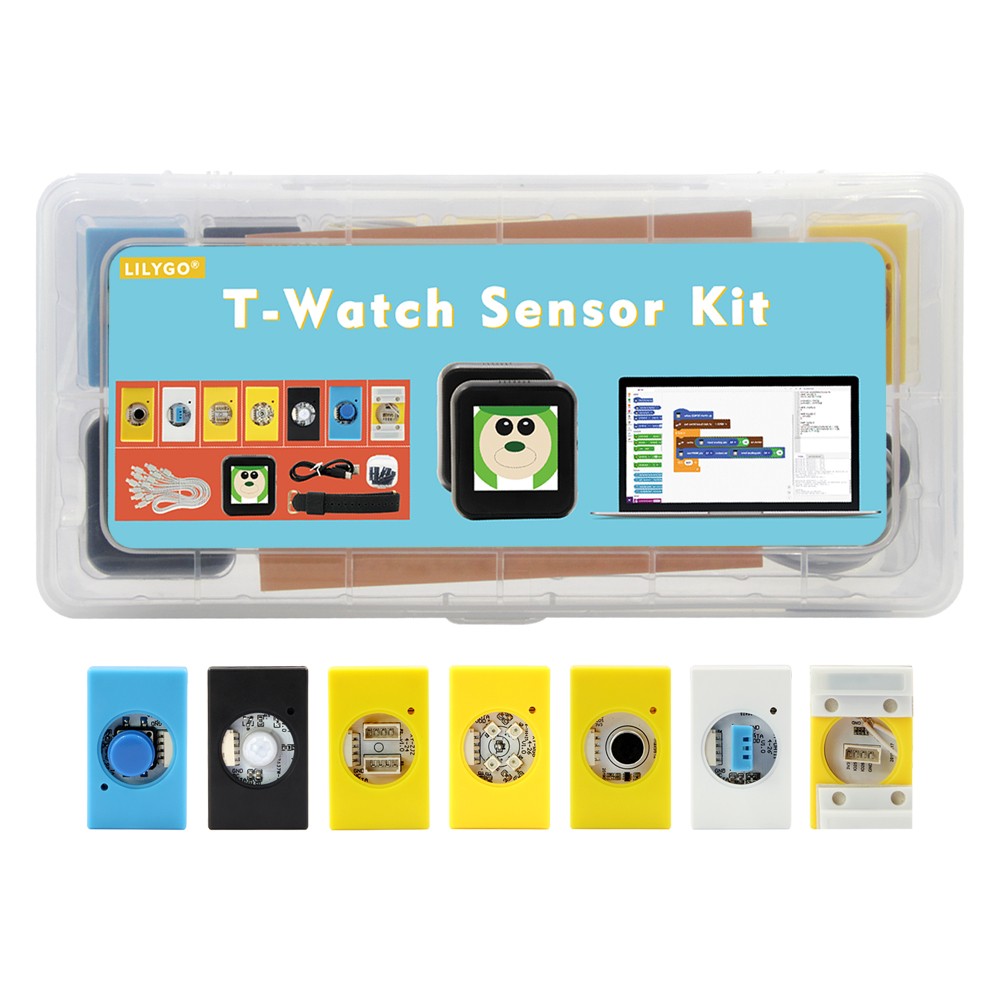

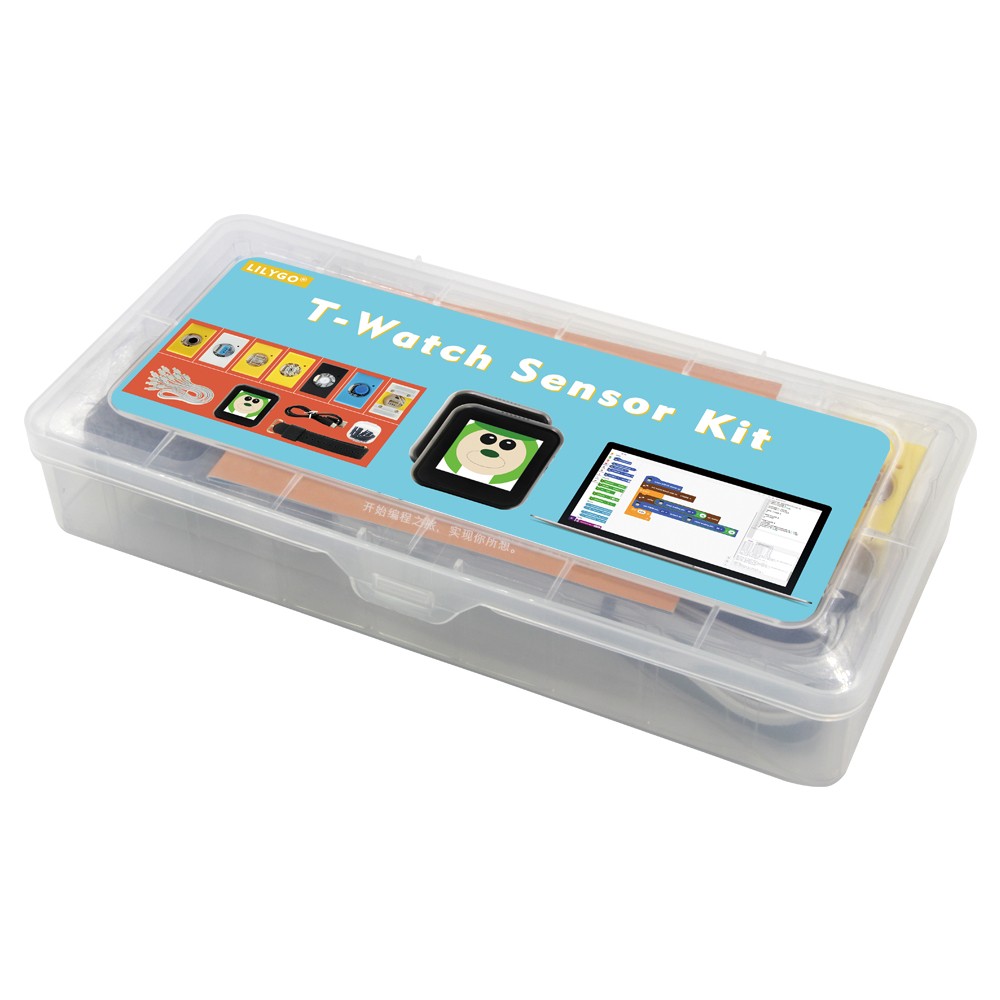

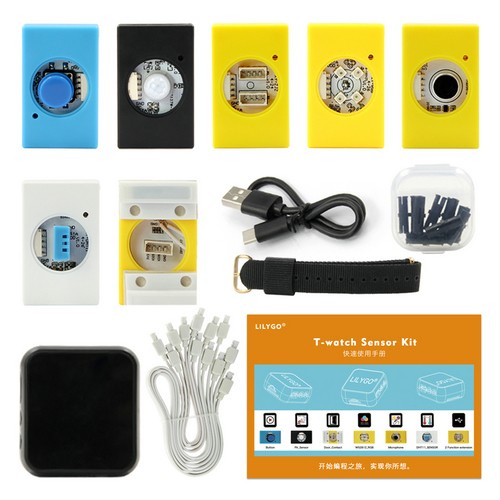

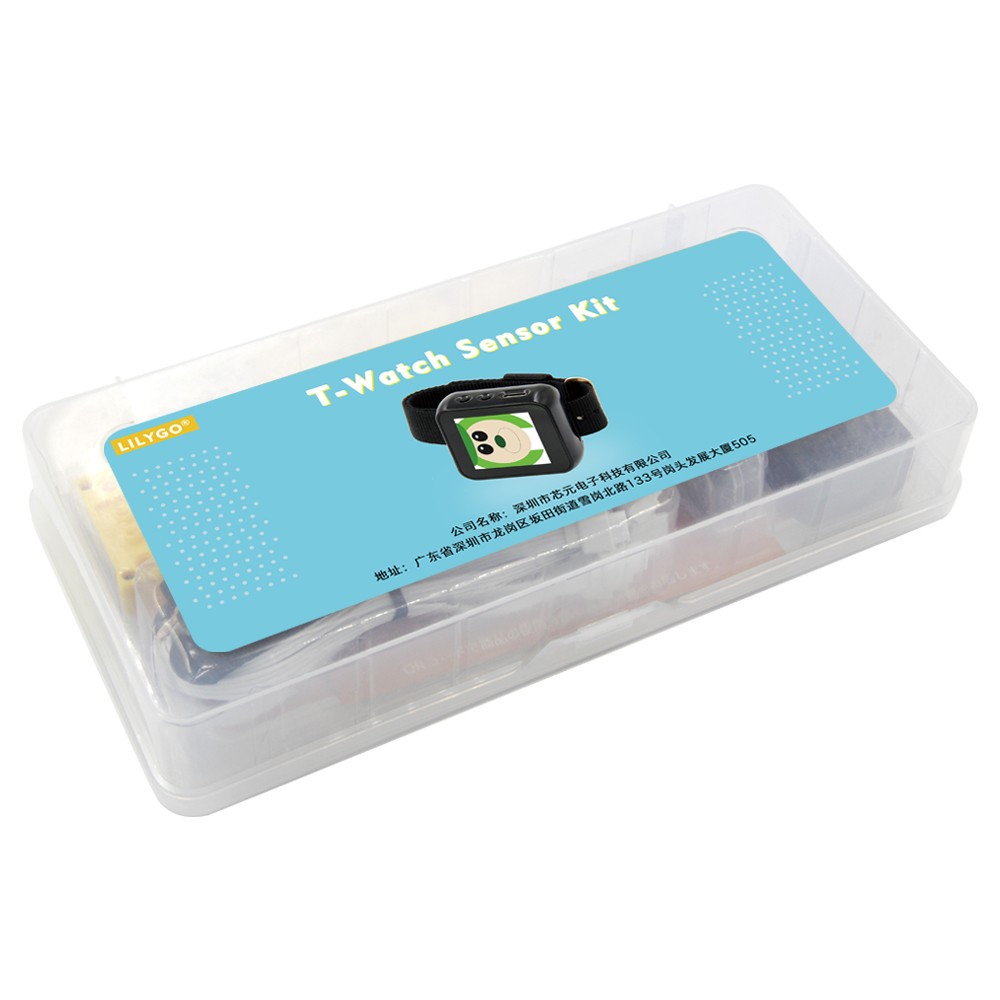

LILYGO® TTGO T-Watch Sensor Programming Education Kit-Multiple Function Sensor Modules
![LILYGO® TTGO T-Watch Sensor Programming Education Kit-Multiple Function Sensor Modules]( "LILYGO® TTGO T-Watch Sensor Programming Education Kit-Multiple Function Sensor Modules")
Product Description
![LILYGO® TTGO T-Watch Sensor Programming Education Kit-Multiple Function Sensor Modules]( "LILYGO® TTGO T-Watch Sensor Programming Education Kit-Multiple Function Sensor Modules")
More information:
https://t-watch-document-en.readthedocs.io/en/latest/introduction/index.html
https://github.com/Xinyuan-LilyGO/TTGO_TWatch_Library

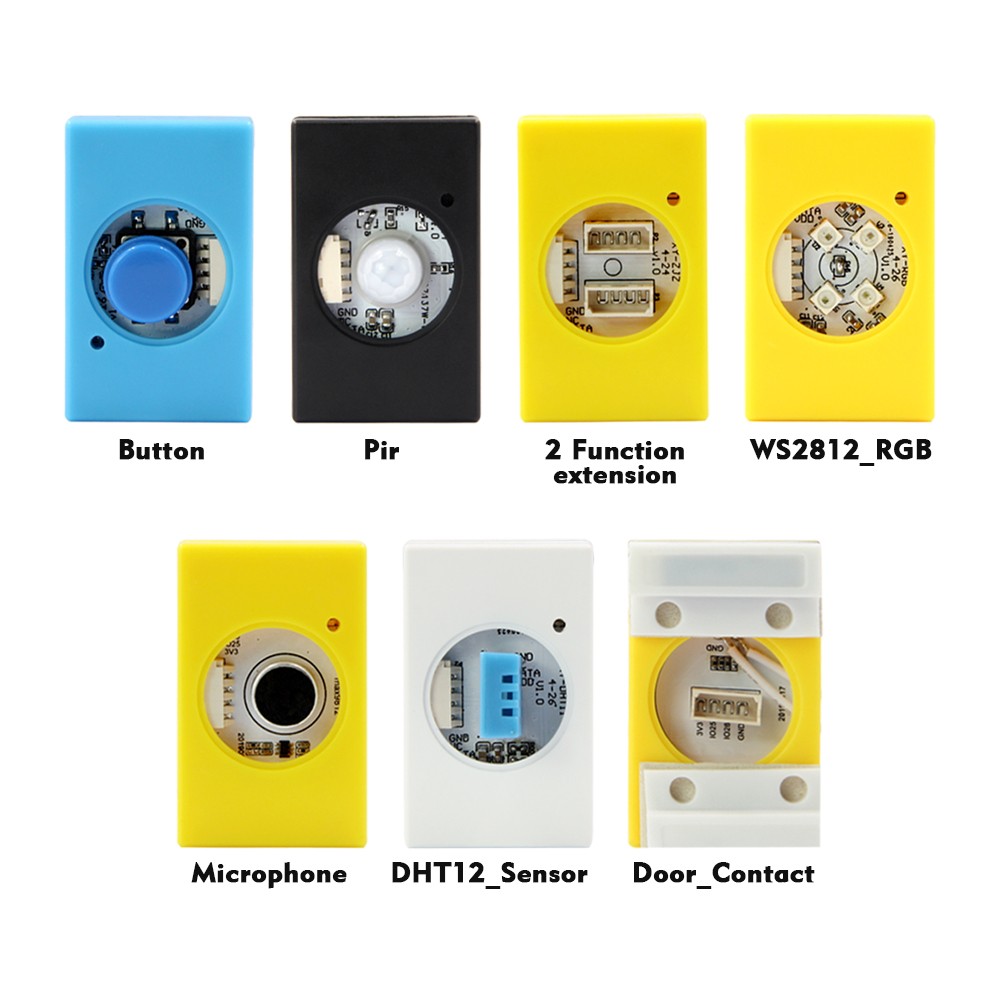

1.Button Module:
A switch that can control the passage or open circuit. Generally, it is used as a passage and released as an open circuit.
Pin Details
| ESP32 | Attributes | Description |
|---|
| GPIO25 | 1-Wire | Button |
![LILYGO® TTGO T-Watch Sensor Programming Education Kit-Multiple Function Sensor Modules]( "LILYGO® TTGO T-Watch Sensor Programming Education Kit-Multiple Function Sensor Modules")
2.RGB Module
Pin Details
| ESP32 | Attributes | Description |
|---|
| GPIO25 | 1-Wire | WS2812 |
3.Pir Human Detection Module
PIR sensors are commonly used for security alarms and automatic lighting applications.
PIR sensor detects general motion but does not provide information about the mover or moving object
Pin Details
| ESP32 | Attributes | Description |
|---|
| GPIO25 | 1-Wire | Pir infrared sensor |
4.DHT11 Module:
It is a sensor combined with temperature and humidity sensing components.
The built-in processor converts the measured temperature and humidity data into digital signals, and then sends the data.
Pin Details
| ESP32 | Attributes | Description |
|---|
| GPIO25 | 1-Wire | DHT11 |
