产品名称:

LILYGO® TTGO ESP8266 0.91 Inch OLED For Arduino For Nodemcu Development Board

上市日期: 2019-08-19
建议销售价: 0

TTGO ESP8266 0.91 Inch OLED For Arduino For Nodemcu Development Board

https://www.aliexpress.com/item/32824012998.html


Hardware Specifications
Master chip  ESPRESSIF-ESP8266
FLASH 32 M Bits
KEY reset,prg
dispaly 0.91-inch 128*32 OLED
Power indicator lamp red
USB to TTL CP2102
modular  interface read , write , IIC , SPI , the middle , PWM , ect...
on-board clock 26MHz crystal oscillator
working voltage 3.3V-7V
working current about 70mA
working temperature range  -40℃ ~ 90℃
size 50.86mm*18.2mm*6.96mm

Power Supply Specifications
Power Supply USB 5V/1A
charging current 500mA

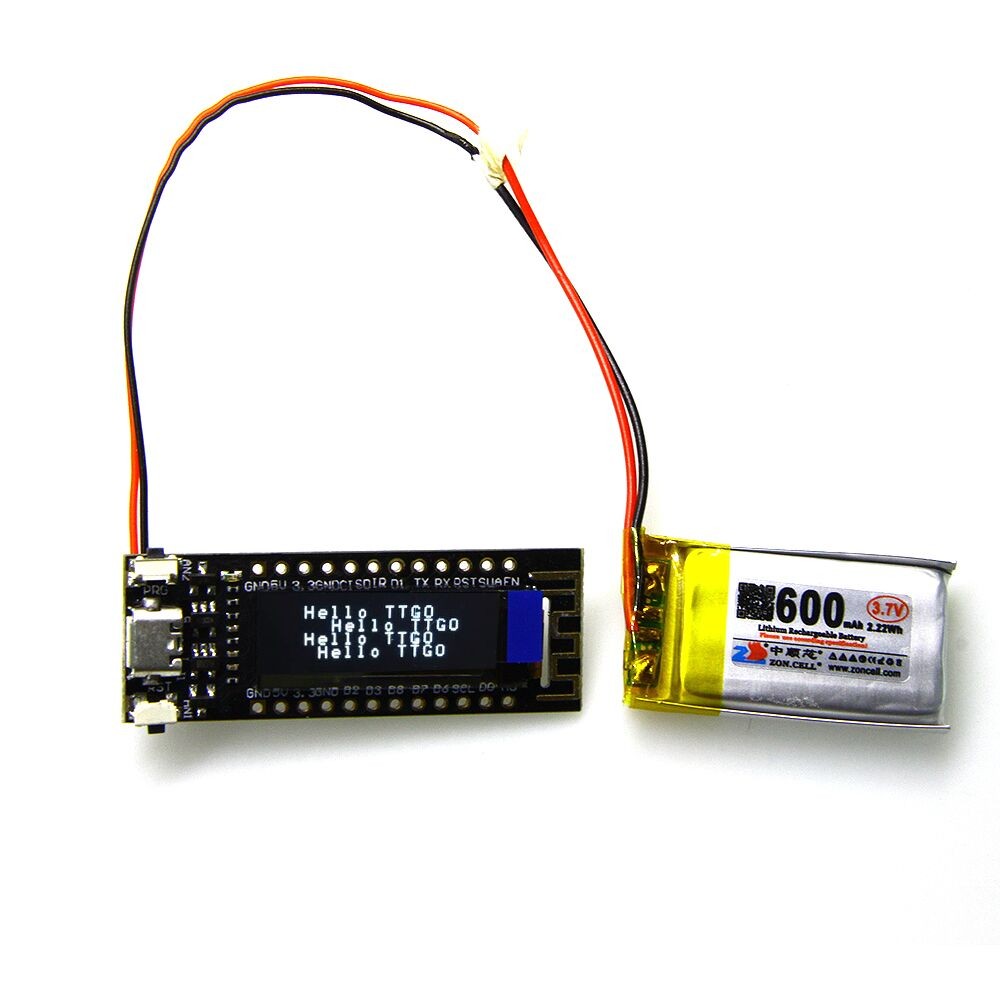

battery 3.7V lithium battery

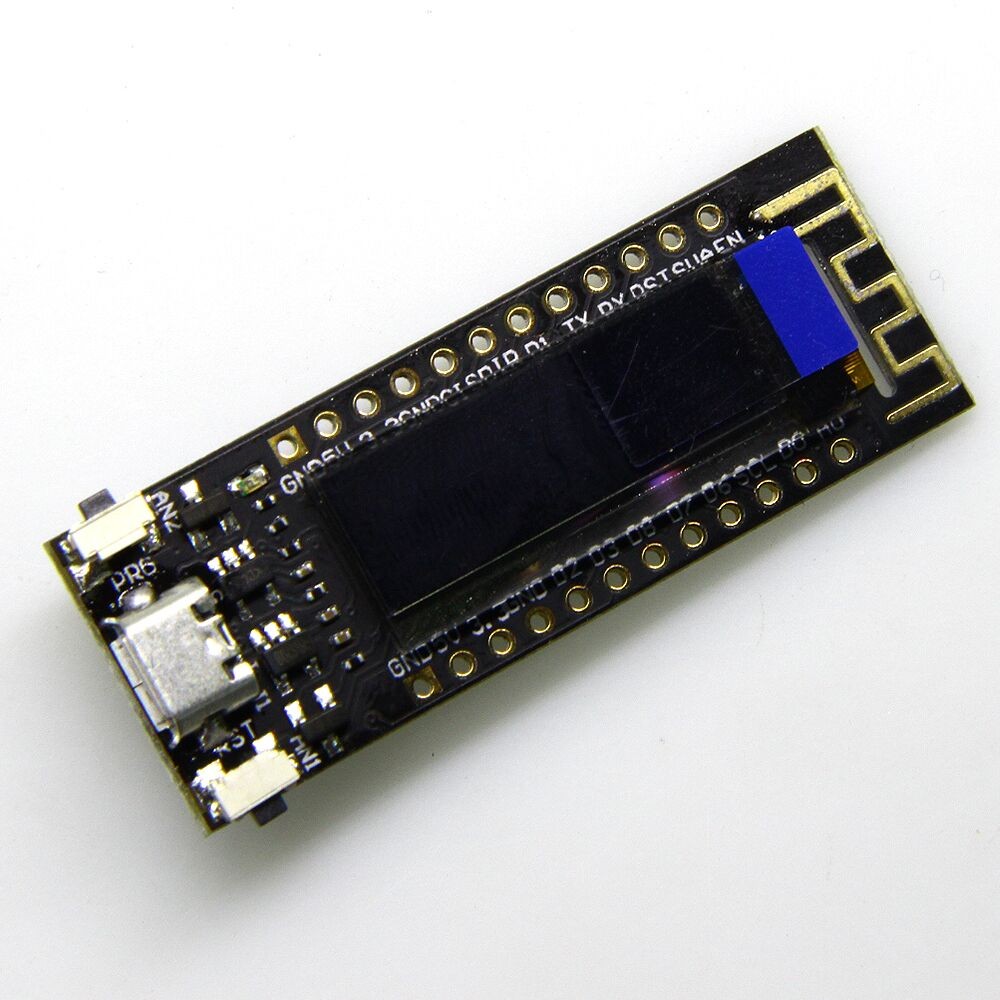

Product Detail

https://www.aliexpress.com/item/32824012998.htmlhttps://www.aliexpress.com/item/32824012998.html







https://www.aliexpress.com/item/32824012998.html

For more product information, click https://drive.google.com/file/d/1L8ll-DeAC2SATBZn0-KbSaZsrinbnXkF/view

https://github.com/LilyGO/TTGO-ESP8266-0.91-SSD1306/tree/master

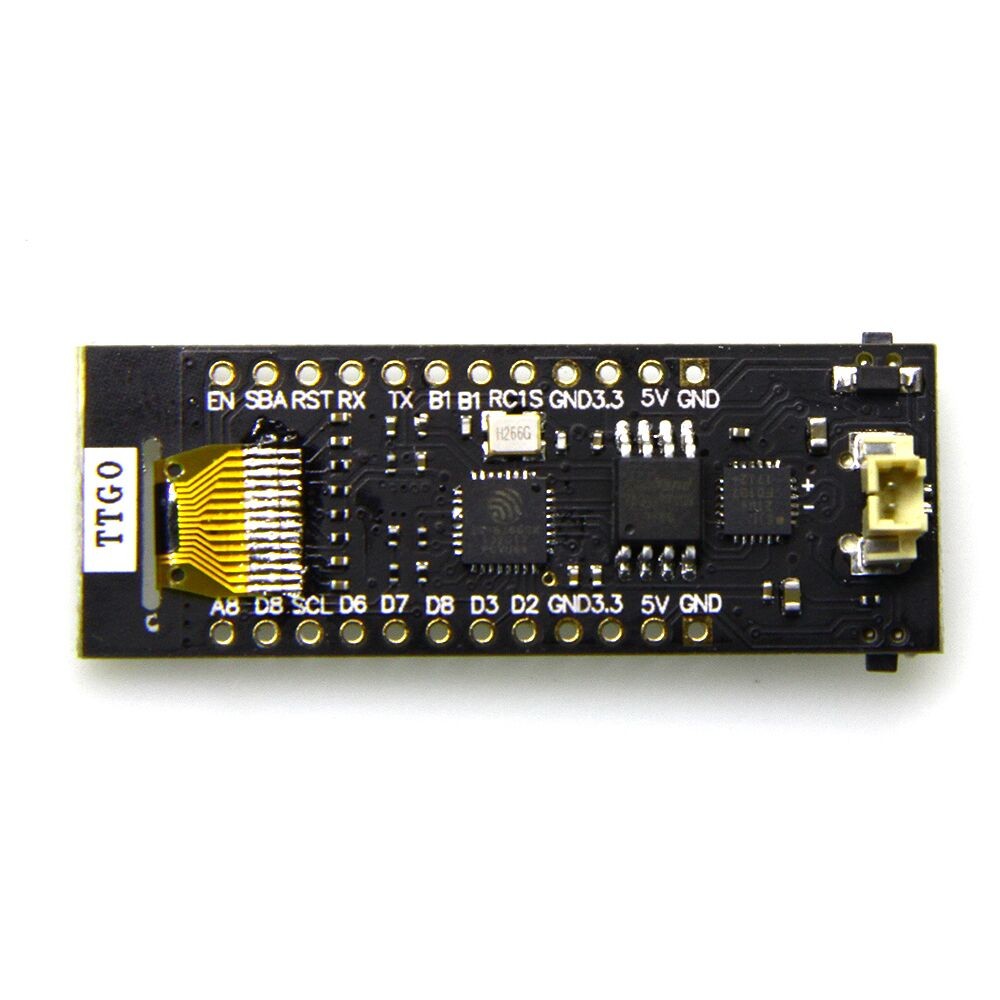

Pin Diagram

https://www.aliexpress.com/item/32824012998.html

Click links for more details: https://eyun.baidu.com/s/3cfHZky

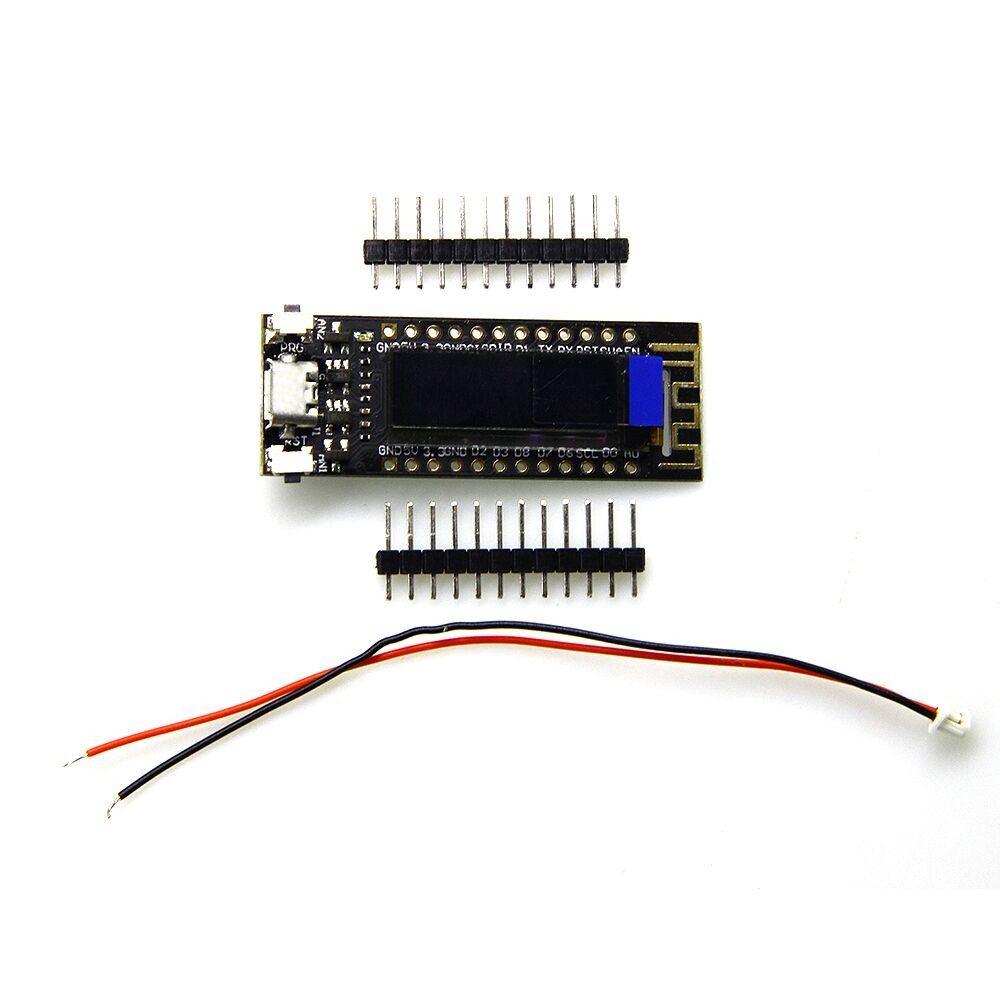

Shipping List

1 X TTGO ESP8266

1 X Line

2 X PIN

https://www.aliexpress.com/item/32824012998.html







https://www.aliexpress.com/item/32824012998.html
