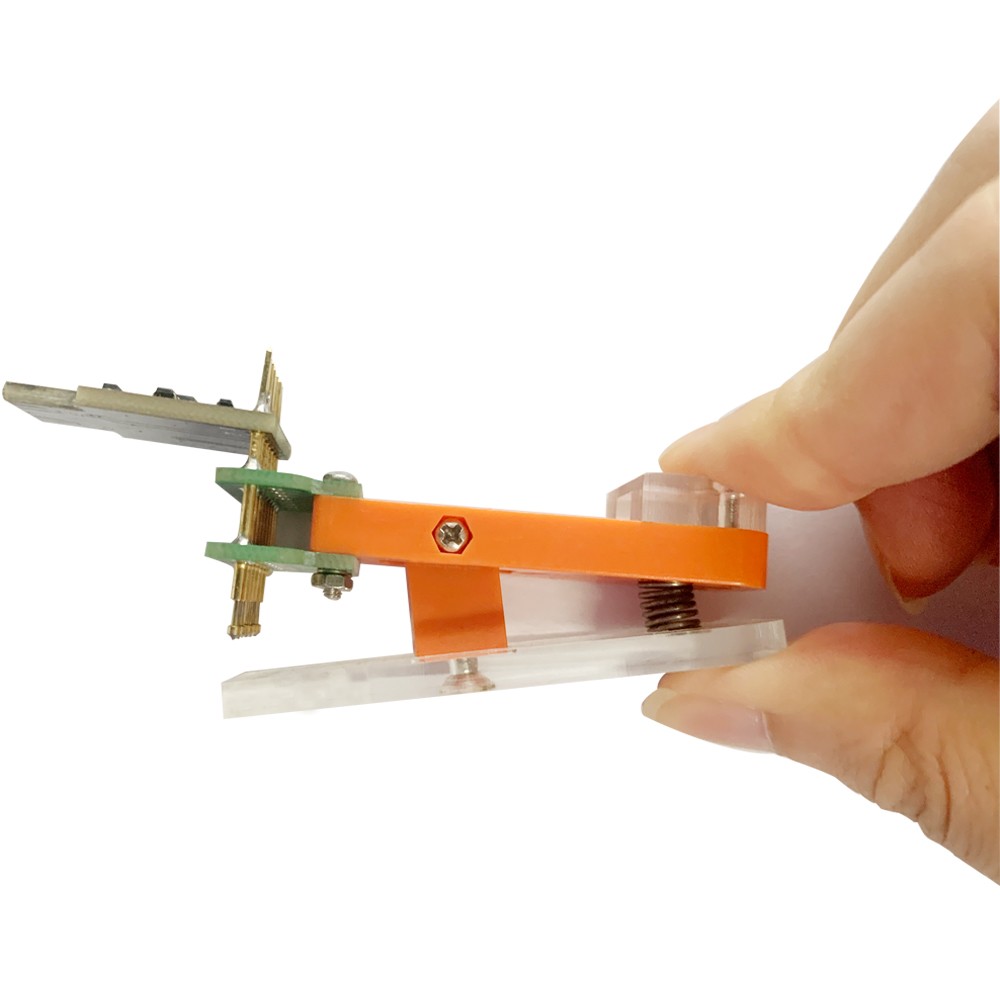

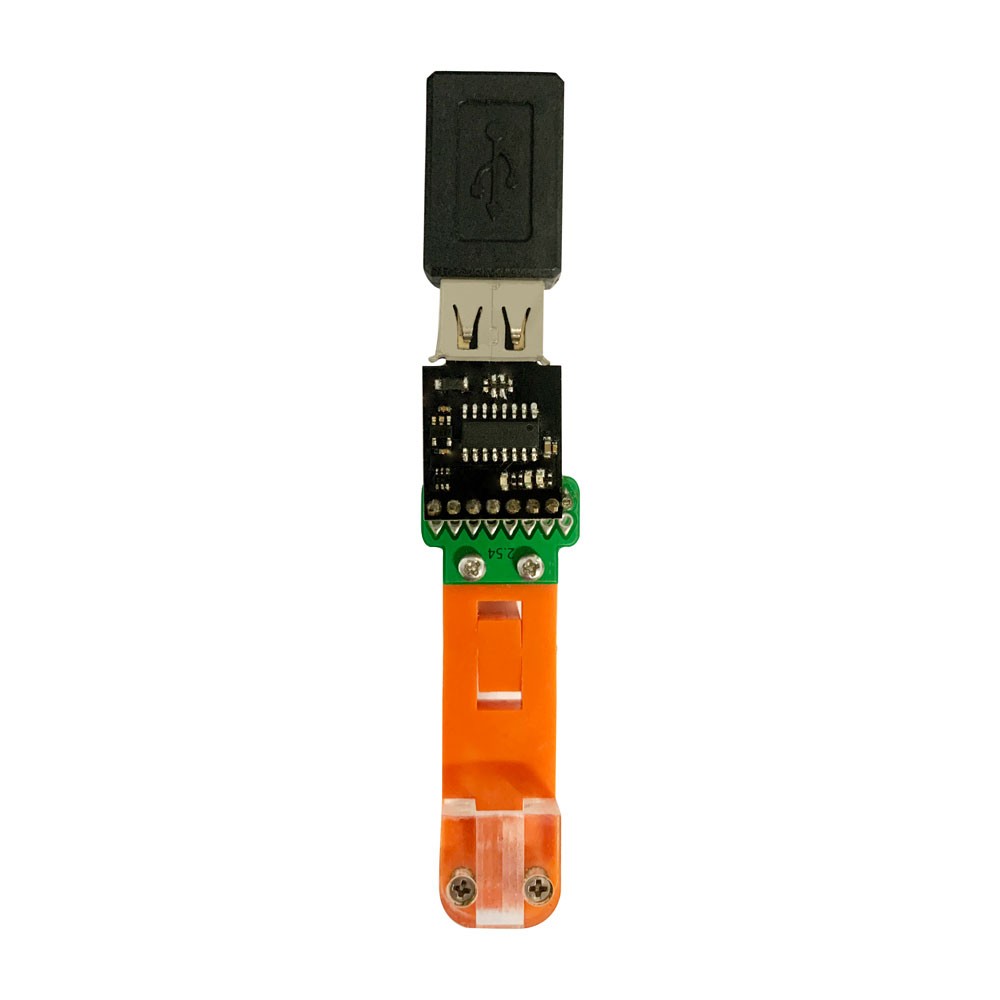

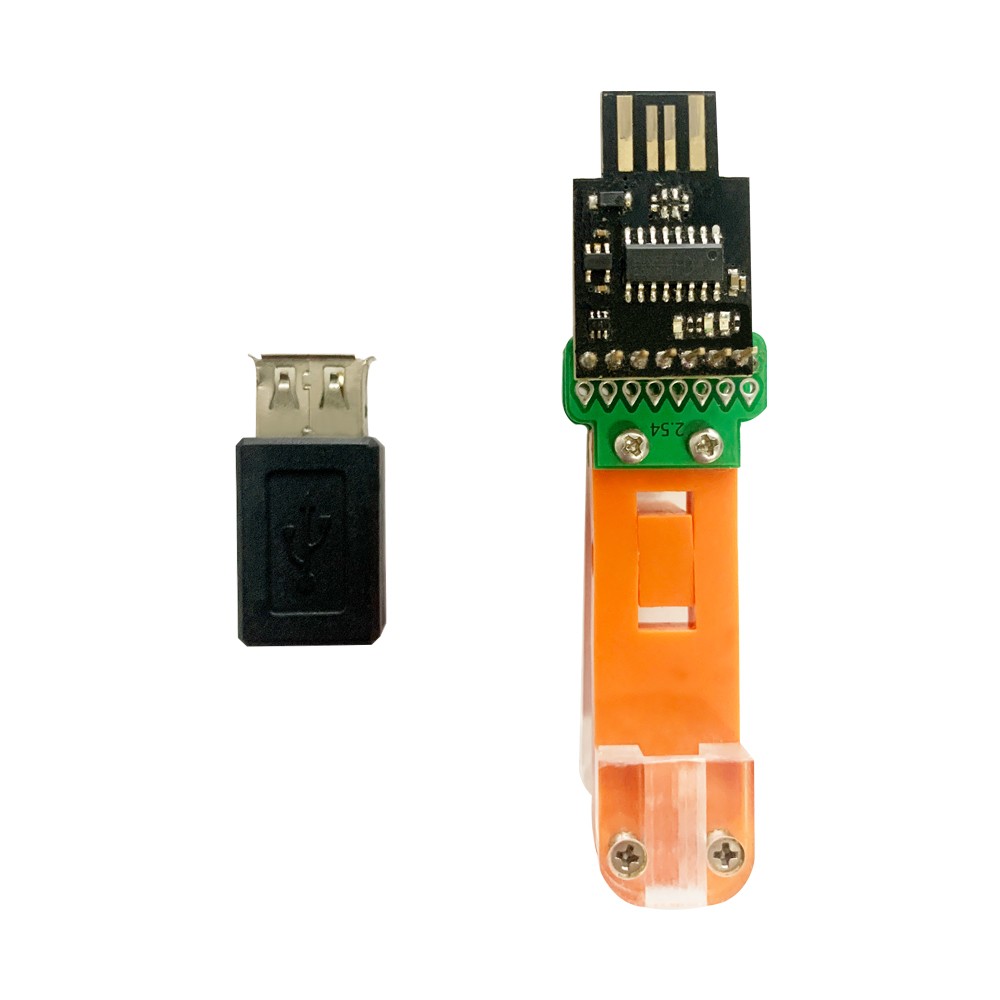

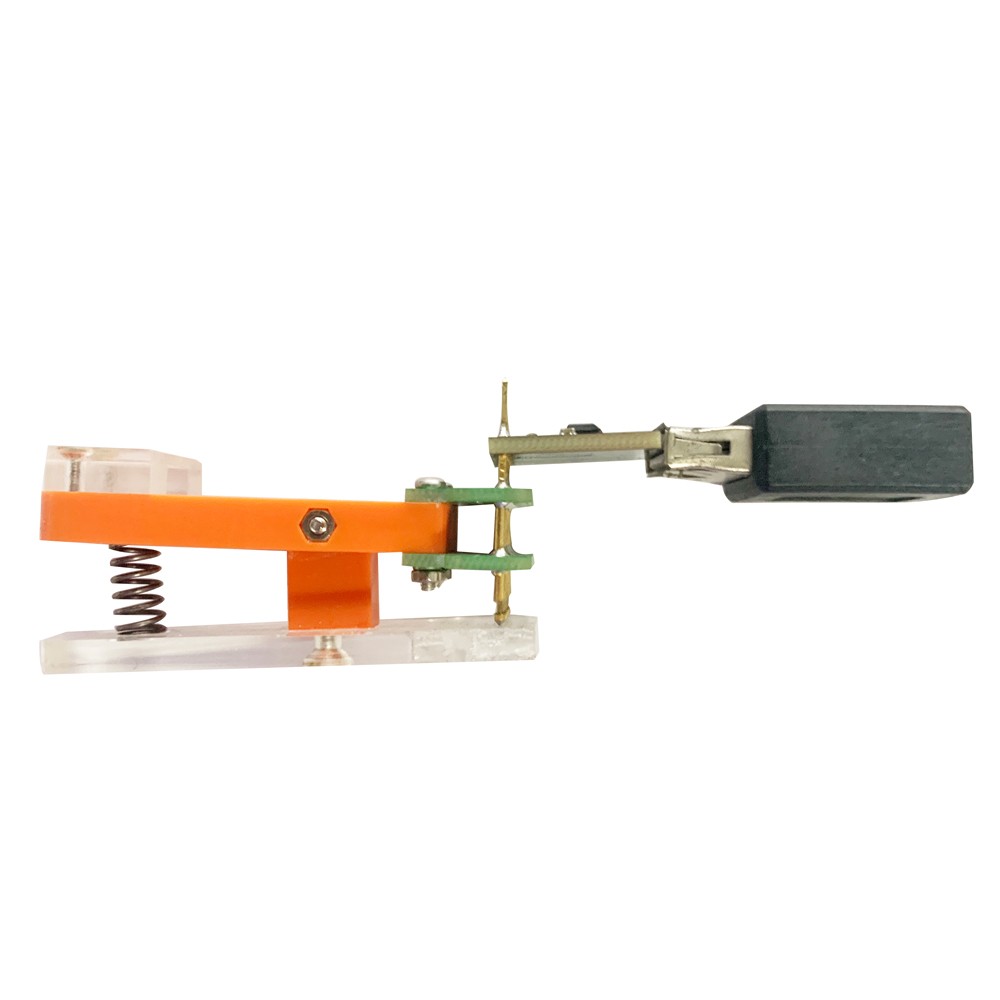

LILYGO®TTGO PCB Test Clip 7Pin 2.54MM Metal Probe Program Download Programming Burn
![LILYGO®TTGO PCB Test Clip 7Pin 2.54MM Metal Probe Program Download Programming Burn]( "LILYGO®TTGO PCB Test Clip 7Pin 2.54MM Metal Probe Program Download Programming Burn")
Product Description
Spacing: 2.54MM
Probe model: P75-E2 (Pointed Gold Plated)
Needle diameter: 1.3MM
Needle sleeve model: R75-3W
Weight:26.5g
Size:112*22*33MM
It is recommended that the PCB test point be designed as a 2.54 row of pinholes, with holes for easier positioning.The depth of the single row of clips is 12 mm, and the test point is up to 12 mm away from the edge of the board
Shipping List
1 X 7Pin 2.54MM Test Clip
