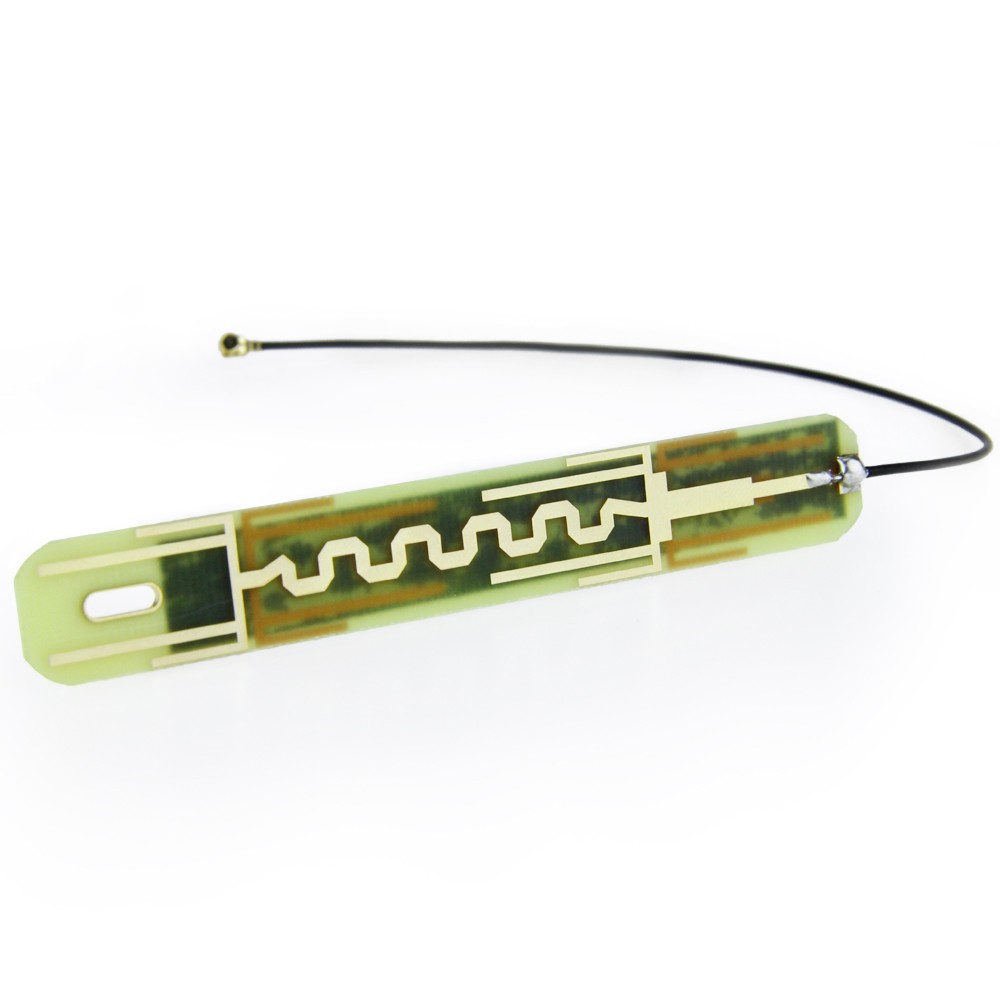

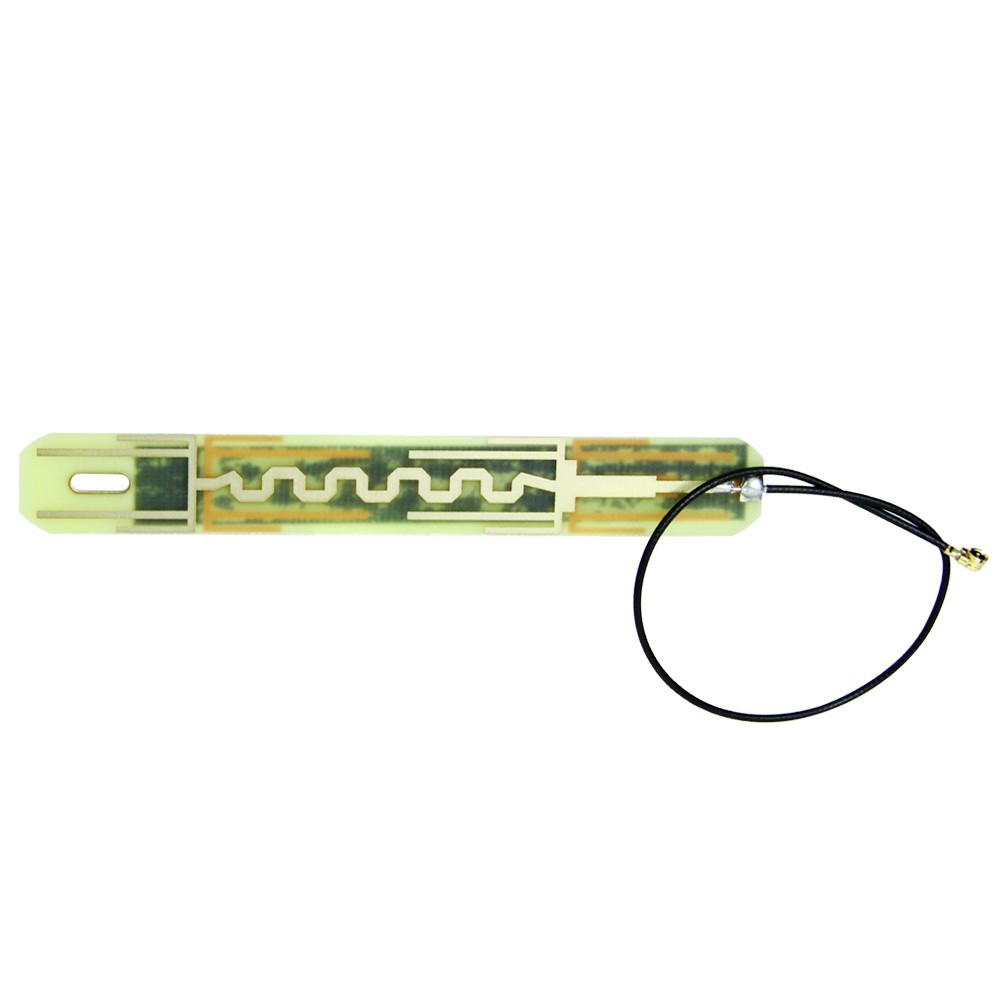

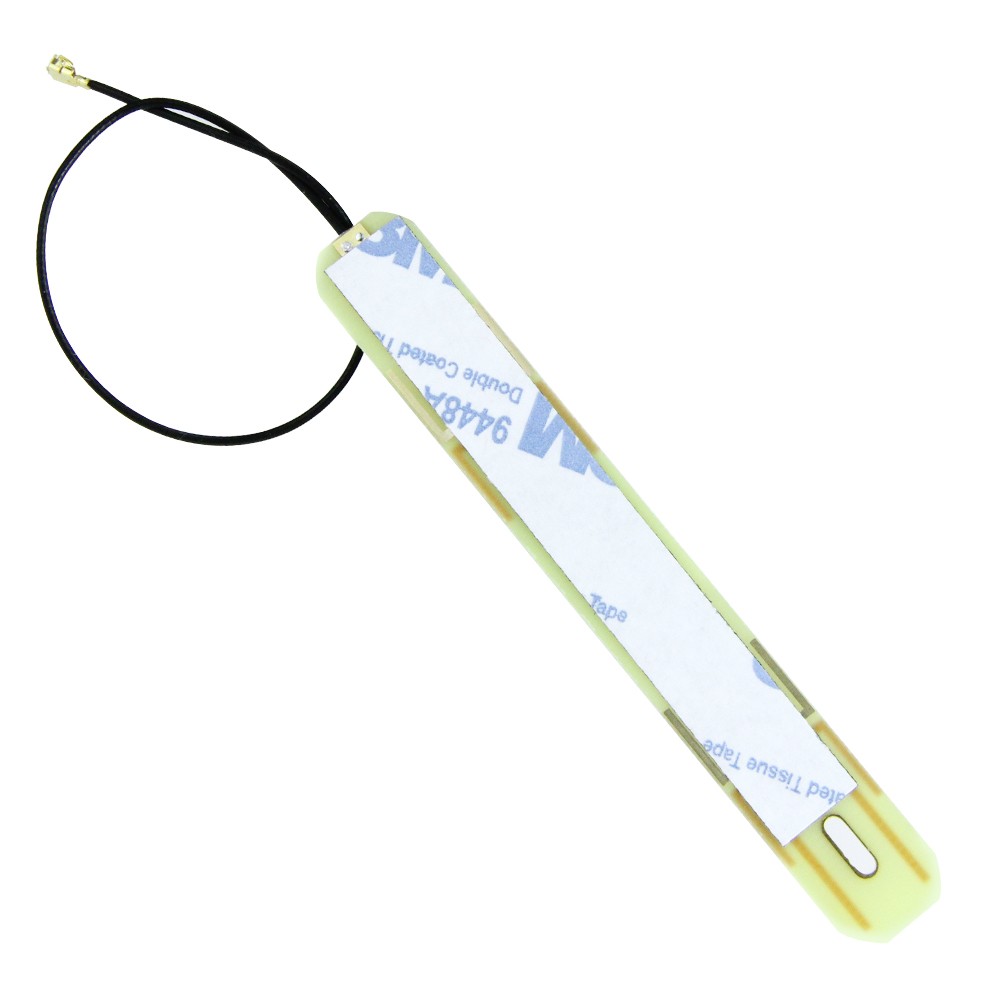

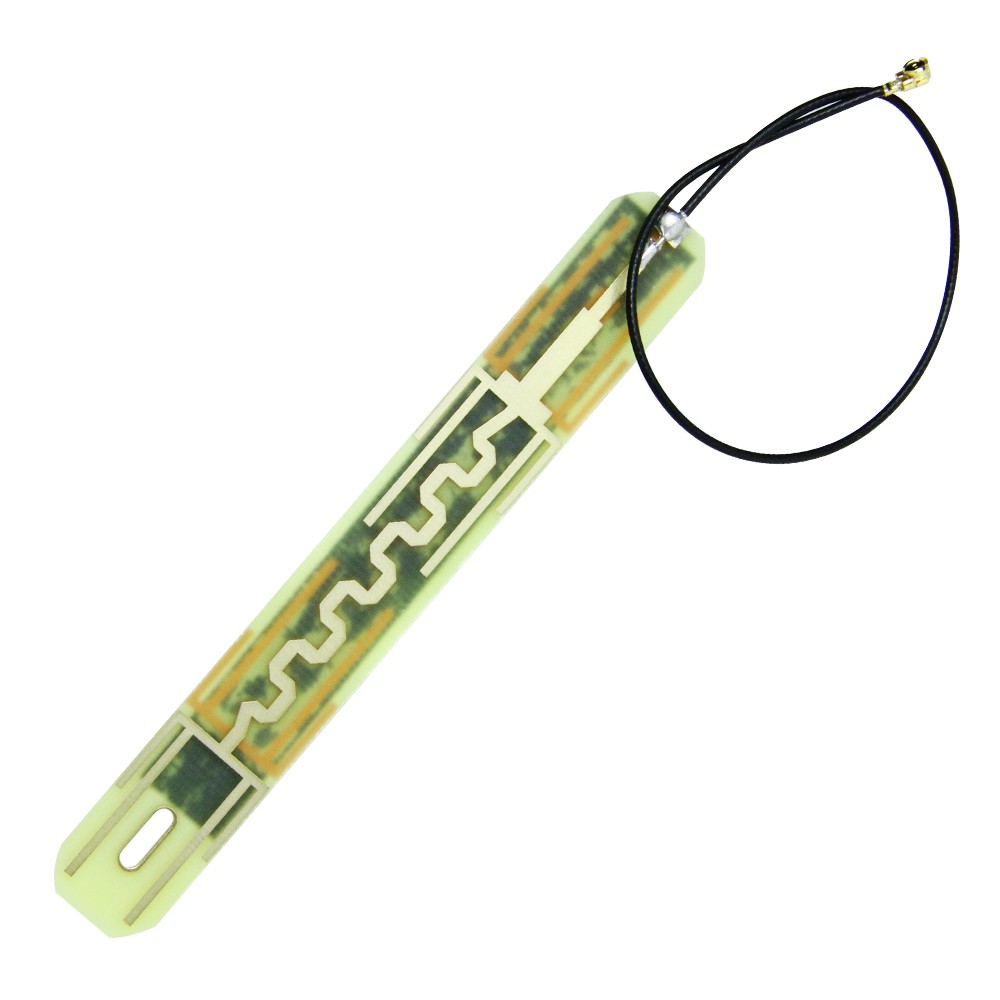

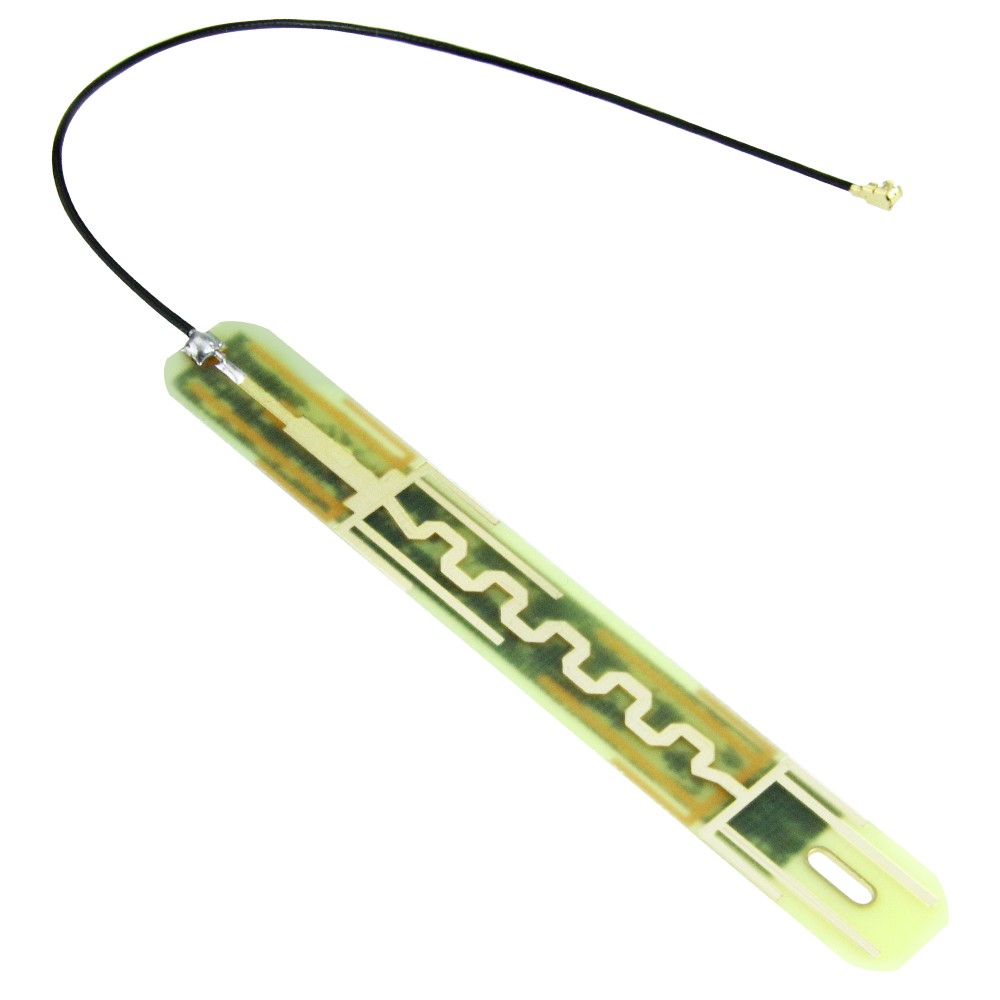

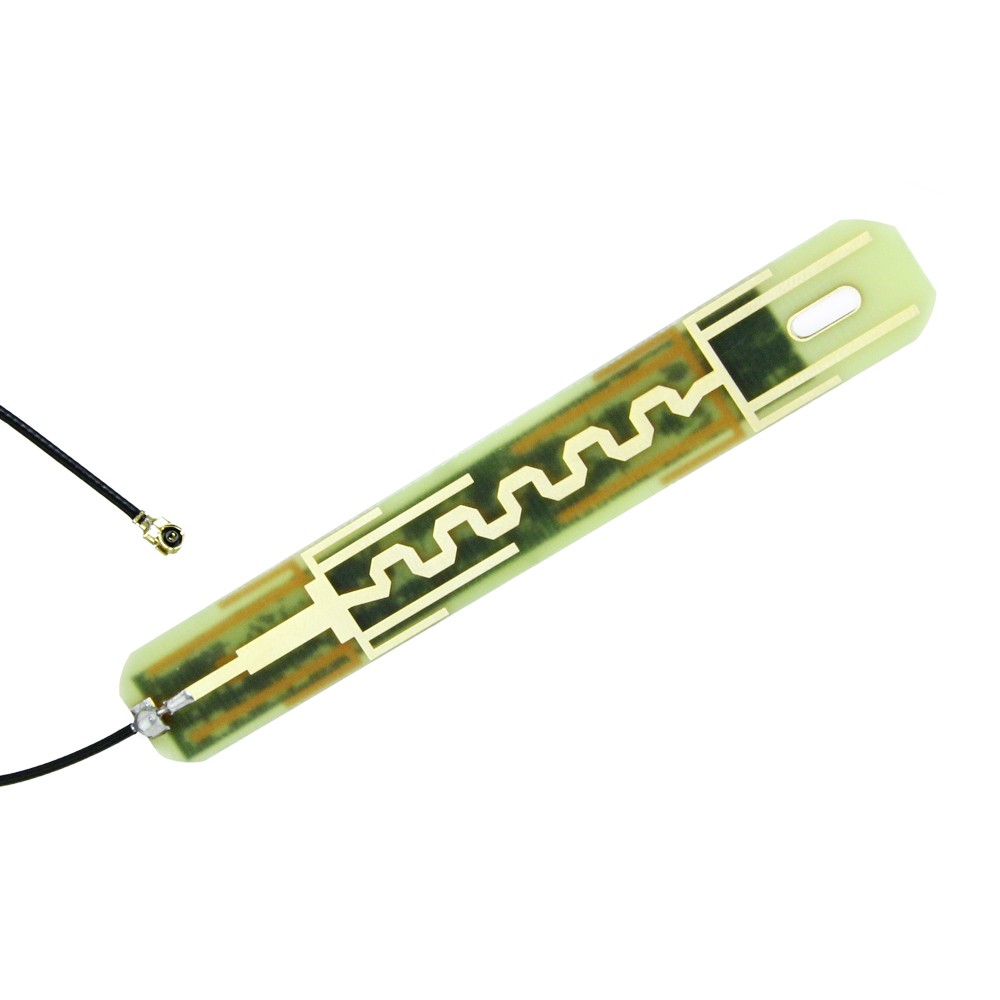

LILYGO® IPEX 8dBi Antenna For Mini32 V2.0 For ESP8266 Mini D1/ESP32-Wrover

上市日期： 2019-08-20

建议销售价: 0

IPEX 8dBi Antenna for Mini32 V2.0 for ESP8266 Mini D1/ESP32-Wrover

Description

This antenna is a dual-frequency antenna. I use it on my WiFi deauther OLED application. I find ESP8266 Mini D1+antenna works much better than ESP-12E/F. So I decide to use ESP-07+this antenna for all my projects.

Product specifications

Frequency:2400~2500MHz, 4900~5900MHz
S.W.R.:<=1.8
Antenna Gain: 8dbi
Radiation: Omnidirectional antenna
Polarization: Linear
Impedance:50R
PCB size: 95mm13.5mm0.55mm
Wire distance: 15cm
Connector: IPEX

Use Example

LILYGO® IPEX 8dBi Antenna For Mini32 V2.0 For ESP8266 Mini D1/ESP32-Wrover

Shipping List

1x IPEX 8dBi Antenna

LILYGO® IPEX 8dBi Antenna For Mini32 V2.0 For ESP8266 Mini D1/ESP32-Wrover
