产品名称:

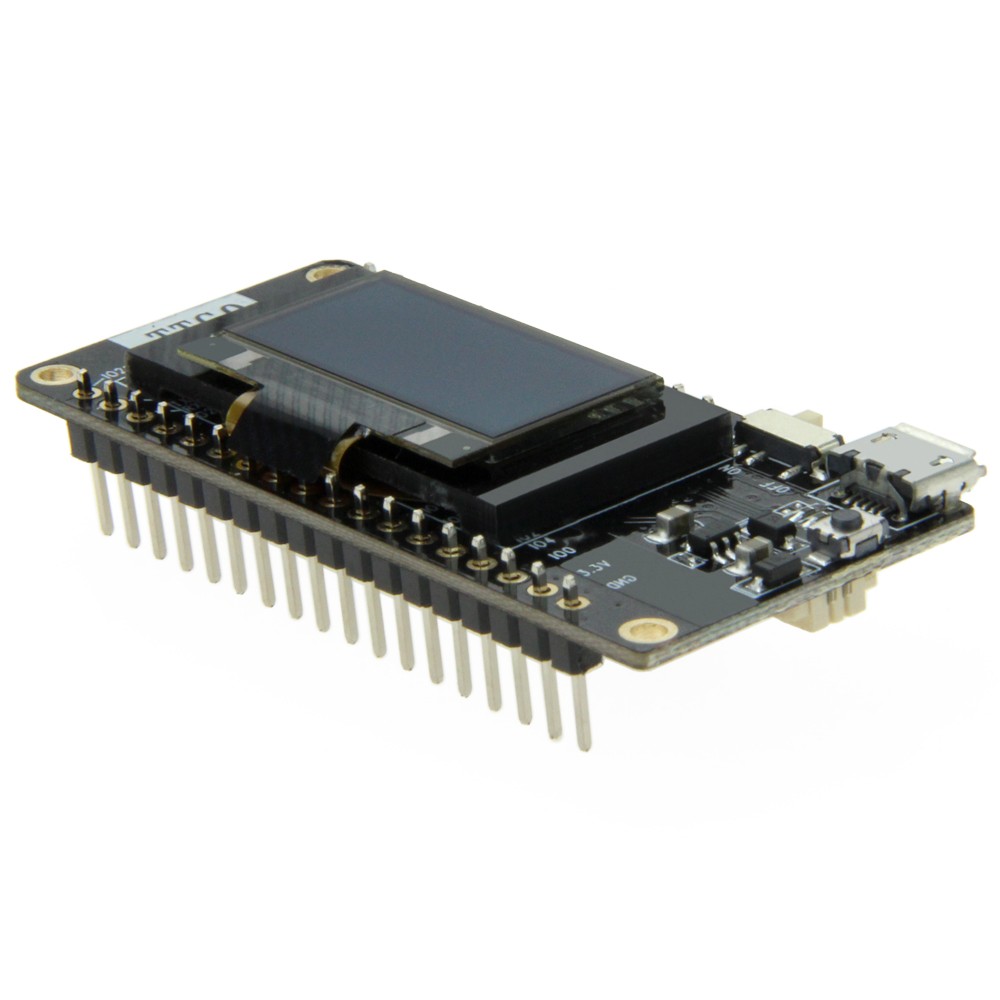

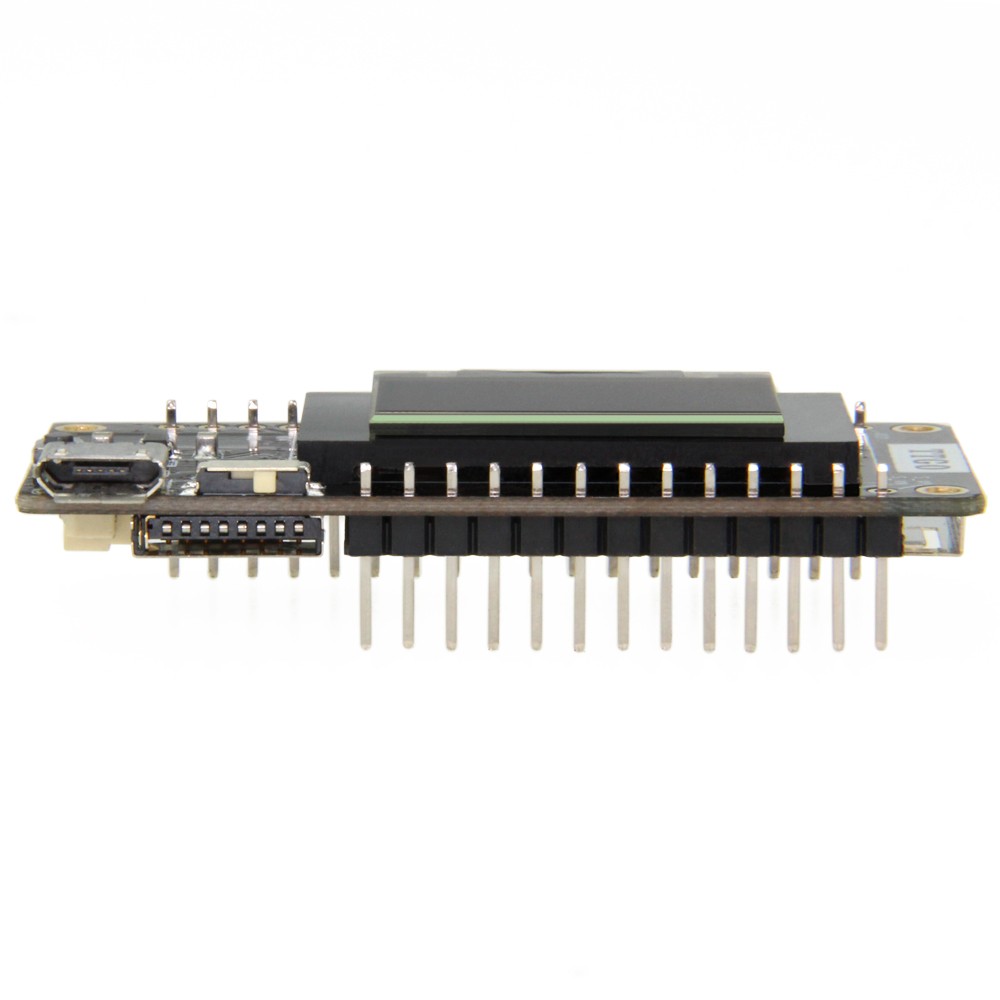

LILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With Antenna

上市日期: 2020-06-01
建议销售价: 0

LILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With Antenna

LILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With Antenna







Product Description

Working voltage: 1.8~3.7v

Acceptable current:10~14mA

Transmit current: 120mA@+20dBm

                              90mA@+17dBm

                              29mA@+13dBm

Operating frequency: 433/470MHz(433HMz version) / 868M/915M(868MHz Version)

Transmit power: +20dBm

Receive sensitivity :-139dBm@LoRa &62.5Khz&SF=12&146bps

-136dBm@LoRa &125Khz&SF=12&293bps

-118dBm@LoRa &125Khz&SF=6&9380bps

-123dBm@FSK&5Khz&1.2Kbps

Frequency error:+/-15KHz

FIFO space :     64Byte

Data rate :1.2K~300Kbps@FSK

                   0.018K~37.5Kbps@LoRa

Modulation Mode :FSK,GFSK,MSK,GMSK,LoRa TM,OOK

Interface form : SPI

Sleep current :0.2uA@SLEEP

                           1.5uA@IDLE

Operating temperature :-40℃- +85℃

Digital RSSI function

Automatic frequency correction

Automatic gain control

RF wake-up function

Fast wake-up and frequency hopping

Highly configurable data packet handler



Pin Diagram

LILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With Antenna

For more product information, please enter



https://github.com/LilyGO/TTGO-LORA32-V2.0
https://github.com/Xinyuan-LilyGO/TTGO-LoRa-Series



Compared with LORA32 V1.0

LILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With Antenna





Product Using

LILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With Antenna



Product Details

LILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With AntennaLILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With AntennaLILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With AntennaLILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With Antenna



(Notice:The shipping list does not include battery and SD card

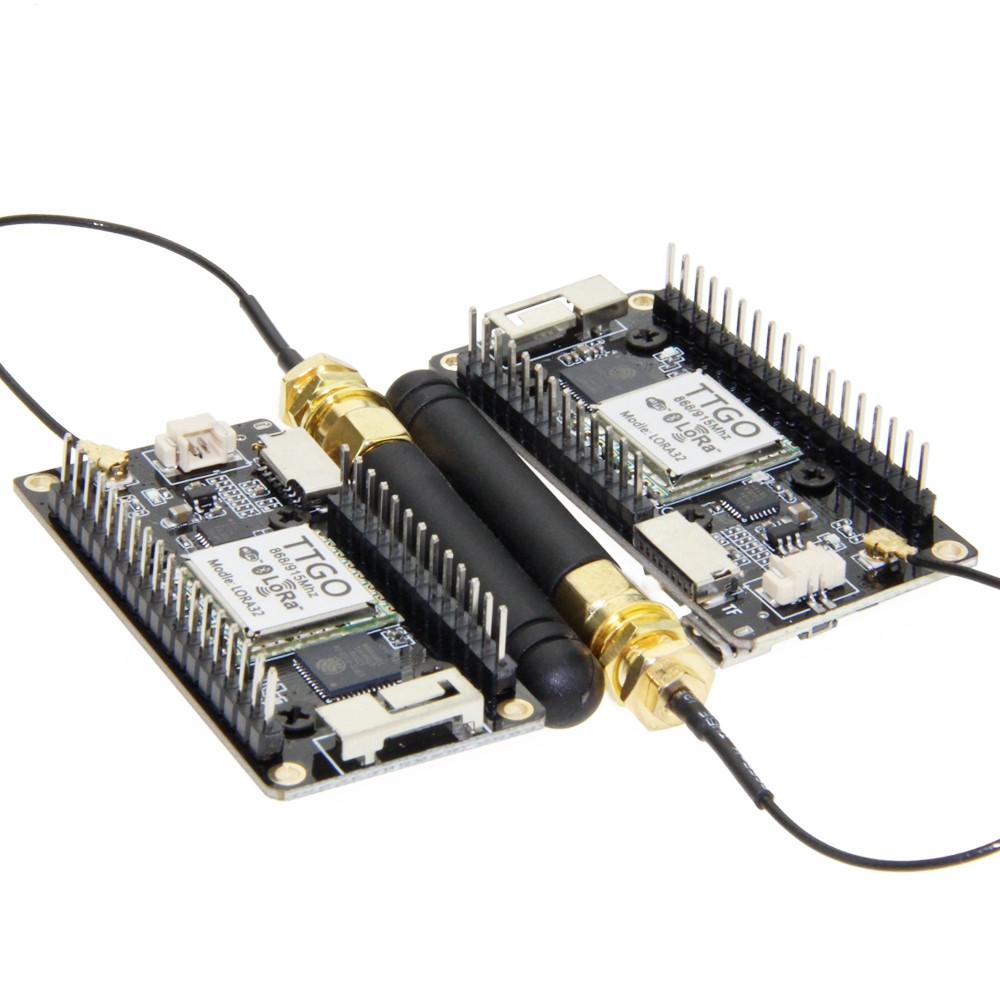

Suggestion: For Lora series products, you can choose to purchase 2 of them, one as the sending device and the other as the receiving device

433/470MHz Shipping List

1 X TTGO lora32 V2.0 433/470MHz Module

1 X Antenna

1 X Power Cable

1 X Free Box

LILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With Antenna



868/915MHZ Shipping List

1 X TTGO lora32 V2.0 868/915MHz Module

1 X Antenna

1 X Power Cable

1 X Free Box

LILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With Antenna





LILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With Antenna



LILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With Antenna

LILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With Antenna

LILYGO®TTGO LORA32 V2.0 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Bluetooth WIFI ESP32 Module With Antenna
