2pcs/sets TTGO LORA SX1278 ESP32 0.96 OLED 32Mt bit (4MB) 433Mhz For Arduino
Product Description
The 433MHz antenna must be used in conjunction with the IPEX interface (If the antenna is not connected, the signal may be almost).Lithium battery charging and discharging circuit, when the battery is full, the blue LED will stop working. When using, pay attention to “+” and “-” of the battery, the signal may be almost！
Using the IO port touch screen touch signal input, you need to add the 100nF pull-down capacitor at this pin!
Example:
This product is a SX1278 chip based on ESP32 WIFI increased OLED, namely LoRa remote modem, 433MHz frequency, high sensitivity is about -148dBm, +20dBm output power, high reliability, long transmission distance.
The 4Mt bytes (32 Mt bit) Flash on board , Wi-Fi antenna, 0.96 inch OLED display, lithium battery charging circuit, CP2102 interface and USB serial chip, the perfect support for Arduino development environment, can be used for program verification and product development is very simple and fast.
Operating voltage: 3.3V to 7V
Operating temperature range: -40 degrees C to +90 degrees C
Support for Sniffer, Station, softAP, and Wi-Fi Direct modes
Data rates: 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, 11 Mbps@11b
Transmit power: 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
Receiver sensitivity up to -98 dBm
UDP sustained throughput of 135 Mbps
Data Link:https://github.com/Xinyuan-LilyGO/TTGO-LoRa-Series

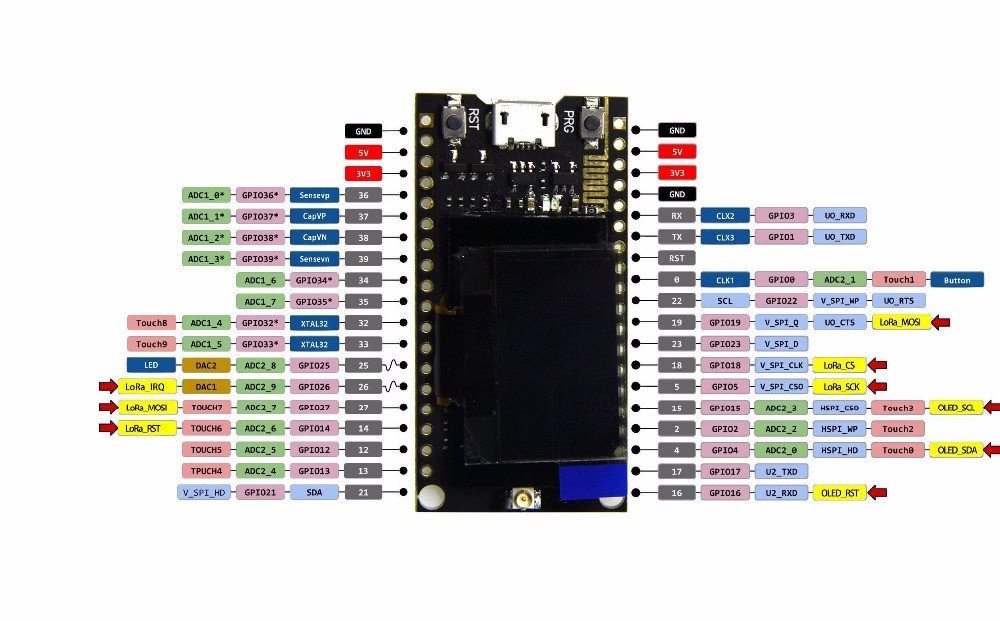

Pin Reference Description
![LILYGO® 2pcs/sets TTGO LORA SX1278 ESP32 0.96 OLED 32Mt bit (4MB) 433Mhz For Arduino]( "LILYGO® 2pcs/sets TTGO LORA SX1278 ESP32 0.96 OLED 32Mt bit (4MB) 433Mhz For Arduino")
For more product information, click https://drive.google.com/file/d/1L8ll-DeAC2SATBZn0-KbSaZsrinbnXkF/view
Test details
![LILYGO® 2pcs/sets TTGO LORA SX1278 ESP32 0.96 OLED 32Mt bit (4MB) 433Mhz For Arduino]( "LILYGO® 2pcs/sets TTGO LORA SX1278 ESP32 0.96 OLED 32Mt bit (4MB) 433Mhz For Arduino")
Click links for more details: https://eyun.baidu.com/s/3hsiTNgg
Test Code :https://github.com/LilyGO/TTGO-LORA32-V2.0/tree/LilyGO-patch-1
Note:This product does not include the battery.
Shipping list：
ESP32 OLED *2
433m Spring Antenna*2
Line *2
Pin*4
