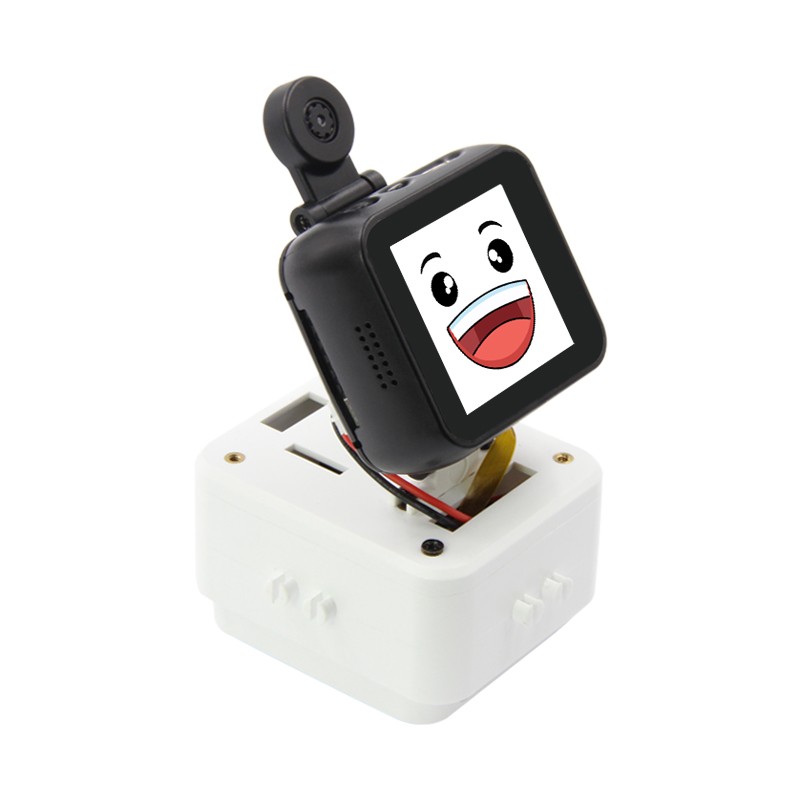

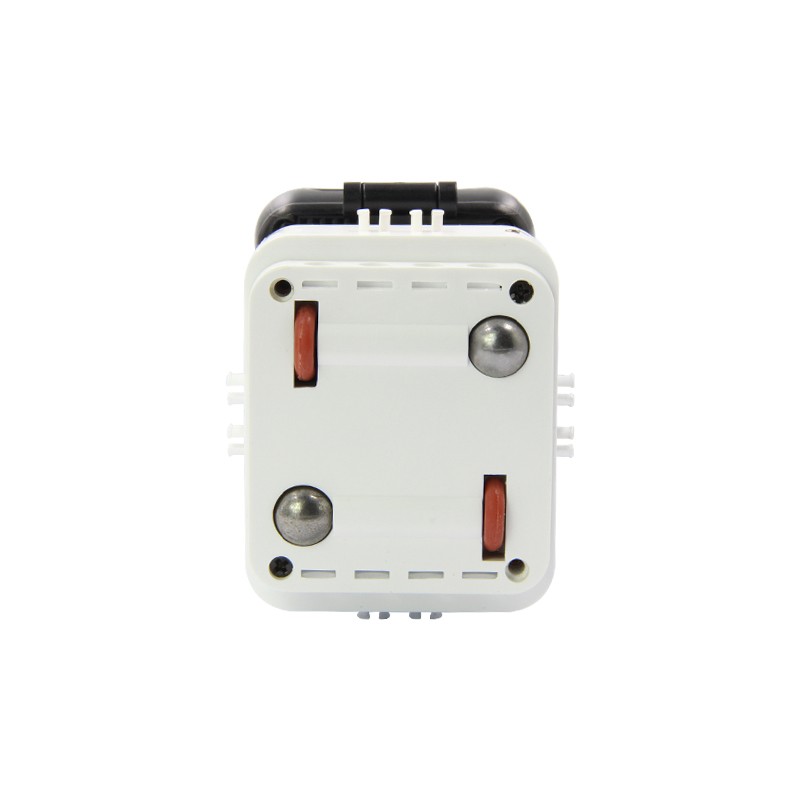

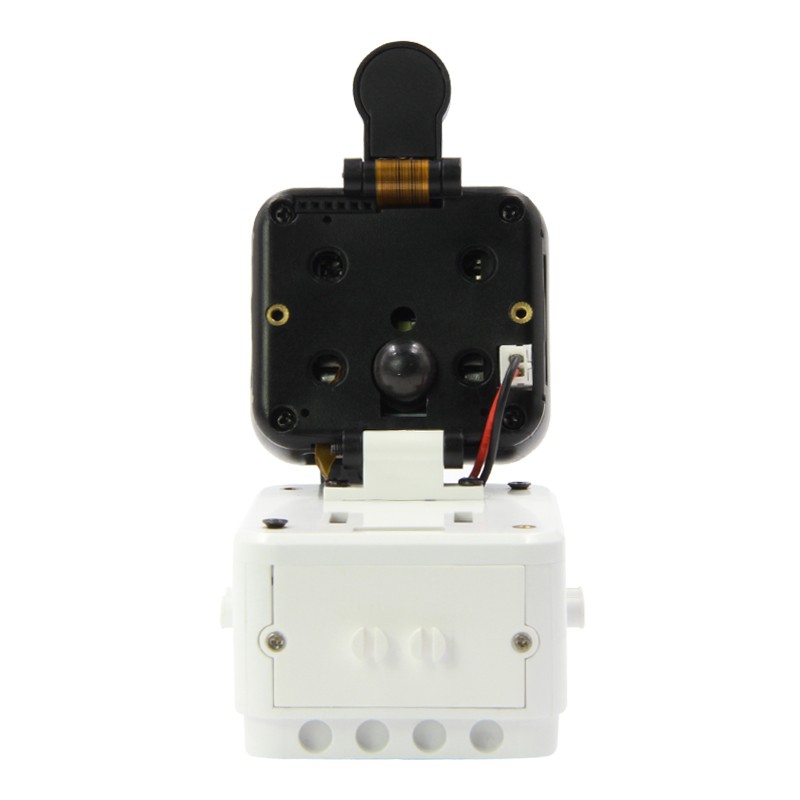

T-Bao is based on the T-WATCH K210 host. The 13pin FPC reserved from the back extends the motor drive module. By using the reserved shaft design of the host, a PC+ABS shell is designed and manufactured. The power supply reserves a 9V battery connector. The base is designed with a 9V battery compartment (a large capacity rechargeable 9V battery is recommended), which is convenient for adding batteries. AIOT smart car can be programmed with T-WATCH K210 host and K210+ESP32+DRV8833 motor drive module to meet various AIOT creative applications.
T-BAO K210 Hardware Specifications：
| Chipset | ESP32-PICO-D4 / Kendryte K210 RISC-V Dualcore 64bit with FPU / MAX98357Audio chip |
| FLASH | QSPI flash 16MB |
| SRAM | 8MB |
| Button | Power key , Boot |
| Power Management System | PMU AXP202 |
| RTC Clock | PCF8563 |
| USB to TTL | CP2104 |
| Modular interface | UART、SPI、I2C、PWM、I2S |
| On-board clock | 26M |
| Working voltage | 2.7V-3.6V |
| Working current | about 70mA ~170ma |
| Working temperature range | -40℃ ~ +125℃ |
| Size&Weight | 42.72mm*19.87mm*46.43mm About 60g |
| Display | 1.54 inch LCD Capacitive 8080 touch screen |
| Sensor | MPU6050 six-axis sensor, built-in step counting algorithm, activity recognition / tracking, image recognition QVGA @ / VGA @ , voice recognition microphone |

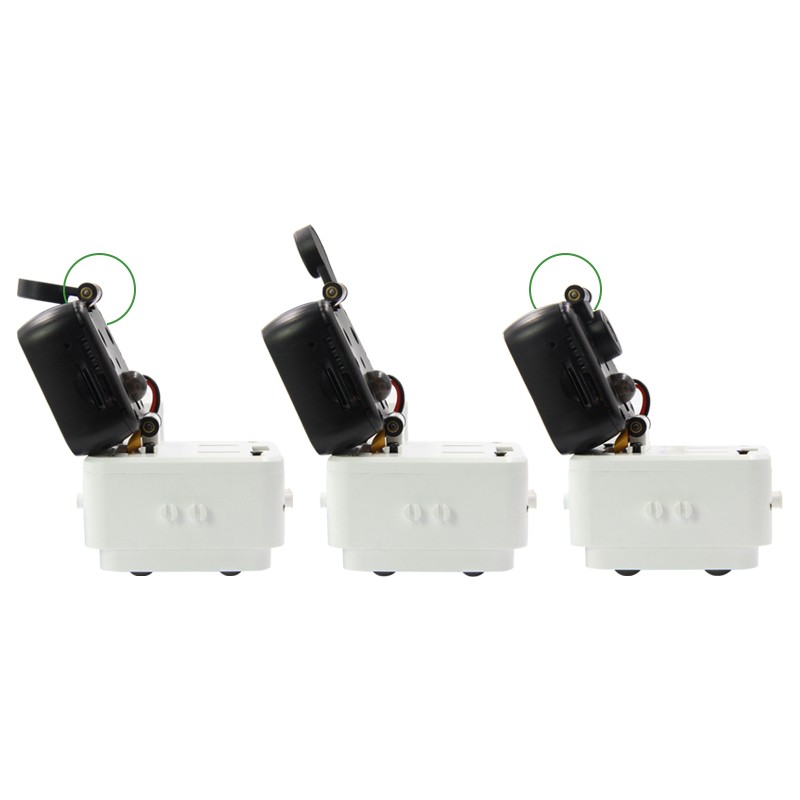

| Lens | OV2640 / 2 Million Pixels / Adjustable camera lens |
| Extra Function | PIR Human infrared detection / Rear white light / The bottom is reserved to extend the design of the steering head and double as a bolt for the LEGO bricks / Adjustable camera lens / Flexible bottom removal |
| Power Supply |
|
| Power input interface | 5-12V |
| Power Supply | USB 5V/1A |
| Charging current | 500mA |
| GPIO port voltage | 3.3V / 1.8V dual voltage operation |
Wi-Fi |
|
| Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC |
| Protocol | 802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval |
| Frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Transmit Power | 22dBm |
| Communication distance | 300m |
Bluetooth |
|
| Protocol | meet bluetooth v4.2BR/EDR and BLE standard |
| Radio frequency | with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
| Audio frequency | CVSD&SBC audio frequency |
Software specification |
|
| Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware upgrade | UART download/OTA（Through network/host to download and write firmware）/ OTP SHA256 |
| Software Development | Support cloud server development /SDK for user firmware development |
| Networking protocol | IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iOSapp |
| OS | FreeRTOS |
Extension car |
|
| Shell material | PC+ABS |
| Compatible with Lego blocks on all sides |
|
| Battery compartment | 9V battery compartment (rechargeable large capacity battery is recommended) |
| Motor driver chip | DRV8833 |

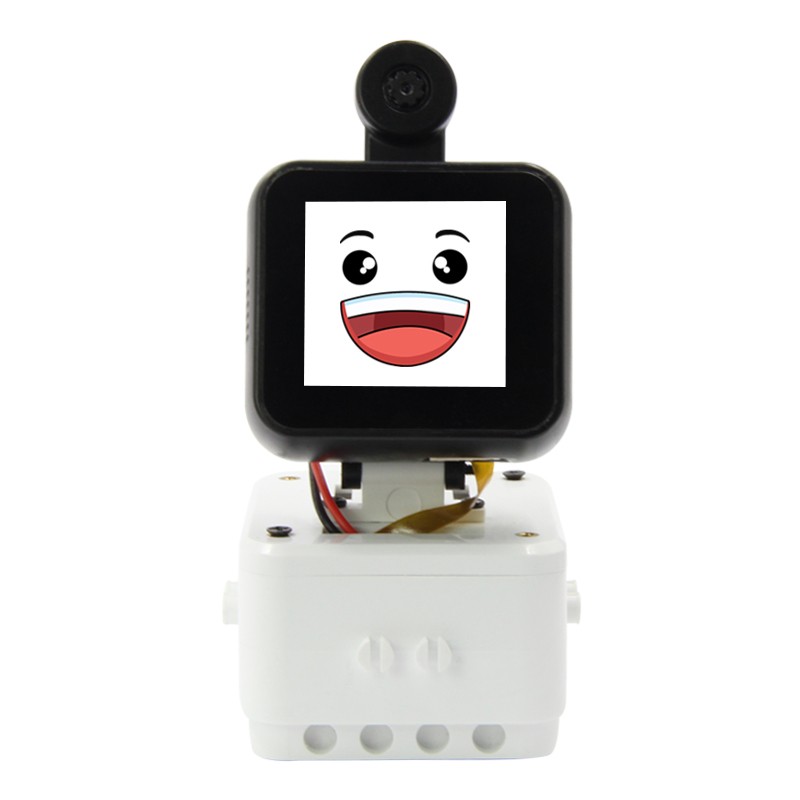

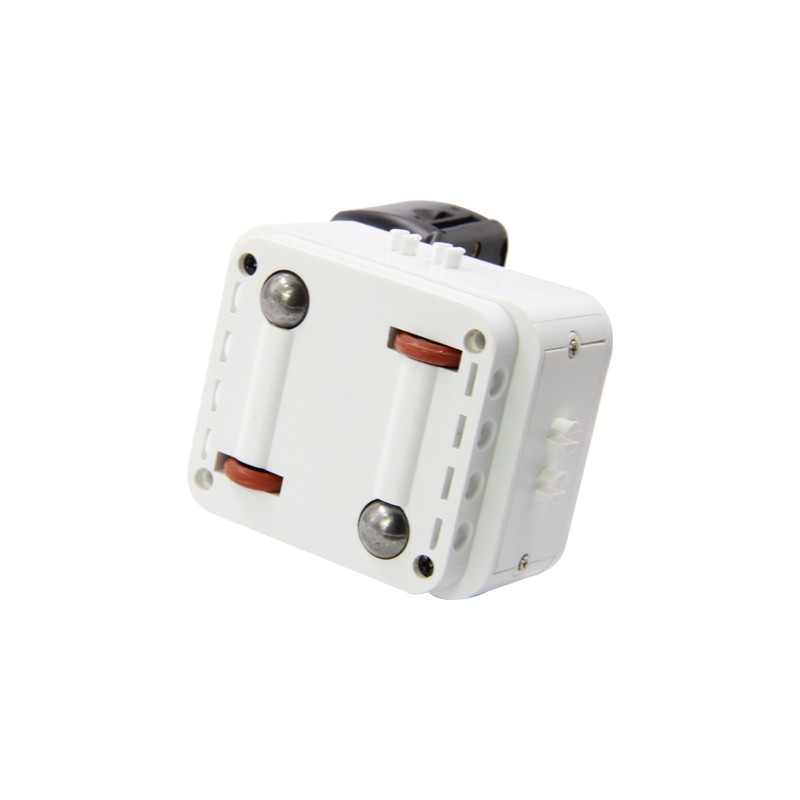

The T-BAO ESP32 version is based on the T-WATCH host by replacing the bottom function shield and adding a car battery base, making it a smart car with a mini and cute appearance. On the basis of the ESP32 main control chip included in the T-WATCH host, the 1.54 capacitive touch screen + three-axis motion sensor + RTC clock + PMU power management chip is added a shield for the expandable car base.
The functions of the shield are: 3 RGB colorful lights, buzzer, and servo expansion port.
A 9V battery compartment is designed on the trolley shield, which requires the use of a high-capacity 9V rechargeable battery to ensure the endurance of the trolley. At the same time, there are compatible Lego blocks around the base.
You can build some interesting Lego blocks on the trolley to increase the fun of use. The software currently supports Pictoblox, KBIDE, Arduino, and micropython.
T-BAO ESP32 Product Features：
| ESP32-based support BLE 4.2 and WiFi |
| Built-in 3-Axis IMU，1.54 IPS capacitive touch screen |
| RTC，PMU，3 x RGB，2 x Button |
| Built-in Lipo Battery，Extendable Socket，Built-in Passive Buzzer，9V battery compartment |
| Development Platform Picoblock, KBIDE MicroPython, Arduino |
| Application field |
| Learn to program |
| Desktop smart car |
| STEM Education |
| DIY development creation |
Github Link:
https://github.com/Xinyuan-LilyGO/TTGO_TWatch_Library/tree/master/examples/T_Bao
T-BAO K210 pin diagram
T-BAO ESP32 pin diagram
