LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board
![LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board]( "LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board")
Product Description
Hardware specifications
Main chip: S76G Lora Chip
Button: BOOT
Car clock: 26MHz active crystal
Antenna Model: LORA 868MHZ GPS Antenna
Operating temperature range: -45-80 ℃
Size: 78.12mm * 25.40mm * 62.67mm
Weight: 30g
Power Specifications
Working voltage: 5v input
Working current: About 18mA
USB: USB male
More information:
https://github.com/lyusupov/SoftRF/tree/master/software/firmware/binaries/STM32/S76G
https://github.com/lyusupov/SoftRF/wiki/AcSiP-S7xG-flashing-instructions
https://github.com/Xinyuan-LilyGO/LilyGO-T-Motion

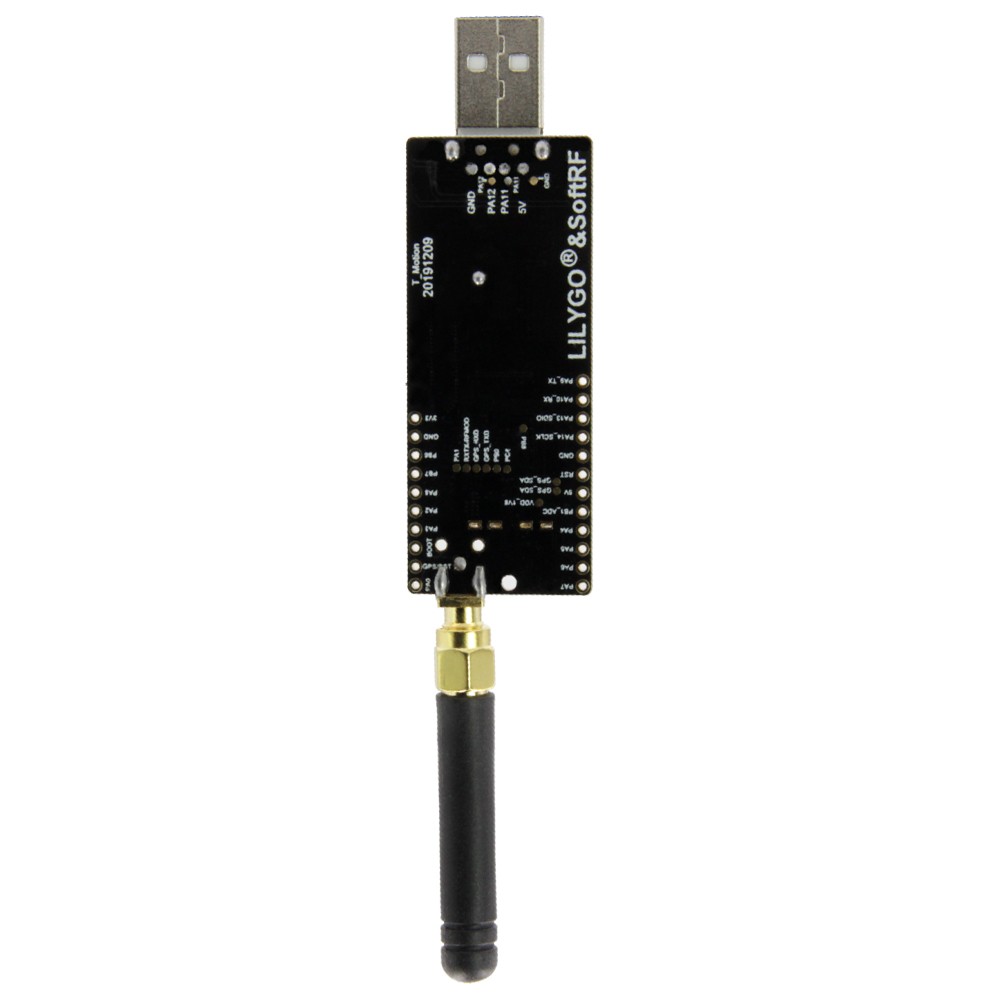

Product PIN Diagram
![LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board]( "LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board")
Size Chart
![LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board]( "LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board")

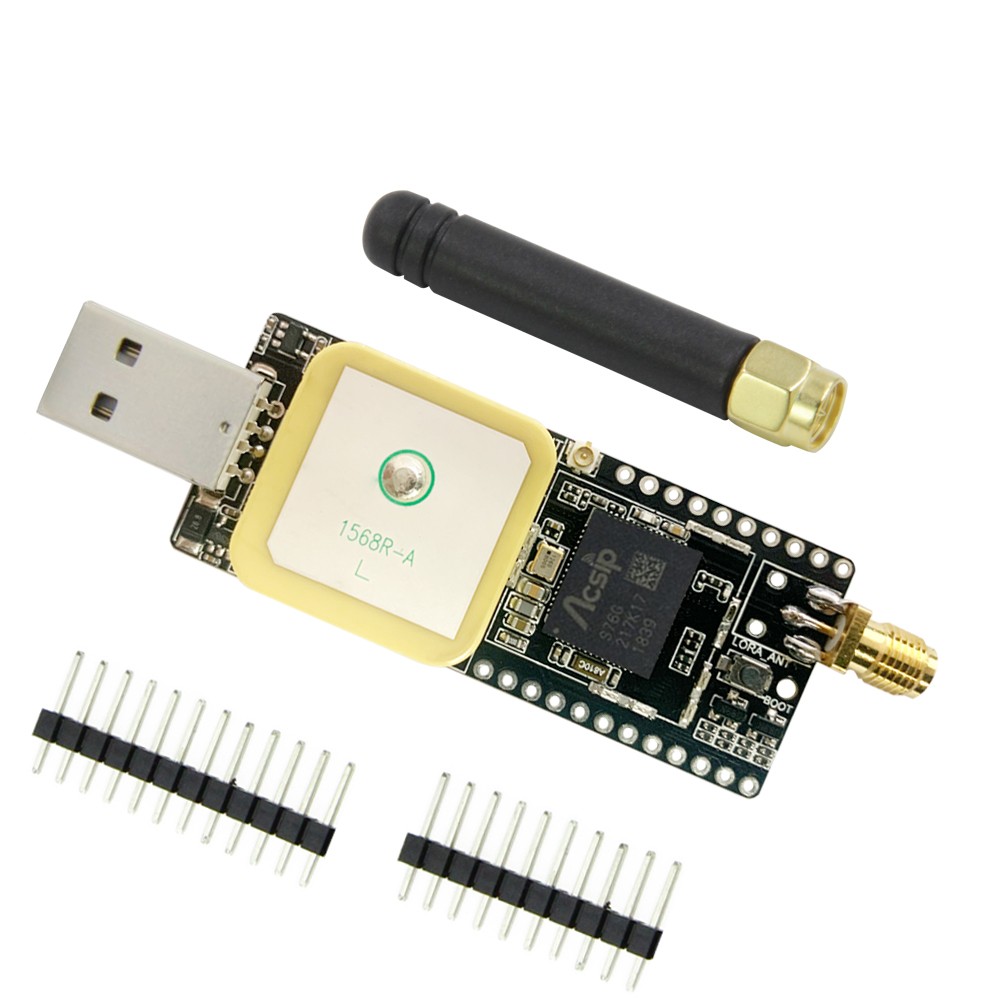

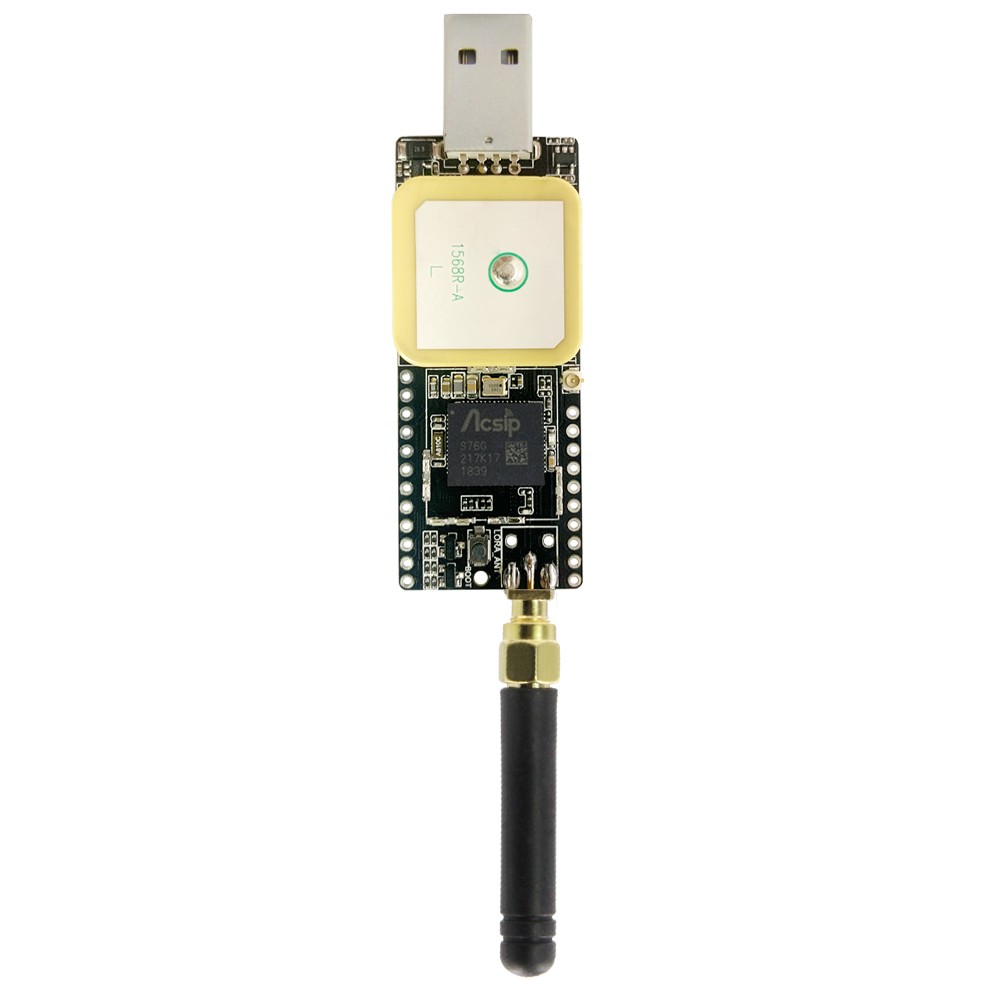

Product Detail
![LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board]( "LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board")
![LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board]( "LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board")

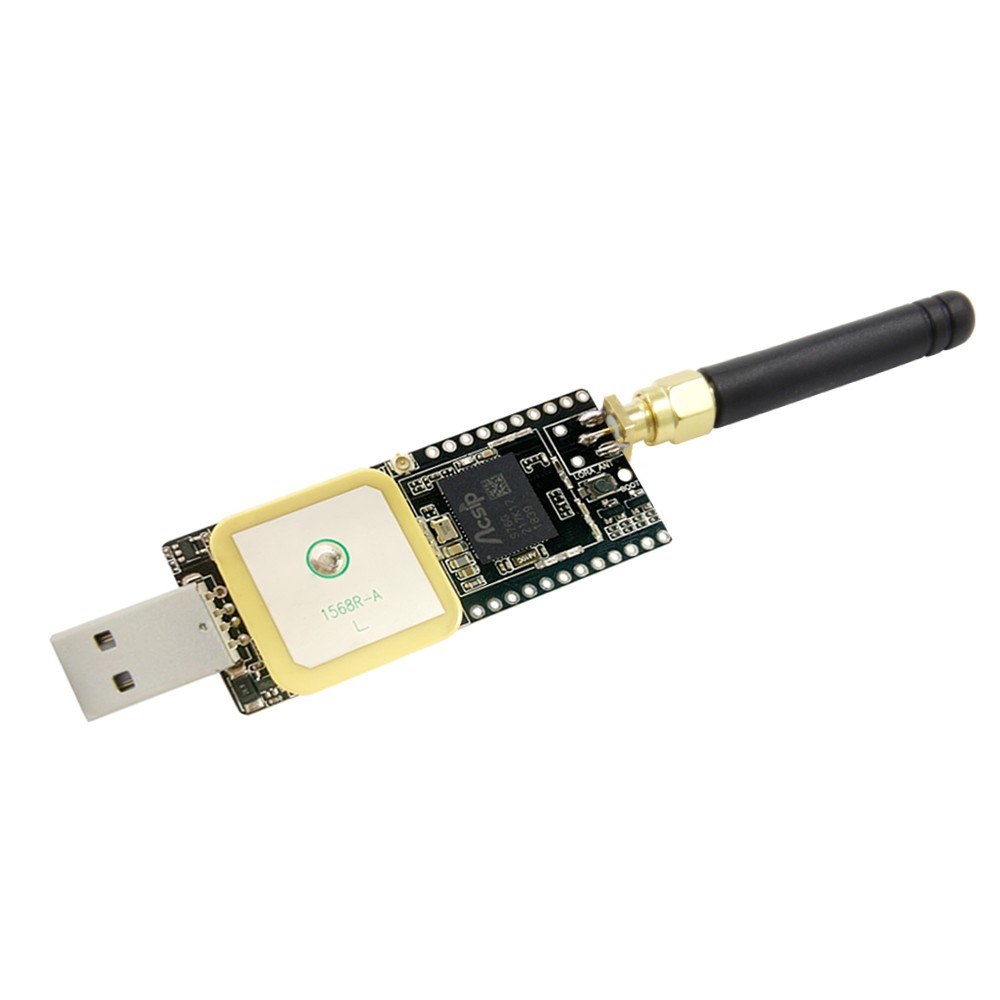

Product Usage Display
![LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board]( "LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board")
![LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board]( "LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board")
Shipping List
1.T-Motion 868Mhz
1 X T-Motion(Notice:SoftRF writer firmware is installed by default)
1 X LORA 868MHZ Antenna
2 X Pin
