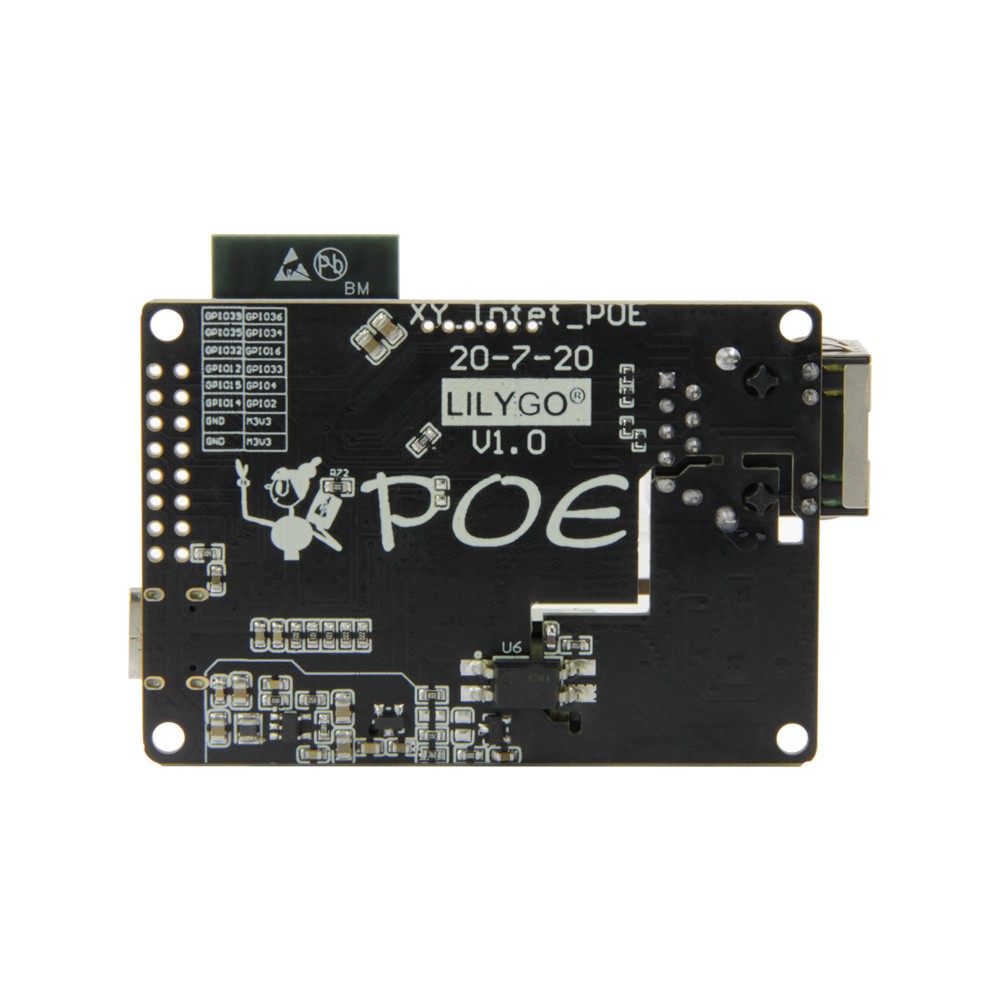

LILYGO® TTGO T-Internet-POE ESP32-WROOM LAN8720A Chip Ethernet Adapter And Downloader Expansion Board Programmable Hardware
![LILYGO® TTGO T-Internet-POE ESP32-WROOM LAN8720A Chip Ethernet Adapter And Downloader Expansion Board Programmable Hardware]( "LILYGO® TTGO T-Internet-POE ESP32-WROOM LAN8720A Chip Ethernet Adapter And Downloader Expansion Board Programmable Hardware")
Product Description
| Hardware Specifications |
|
| Chipset | ESPRESSIF-ESP32-WROOM,LAN8720A Ethernet chip,SI3404 Power management chip |
| FLASH | 4MB |
|
|
| SRAM | 520 kB SRAM |
| Button | BOT,Rest |
| External Device | TF Card Slot,Type-C Interface,PA2369NL 1825-S Transformer,HR861153C Ethernet-POE interface |
| USB to TTL | CP2104 |
| Modular interface | SD card、UART、SPI、I2C、PWM、I2S、ADC |
| On-board clock | 32.768MHz crystal oscillator |
| Working temperature range | -40℃ ~ +85℃ |
| Weight | 26.85g |
| Size | 70*52.3*17mm |
Power Supply Specifications |
|
| Power Supply Input | Type-C USB 5V |
| HR861153C Ethernet-POE interface 50V |
| Working voltage | 2.7V-3.6V |
| Maximum output current | About 1.2A |
| Charging current | 500mA |
| USB | Type-C USB |
|
|
| Wi-Fi |
|
| Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip) |
| Protocol | 802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval |
| Frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Transmit Power | 22dBm |
| Communication distance | 300m |
|
|
| Bluetooth |
|
| Protocol | Meet bluetooth v4.2BR/EDR and BLE standard |
| Radio frequency | With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
| Audio frequency | CVSD&SBC audio frequency |
|
|
| Software specification |
|
| Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware upgrade | UART download/OTA（Through network/host to download and write firmware） |
| Software Development | Support cloud server development /SDK for user firmware development |
| Networking protocol | IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iOSapp |
| OS | FreeRTOS |
More Information
https://github.com/Xinyuan-LilyGO/LilyGO-T-ETH-POE
Product Pin
![LILYGO® TTGO T-Internet-POE ESP32-WROOM LAN8720A Chip Ethernet Adapter And Downloader Expansion Board Programmable Hardware]( "LILYGO® TTGO T-Internet-POE ESP32-WROOM LAN8720A Chip Ethernet Adapter And Downloader Expansion Board Programmable Hardware")
Product Size
![LILYGO® TTGO T-Internet-POE ESP32-WROOM LAN8720A Chip Ethernet Adapter And Downloader Expansion Board Programmable Hardware]( "LILYGO® TTGO T-Internet-POE ESP32-WROOM LAN8720A Chip Ethernet Adapter And Downloader Expansion Board Programmable Hardware")
Product Detail
1.Compatible with PoE mode A (powered by data pair) and PoE mode B (powered by backup pair) and auto MDIX, allowing the use of straight and crossover Ethernet cables.
2.20 needle footprint with 3.3V, V+ power and 15 ESP32GPIO are available for your application.
3. The compact 75mm by 40mm footprint is compatible with 4 mounting holes of ordinary M2.5 or 4-40 screws.
4.A small programming/USB serial console sub-module has been created so that the Inter-POE module can be easily programmed to meet the user's application needs.
Note: the USB interface only has a charging function, the product needs downloader to program .
Shipping List
Option 1
1 X T-Internet-POE
1 X Double Row Pin
Option 2
1 X Downloader Expansion Board
