LILYGO® TTGO T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi Wireless Bluetooth Module GPS NEO-6M SMA LORA 32 18650 Battery Holder(1)(1)(1)(1)

上市日期: 2019-04-24
建议销售价: 0

LILYGO® TTGO T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi Wireless Bluetooth Module GPS NEO-6M SMA LORA 32 18650 Battery Holder With SoftRF



Product Demonstration

With OLED(Click on the image to go to the OLED purchase link.)



LILYGO® TTGO T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi Wireless Bluetooth Module GPS NEO-6M SMA LORA 32 18650 Battery Holder(1)(1)

Product Features

ESP32
Lastest ESP32 Version: REV1
WIFI
Bluetooth
8MB PSRAM
4MB Flash
3D Antenna



LORA
Product Description
Working voltage: 1.8~3.7v
Acceptable current:10~14mA
Transmit current: 120mA@+20dBm
                                        90mA@+17dBm
                                        29mA@+13dBm
Operating frequency: 433/470MHz(433HMz version) /868M/915M(868MHz version)
Transmit power: +20dBm
Receive sensitivity :-139dBm@LoRa &62.5Khz&SF=12&146bps
-136dBm@LoRa &125Khz&SF=12&293bps
-118dBm@LoRa &125Khz&SF=6&9380bps
-123dBm@FSK&5Khz&1.2Kbps
Frequency error:+/-15KHz
FIFO space :     64Byte
Data rate :1.2K~300Kbps@FSK
                   0.018K~37.5Kbps@LoRa
Modulation Mode :FSK,GFSK,MSK,GMSK,LoRa TM,OOK
Interface form : SPI
Sleep current :0.2uA@SLEEP
                           1.5uA@IDLE
Operating temperature :-40℃- +85℃
Digital RSSI function
Automatic frequency correction
Automatic gain control
Low voltage detection and temperature sensor
Fast wake-up and frequency hopping
Highly configurable data packet handler



GPS
GPS modules NEO-6M, 3V-5V power supply Universal
Destined module with ceramic antenna, signal super
Save the configuration parameter data EEPROM Down
With data backup battery
There are LED signal indicator
Default Baud Rate: 9600



Power
Power Supply Input USB 5V/1A
Charging current 500mA
Battery Input  3.7-4.2V
Charge IC AXP192



Product Upgrade Content


1.Add reverse battery protection module



More information:

https://github.com/lyusupov/SoftRF/wiki/Prime-Edition-MkII

https://github.com/LilyGO/SoftRF

https://github.com/Xinyuan-LilyGO/LilyGO-T-Beam

Size Picture

LILYGO® TTGO T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi Wireless Bluetooth Module GPS NEO-6M SMA LORA 32 18650 Battery Holder(1)(1)



Pin Schematic

LILYGO® TTGO T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi Wireless Bluetooth Module GPS NEO-6M SMA LORA 32 18650 Battery Holder(1)(1)





Product Detail

LILYGO® TTGO T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi Wireless Bluetooth Module GPS NEO-6M SMA LORA 32 18650 Battery Holder(1)(1)





LILYGO® TTGO T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi Wireless Bluetooth Module GPS NEO-6M SMA LORA 32 18650 Battery Holder(1)(1)









Shipping List

433mhz Version
1 X TTGO T-Beam ESP32
1 X 433MHz Antenna
2 X Pin



LILYGO® TTGO T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi Wireless Bluetooth Module GPS NEO-6M SMA LORA 32 18650 Battery Holder(1)(1)



868MHz Version
1 X TTGO T-Beam ESP32
1 X 868MHz Antenna
2 X Pin



LILYGO® TTGO T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi Wireless Bluetooth Module GPS NEO-6M SMA LORA 32 18650 Battery Holder(1)(1)

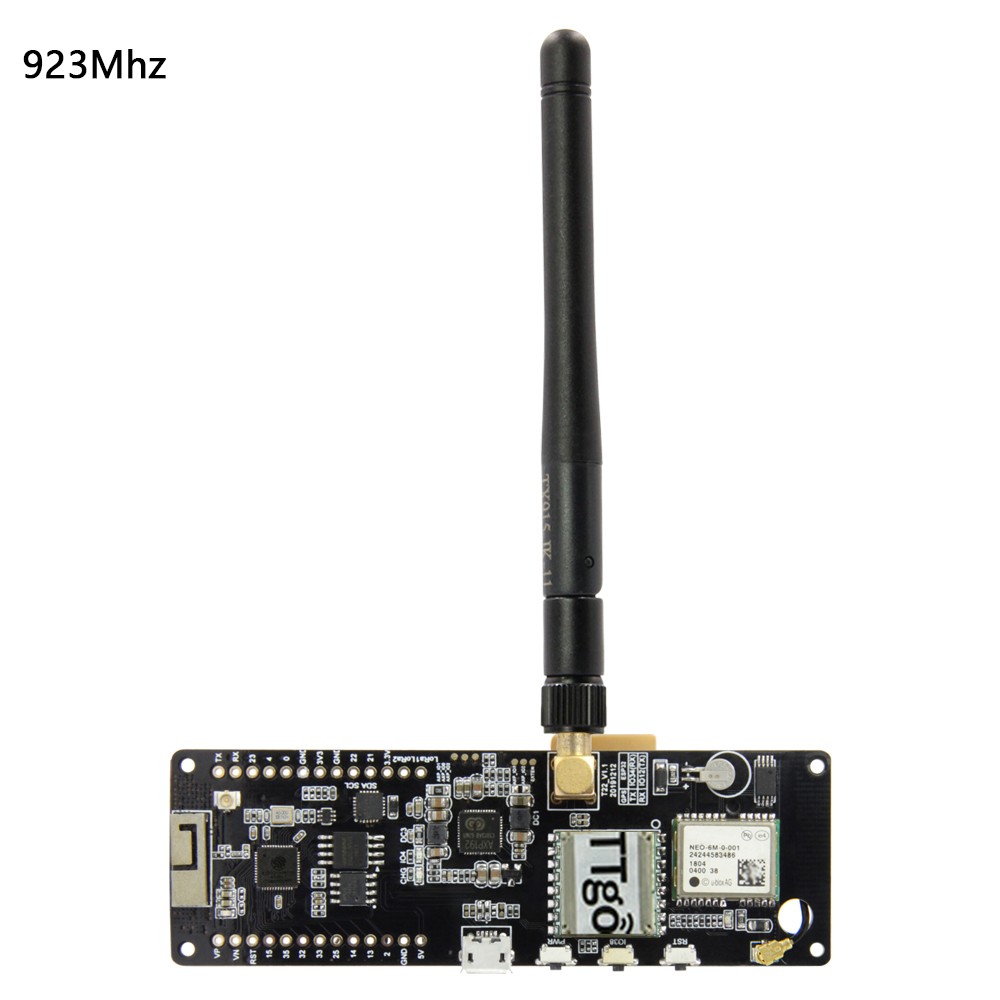

923mhz Version
1 X TTGO T-Beam ESP32
1 X 923mhz Antenna
2 X Pin
LILYGO® TTGO T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi Wireless Bluetooth Module GPS NEO-6M SMA LORA 32 18650 Battery Holder(1)(1)




915MHz Version
1 X TTGO T-Beam ESP32
1 X 915MHz/923mhz Antenna
2 X Pin



LILYGO® TTGO T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi Wireless Bluetooth Module GPS NEO-6M SMA LORA 32 18650 Battery Holder(1)(1)



GPS Ceramic Antenna Version



1 X GPS Ceramic Antenna
LILYGO® TTGO T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi Wireless Bluetooth Module GPS NEO-6M SMA LORA 32 18650 Battery Holder(1)(1)



LILYGO® TTGO T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi Wireless Bluetooth Module GPS NEO-6M SMA LORA 32 18650 Battery Holder(1)(1)
LILYGO® TTGO T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi Wireless Bluetooth Module GPS NEO-6M SMA LORA 32 18650 Battery Holder(1)(1)
LILYGO® TTGO T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi Wireless Bluetooth Module GPS NEO-6M SMA LORA 32 18650 Battery Holder(1)(1)
