Classic products
产品名称:

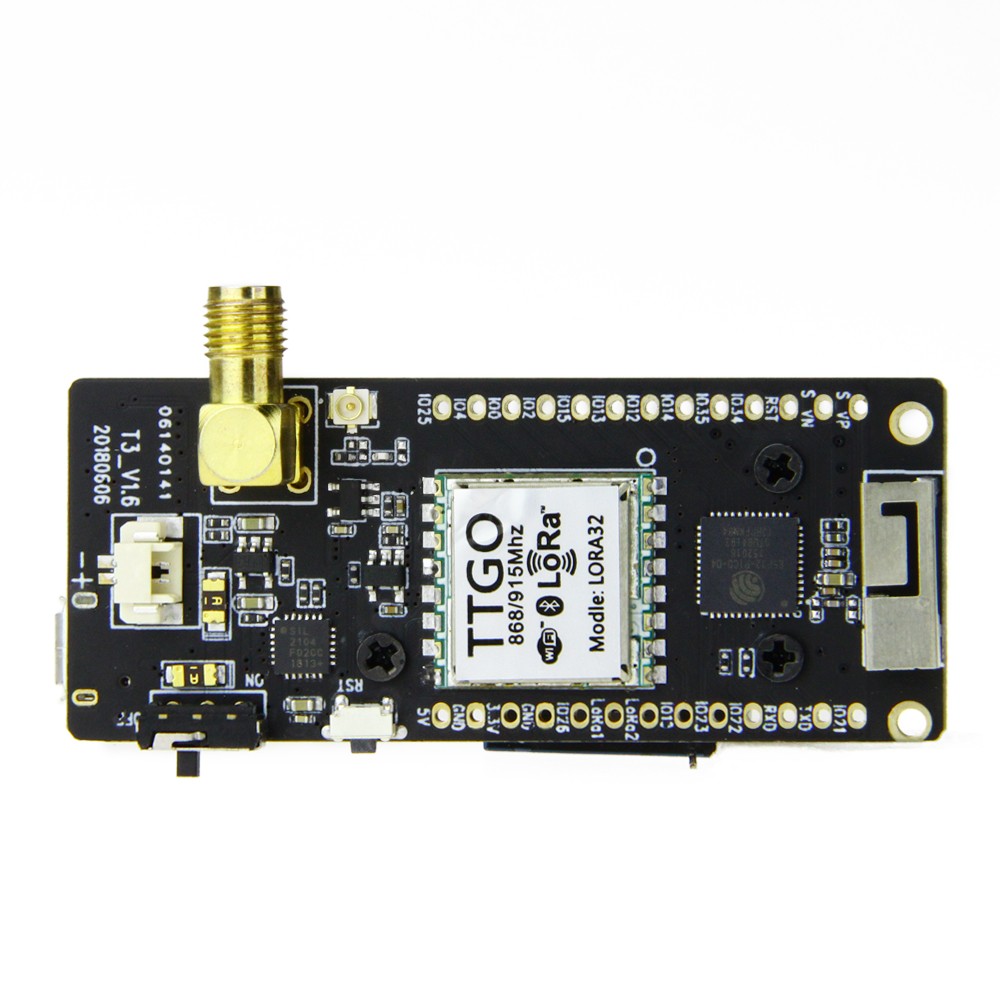

LILYGO® TTGO ESP32-Paxcounter LoRa32 V2.1 1.6 Version 433/868/915MHZ LoRa ESP-32 OLED 0.96 Inch SD Card Bluetooth WIFI Module

上市日期: 2018-05-15
建议销售价: 0


LILYGO® TTGO ESP32-Paxcounter LoRa32 V2.1 1.6 Version 433/868/915MHZ LoRa ESP-32 OLED 0.96 Inch SD Card Bluetooth WIFI Module

LILYGO® TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMA

LILYGO® TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMALILYGO® TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMA







Product Description

Working voltage: 1.8~3.7v

Acceptable current:10~14mA

Transmit current: 120mA@+20dBm

                              90mA@+17dBm

                              29mA@+13dBm

Operating frequency: 868M/915MHz

Transmit power: +20dBm

Receive sensitivity :-139dBm@LoRa &62.5Khz&SF=12&146bps

          -136dBm@LoRa &125Khz&SF=12&293bps

          -118dBm@LoRa &125Khz&SF=6&9380bps

          -123dBm@FSK&5Khz&1.2Kbps

Frequency error:+/-15KHz

FIFO space :64Byte

Data rate :1.2K~300Kbps@FSK

                   0.018K~37.5Kbps@LoRa

Modulation Mode :FSK,GFSK,MSK,GMSK,LoRa TM,OOK

Interface form :SPI

Sleep current :0.2uA@SLEEP

                           1.5uA@IDLE

Operating temperature :-40℃- +85℃

Digital RSSI function

Automatic frequency correction

Automatic gain control

Fast wake-up and frequency hopping

Highly configurable data packet handler

SMA Antenna

TP4054


Paxcounter Testing:

https://github.com/cyberman54/ESP32-Paxcounter

LilyGO Data Link:

https://github.com/LilyGO/ESP32-Paxcounter

Data Download Link

https://github.com/Xinyuan-LilyGo/TTGO-LoRa-Series



LILYGO® TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMA




LORA_1.5 version:LORA_1.6 version:
LED:IO23IO25
LORA pin:IO18=NSS/SELIO18=NSS/SEL

IO5=SCKIO5=SCK

IO27=MOSI/SDIIO27=MOSI/SDI

IO19=MISO/SDOIO19=MISO/SDO

IO26=DI0/IO0IO26=DI0/IO0

IO12=IRQ/RESETIO23=IRQ/RESET



SD card:SD3-CS-IO13SD3-CS-IO13

CMD-MOS1-IO15CMD-MOS1-IO15

CLK-SCK-IO14CLK-SCK-IO14

SD0-MISO-IO2SD0-MISO-IO2


DATA2:IO12


DATA2:IO4








TTGO LoRa32 V2.1_1.6 version Structure diagram

LILYGO® TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMA



Pin Schematic





LILYGO® TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMA



At the TTGO LoRa V2.1_1.6 ,we add the SMA and TP4054 to the board,which make it can do more things.In terms of the power switch, we have changed the switching interaction mode. The added SMA antenna can enhance signal transmission.

LILYGO® TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMALILYGO® TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMA



(Notice:The shipping list does not include battery and SD card)







Shipping List

1 X TTGO LoRa32 V2.1 433/868/915 Module

2 X Pin

1 X Antenna

1 X Power Cable

1 X Free Box

LILYGO® TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMA









LILYGO® TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMA

LILYGO® TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMA
