Classic products
产品名称:

LILYGO T-Echo NRF52840 SX1262 868mHz(with Case) Module for Arduino LoRa GPS 1.54 E-Paper WiFi BLE NFC (1)(1)

上市日期: 2021-07-17
建议销售价: 0

 LILYGO T-Echo NRF52840 SX1262 868mHz(with Case) Module for Arduino LoRa GPS 1.54 E-Paper WiFi BLE NFC (1)

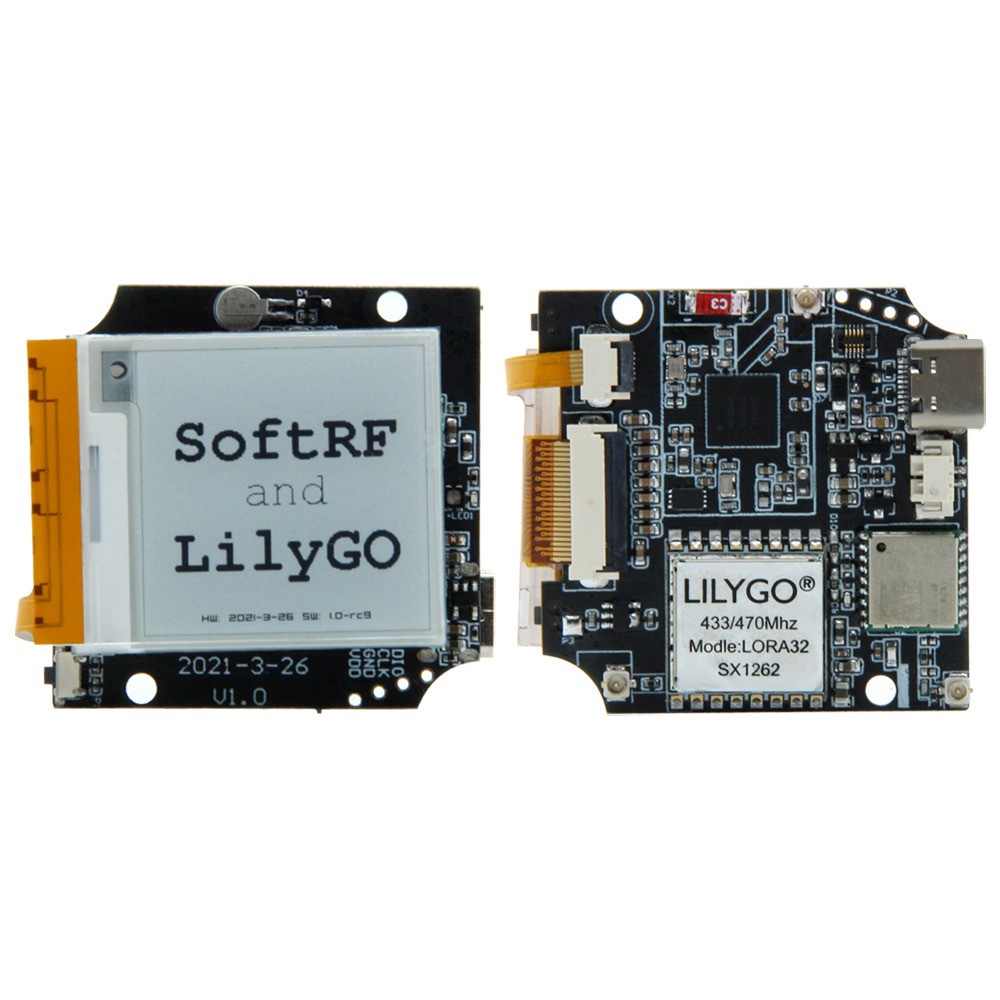

T-Echo Specifications:
- NRF52840 BLE/NFC
- L76K GPS module
- T-SX1262 LORA module
- 1 .54 E-paper with front LED screen light
- RTC PCF8563
- RGB LED
- RST button X1
- Custom button X1
- Touch button TTP223

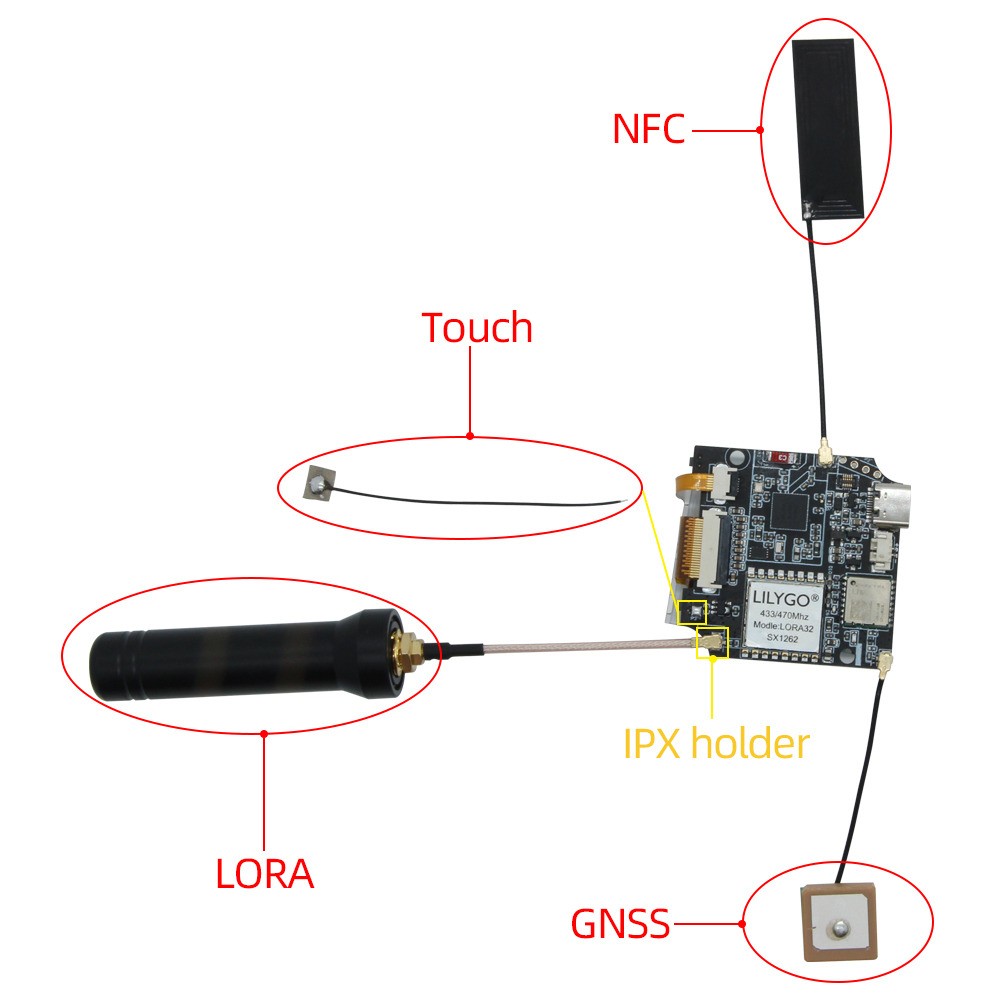

- IPX Antenna Base X3
- 1.25 pitch battery holder
- 12. 5V input Type-C USB
- 10pin 0.4 pitch BTB socket can be used to expand functional modules




 LILYGO T-Echo NRF52840 SX1262 868mHz(with Case) Module for Arduino LoRa GPS 1.54 E-Paper WiFi BLE NFC (1)


Application scenarios:
IOT terminal controller
lora networking
Stem education product
DIY creation
GPS positioning


 LILYGO T-Echo NRF52840 SX1262 868mHz(with Case) Module for Arduino LoRa GPS 1.54 E-Paper WiFi BLE NFC (1)



LILYGO T-Echo is a version evolved from LILYGO T-BEAM.

At the beginning of the design, more consideration was to adapt to Meshtastic and SotfRF, so Bluetooth and low power consumption were considered when designing, and NRF52840 Advanced Bluetooth 5 was selected Thread and Zigbee multiprotocol SoC.


The LORA function continues T-BEAM's LILYGO SX1262 version functional module.


T-SX1262 wireless transceiver module, using Semtech SX1262 LORA RF transceiver chip design, working in the 868/915MHz ISM frequency band, integrated high stability TCXO 32MHz crystal oscillator, half-duplex transceiver module, power up to +22dBm, receiving sensitivity -139dBm.

Automatic transceiver Switching, internal transmission and reception channel isolation, advanced LORA spread spectrum communication technology, strong anti-interference and privacy, can realize long-distance wireless data transmission and reception.




 LILYGO T-Echo NRF52840 SX1262 868mHz(with Case) Module for Arduino LoRa GPS 1.54 E-Paper WiFi BLE NFC (1)



Features of the module:
Multi-satellite positioning system L76K is a support multi-satellite system (GPS, BeiDou, GLONASS, QZSS), multi-system joint positioning and single system independent positioning, support AGNSS function, built-in low noise amplifier and surface filter, can provide users GNSS module with fast, accurate and high-performance positioning experience.
 LILYGO T-Echo NRF52840 SX1262 868mHz(with Case) Module for Arduino LoRa GPS 1.54 E-Paper WiFi BLE NFC (1)

Compared with a single GPS system, the high-precision positioning multi-satellite system greatly increases the number of visible and usable satellites, improves positioning accuracy, and can achieve stable high-precision positioning even in complex urban environments.


It supports the AGNSS function, which can greatly Reduce the time for the first positioning, built-in low-noise amplifier, can achieve high sensitivity, high-precision positioning and fast signal capture and tracking, even under weak signal conditions can also ensure a good positioning performance, built-in surface acoustic filter, can greatly The anti-interference ability of the module is enhanced, and the active antenna detection circuit and protection circuit are integrated inside to protect the module and the active antenna from damage.

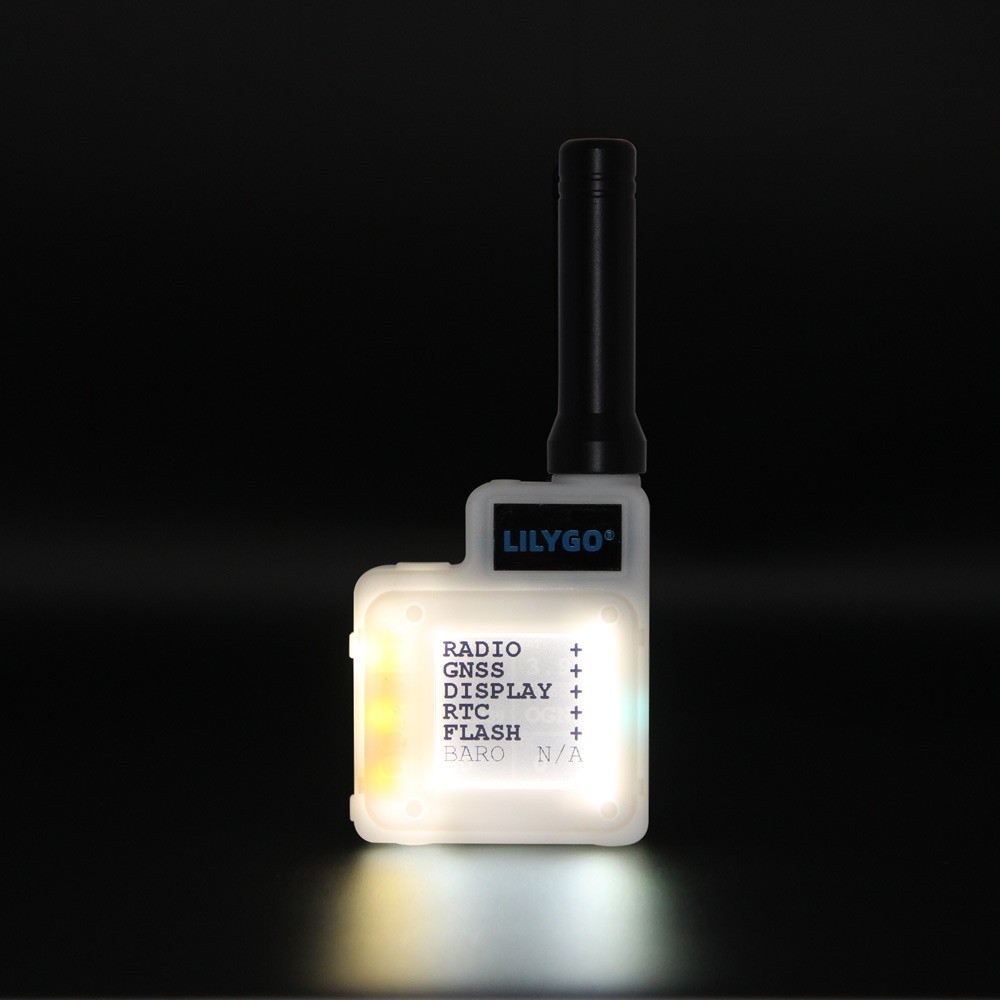

The display uses a 1.54-inch electronic paper display with front light, 200x200 resolution 1.54 front LED E-paper, and it can be used in a dark environment.

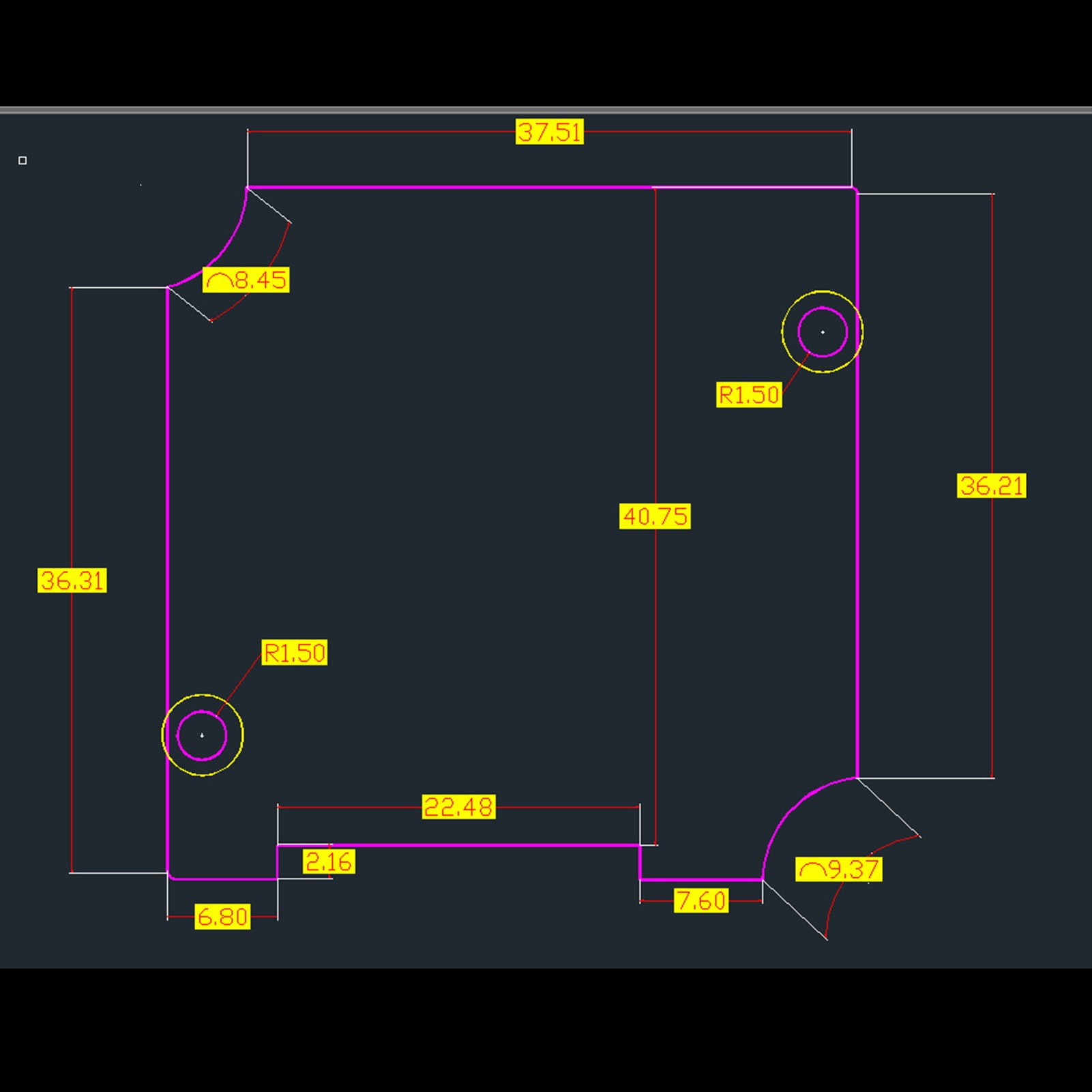

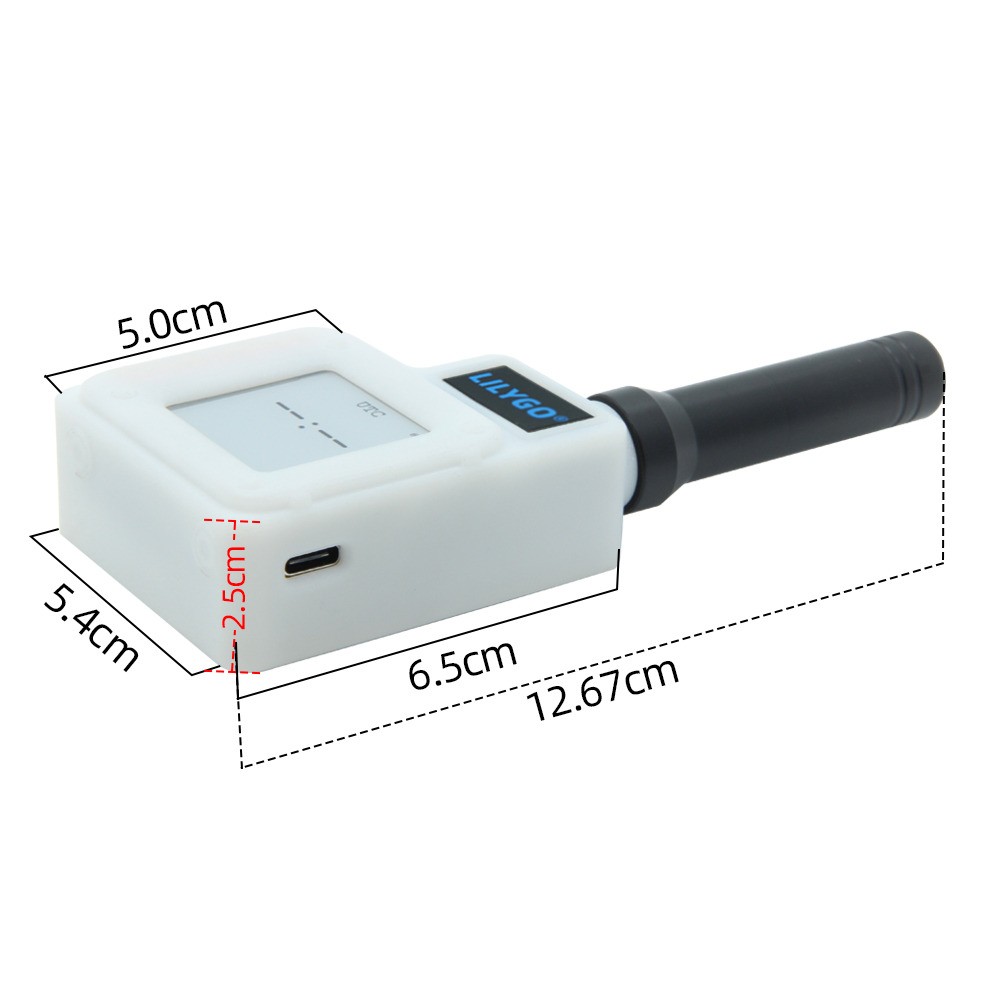

Product Size

 LILYGO T-Echo NRF52840 SX1262 868mHz(with Case) Module for Arduino LoRa GPS 1.54 E-Paper WiFi BLE NFC (1)

 LILYGO T-Echo NRF52840 SX1262 868mHz(with Case) Module for Arduino LoRa GPS 1.54 E-Paper WiFi BLE NFC (1)

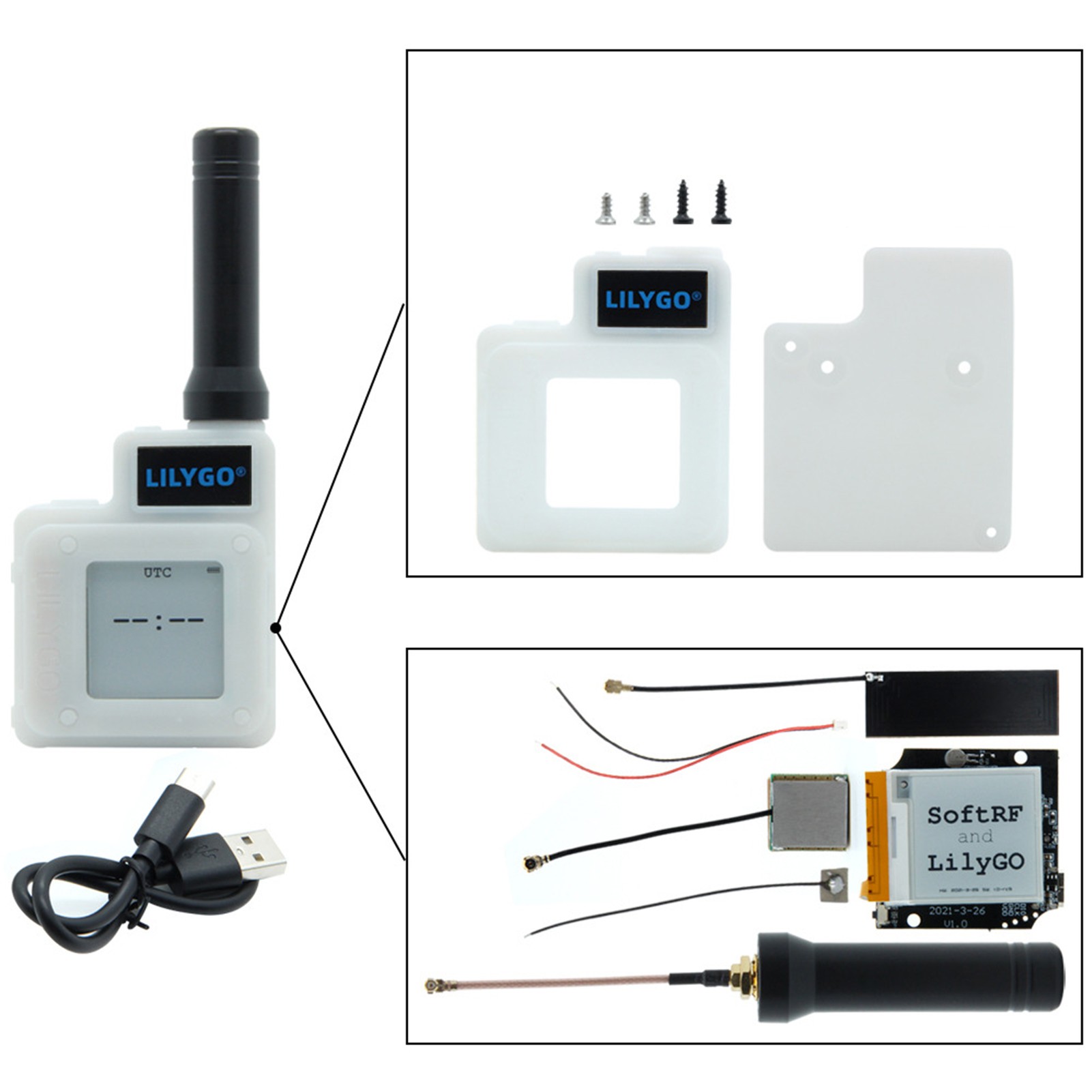

Shipping List:
1 X T-ECHO/ T-ECHO BME280 Motherboard
1 X GPS Antenna
1 X LORA 915/868/433MHz Antenna
1 X NFC Antenna
1 X Touch Cable
1 X Jst 2pin1.25mm Battery Cable
1 X TYPE-C USB cable
1 X 850mA Capacity Battery
1 X 3D Printed Enclosure
 LILYGO T-Echo NRF52840 SX1262 868mHz(with Case) Module for Arduino LoRa GPS 1.54 E-Paper WiFi BLE NFC (1)
 LILYGO T-Echo NRF52840 SX1262 868mHz(with Case) Module for Arduino LoRa GPS 1.54 E-Paper WiFi BLE NFC (1)

 LILYGO T-Echo NRF52840 SX1262 868mHz(with Case) Module for Arduino LoRa GPS 1.54 E-Paper WiFi BLE NFC (1)
