Classic products
产品名称:

LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration(1)

上市日期: 2020-06-19
建议销售价: 0

LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration

LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration



LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration

Product Description

Main Chip : ESP32-PICO-D4



Flash: 4MB



Processor : Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS

Built-in Chip : 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP,        integrated dual-mode Bluetooth (traditional Bluetooth and BLE Bluetooth low energy)



IMU : 1. LSM9DS1

          2.MPU9250



Clock Chip : PCF8563



Touch Button : TTP223



Battery : 350926 / 55mA Rechargeable Lithium Battery (LSM9DS1  And  MPU9250)

              301025 / 40mA Rechargeable Lithium Battery (LSM9DS1 Vibration And  MPU92500 Vibration



Sleep current :About 720uA

Charging Chip : TP4054



Expansion / Program Download Interface : 0.3 pitch 13pin FPC socket



Bracelet size : About 251.77mm * 19.30mm * 12.15mm

T-Wristband host size : About 47.07mm * 18.10mm * 12.10mm

Weight : 30g



Antenna : Built-in WiFi / Bluetooth Ceramic Antenna


Sensor :1. LSM9DS1     2.  MPU9250

Screen : 0.96-inch IPS

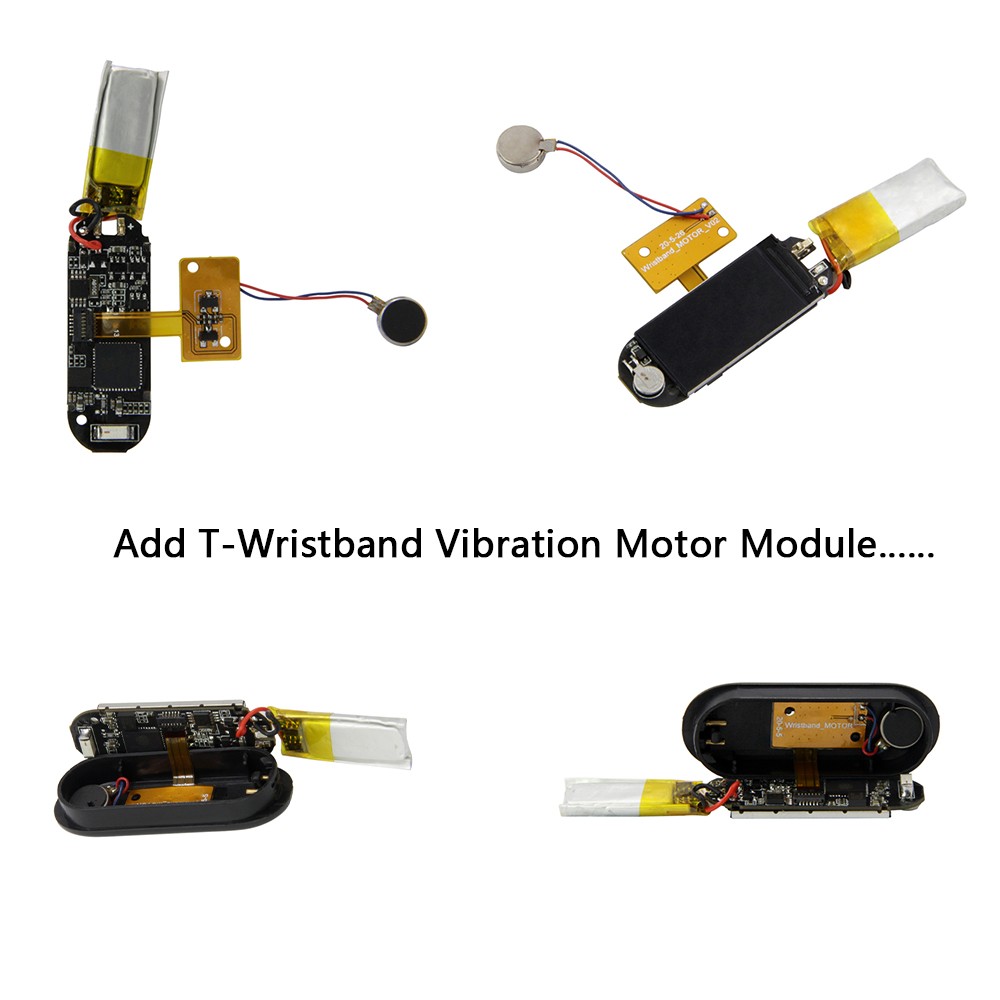

T-Wristband has a built-in PCF8563 clock chip and a matching 13PIN FPC cable. It can DIY to expand other functions by itself. At the same time, it also has built-in WiFi / Bluetooth ceramic antenna that can enhance the signal and 55mA rechargeable lithium batteryLSM9DS1  And  MPU92500)After adding the vibration motor module, the size of the LSM9DS1 vibration and MPU92500 vibration bracelet battery becomes 40 mA rechargeable lithium battery.

It is also equipped with LSM9DS1 sensor or MPU9250 sensor, Can perform posture detection! 0.96-inch IPS colorful screen, TTP223 touch key chip. Excellent color display and adjustable backlight display.


More Information

https://github.com/Xinyuan-LilyGO/T-Wristband




Product Pin

LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration


Product Size
LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration




Product Operation Introduction

LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration




LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration
LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration
LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration



Product Display

LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration

LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration





Notice

LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration

Shipping List

T-Wristband Kit  LSM9DS1 Option
1 X T-Wristband
1 X Charging Cable
1 X Silicone Strap
1 X Expansion Board
1 X FPC Line
LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration

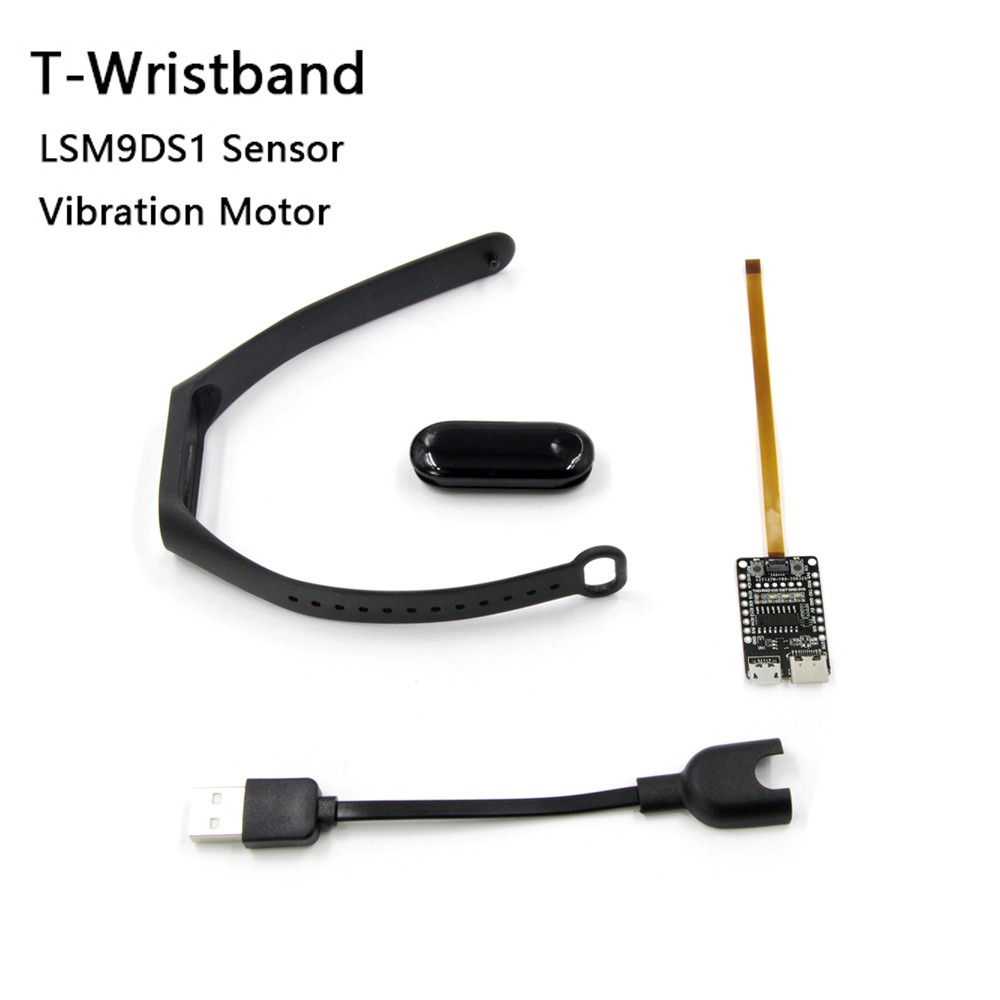

T-Wristband Kit LSM9DS1 ,Vibration Option
1 X T-Wristband (Include vibration motor module)
1 X Charging Cable
1 X Silicone Strap
1 X Expansion Board
1 X FPC Line



LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration
T-Wristband Kit  MPU9250 Option
1 X T-Wristband
1 X Charging Cable
1 X Silicone Strap
1 X Expansion Board
1 X FPC Line
LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration

T-Wristband Kit  MPU9250 ,Vibration Option
1 X T-Wristband (Include vibration motor module)
1 X Charging Cable
1 X Silicone Strap
1 X Expansion Board
1 X FPC Line
LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration
LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration

LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration
LILYGO®TTGO T-Wristband Series DIY Programmable Bracelet ESP32-PICO-D4 0.96 Inch IPS Screen MPU9250 And LSM9DS1 Module Vibration
