产品名称:

LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)

上市日期: 2019-12-23
建议销售价: 0


LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)



LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap

LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)



Product Description

Main Chip : ESP32-PICO-D4

Flash: 4MB

Processor : Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS

Built-in Chip : 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP,        integrated dual-mode Bluetooth (traditional Bluetooth and BLE Bluetooth low energy)

IMU :  LSM9DS1

Clock Chip : PCF8563

Touch Button : TTP223

Battery : 350926 / 55mAh Rechargeable Lithium Battery(Normal Versions)

                361523 / 105mAh Rechargeable Lithium Battery(Battery Plus Versions)

Charging Chip : TP4054

Expansion / Program Download Interface : 0.3 pitch 13pin FPC socket

Bracelet size : About 251.77mm * 19.30mm * 12.15mm

T-Wristband host size : About 47.07mm * 18.10mm * 12.10mm

Weight : 30g


Antenna : Built-in WiFi / Bluetooth Ceramic Antenna

Sensor : LSM9DS1 (LSM9DS1 is an alternative sensor for MPU9250)

Screen : 0.96-inch IPS


T-Wristband has a built-in PCF8563 clock chip and a matching 13PIN FPC cable. It can DIY to expand other functions by itself. At the same time, it also has built-in WiFi / Bluetooth ceramic antenna that can enhance the signal and 55mA rechargeable lithium battery. It is also equipped with LSM9DS1 sensor (LSM9DS1 is an alternative sensor for MPU9250), Can perform posture detection! 0.96-inch IPS colorful screen, TTP223 touch key chip. Excellent color display and adjustable backlight display.


More Information

https://github.com/Xinyuan-LilyGO/T-Wristband


Product Operation Introduction

LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)



Product Pin
LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)


Product Size
LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)


Product Detail
LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)
LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)
LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)



Product Display

LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)

LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)





Notice

LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)

Shipping List

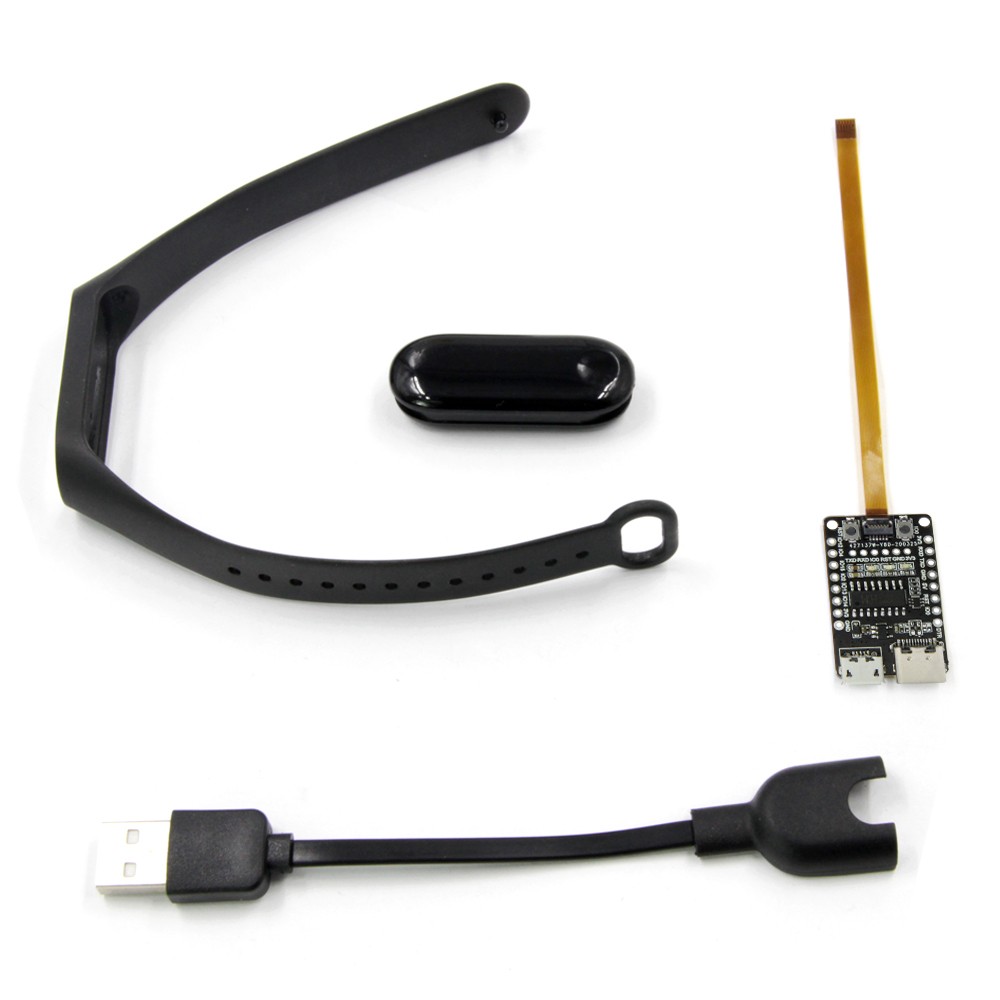

T-Wristband Kit Option
1 X T-Wristband
1 X Charging Cable
1 X Silicone Strap
1 X Expansion Board
1 X FPC Line



LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)



Charging Cable Option

1 X Charging Cable

LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)

 T-Wristband Option

1 X T-Wristband(Including Core PCB)

LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)

 Without Expandsion Board Option

1 X T-Wristband

1 X Charging Cable

1 X Silicone Strap

Notice:Can't write programs to the T-Wristband without expansion board

LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)

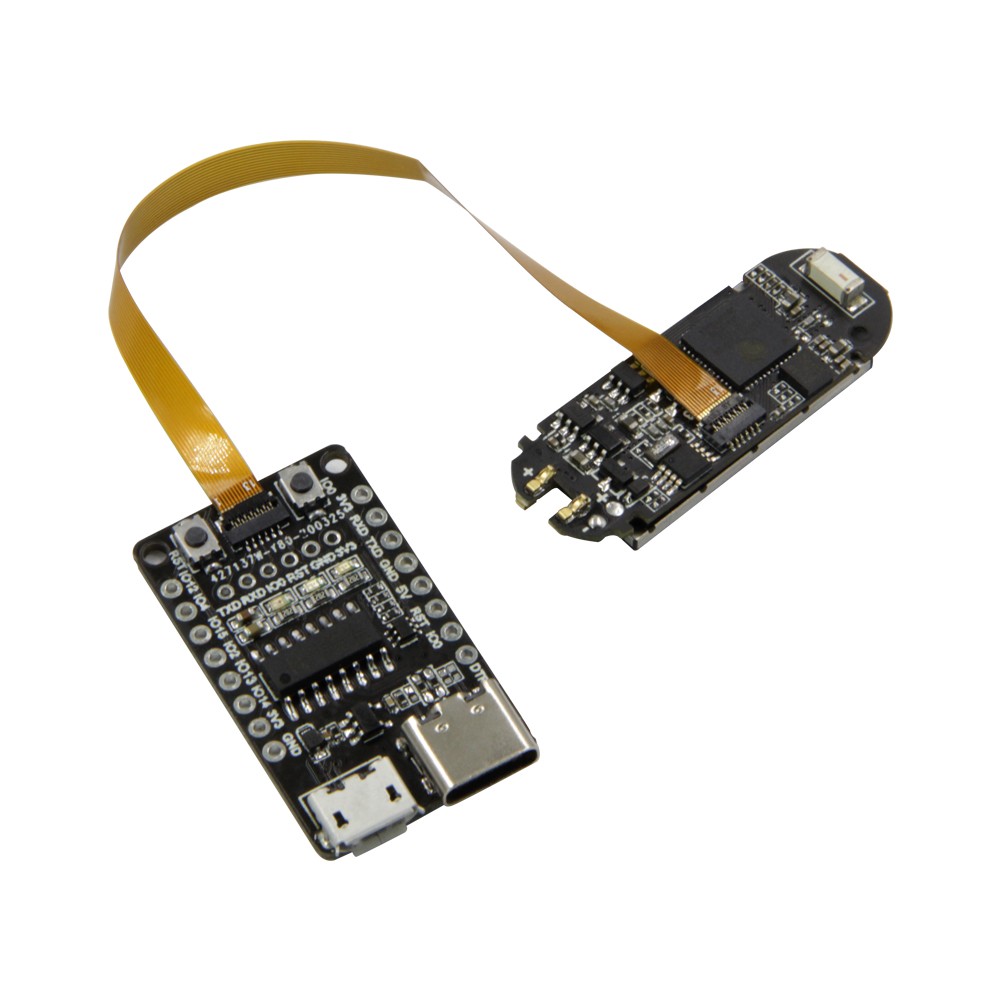

Core PCB Option

1 X Core PCB

LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)

Heart Rate Module Option

1 X Heart Rate Module

LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)

Expandsion Board Option
1 X Expansion Board
1 X FPC Line
LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)


Capsule shell Option
1 X Capsule shell(Without Core PCB)
LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)
T-Wristband Kit Battery Plus Option
1 X T-Wristband Battery Plus
1 X Charging Cable
1 X Silicone Strap
1 X Expansion Board
1 X FPC Line
LILYGO® TTGO T-Wristband DIY Programmable Smart Bracelet ESP32-PICO-D4 Main Chip 0.96 Inch IPS Screen Silicone Bracelet Strap(1)(1)(1)
